SKU

ILX2-9110SKIT

Your Customization
iLX2-9110S iLander articulating iPad wall mount in black side view USA ASSEMBLED
iLander iLX2-9110S Tablet Wall Mount: Optional Extensions

In stock

From $85.96

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

iLander iLX2-9110S Tablet Wall Mount: Optional Extensions

USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

QUICK RELEASE WALL-MOUNTED IPAD BRACKET FOR GRAB-AND-GO CONVENIENCE

  • Ideal for tablet applications requiring heavy touchscreen use
  • Secure or remove your iPad in the blink of an eye
  • Once inserted, the iPad is captive, and will not fall or pop loose
  • Easily tilt iPad up parallel to ceiling or down 45 degrees
  • Adjustable tilter swivel and tilt resistance
  • Quickly and easily rotates iPad from portrait to landscape
  • Wall mounted iLander extends 6” from the wall
  • Extensions of 3.5” and 7” provide two points of articulation
  • Combining two extensions provides three points of articulation
  • Wall mount and extensions standard in black, white, metallic gray
  • Supports iPad 2, 3, and 4. Not suitable for other tablet sizes

The iLX2-9110S is a convenient and sturdy ergonomic solution for applications requiring temporary positioning of a tablet near a wall yet within easy reach. The iLander’s unique design provides unmatched convenience and peace of mind: instantly snap your iPad into the iLander X2 and it will be firmly positioned there until you are ready to release it by engaging two swinging latches. The ILX2-9110S provides a sturdy wall mounting solution allowing the iPad to be positioned against the wall or at a desired distance from it using several extension options that can be configured to satisfy a variety of spatial requirements. The iLander iLX2 is designed to fit iPad 2, 3, and 4 using no skins or covers.

This system has numerous applications: in hospital environments, in recording studios, mounted to a wall adjacent to a bed, near personal fitness equipment, or simply anywhere a person wishes to safely suspend an iPad and then have the ability to instantly remove the unit. The inertia due to the steel construction of the bracket and the adjustable tilt and swivel resistance of the mount make this system well-suited for touchscreen use. The iLander and the extensions won’t wiggle or scoot away when used in typical applications.

The wall mount and extensions are constructed from cast aluminum and steel components and are designed for use in commercial and medical applications and have a proven track record for strength, steadiness, ease of movement and long term performance. Ergomart stocks the iLander bracket in Black, but the mount and extensions may be ordered in up to five colors.

Shipping Weight 9 pounds
Shipping Dimensions 17" x 14" x 9"
Warranty 5 year limited
Note: Currently not a Quick Ship item.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

iLX2-9110S
MOUNTING PLATE AND SIDE VIEW

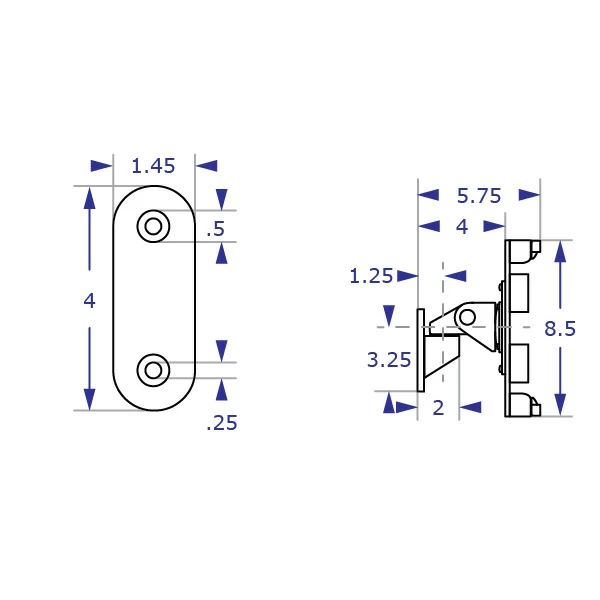

ILX2-9110S Specification drawing of articulating wall tablet mount from back and side views depicting various dimensions

The first figure above shows the wall mounting plate and the mounting hole locations. When the iLander is mounted directly to the wall mount and the tilter head is not rotated, the front plane of the iLander is at 6" from the wall.



iLX2-9110S
3.5" EXTENSION

ILX2-9110S Specification drawing of articulating tablet wall mount from side view with one 3.5 inch extension

Adding a single 3.5" extension increases the distance from the wall to the front plane of the iLX2-9110S to 9.5”.



iLX2-9110S
7" EXTENSION

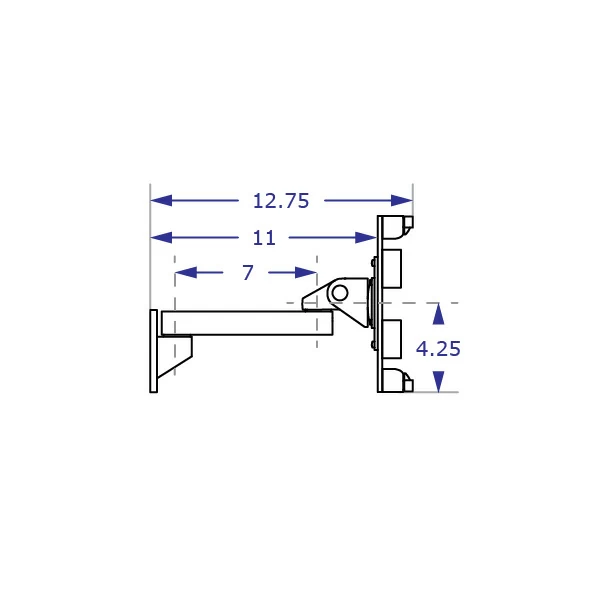

ILX2-9110S Specification drawing of articulating tablet wall mount from side view with one 7 inch extension

Adding a single 7" extension increases the distance from the wall to the front plane of the iLX2-9110S to 13”.



iLX2-9110S
ARTICULATING 7" EXTENSION

ILX2-9110S Specification drawing of articulating wall tablet mount from top with two 3.5 inch extensions

When two 3.5" extensions are combined, the front plane of the iLander can be positioned at 13" from the wall.



iLX2-9110S
ARTICULATING 10.5" EXTENSION

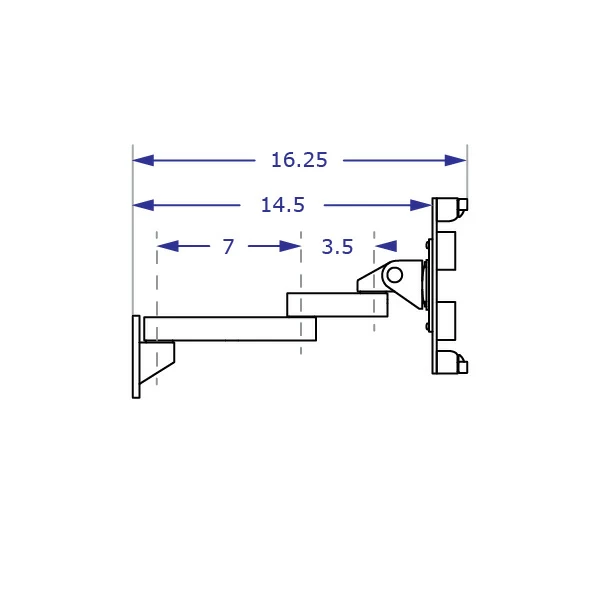

ILX2-9110S Specification drawing of articulating wall tablet mount from top with a 3.5 and 7 inch extension

When a 3.5" and 7" extensions are combined, the front plane of the iLander can be positioned at 16.5" from the wall.



iLX2-9110S
ARTICULATING 14" EXTENSION

ILX2-9110S Specification drawing of articulating wall tablet mount from top with two 7 inch extensions

When two 7" extensions are combined, the front plane of the iLander can be positioned at 20” from the wall.



iLX2-9110S
TOP VIEW

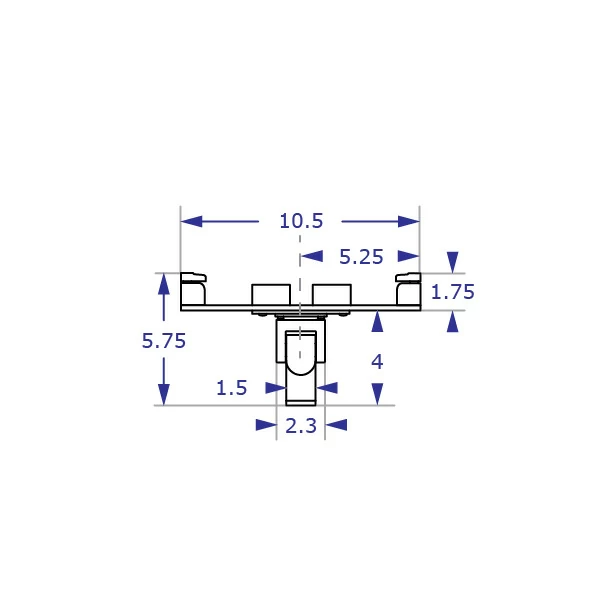

ILX2-9110S Specification drawing of articulating tablet wall mount from top view

When the iLander is mounted directly to the wall mount and the tilter head is not rotated, the front plane of the iLander is at 6" from the wall.



iLX2-9110S
3.5" EXTENSION - TOP VIEW

ILX2-9110S Specification drawing of articulating tablet wall mount from top view with one 3.5 extension

Adding a single 3.5" extension increases the distance from the wall to the front plane of the iLX2-9110S to 9.5”.



iLX2-9110S
7" EXTENSION - TOP VIEW

ILX2-9110S Specification drawing of articulating tablet wall mount from top view with one 7 extension

Adding a single 7" extension increases the distance from the wall to the front plane of the iLX2-9110S to 13”.



iLX2-9110S
ARTICULATING 7" EXTENSION - TOP VIEW

ILX2-9110S Specification drawing of articulating wall tablet mount from top with two 3.5 inch extensions

When two 3.5" extensions are combined, the front plane of the iLander can be positioned at 13" from the wall.



iLX2-9110S
ARTICULATING 10.5" EXTENSION - TOP VIEW

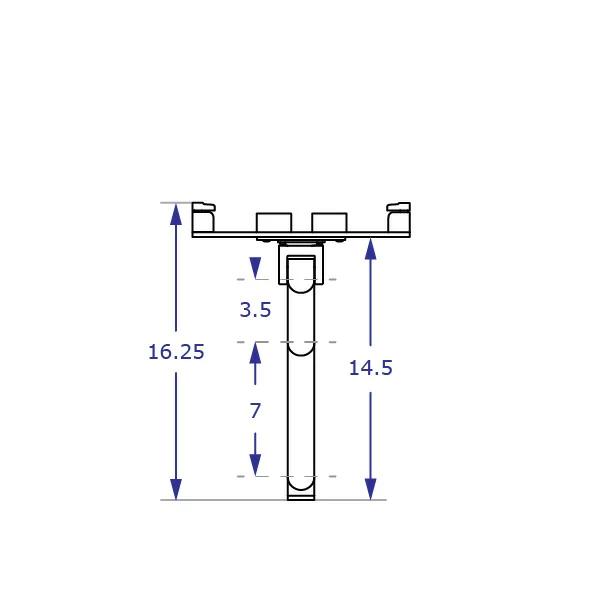

ILX2-9110S Specification drawing of articulating wall tablet mount from top with a 3.5 and 7 inch extensions

When a 3.5" and 7" extensions are combined, the front plane of the iLander can be positioned at 16.5" from the wall.



iLX2-9110S
ARTICULATING 14" EXTENSION - TOP VIEW

ILX2-9110S Specification drawing of articulating wall tablet mount from top with two 7 inch extensions

When two 7" extensions are combined, the front plane of the iLander can be positioned at 20” from the wall.



iLX2-9110S
ARTICULATING 7" EXTENSION - TOP VIEW
TABLET TURNED 90°

ILX2-9110S Specification drawing of articulating tablet mount from top view with two 3.5 inch extensions bracket perpendicular to wall

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 8.6 inches from the wall using the two extensions.



iLX2-9110S
ARTICULATING 10.5" EXTENSION - TOP VIEW
TABLET TURNED 90°

ILX2-9110S Specification drawing of articulating tablet mount from top view with 3.5 and 7 inch extensions with bracket perpendicular to wall

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 12.1 inches from the wall using a 3.5" and 7" extensions.



iLX2-9110S
ARTICULATING 14" EXTENSION - TOP VIEW
TABLET TURNED 90°

ILX2-9110S Specification drawing of articulating tablet mount from top view with two 7 inch extensions and bracket perpendicular to wall

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 15.6 inches from the wall using the two 7-inch extensions.



iLX2-9110S
ARTICULATING 7" EXTENSION - SIDE VIEW
TABLET TURNED 90°

ILX2-9110S Specification drawing of articulating wall tablet mount from side view with two 3.5 inch extensions bracket facing foward

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 8.6 inches from the wall using the two extensions.



iLX2-9110S
ARTICULATING 10.5" EXTENSION - SIDE VIEW
TABLET TURNED 90°

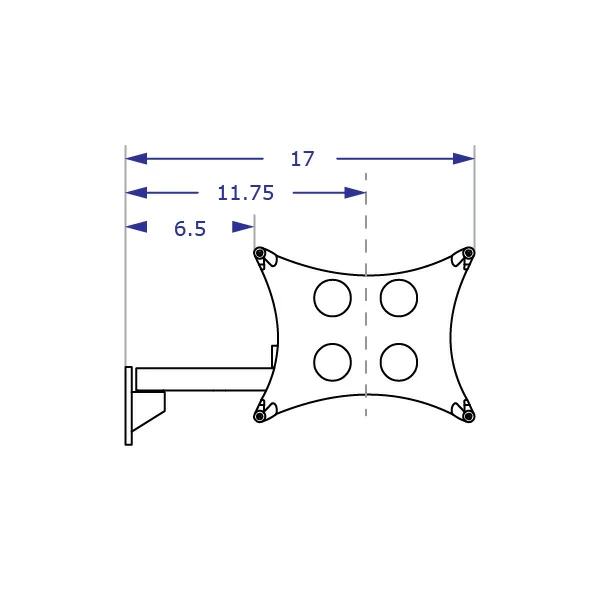

ILX2-9110S Specification drawing of articulating wall tablet mount from side view with 3.5 and 7 inch extensions with bracket facing foward

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 12.1 inches from the wall using a 3.5" and 7" extensions.



iLX2-9110S
ARTICULATING 14" EXTENSION - SIDE VIEW
TABLET TURNED 90°

ILX2-9110S Specification drawing of articulating wall tablet mount from side view with two 7 inch extensions bracket facing foward

When the horizontal arms are extended and the iLander is rotated 90 degrees, the center of the viewing surface of the iPad can be positioned at 15.6 inches from the wall using the two 7-inch extensions.



Leave a Review
You're reviewing:iLander iLX2-9110S Tablet Wall Mount: Optional Extensions
Start Rating
  • Will this device accept other tablets?

    In most cases the answer is no, the iLander iLX2 bracket component is not adjustable and was specifically designed to hold iPad 2, 3 and 4 models without skins (some very thin skins will work however). It will fit other devices if the dimensions are no smaller than 9.375 x 7.250 x .300 inches and no greater than 9.5 x 7.5 x .750 inches.

  • The skin on my iPad is very thin, are you sure it won’t fit in the iLX2?

    Please carefully measure your ipad and skin and if it is less than 9.5 x 7.5, it will fit. If not, you will want to use the adjustable iLA1.

  • I like the sleek and simple look of this iLX2 and prefer it over the adjustable iLA1… but I have a Dell XPS 10.1 tablet. What are my options?

    You can contact Ergomart to see if we are currently considering adding a production model that is compatible with your specific device. Also we are able to do short production runs as small as 48 units in some cases if you can meet such a minimum requirement. It is best to simply contact an Ergomart representative for assistance.

  • I need an iLander for my iPad and it has a thick skin, do you offer any other solutions that allow me to instantly insert or remove my iPad?

    Please choose one of the iLA1 models that are designed to hold a wide variety of tablets made by numerous manufacturers. While the highly adjustable bracket is more expensive than the fixed iLX2, it will fit almost all 8.9 to 12 inch tablet products. Tablets with dimensions no less than 8.875 x 6.5 x .325 inches and no greater than 13.125 x 10 x .75 inches will easily fit the iLA1.

  • I have a 2” thick tablet and I see your offerings max out at about .75” thick. Can I use your product and make it work somehow?

    We can provide custom extensions that will fit tablets as thick as 4” and still provide the same instant snap-in and snap-out functionality.

  • Does this product allow me to lock my iPad in place so it is not easily stolen?

    No – the iLX2 is designed for instant snap in and instant snap out utility and should only be used in environments where there is no concern of theft. See our tablet and iPad reference guide to select a theft resistant solution.

  • Why is the iLander so heavy, I guess I thought it would be lighter weight?

    The iLX2 and iLA1 or purposefully designed with heavy steel back plates. The weight (mass) enables the pads to A: resist casual and unintended movements when the user is actively touching the screen and B: provides a payload compatible with the weight range of most of our monitor arms.

  • What is the weight range of this arm if I remove the iLander Bracket and use it to hold a regular VESA compliant monitor?

    This arm will hold monitors weighing between 4 pounds to 9 pounds.

  • Can I just order the iLander Bracket by itself – will it attach to other monitor arms?

    Yes you may order the iLX2 for $54.50 plus shipping by calling in your order at 888 420 3200 -- and yes the iLander will attach to all 100 x 100 VESA hole pattern capable arms. If you plan to attach to an arm with a gas spring or a mechanism that counter balances the weight of the payload, make sure that your arm will balance 4.5 pounds. If the arm is not adjustable down to 4.5 pounds, you will be unable to lower the iLander and iPad for a fully functioning solution.
