Talk to an ergo expert: (888) 420-3200 or Email Us

SKU

ETT500

ETT500

ETT Electric Adjustable Table

USA ASSEMBLED
  • A durable ergonomic worktable built for heavy loads
  • Motorized height and tilt adjustment for 500 lb
  • Push button controls for easy & infinite positioning
  • Standard worksurfaces are laminated gray
  • One-inch MDF with dark T-molding
  • You may customize the tops or order just the base
  • Contact us to customize and order
$3,861.90
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

The ETT Adjustable Work Positioning Table Handles Heavy Jobs

  • Electric motors power height and tilt adjustments
  • Powerful 500 pound lift and tilt in standard configuration
  • ADA configuration has tilt mechanism and motor to right side
  • Choose with or without work top—custom tops are available
  • Tops are laminated gray 1 inch MDF with 3mm edge molding
  • Use as an ergonomic work positioner for extra heavy loads
  • Ships virtually assembled and ready for use in minutes
  • Push button controls allow for easy & infinite positioning
  • Handles work tops as wide as 78" and as deep as 48"
  • Top elevates from 29.5" to 45" in just 25 seconds
  • Top tilts from 0 to 55° in just 18 seconds
  • Perfect for industrial wire harness tools

We are happy to design and configure a version of the ETT Adjustable Height and Tilt Table to meet your custom height, weight and surface positioning requirements. Options such as ESD, retractable ball transfer systems, custom top materials, and secondary work positioners mounted to the work top are all available. Select from 15 possible table top sizes or order without a work surface. Standard tops are medium gray with dark T-molding edge. Please call if you have questions or need a customization: 888 420 3200.

ETT500

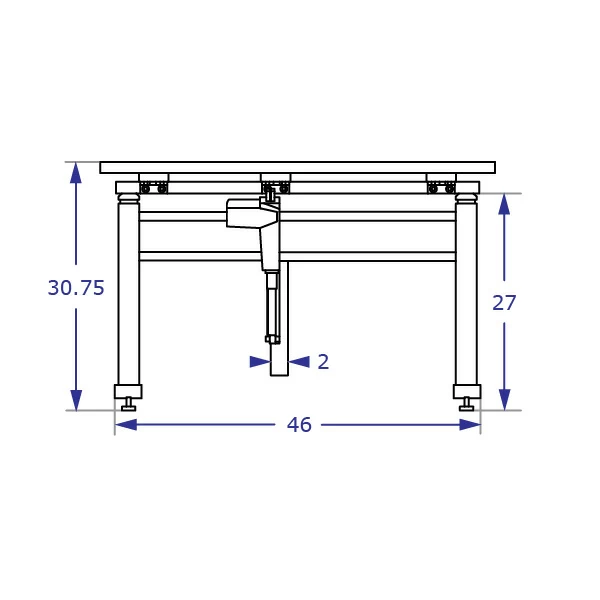

LOWEST POSTION - FRONT

ETT500 Specification drawing of power tilt top height adjustable table from front view

Here the table is shown in the lowest position with a flat table top. Excluding the table top, the ETT Power Column Table is 29.50 inches high. Ergomart's standard table tops are 1.25 inches thick.



ETT500
ADA CONFIGURATION - FRONT

ETT500 Specification drawing of power tilt top height adjustable table from front view

ADA configuration has tilt mechanism and motor to right side. Options such as ESD, retractable ball transfer systems, custom top materials, and secondary work positioners mounted to the work top are all available.



ETT500
HIGH & LOW POSITION

ETT500 Specification drawing of power tilt top height adjustable table from side view with top in low and high positions

Here the table is shown in the lowest and highest vertical positions. In the highest vertical setting, not including the table top width, the ETT can be set to 45 inches for standing work. The table top elevates electronically from 29.5 inches to 45 inches vertically in just 25 seconds.



ETT500

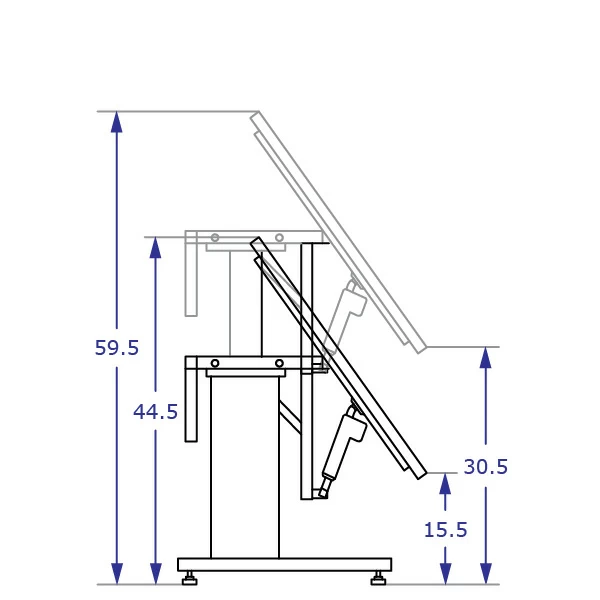

36" WORKSURFACE - SIDE

ETT500 Specification drawing of power tilt top height adjustable table from side view with 36 inch deep top tilted in low and high positions

ETT500 Specification drawing of power tilt top height adjustable table from side view with 36 inch deep top tilted in low and high positions.



ETT500
48" WORKSURFACE - SIDE

ETT500 Specification drawing of power tilt top height adjustable table from side view with 48 inch deep top tilted in low and high positions

The ETT500 comes with many sizes of work surfaces depending upon your needs. The 48 inch deep work surface is shown above.



  • Can this come with casters?

    Yes, this unit can be ordered with casters. Please contact customer support for more information on ordering this unit.
