IS-LS-KIT Compact keyboard tray attached to front edge of desktop with steel mouse tray shown with mouse and keyboard
IS-LS Houdini Adjustable Keyboard Tray System

In stock

From $139.84

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

IS-LS Houdini Adjustable Keyboard Tray System

USA MADE
Please wait while your content is loading.

REQUIRED ITEMS

Perfect for Offices with a Narrow Return or Limited Space

  • Dual stage mechanism stows like a short arm; reaches like a conventional arm
  • Fits with a short return: a great space-saving configuration
  • Get maximum flexibility with a full 20° negative tilt & 10° positive tilt
  • Highly accessible tilt control ensures quick, simple tray tilt adjustments
  • 17.75" track fits under desk or return with 6" x 18" of space underneath
  • Effortlessly adjust height with the simple lift and lock mechanism
  • Slim profile allows for optimal knee clearance while in use or retracted
  • Select from 8 tray options to fit your budget & workspace needs
  • Easily swivel the arm 360° on the track
  • Optional secondary keyboard tray swivel is available
  • Optional positive tilt lockout is available

Wedged into a tight corner desk or working in a small office space? Need to attach a keyboard to a narrow return? Make your space work for you—not against you—with this articulating keyboard tray system. The IS-LS Houdini keyboard arm is a versatile workspace solution that reaches out past the desk edge yet retracts and stows neatly out of the way. The 17.75 inch track accommodates narrow workspaces, and the dual stage mechanism allows the tray to fully retract under the desk. The keyboard arm offers a total vertical travel range of 8 inches—3 inches above the track and 4.25 inches below. This intuitive touch arm is a breeze to lift and tilt so you can set your keyboard tray where you want it when you want it.

The IS-LS features a convenient, easy-to-use soft-touch wheel for adjusting the tilt of the keyboard tray over a large range of angles — from 20° negative to 10° positive. Some ergonomic guidelines suggest that positive tilt may be detrimental to wrist comfort and safety. The IS-LS offers the option to allow only negative tilt with the "positive tilt lockout" selection.

The adjustable keyboard tray also offers, as standard, the ability to rotate the mechanism a full 360° where the arm meets the track. An additional option (front swivel) adds another swivel plate that will allow the keyboard tray to rotate 360° where the arm meets the keyboard tray.

The IS-LS tray system can be configured with one of many keyboard and mouse platform options, each designed to satisfy a variety of user needs. Please refer to the Drawings > Tray Options tab above for more information on the available selections.

With its high-performing, easy to use, whisper-quiet mechanism and a wide selection of premium keyboard platforms to choose from, the IS-LS offers truly exceptional value.

Shipping Weight 13 pounds
Shipping Dimensions 23" x 17" x 6"
Warranty 5 Year limited
Not a Quick Ship item: please allow 10 days for shipment

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Keyboard/Mouse Weight Range

All Keyboards/Mice

Max Tray Height Above Desk

2.25"

Reach/Track Length

17.75", 21", 23" tracks

Max Swivel (Arm on Track)

360°

Front Swivel (Tray on Arm)

Optional 360°

Tray Tilt Range

+10° up, -20° down

Positive Tilt Lockout

Optional

Trays

  • Slim Natural 19"
  • SlimForm 19"
  • Clamp w/ Mouse Tray
  • SlimForm 27"
  • Mouse Around
  • Spectra Aesthetic
  • 20" Budget Tray
  • 26" Budget Tray
  • Omniboard

ARM & TRACK
TRAY OPTIONS
ARM & TRACK

IS-LS - ARM AND TRACK

IS-LS-KIT ergonomic keyboard tray specification drawing isometric view with measurements

The arm mechanism and track have a total length of 27.75". The width of the arm is 5.75" at its widest and the track is slightly less at 5.5".



IS-LS - ARM - TOP VIEW

IS-LS-KIT ergonomic keyboard tray with track and tray removed specification drawing top view with measurements

The keyboard arm on its own without both the platform or track measures 15" in length and 5.75" in width.



IS-LS VERTICAL RISE

IS-LS-KIT ergonomic keyboard tray specification drawing showing a side view of tray height adjustment with measurements

This articulating keyboard arm offers a total travel range of 7.25 inches (3 inches above the work surface and 4.25 inches below). Effortlessly adjust height with the simple lift and lock mechanism.





IS-LS - ARM RETRACTION

IS-LS-KIT ergonomic keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

The 17.75" track fits under any desk with 6" wide x 18" deep of space underneath. The arm can be pulled to the forward edge of the track and extends 13" beyond the edge or can be retracted beneath the desk when not in use.



IS-LS - TRAY TILT

IS-LS-KIT ergonomic keyboard tray specification drawing side view showing keyboard tray tilt measurements

The IS-LS Articulating Keyboard Tray offers maximum ergonomic flexibility with a full 20° negative tilt and 10° positive tilt. Highly accessible tilt control ensures quick, simple tray tilt adjustments.



IS-LS - TRAY ROTATION

IS-LS-KIT ergonomic keyboard tray specification drawing top view demonstrating keyboard tray swivel

The swivel point for the keyboard arm is located at the spot where the arm meets the track. For added adjustability, a second swivel point can be added at the point where the arm attaches to the tray.



TRAY OPTIONS

SLIMNATURAL19 KEYBOARD TRAY
FOR MICROSOFT® NATURAL™ KEYBOARD

Image of SlimNatural19 Keyboard Tray for Microsoft Natural Keyboard isometric view

Fits Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards.  This tray option does not come with a palm rest.



SLIMNATURAL19 KEYBOARD TRAY
TOP VIEW

Image of SLIMNATURAL19 KEYBOARD TRAY top view

The thin yet durable phenolic tray material allows complete knee clearance while the Tilt and Swivel mouse platform provides infinite adjustment.  The mouse tray may be installed to the left or right side.The SlimNatural19 tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.



SLIMNATURAL19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMNATURAL19 KEYBOARD TRAY with measurements top view

The mouse platform is removable and can be placed on either the right or left side for quick and easy customization.  Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.



SLIMFORM19 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForml19 Keyboard Tray for Microsoft Natural Keyboard isometric view

This stylish and popular SLIMFORM19 design handles any standard keyboard and comes equipped with a mouse tray that may be assembled to the right or left side.  The palm rest is a cormfortable soft foam material that may be wiped clean with water and mild detergent.



SLIMFORM19 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM19 KEYBOARD TRAY top view

The SLIMFORM19 tray is constructed from a thin phenolic material that will last many years and will maintain its finish just like tough plastic laminate surfaces materials used for commercial furniture. Tilting and Swiveling mouse platform with removable Gel pad provides infinite adjustment and ensures correct ergonomic positioning.



SLIMFORM19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM19 KEYBOARD TRAY with measurements top view

The main keyboard platform is 19.5 inches wide and easily accomodates keyboards up to 7.5 inches deep and 19 inches wide.  The 8.5 inch mouse surfaces pivots front to back and can actually be rotated underneath the surface if the mouse is removed.



SLIMFORM27 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForm27 Keyboard Tray for Microsoft Natural Keyboard isometric view

The most popular keyboard tray offering from Ergomart is the SLIMFORM27.  It provides ample room for a standard keyboard and a mouse, vertical mouse or most specialty input devices. A palm waterproof foam rest reaches across the entire front edge.  Wipe tray and palm rest with a damp cloth to keep the kit looking brand new for years to come.  Built for and used in commercial applications, this system is preferred by facilities managers and Ergonomists over many other competing products.



SLIMFORM27 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM27 KEYBOARD TRAY top view

The 1/4" thin phenolic tray material enhances knee clearance.  The SLIMFORM27 comes with one mouse pad that can be placed either the left or right side of the keyboard.  The cord manager along the back edge also helps prevent the mouse from rolling off of the surface when the tray front is tilted upward.



SLIMFORM27 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM27 KEYBOARD TRAY with measurements top view

With a 27 inch horizontal span the SlimForm27 keyboard tray has plenty of room for both a keyboard and mouse in one solid unit The 8.25 inch diameter mouse pad can be placed on either the right or left side.

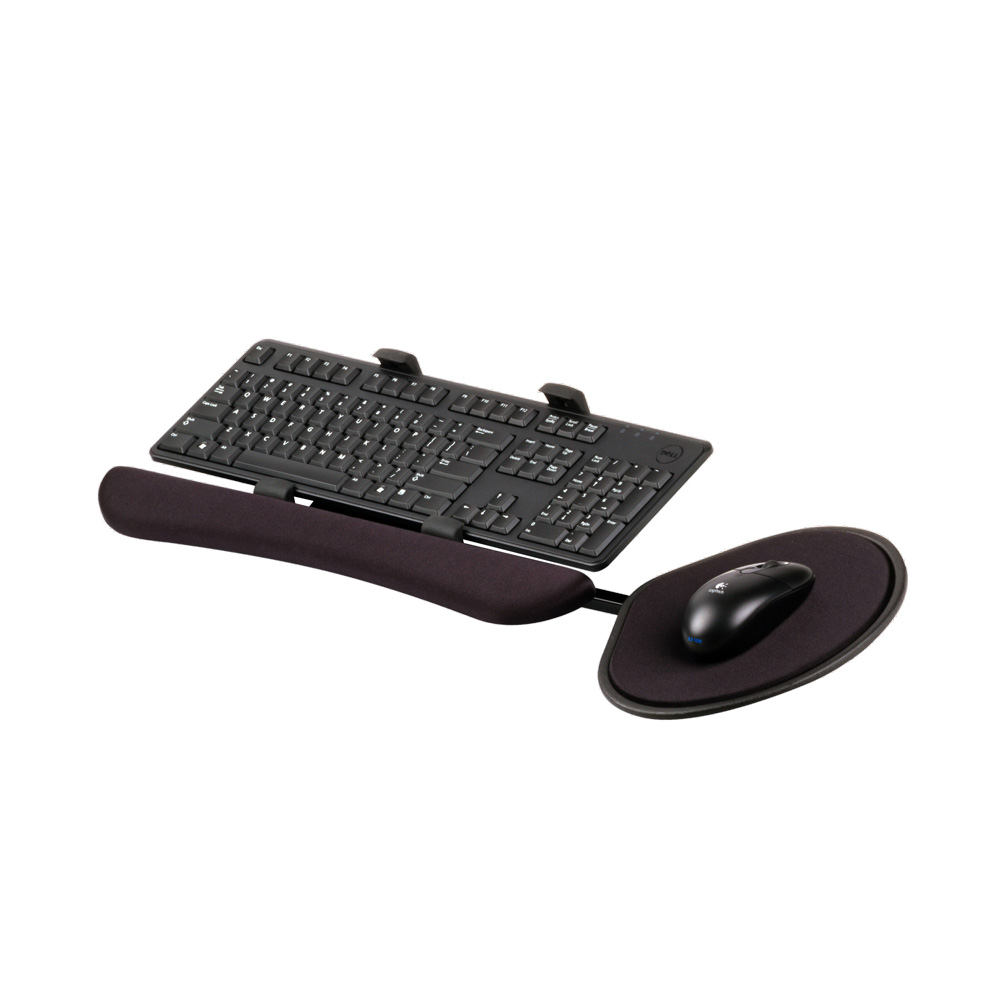

CLAMP STYLE KEYBOARD HOLDER
WITH MOUSE TRAY

Image of CLAMP STYLE KEYBOARD HOLDER isometric view

Sure squeeze design firmly holds keyboard in place



CLAMP STYLE KEYBOARD HOLDER
TOP VIEW

Image of CLAMP STYLE KEYBOARD HOLDER top view

Mouse platform plugs in for right or left handed use. Tilt & Swivel mouse provides infinite adjustment, while the Gel palm rest provides maximum ergonomic comfort. The Clamp Style Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



CLAMP STYLE KEYBOARD HOLDER
SPECIFICATION DRAWING

Specification drawing of CLAMP STYLE KEYBOARD HOLDER with measurements top view

The mouse platform is removable and can be placed on either the right or left side for easy customization.



MOUSEAROUND KEYBOARD TRAY
ISOMETRIC VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform isometric view

Mouse design smoothly slides right-to-left & and has forward adjustment, and features both straight and curved sliding mouse motion in one tray.



MOUSEAROUND KEYBOARD TRAY
TOP VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform top view

Mouse platform plugs in for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort. The MouseAround Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



MOUSEAROUND KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of MouseAround Keyboard Tray Holder with adjustable mouse platform with measurements top view

The mouse platform can be easily placed on either the right or left side for easy customization.



OMNIBOARD KEYBOARD TRAY
ISOMETRIC VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform isometric view

Simply the best solution for multiuser workstations, no other keyboard tray comes close to this overachiever. The Mouse platform instantly moves for left and right handers.



OMNIBOARD KEYBOARD TRAY
TOP VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform top view

The mouse platform with cord manager of the OmniBoard can be moved for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort.



OMNIBOARD KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of OmniBoard Keyboard Tray Holder with adjustable mouse platform with measurements top view

The OmniBoard mouse platform can be easily swung from the right or left side for easy customization.



TRS20
20" BUDGET TRAY

Image of TRS20 Keyboard Tray Holder isometric view

Standard 20 x 8.5 inch tray is ideal for use with keyboard only.



TRS20 KEYBOARD TRAY
TOP VIEW

Image of TRS20 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS20 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS20 Keyboard Tray Holder with measurements top view

The total footprint of the TRS20 is a mere 20 by 8.5 inches.



TRS26
26" BUDGET TRAY

Image of TRS26 Keyboard Tray Holder isometric view

Standard 26 x 8.5 inch tray is ideal for use with keyboard only.



TRS26 KEYBOARD TRAY
TOP VIEW

Image of TRS26 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS26 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS26 Keyboard Tray Holder with measurements top view

The total footprint of the TRS26 is a mere 26 by 8.5 inches.



  • Can you explain what "positive tilt lockout" is? I see that is restricts the tilt range to -20 to horizontal. But I'm not sure which direction is positive and which is negative.

    Positive tilt is when the back side of the tray is above the height of the front of the tray. We offer the positive tilt lockout for those who do not want to utilize positive tilt.

  • Can the mouse pad go on the other side if I'm left-handed?

    Yes, all of the platform options offer the option of the mouse on the left or right side.

  • Does the mouse platform retract?

    The mouse platform attachment can be rotated or pivoted underneath the tray as well as forward. In the stowed position, the mouse must be placed alongside the keyboard on the wider tray since the mouse tray rests snugly beneath.
