Talk to an ergo expert: (888) 420-3200 or Email Us

SKU

IS-C-KIT

Your Customization
IS-C-KIT Compact rectangular keyboard tray attached to front edge of desktop with steel mouse tray shown with mouse and keyboard
IS-C Compact EasyRider Ergonomic Keyboard Tray System

In stock

From $66.00

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

IS-C Compact EasyRider Ergonomic Keyboard Tray System

Please wait while your content is loading.

REQUIRED ITEMS

SOLID VALUE WITH ALL THE REQUISITE FUNCTIONS FOR ERGONOMIC POSITIONING OF THE KEYBOARD

  • Adjusts 5.75": from 1" above surface to 4.75" below
  • The IS-C tilts a total of 30°— 15° both positive and negative
  • Arm comes with generous 17.75" track
  • Accommodates a keyboard tray or a clamp, with an optional mouse platform
  • Palm support is comfort covered in vinyl foam
  • Platform & arm fit all the way under 20" deep work surface
  • For corner desks, please see the IS-ER Adjustable Keyboard Tray

Ergonomic, functional and affordable, the IS-C Compact EasyRiser keyboard arm is compact while offering an excellent range of vertical adjustment and tilt. Designed for stowing on shallow desk returns, the mechanism fully retracts on its 17.75" track while maximizing knee clearance. This space-saving mechanism still manages to provide 5.75 inches of vertical travel and 30° of total tilt range. A single knob below the keyboard surface sets both height and tilt. Simply loosen, adjust to the most comfortable position, and then tighten. The spring counterbalance makes height positioning quick and easy. Once set, the height and tilt remain stable.

ARM & TRACK
TRAY OPTIONS
ARM & TRACK

IS-C
ARM AND TRACK

IS-C-KIT ergonomic keyboard tray specification drawing isometric view with measurements

Without the tray attached, the arm and track are 25.25" in combined length. The track is 5.5" in width and the arm only slightly wider at 5.75".



IS-C
ARM - TOP VIEW

IS-C-KIT ergonomic keyboard tray with track and tray removed specification drawing top view with measurements

The arm on its own, without either the track or the tray, is a compact 12.5" in length and 5.75" in width.



IS-C
VERTICAL RISE

IS-C-KIT ergonomic keyboard tray specification drawing showing a side view of tray height adjustment with measurements

A single knob controls both the height and tilt capabllities. The image shows that height can be adjusted from flush with the work surface to 5.75 inches below.





IS-C

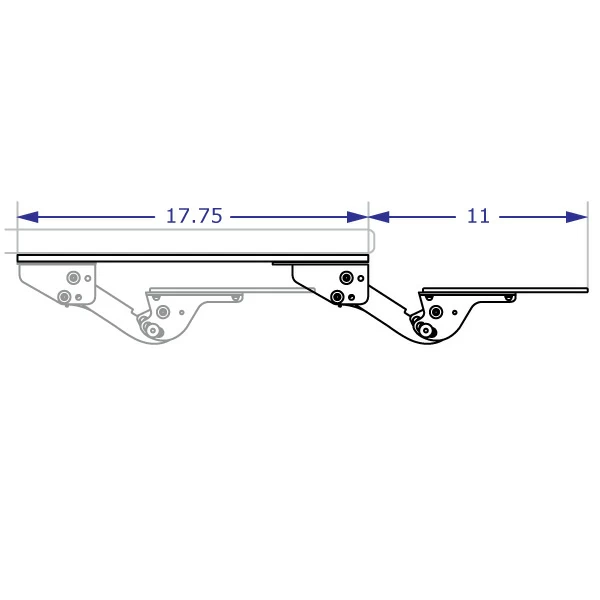

ARM RETRACTION

IS-C-KIT ergonomic keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

The 17.75" track allows the user to completely retract the arm and tray beneath the work surface when not in use. When brought forward to the front edge of the track, the arm and tray reach out approximately 11".



IS-C
TRAY TILT

IS-C-KIT ergonomic keyboard tray specification drawing side view showing keyboard tray tilt measurements

The tray tilts both 15 degrees positive and 15 degrees negative from horizontal for a total range of 30 degrees.



IS-C
TRAY ROTATION

IS-C-KIT ergonomic keyboard tray specification drawing top view demonstrating keyboard tray swivel

The arm can rotate a full 360 degrees at the point where it attaches to the arm, as long as it is unobstructed.



TRAY OPTIONS

VALUE BOARD WITH MOUSE PLATFORM
& Foam Palm Rest

Image of Value Board with Mouse Platform and Foam Palm Rest isometric view

The 20" x 11" x .25" medium density fiberboard platform provides ample space for a keyboard. The platform is only 1/4" thick, but is sturdy and durable.



VALUE BOARD WITH MOUSE PLATFORM
TOP VIEW

Image of Value Board with Mouse Platform and Foam Palm Rest top view

The Palm Rest is Soft-Touch black vinyl covered foam. The mouse platform is made of Phenolic board, can swivel, and comes with an integral sponge rubber mousing pad.



VALUE BOARD WITH MOUSE PLATFORM
SPECIFICATION DRAWING

Specification drawing of Value Board with Mouse Platform and Foam Palm Rest with measurements top view

The 21 3/4" x 11" x .25" medium density fiberboard platform provides ample space for a keyboard.



VALUE CLAMP WITH MOUSE PLATFORM
ISOMETRIC VIEW

Image of Value Clamp with Mouse Platform isometric view

The mouse pad attaches to Keyboard Clamp for left or right handed mousing.



VALUE CLAMP WITH MOUSE PLATFORM
TOP VIEW

Image of Value Clamp with Mouse Platform top view

Top view of the Value Clamp showing a compacted configuration.



VALUE CLAMP WITH MOUSE PLATFORM
SPECIFICATION DRAWING

Specification drawing of Value Clamp with Mouse Platform with measurements top view

The Value Clamp with Mouse Platform has a has the ability to configure the mouse platform in multiple directions and on either the left or right side.



VALUE CLAMP WITH NO MOUSE PLATFORM
ISOMETRIC VIEW

Image of Value Clamp with No Mouse Platform isometric view

This Keyboard Clamp is made of durable steel construction. It securely attaches to most standard rectangular computer keyboards of 5 to 8.75 inches in depth.



VALUE CLAMP WITH NO MOUSE PLATFORM
TOP VIEW

Image of Value Clamp with No Mouse Platform top view

Top view of the Value Clamp showing a compacted configuration.



VALUE CLAMP WITH NO MOUSE PLATFORM
SPECIFICATION DRAWING

Specification drawing of Value Clamp with No Mouse Platform with measurements top view

The Value Clamp with No Mouse Platform has a depth of only 11.75 inches when fully extended.
