SKU

IS-ER-KIT

Your Customization

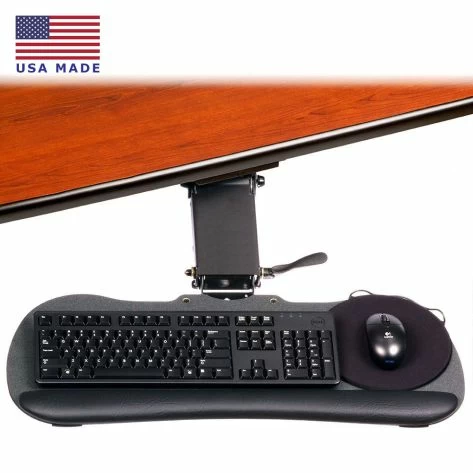

IS-ER-KIT Wide platform tray option with lever lock keyboard arm mechanism - keyboard left mouse to the right USA MADE
IS-ER EasyRider Under Desk Keyboard Tray System

In stock

From $92.37

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

IS-ER EasyRider Under Desk Keyboard Tray System

Please wait while your content is loading.

REQUIRED ITEMS

ERGONOMIC KEYBOARD TRAY WITH SUPERIOR ARTICULATION AND HEIGHT ADJUSTMENT

  • No knob or lever height adjustment—simple lift and lock
  • Tray is counter-balanced for effortless height adjustment
  • Positive/Negative tilt (±15°) moves with ergonomic lever
  • Welded steel arm design assures maximum stability
  • Swiveling/tilting mouse tray with several models available
  • 23" Ball Bearing Track option
  • Select from multiple tray options
  • Optional positive tilt lockout
  • Browse our IS-LS adjustable keyboard tray, a superior product for the same price
  • Replaceable and removable gel palm rests
  • Choose a 17.75", 21" or 23" track or call for custom lengths

The IS-ER’s "EasyRiser" keyboard arm features a truly intuitive mechanism. The keyboard tray height can be easily set and locked by simply grasping, moving and releasing it at the preferred height anywhere within its 7.75” range. The 15 degree positive and negative tilt can be adjusted with the use of the ergonomic tilt lever. Once set, the height and tilt remain stable until purposely re-positioned. The keyboard arm mechanism is designed to slide in and out on a track attached to the bottom of the work surface and can fully rotate where it meets the track. An optional front swivel bracket allows additional articulation where the keyboard platform attaches to the arm. Additional adjustment and fine-tuning options are available thanks to the large selection of keyboard platforms to choose from, including several which come with separate repositionable mouse trays.

Shipping Weight 13 pounds
Shipping Dimensions 22" x 22" x 6"
Warranty 5 Year limited
Not a Quck Ship item: please allow 10 days for shipment
ARM & TRACK
TRAY OPTIONS
ARM & TRACK

IS-ER
ARM AND TRACK

IS-ER-KIT ergonomic keyboard tray specification drawing isometric view with measurements

With the smallest track length available, the total length of the arm and track total 30". The arm is 5.75" at its widest, not including the lever while the track is slightly smaller at 5.5" in width.



IS-ER
TOP VIEW

IS-ER-KIT ergonomic keyboard tray with track and tray removed specification drawing top view with measurements

The arm, without the tray or track attached, measures 17.5" in length and 5.75" in width not including the lever mechanism.



IS-ER
VERTICAL RISE

IS-ER-KIT ergonomic keyboard tray specification drawing showing a side view of tray height adjustment with measurements

The tray height can easily be adjusted by grasping, moving and releasing, anywhere in the arm's large 7.75" height range.



IS-ER
ARM RETRACTION

IS-ER-KIT ergonomic keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

The arm and tray can be placed beneath the work surface and out of the way when not in use. When pulled to the edge of the track, the arm and tray extend approximately 12.75" beyond the edge of the desk. A variety of trays are available with the arm and track. Most trays protrude about 2 inches beyond the edge of the surface when fully retracked when using the short 17.75 track. Longer tracks allow all tray types to tuck completely under the desk.



IS-ER
TRAY TILT

IS-ER-KIT ergonomic keyboard tray specification drawing side view showing keyboard tray tilt measurements

An easy-to-adjust ergonomic lever provides a 30 degree tilt range - both 15 degrees positive and negative.



IS-ER
TRAY ROTATION

IS-ER-KIT ergonomic keyboard tray specification drawing top view demonstrating keyboard tray swivel

The keyboard tray arm provides 360 degree swivel where the arm mechanism meets the track. An optional bracket can also provide rotation where the platform meets the arm.



TRAY OPTIONS

SLIMNATURAL19 KEYBOARD TRAY
FOR MICROSOFT® NATURAL™ KEYBOARD

Image of SlimNatural19 Keyboard Tray for Microsoft Natural Keyboard isometric view

Fits Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards.  This tray option does not come with a palm rest.



SLIMNATURAL19 KEYBOARD TRAY
TOP VIEW

Image of SLIMNATURAL19 KEYBOARD TRAY top view

The thin yet durable phenolic tray material allows complete knee clearance while the Tilt and Swivel mouse platform provides infinite adjustment.  The mouse tray may be installed to the left or right side.The SlimNatural19 tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.



SLIMNATURAL19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMNATURAL19 KEYBOARD TRAY with measurements top view

The mouse platform is removable and can be placed on either the right or left side for quick and easy customization.  Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.



SLIMFORM19 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForml19 Keyboard Tray for Microsoft Natural Keyboard isometric view

This stylish and popular SLIMFORM19 design handles any standard keyboard and comes equipped with a mouse tray that may be assembled to the right or left side.  The palm rest is a cormfortable soft foam material that may be wiped clean with water and mild detergent.



SLIMFORM19 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM19 KEYBOARD TRAY top view

The SLIMFORM19 tray is constructed from a thin phenolic material that will last many years and will maintain its finish just like tough plastic laminate surfaces materials used for commercial furniture. Tilting and Swiveling mouse platform with removable Gel pad provides infinite adjustment and ensures correct ergonomic positioning.



SLIMFORM19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM19 KEYBOARD TRAY with measurements top view

The main keyboard platform is 19.5 inches wide and easily accomodates keyboards up to 7.5 inches deep and 19 inches wide.  The 8.5 inch mouse surfaces pivots front to back and can actually be rotated underneath the surface if the mouse is removed.



SLIMFORM27 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForm27 Keyboard Tray for Microsoft Natural Keyboard isometric view

The most popular keyboard tray offering from Ergomart is the SLIMFORM27.  It provides ample room for a standard keyboard and a mouse, vertical mouse or most specialty input devices. A palm waterproof foam rest reaches across the entire front edge.  Wipe tray and palm rest with a damp cloth to keep the kit looking brand new for years to come.  Built for and used in commercial applications, this system is preferred by facilities managers and Ergonomists over many other competing products.



SLIMFORM27 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM27 KEYBOARD TRAY top view

The 1/4" thin phenolic tray material enhances knee clearance.  The SLIMFORM27 comes with one mouse pad that can be placed either the left or right side of the keyboard.  The cord manager along the back edge also helps prevent the mouse from rolling off of the surface when the tray front is tilted upward.



SLIMFORM27 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM27 KEYBOARD TRAY with measurements top view

With a 27 inch horizontal span the SlimForm27 keyboard tray has plenty of room for both a keyboard and mouse in one solid unit The 8.25 inch diameter mouse pad can be placed on either the right or left side.



CLAMP STYLE KEYBOARD HOLDER
WITH MOUSE TRAY

Image of CLAMP STYLE KEYBOARD HOLDER isometric view

Sure squeeze design firmly holds keyboard in place



CLAMP STYLE KEYBOARD HOLDER
TOP VIEW

Image of CLAMP STYLE KEYBOARD HOLDER top view

Mouse platform plugs in for right or left handed use. Tilt & Swivel mouse provides infinite adjustment, while the Gel palm rest provides maximum ergonomic comfort. The Clamp Style Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



CLAMP STYLE KEYBOARD HOLDER
SPECIFICATION DRAWING

Specification drawing of CLAMP STYLE KEYBOARD HOLDER with measurements top view

The mouse platform is removable and can be placed on either the right or left side for easy customization.



MOUSEAROUND KEYBOARD TRAY
ISOMETRIC VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform isometric view

Mouse design smoothly slides right-to-left & and has forward adjustment, and features both straight and curved sliding mouse motion in one tray.



MOUSEAROUND KEYBOARD TRAY
TOP VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform top view

Mouse platform plugs in for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort. The MouseAround Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



MOUSEAROUND KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of MouseAround Keyboard Tray Holder with adjustable mouse platform with measurements top view

The mouse platform can be easily placed on either the right or left side for easy customization.



OMNIBOARD KEYBOARD TRAY
ISOMETRIC VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform isometric view

Simply the best solution for multiuser workstations, no other keyboard tray comes close to this overachiever. The Mouse platform instantly moves for left and right handers.



OMNIBOARD KEYBOARD TRAY
TOP VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform top view

The mouse platform with cord manager of the OmniBoard can be moved for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort.



OMNIBOARD KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of OmniBoard Keyboard Tray Holder with adjustable mouse platform with measurements top view

The OmniBoard mouse platform can be easily swung from the right or left side for easy customization.



TRS20
20" BUDGET TRAY

Image of TRS20 Keyboard Tray Holder isometric view

Standard 20 x 8.5 inch tray is ideal for use with keyboard only.



TRS20 KEYBOARD TRAY
TOP VIEW

Image of TRS20 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS20 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS20 Keyboard Tray Holder with measurements top view

The total footprint of the TRS20 is a mere 20 by 8.5 inches.



TRS26
26" BUDGET TRAY

Image of TRS26 Keyboard Tray Holder isometric view

Standard 26 x 8.5 inch tray is ideal for use with keyboard only.



TRS26 KEYBOARD TRAY
TOP VIEW

Image of TRS26 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS26 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS26 Keyboard Tray Holder with measurements top view

The total footprint of the TRS26 is a mere 26 by 8.5 inches.
