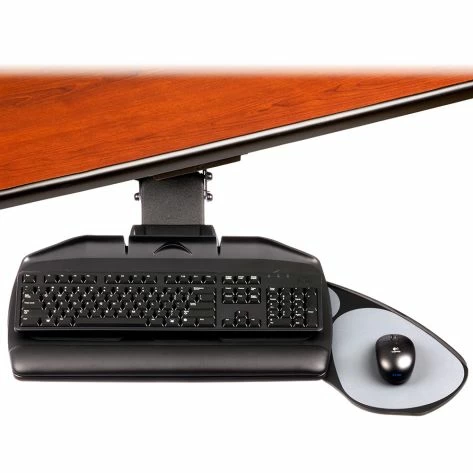

WR-P2 Keyboard platform arm desk mounted with left-right sliding mouse tray extended to right
WR-P2 Premium Adjustable Under Desk Keyboard Tray System

In stock

From $234.01

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

WR-P2 Premium Adjustable Under Desk Keyboard Tray System

Please wait while your content is loading.

REQUIRED ITEMS

ADJUSTABLE KEYBOARD TRAY SOLUTION FOR OPTIMAL COMFORT

  • Non-intrusive low profile track provides plenty of knee clearance
  • Effortless, instant and intuitive height adjustment
  • Choose nylon glide or medium-duty ball bearing track
  • Progressive ball bearing track is available in 17, 22, and 28 inch lengths
  • Nylon glide track options are 17, 20, and 22 inches
  • Height adjustment from almost flush with work surface to 5.5” below
  • Up to 15 degrees negative tilt and 10 degrees positive tilt
  • 360° swivel for easy positioning and storage
  • Please call us for questions & quantity quotes: 888-420-3200

The WR-P2 Keyboard Tray System is a high-quality, intuitive platform, well-suited for the most demanding office environments. It features a low profile arm design that maximizes knee clearance and storage while protecting the keyboard.
The premium progressive ball-bearing track provides extremely smooth and consistent operation with three track lengths to meet your space constraints. The optional budget nylon slide track is available for cost-sensitive applications. The platform can tilt +10 to -15° and rotate 360°. The tilt adjustment is accurately displayed on an easily viewable tilt indicator gauge. The WR-P2 can be matched with either the Banana Board tray or the Microsoft Natural tray with adjustable mouse platforms and optional palm rests for both keyboard and mouse, providing additional comfort.

Shipping Weight 21 pounds
Shipping Dimensions 30" x 14" x 7"
Warranty 5 year limited
ARM & TRACK
TRAY OPTIONS
ARM & TRACK

<

WR-P2 - ARM AND TRACK

WR-P2 adjustable under desk keyboard tray specification drawing isometric view with measurements

With the 17" track, the length of the arm plus the track totals 28.5". The track itself is 5.75" in width and the arm is 6", not including the ergonomic tilt knob.



WR-P2 - ARM - TOP VIEW

WR-P2 adjustable under desk keyboard tray with track and tray removed specification drawing top view with measurements

The arm by itself measures only 14.5" in length and 6" in width - a compact device that still offers maximum adjustability. The adjustment knob protrudes out 1.9" beyond the 6" width.



WR-P2 VERTICAL RISE

WR-P2 adjustable under desk keyboard tray specification drawing showing a side view of tray height adjustment with measurements

From almost flush with the work surface, the WR-P2 can be lowered 5.5" to accommodate the user's most comfortable keyboard height. Note that it does not rise above the surface height.





WR-P2 - ARM RETRACTION

WR-P2 adjustable under desk keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

With the 22" track, the arm and tray can be pushed completely beneath the work surface and remain out of the way until needed. When pulled to the front edge of the track, the arm and tray extend out 14.5".



WR-P2 - TRAY TILT

WR-P2 adjustable under desk keyboard tray specification drawing side view showing keyboard tray tilt measurements

The arm provides a total of 25 degrees of tilt - 15 degrees negative and 10 degrees positive.



WR-P2 - TRAY ROTATION

WR-P2 adjustable under desk keyboard tray specification drawing top view demonstrating keyboard tray swivel

The 360 swivel adjustability allows the keyboard to be optimally oriented towards the user. The point of rotation is where the arm attaches to the track.



TRAY OPTIONS

MICROSOFT® NATURAL™ BANANA BOARD

Image of MICROSOFT® NATURAL™ BANANA BOARD isometric view

Fits Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards. This tray option does not come with a palm rest.



MICROSOFT® NATURAL™ BANANA BOARD
TOP VIEW

Image of MICROSOFT® NATURAL™ BANANA BOARD top view

The thin yet durable phenolic tray material allows complete knee clearance. The mouse tray may be installed to the left or right side. The Microsoft&reg; Natural Banana Board tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.



MICROSOFT® NATURAL™ BANANA BOARD
SPECIFICATION DRAWING

Specification drawing of MICROSOFT® NATURAL™ BANANA BOARD with measurements top view

The mouse platform can be placed on either the right or left side for quick and easy customization. Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.



BANANA BOARD RIGHT/LEFT HANDED MOUSING

Image of Banana Board isometric view

The Banana Board Keyboard tray design positions the mousing area closer to the user. Optional palm rests are available in three types of material.



BANANA BOARD
TOP VIEW

Image of Banana Board top view

The thin yet durable phenolic tray material allows complete knee clearance. The mouse tray may be installed to the left or right side. The Banana Board tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.



BANANA BOARD
SPECIFICATION DRAWING

Specification drawing of Banana Board with measurements top view

The mouse platform can be tucked under the keyboard or placed on either the right or left side for quick and easy customization. Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.
