SKU

IS-SSW-KIT

Your Customization

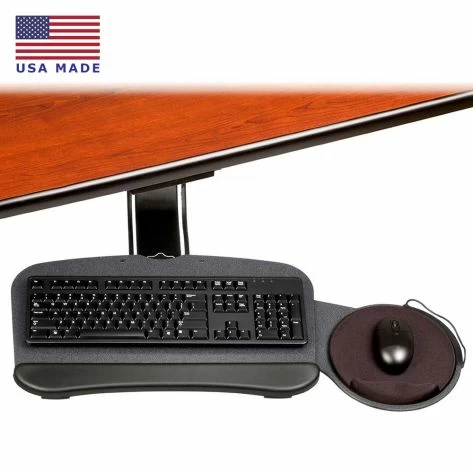

IS-SSW-KIT Sit Stand articulating arm shown with Mousearound tray at desktop with mouse tray extended right USA MADE
IS-SSW Cobra Sit-Stand Keyboard Tray System

In stock

From $123.56

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

IS-SSW Cobra Sit-Stand Keyboard Tray System

Please wait while your content is loading.

REQUIRED ITEMS

EASY TO USE SIT-STAND MECHANISM WITH A WIDE SELECTION OF PLATFORMS

  • Easy, precise and intuitive fingertip height adjustment
  • High quality American made product that functions flawlessly
  • Select from eight keyboard and mouse platform options
  • Adjusts 8.25" above track and 6" below—great vertical reach!
  • Keyboard is counter-balanced for effortless vertical travel
  • Welded steel arm design assures maximum stability
  • Ergonomic tilt wheel gives 20° negative tilt & 10° positive tilt
  • Slim profile provides maximum knee clearance
  • Rear swivel rotates 360° for optimal positioning
  • Front swivel option provides additional articulation
  • Buy with QuickLift sit-stand station & increase vertical tray reach to over 18"

Ergonomic research suggests that the ability to move from a seated to a standing position can significantly reduce fatigue and improve circulation when compared to prolonged sitting. The IS-SSW Cobra Tilt-A-Wheel offers over 14 inches of height adjustment, 8.25 inches up and 6 inches down, providing sit-to-stand capability for a many people who are 66 inches or shorter. The standard 23-inch glide track allows complete retractability, however, additional track lengths are available at no additional cost. This is a durable product, built to commercial specs from powder coated steel components and designed for intense use in busy office environments.

The IS-SSW provides 20° negative and 10° positive keyboard tray tilt adjustment which can be set using a conveniently located soft-touch wheel. Some ergonomic guidelines suggest that positive tilt may be detrimental to wrist comfort and safety. The "positive tilt lockout" selection on the IS-SSW restricts the tilt range to -20° from the horizontal position.

The keyboard arm mechanism can be rotated a full 360° where the arm meets the track. An additional 360° articulation point can be added where the tray is connected to the arm by selecting the "front swivel" option. Ergomart offers custom solutions based on derivations of the IS-SSW keyboard arm. Extended-reach and point-of-sale configurations as well as a stand-only option are available to meet the unique requirements related to banking and hospitality work environments.

Shipping Weight 13 pounds
Shipping Dimensions 24" x 13" x 6"
Warranty 5 Year limited
Not a Quick Ship item: please allow 10 days for shipment
ARM & TRACK
TRAY OPTIONS
ARM & TRACK

IS-SSW - ARM AND TRACK

IS-SSW-KIT ergonomic keyboard tray specification drawing isometric view with measurements

The track and the arm together measure 31.75" in length. The arm has a width of 5.75" while the track is slightly narrower measuring 5.5".



IS-SSW - ARM - TOP VIEW

IS-SSW-KIT ergonomic keyboard tray with track and tray removed specification drawing top view with measurements

The arm without a track has a total length of 19" and measures 5.75" in width at its widest point.



IS-SSW VERTICAL RISE

IS-SSW-KIT ergonomic keyboard tray specification drawing showing a side view of tray height adjustment with measurements

The IS-SSW mechanism features 14.25" of vertical travel. When mounted on a typical 29" high work surface, it offers sit to stand capabilities for most users up to 5'6" tall.





IS-SSW - ARM RETRACTION

IS-SSW-KIT ergonomic keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

The longer 21 and 23 inch tracks allow the keyboard to be tucked away neatly under the work surface when not in use. The shorter 17.75 inch track causes most trays to protrude past the desk edge about 5 inches depending on tray style.



IS-SSW - TRAY TILT

IS-SSW-KIT ergonomic keyboard tray specification drawing side view showing keyboard tray tilt measurements

Easily adjust the tilt of the platform between 20 degrees negative and 10 degrees positive to situate the keyboard in a comfortable position for most users. A positive tilt lockout option is also available.



IS-SSW - TRAY ROTATION

IS-SSW-KIT ergonomic keyboard tray specification drawing top view demonstrating keyboard tray swivel

If there are no obstructions, the IS-SSW can be swiveled 360 degrees at the base. An additional option to add swivel where the tray meets the arm is also available.



TRAY OPTIONS

SLIMNATURAL19 KEYBOARD TRAY
FOR MICROSOFT® NATURAL™ KEYBOARD

Image of SlimNatural19 Keyboard Tray for Microsoft Natural Keyboard isometric view

Fits Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards.  This tray option does not come with a palm rest.



SLIMNATURAL19 KEYBOARD TRAY
TOP VIEW

Image of SLIMNATURAL19 KEYBOARD TRAY top view

The thin yet durable phenolic tray material allows complete knee clearance while the Tilt and Swivel mouse platform provides infinite adjustment.  The mouse tray may be installed to the left or right side.The SlimNatural19 tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.



SLIMNATURAL19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMNATURAL19 KEYBOARD TRAY with measurements top view

The mouse platform is removable and can be placed on either the right or left side for quick and easy customization.  Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.



SLIMFORM19 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForml19 Keyboard Tray for Microsoft Natural Keyboard isometric view

This stylish and popular SLIMFORM19 design handles any standard keyboard and comes equipped with a mouse tray that may be assembled to the right or left side.  The palm rest is a cormfortable soft foam material that may be wiped clean with water and mild detergent.



SLIMFORM19 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM19 KEYBOARD TRAY top view

The SLIMFORM19 tray is constructed from a thin phenolic material that will last many years and will maintain its finish just like tough plastic laminate surfaces materials used for commercial furniture. Tilting and Swiveling mouse platform with removable Gel pad provides infinite adjustment and ensures correct ergonomic positioning.



SLIMFORM19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM19 KEYBOARD TRAY with measurements top view

The main keyboard platform is 19.5 inches wide and easily accomodates keyboards up to 7.5 inches deep and 19 inches wide.  The 8.5 inch mouse surfaces pivots front to back and can actually be rotated underneath the surface if the mouse is removed.



SLIMFORM27 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForm27 Keyboard Tray for Microsoft Natural Keyboard isometric view

The most popular keyboard tray offering from Ergomart is the SLIMFORM27.  It provides ample room for a standard keyboard and a mouse, vertical mouse or most specialty input devices. A palm waterproof foam rest reaches across the entire front edge.  Wipe tray and palm rest with a damp cloth to keep the kit looking brand new for years to come.  Built for and used in commercial applications, this system is preferred by facilities managers and Ergonomists over many other competing products.



SLIMFORM27 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM27 KEYBOARD TRAY top view

The 1/4" thin phenolic tray material enhances knee clearance.  The SLIMFORM27 comes with one mouse pad that can be placed either the left or right side of the keyboard.  The cord manager along the back edge also helps prevent the mouse from rolling off of the surface when the tray front is tilted upward.



SLIMFORM27 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM27 KEYBOARD TRAY with measurements top view

With a 27 inch horizontal span the SlimForm27 keyboard tray has plenty of room for both a keyboard and mouse in one solid unit The 8.25 inch diameter mouse pad can be placed on either the right or left side.



CLAMP STYLE KEYBOARD HOLDER
WITH MOUSE TRAY

Image of CLAMP STYLE KEYBOARD HOLDER isometric view

Sure squeeze design firmly holds keyboard in place



CLAMP STYLE KEYBOARD HOLDER
TOP VIEW

Image of CLAMP STYLE KEYBOARD HOLDER top view

Mouse platform plugs in for right or left handed use. Tilt & Swivel mouse provides infinite adjustment, while the Gel palm rest provides maximum ergonomic comfort. The Clamp Style Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



CLAMP STYLE KEYBOARD HOLDER
SPECIFICATION DRAWING

Specification drawing of CLAMP STYLE KEYBOARD HOLDER with measurements top view

The mouse platform is removable and can be placed on either the right or left side for easy customization.



MOUSEAROUND KEYBOARD TRAY
ISOMETRIC VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform isometric view

Mouse design smoothly slides right-to-left & and has forward adjustment, and features both straight and curved sliding mouse motion in one tray.



MOUSEAROUND KEYBOARD TRAY
TOP VIEW

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform top view

Mouse platform plugs in for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort. The MouseAround Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



MOUSEAROUND KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of MouseAround Keyboard Tray Holder with adjustable mouse platform with measurements top view

The mouse platform can be easily placed on either the right or left side for easy customization.



OMNIBOARD KEYBOARD TRAY
ISOMETRIC VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform isometric view

Simply the best solution for multiuser workstations, no other keyboard tray comes close to this overachiever. The Mouse platform instantly moves for left and right handers.



OMNIBOARD KEYBOARD TRAY
TOP VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform top view

The mouse platform with cord manager of the OmniBoard can be moved for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort.



OMNIBOARD KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of OmniBoard Keyboard Tray Holder with adjustable mouse platform with measurements top view

The OmniBoard mouse platform can be easily swung from the right or left side for easy customization.



TRS20
20" BUDGET TRAY

Image of TRS20 Keyboard Tray Holder isometric view

Standard 20 x 8.5 inch tray is ideal for use with keyboard only.



TRS20 KEYBOARD TRAY
TOP VIEW

Image of TRS20 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS20 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS20 Keyboard Tray Holder with measurements top view

The total footprint of the TRS20 is a mere 20 by 8.5 inches.



TRS26
26" BUDGET TRAY

Image of TRS26 Keyboard Tray Holder isometric view

Standard 26 x 8.5 inch tray is ideal for use with keyboard only.



TRS26 KEYBOARD TRAY
TOP VIEW

Image of TRS26 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS26 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS26 Keyboard Tray Holder with measurements top view

The total footprint of the TRS26 is a mere 26 by 8.5 inches.
