LeverLift Wall-Mounted Wire Manager

Name: LeverLift Wall-Mounted Wire Manager
Brand: Ergomart
SKU: LEVERLIFT-WM

USA MADE

Add Your Review

REQUIRED ITEMS

Wall-mounted wire management cover is mounted alongside the LeverLift track
Cables are concealed and protected throughout the length of the wire manager
Two three-inch spools at the top and bottom guide the wires during height adjustment
Choose from two size options: 24 or 36 inches tall
Available in three colors: black, metallic gray, matte white
WIRE MANAGER COVER ONLY. TRACK AND OTHER COMPONENTS SOLD SEPARATELY.

Description

LEVERLIFT WIRE MANAGER CONCEALS, GUIDES AND PROTECTS CABLES

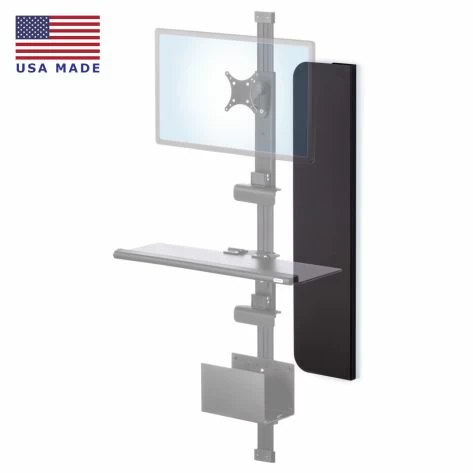

The LeverLift Cable and Wire Manager mounts to the wall alongside the LeverLift wall track. The cover organizes, protects and guides network, power and video cables, keeping wires safe and out of the way.

Cables are guided inside the cover with the help of two spools located near the top and the bottom of the bracket. The cable manager thus protects the cables from bending and damage during height adjustment and ensures smooth and easy vertical movement of the monitor and keyboard.

The wire manager is available in two lengths: 24 inches and 36 inches as well as three colors: black, metallic gray and matte white, allowing you to best harmonize the system with your work environment. The cable manager is 8 inches wide and 1 inch deep, providing ample space for any type of wire.

LEVERLIFT™ WALL MOUNTS

INSTANT ADJUST

INSTANTLY RAISE OR LOWER YOUR MONITOR, TABLET OR KEYBOARD

INDEPENDENT LIFT

EACH MOUNT MOVES INDEPENDENTLY FOR IDEAL ERGONOMIC POSITIONING

RANGE OF MOTION

THE ADJUSTMENT RANGE IS LIMITED ONLY BY THE TRACK SIZE AND YOUR EQUIPMENT

LOW-PROFILE

COMPACT MOUNTS FOR TIGHT SPACES INCLUDING ADA-COMPLIANT OPTIONS

MOUNT ANYWHERE

INSTALLS ON WALL, SERVER/PALLET RACKS, CABINETS, DRYWALL, ORIGINAL EQUIPMENT

FOR HELP WITH YOUR DESIGN OR DISCUSS CUSTOMIZATIONS
EMAIL [email protected] OR CALL +1 888 420 3200

BROWSE ALL LEVERLIFT™ OPTIONS

EXPLORE RECENT LEVERLIFT™ CUSTOM PROJECTS

Shipping Weight	Up to 8 lbs
Shipping Dimensions	Up to 38" x 8" x 4"
Warranty	5 year limited

Specifications

Mount Type

Wire Manager

Mounting

Wall Mounting

Drawings

WIRE MANAGEMENT COVER - FRONT VIEW

LEVERLIFT-CB sliding monitor and keyboard tray wall mount specification drawing of wire manager front view with measurements

This front view shows the two sizes available for the wire management cover. Both are 8" wide. The smaller wire manager is 24" tall. The larger one is 36" tall. The dashed-line circles near the top and bottom of each wire manager illustrate the wire guidance spools located inside the covers.

WIRE MANAGEMENT COVER - TOP VIEW

LEVERLIFT-CB wall mounted computer workstation specification drawing of wire manager side view with measurements

As seen in this top view, the wire management is mounted on the wall along its back surface which is 3.5" wide. The wire manager cover is 1" deep. Inside the cover, two 3" spools located near the top and bottom of the cover guide the cables as the monitor and keyboard mounts are moved up and down. The gap between the spools and the wire manager cover is 0.25".
