The LeverLift Vertical Track (also called the M-Track) is the basic mounting infrastructure of the LeverLift Family of instantly height adjustable tablet and computer wall mounts. The M-Track is designed to be installed on a vertical surface. As with all wall tracks, it is always best practice to affix the M-Track to a wood stud or backer. However, the M-Track is also designed to work where an immovable support structure is unavailable. Specifically, it can be mounted to unbacked sheetrock with the aid of Snaptoggle bolts. The M-Track can also facilitate the creation of height adjustable computer workstations on cabinets, pallet racks, vertical standards, unistrut and similar structures, as well as industrial and even medical equipment.
The M-Track accepts all the modular mounting components offered by the LeverLift System. These include height-adjustable low-profile and articulating monitor mounts, fixed-angle, folding or fully articulating keyboard mounts, and thin client CPU mounts. Starting with the track, you can select from a broad range of compatible products to create a unique multi-user workstation that promotes comfort and productivity. The modular design means your workstation is easily adaptable: should your needs change in the future, you can add or replace components later without having to start from scratch.
This light duty track is offered in five lengths ranging from 19" to 77", and is available in two color options: Black and Gray.
Shipping Weight | Up to 5 lb |
Shipping Dimensions | Up to 79" x 4" x 4" |
Warranty | 5 year limited |
|

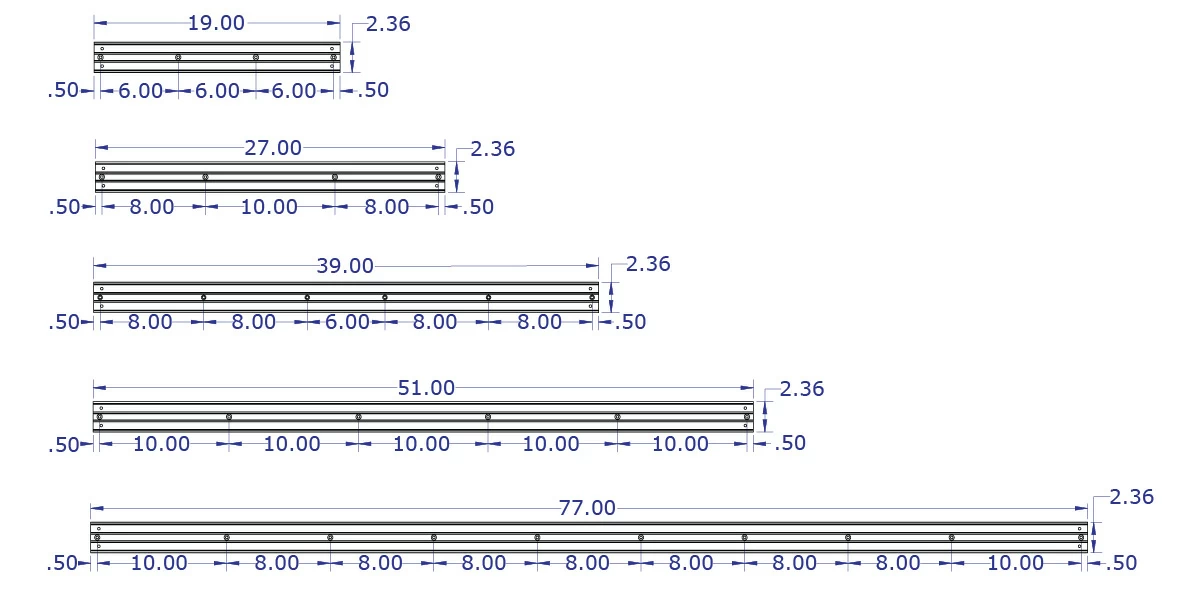

This image shows the mounting holes that are pre-drilled into each length of track: 19", 27", 29", 51", and 77". The LeverLift system is intended for vertical use, however, in this figure, the tracks are shown in the horizontal orientation for convenience.
The track assemblies come with two end stops: one at the top of the track and one at the bottom. The stops ensure that the sliding mounts do not come off the track while in use. They are secured in place with two set screws after all the sliding mounts have been installed.
