The LeverLift Thin Client CPU mount is a modular component that attaches to the LeverLift wall track. It can be combined with height-adjustable monitor and keyboard mounts to create an easy-to-use wall-mounted workstation that can accommodate multiple users working while sitting or standing.
The thin client mount can fit a variety of thin client width sizes, from 1 1/8 inches to 2 3/8 inches wide with the standard version and up to 3 1/4 inches with the larger version. Two rubber bumpers inside the bracket gently cradle the thin client while providing space for ventilation. The U-shape allows for easy access to ports and buttons on the sides of the CPU.
An optional VESA plate can be added to the CPU mount, allowing you to attach a VESA-compatible device to the front of the thin client bracket. The fixed-position bracket accommodates 75 x 75mm and 100 x 100mm VESA devices. The front panel also includes a slider VESA mount, which can fit a rotating, sliding VESA mount, available in 75 x 75mm, 100 x 100mm and 100 x 200mm sizes. The VESA mount has 3.67 inches of vertical adjustment and can rotate from landscape to portrait.
Shipping Weight | Up to 5 lb |
Shipping Dimensions | Up to 11" x 7" x 5" |
Warranty | 5 year limited |
|

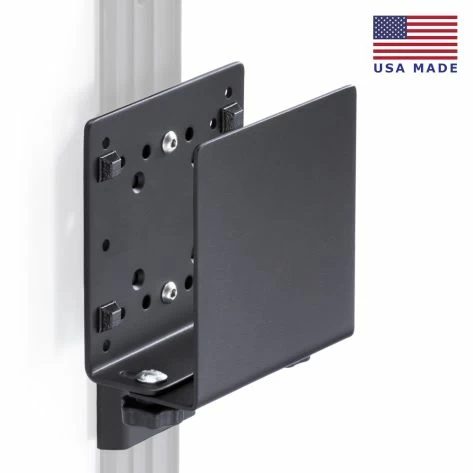

Although there are two sizes available for the thin client CPU holder (regular and large), when viewed from the front, they are identical. The above illustration shows the option with the plain front, used when the bracket is used for just a thin client or smaller CPU. The front plane of the bracket measures 5" x 5". The thin client brackets are not designed for instant adjustment. They are secured on the vertical track with a set screw.
One variation of the thin client bracket has a front plate containing both 75 x 75 mm and 100 x 100 mm hole patterns. In this form, the bracket doubles as a monitor mount. It simultaneously accommodates a thin client CPU placed inside the bracket, and a monitor mounted using either of the two VESA patterns. The monitor is at a fixed height relative to the bracket and does not rotate. The entire assembly is secured on the track with a set screw.
The thin client bracket with the 75 x 75 mm rotating slider VESA plate combines CPU mounting with flexible monitor positioning. The plate moves up and down along the slot, which gives it a total of 3.67" of vertical adjustability. The VESA plate rotates, which means it can easily go from portrait to landscape orientation. The entire assembly is fixed on the track and installed at the desired height with the help of an Allen wrench.
The thin client bracket with the 100 x 100 mm rotating slider VESA plate ensures excellent configurability for the monitor height and orientation. The VESA adaptor moves vertically along the central slot, with a 3.67" of total range. The rotating VESA allows for easy portrait to landscape adjustment. Thin client holders are designed to be stationary at the desired height along the track.
The thin client bracket with the 100 x 200 mm rotating slider VESA plate is designed for mounting thin client CPUs and larger monitors. The VESA adaptor can be positioned anywhere along the vertical slot at the center of the front plate, providing a of total range of 3.67". The VESA adapter rotates, allowing easy portrait to landscape adjustment. Thin client holders are mounted at the desired height on the track with an Allen wrench.
These side views correspond to the regular thin client holder with the plain front or the version with the 75 x 75 mm and 100 x 100 mm VESA holes (no rotating slider VESA is installed). The two images show the bracket configured with the narrowest (left) and widest (right) opening. With the bumpers installed on the inside of the bracket, the thin client holder can secure CPUs ranging in 1.12" to 1.88" in width. The height of the mount on the track is 6.5". The total footprint will depend on the thin client CPU.
These side views of the regular thin client holder with the rotating slider VESA apply to all VESA sizes: 75 x 75 mm, 100 x 100 mm, and 100 x 200 mm. The left image shows the bracket in the narrowest configuration. The right image has the widest opening size. With the bumpers installed on the inside of the bracket, the thin client holder with the rotating slider VESA can secure CPUs with width between 0.77" and 1.64".
As shown in these side views, the large thin client holder with the plain front can be configured to accommodate a thin client as narrow as 1.88" (left image) and as wide as 3.23" (right image) with the bumpers installed on the inside of the bracket. These measurements are also valid for the large thin client holder with the 75 x 75 mm and 100 x 100 mm VESA holes, as long as no rotating slider VESA is installed.
These illustrations of the large thin client holder with the rotating slider VESA adapter bracket are applicable to all supported VESA sizes: 75 x 75 mm, 100 x 100 mm, and 100 x 200 mm. The thin client CPU holder is shown in the narrowest (left - 1.59" opening) and widest (right - 2.94") settings, where the measurements assume that the bumpers are installed.
