SKU

LEVERLIFT-MS-R

$118.49
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

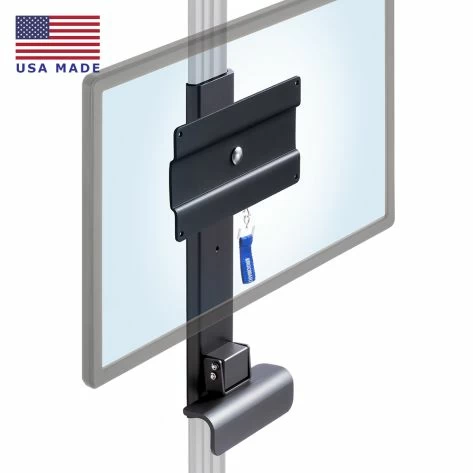

LeverLift Rotating Low Profile Monitor Slider Mount

New USA MADE

REQUIRED ITEMS

  • Compact monitor mount extends to only 2.4" from the wall mounting surface
  • Adjust from sitting to standing height with a simple lever located at the bottom of the slider
  • Height adjusts along entire length of LeverLift track
  • Multiple VESA sizes accommodate various monitors
  • Holds tablets, touchscreens and monitors up to 13 lb
  • Rotate monitor from landscape to portrait or lock in place
  • Also included in LeverLift Accessa compact, ADA-compliant wall-mounted sit-stand workstation
  • MONITOR MOUNT ONLY. TRACK AND OTHER COMPONENTS SOLD SEPARATELY.

HEIGHT ADJUSTABLE FLUSH MONITOR SLIDER WITH PORTRAIT/LANDSCAPE ROTATION

The LeverLift Low Profile Rotating Monitor Mount is the more compact of the LeverLift monitor slider options. It extends only 2.4 inches from the track mounting surface, making it ideal for tight areas. If you are looking for a complete low-profile sit-stand workstation, the ADA-compliant LeverLift Access combines this monitor mount with a folding keyboard tray.

The height adjustment is performed using the handle at the bottom of the slider. Simply lift and either raise or lower to the desired position. The slider mount can be positioned anywhere on the track, restricted only by the track length and other attached peripherals. It can support a monitor, tablet or touchscreen weighing up to 13 pounds.

The mount can rotate the attached monitor, tablet, or touchscreen a full 360 degrees and can also be locked in position to prevent rotation. When rotation is allowed, the resistance can be adjusted to minimize unwanted movement.

The LeverLift Compact Rotating Mount is one of many modular and compatible components that make up the LeverLift System. These devices can be mixed and matched to create your ideal wall-mounted solution. Should your needs evolve, the system makes it easy to add or replace components thus eliminating waste and inefficiency. If you are looking for a monitor slider with greater flexibility, consider the articulating monitor slider mount, which adds both tilt and swivel adjustment.

Shipping Weight Up to 5 lbs
Shipping Dimensions Up to 16" x 6" x 6"
Warranty 5 year limited

Mount Type

Vertical Wall Track

Mounting

Wall Track Mounting

Weight Range

Up to 13 lbs

Monitor Horizontal Reach

2.4"

Vertical Adjustment

Instant independent adjustment of monitor, limited only by track size and installed components

VESA Options

75 x 75

100 x 100

100 x 200

Portrait to Landscape

Yes

LOW PROFILE 75 X 75 MM VESA SLIDER - FRONT VIEW

LEVERLIFT-CB sliding monitor and keyboard tray wall mount specification drawing monitor mount slider with 75mm VESA front view with measurements

This front view of the 75 x 75 mm VESA low profile monitor slider shows that the center of the monitor is 9.97" from the top of the handle, and 11.58" from its bottom. The sliding mount vertical adjustment handle is 5.75" wide and the track measures 2.88" in width. The square VESA plate is shown shaded in gray and is 3.53" in height and width. It can be configured in one of two modes: it can rotate 360°, allowing switching between landscape and portrait orientations or, alternatively, it can be locked in the preferred orientation.

LOW PROFILE 100 X 100 MM VESA SLIDER - FRONT VIEW

LEVERLIFT-CB wall mounted computer workstation specification drawing monitor mount slider with 100mm VESA front view with measurements

This drawing shows the 100 x 100 mm VESA low profile monitor slider as seen from the front. Most of the dimensions are identical to those of the 75 x 75 mm VESA version. The only difference is that the VESA adaptor (in gray) is larger: 4.52" x 4.52". Once again, the VESA plate can be locked or allowed to rotate from landscape to portrait. In the latter case, the resistance to rotation can be adjusted as desired.

LOW PROFILE 100 X 200 MM VESA SLIDER - FRONT VIEW

LEVERLIFT-CB sliding monitor and keyboard tray wall mount specification drawing monitor mount slider with 100x200mm VESA front view with measurements

This front view of the low-profile monitor slider shows the 100 x 200 mm VESA mounting plate in landscape orientation. The VESA adaptor is shown in gray and is 4.52" x 8.45" in size. It can either be allowed to rotate (with adjustable resistance) between landscape and portrait or be locked in the desired position.

LOW PROFILE MONITOR SLIDER - SIDE VIEW

LEVERLIFT-CB wall mounted computer workstation specification drawing monitor mount slider side view with measurements

The low profile monitor mount positions the back of the attached monitor only 1.85" from the wall, ready for instant adjustment up or down the track. The vertical slider is 14" tall and the front edge of the brake release and vertical adjustment handle is at 2.40" from the wall. The vertical travel is only restricted by the length of the track and other attached mounts and devices. The side view above shows the 75 x 75 mm VESA plate, but these measurements are valid for all VESA adaptor sizes on offer.
