LeverLift Height Adjustable Folding Keyboard Wall Mount

New USA MADE

REQUIRED ITEMS

  • ADA compliant keyboard tray folds to 4" when not in use
  • Adjust tray from sitting to standing with simple lever
  • Height adjustable across entire length of LeverLift track
  • Two keyboard platform options: 20" x 8.5" and 26" x 8.5"
  • Tray is fitted with an ergonomic palmrest for comfort
  • Looking for an ADA compliant workstation? Check out the LeverLift Access
  • KEYBOARD MOUNT ONLY. TRACK AND OTHER COMPONENTS SOLD SEPARATELY.

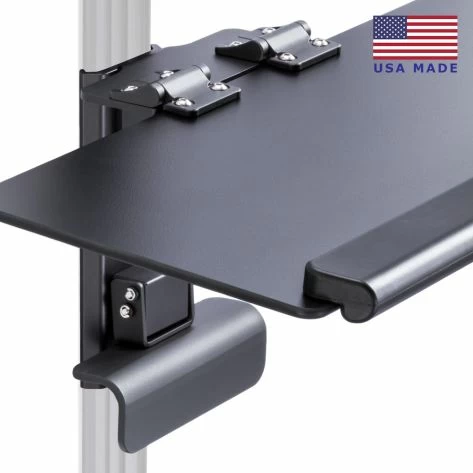

LeverLift Compact Height Adjustable Folding Keyboard Tray

The LeverLift Low Profile Folding Keyboard Tray Mount is the most compact of the LeverLift sit-to-stand wall-mounted keyboard tray options. It is one of many components that can be installed on the LeverLift vertical wall track, allowing the user to customize the workstation for their specific needs. Each LeverLift slider mount has an easy-to-grip handle that can be used to lift or lower it to the desired height. The vertical movement of a slider is only restricted by the length of the track and the number and size of the installed components.

The LeverLift Folding Keyboard Tray is an excellent space-saver when the track is mounted in an area with restricted space. When not in use, the tray can be folded up over 90o, placing the tray platform only 4 inches from the track mounting surface, thus making it ADA compliant.

The height adjustable keyboard tray is available in two keyboard platform sizes: 26 inches x 8.5 inches and 20 inches x 8.5 inches for smaller keyboards. When the tray is in use, it extends out to 12.85 inches from the wall track mounting surface. Each platform option also includes a comfortable and ergonomic palmrest along the front edge of the tray.

The selection of modular components available within the LeverLift system allows you to mix and match monitor, keyboard and/or CPU mounts to create the workstation you need today and evolve over time as your requirements change. The LeverLift family also includes a hyper-flexible articulating keyboard tray slider and the economical fixed angle keyboard tray, both of which still provide the same instant sit-stand height adjustability.

Shipping Weight Up to 15 lbs
Shipping Dimensions Up to 26" x 10" x 8"
Warranty 5 year limited

Mount Type

Vertical Wall Track

Keyboard Trays

20" Phenolic Tray

26" Phenolic Tray

Keyboard Tray Height Adjustment

Instant Independent Adjustment, Limited Only By Track Size And Installed Components

Keyboard Tray Tilt Range

+90° up

Keyboard Horizontal Reach

12.85"

LOW PROFILE HEIGHT ADJUSTABLE FOLDING TRAY - SIDE VIEW

LEVERLIFT-LP sliding monitor and keyboard tray wall mount specification drawing folding keyboard tray slider side view with measurements

The low profile folding tray is mounted on a sliding mount assembly, which can be instantly positioned anywhere along the vertical track. When the keyboard is in use, the palmrest at the front edge of the tray extends a maximum of 12.85". When is it folded vertically, it is a mere 4" from the wall.

LOW PROFILE HEIGHT ADJUSTABLE FOLDING TRAY OPTIONS - TOP VIEW

LEVERLIFT-LP wall mounted computer workstation specification drawing folding keyboard tray slider top view with measurements

There are two tray sizes available. They are 20" and 26" wide respectively. Measuring from the back edge to the front of the palmrest, both trays are approximately 9.3" deep. When the keyboard is in use, the front edge of the tray extends to 12.85" from the wall.
