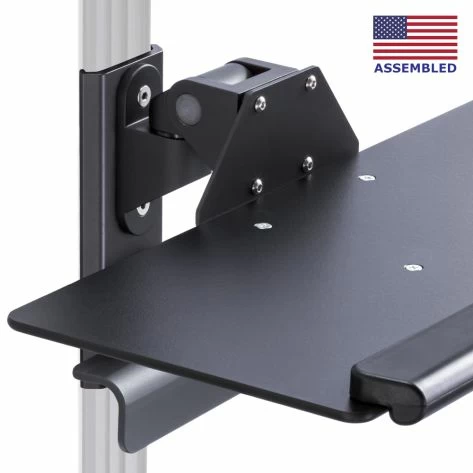

The LeverLift Articulating Keyboard is one of many components compatible with the LeverLift wall-mounted track. Each component can be fitted anywhere on the track. An easy-to-grip handle allows the user to quickly adjust the height along the mount, limited only by the track length and other fitted devices.
This articulating keyboard tray is the most versatile and flexible of the LeverLift keyboard tray sliding mounts. Not only does it provide sit-to-stand height adjustability, but it also has a large tilt range and swivels left to right. The tray can be folded up a full 90o, allowing the tray to be stored out of the way when not in use, extending out only 6.5 inches from the track mounting surface. It additionally provides another 45o of downwards tilt. The articulating tray is capable of swiveling a full 90o to each side, but is often limited by the edges touching the track mounting surface.
The height adjustable keyboard tray is offered in two different keyboard platform sizes: 26 inches x 8.5 inches and a more compact 20 inches x 8.5 inches. Both sizes protrude a maximum of 14.40 inches from the track mounting surface when positioned precisely perpendicular to the track. Both also include an ergonomic palmrest that runs across the front edge of the platform.
The LeverLift system is made of interchangeable and compatible keyboard, monitor, and CPU mounting components, designed to let you create the workstation that works for you and modify it as your equipment and ergonomic requirements change over time. It includes two other keyboard tray options: a low-profile folding keyboard tray and a fixed angle keyboard tray which provide the same easy-to-use height adjustability.
|Shipping Weight||Up to 15 lbs|
|Shipping Dimensions||Up to 26" x 10" x 8"|
|Warranty||5 year limited|
Two tray options are available, 20" and 26" in width. Both trays are 8.5" deep. The articulating keyboard tray reaches out to 14.40" from the wall to the very front of the ergonomic palmrest.
The articulating keyboard mount can be tilted upwards by up to 90° and downwards by up to 45° to accommodate various typing angles. When the keyboard and mouse are not needed, the tray can fold up to only 6.5" from the wall in the stowed position. The sliding mount itself is 7.5" tall and is capable of moving up and down the track using the adjustment handle located near the bottom.
This top view illustrates the swivel capability of the articulating keyboard tray. This underlying mechanism can rotate up to 90° in each direction. In most practical scenarios, the range will be limited to the point at which the tray makes contact with the wall.
