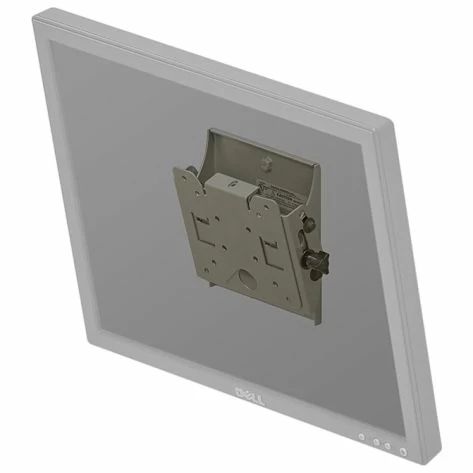

ST630 Slim TV Wall Mount (75 and 100 mm VESA)

REQUIRED ITEMS

  • Limited Quantities - Please call to order
  • Slim wall mount for monitors and TVs up to 80 lb
  • One-touch effortless +15/-5° tilt adjustment
  • Pre-assembled for easy installation
  • 75 x 75mm & 100 x 100mm VESA compatible
  • Select security level: Standard or Theft-Deterrent
  • California Residents: WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information

Low-Profile Tilting Monitor Wall Mount

  • VESA 75mm / 100mm compatible
  • One-touch tilt for easy adjustment without use of tools
  • Integrated security options available
  • Pre-assembled to make install a snap
  • Handles up to 80 pounds
  • Screen tilts +15/-5°

Perfect for digital signage, point-of-sale stations or office applications, Peerless Heavy-Duty Universal Tilt Wall Mounts come with everything you need for a quick and easy install: LCD screens engage with an audible click, a VESA compatible adapter plate and a pre-assembled wall unit that can be mounted to a single wood stud or concrete. Plus, this kit contains a fastener pack that includes all screen attachment hardware which means no guesswork and no trips to the hardware store.

Shipping Weight 5 pounds; net weight 3.98 pounds
Shipping Dimensions 13" x 10" x 3"
Warranty 3 year limited

Mount Type

Wall Mount

Number of Monitors

1

Mounting

Wall Mount

Weight Range

Up to 80 lb

VESA Options

75 x 75
100 x 100

Monitor Tilt Range

+15° up, -5° down

ST630 HEAVY-DUTY WALL MOUNT
FRONT VIEW

ST630 heavy-duty monitor wall mount with 75mm and 100mm VESA specification drawing front view with measurements

A front view of the ST630 that is VESA 75 x 75mm and 100 x 100mm compatible. The overall dimension are 6.2 inches tall and 6.61 wide.For larger screen needs please see the ST632.



ST630 HEAVY-DUTY WALL MOUNT
SIDE VIEW

ST630 heavy-duty monitor wall mount specification drawing side view with width measurement

The ST630 has a side profile of only 1.58 inches when it is set parallel to the wall or vertical mounting surface.



ST630 HEAVY-DUTY WALL MOUNT
SIDE VIEW - TILT

ST630 heavy-duty monitor wall mount specification drawing side view demonstrating tilt with measurements

One-touch tilt allows adjustment of +15/-5° without the use of tools.  The maximum clearance from the wall when fully tilted 15 degrees is 2.22 inches.



ST630 HEAVY-DUTY WALL MOUNT
WALL PLATE

ST630 heavy-duty monitor wall mount specification drawing front view with measurements

A simple two hole pattern provides support for the plate that attaches to the wall.  It is 4.5 inches from center to center.
