ST632 Slim TV Wall Mount (100x200,200x200 mm VESA)

REQUIRED ITEMS

  • Easy-to-install low-profile monitor & TV wall mount
  • Handles up to 80lb with effortless +15/-5° tilt
  • 100 x 200mm & 200 x 200mm VESA adapter
  • Select color: Black or Silver
  • Select security level: Standard or Theft-Deterrent

HEAVY-DUTY MONITOR WALL MOUNT HANDLES BIG LCD MONITORS AND PLASMA MONITORS

  • VESA 100 x 200mm and 200mm compatible
  • Tilt +15/-5 degrees without the use of tools
  • Pre-assembled for quick and easy installation
  • Handles equipment up to 80 pounds
  • Optional integrated security available

The ST632 heavy-duty monitor wall mount is the ideal solution for digital signage, point-of-sale or office applications. It's also incredibly simple to install: the pre-assembled wall unit can be mounted to a single wood stud or concrete. The monitor is attached to the included VESA compatible adapter plate and the LCD screen is mounted into the wall with an audible click. All attachment hardware is included to make installing even easier.

Shipping Weight 5 pounds; net weight 3.98 pounds
Shipping Dimensions 13" x 10" x 3"
Warranty 3 year limited

ST632 HEAVY-DUTY WALL MOUNT
FRONT VIEW

ST632 heavy-duty monitor wall mount with 75mm and 100mm VESA specification drawing front view with measurements

TThe ST632 is designed for use with VESA 100 x 200mm and 200 x 200mm compatible monitors. For smaller screen needs please see the Monolok.



ST632 HEAVY-DUTY WALL MOUNT
SIDE VIEW

ST632 heavy-duty monitor wall mount specification drawing side view with width measurement

The ST632 has a side profile of only 1.58 inches.



ST632 HEAVY-DUTY WALL MOUNT
SIDE VIEW - TILT

ST632 heavy-duty monitor wall mount specification drawing side view demonstrating tilt with measurements

One-touch tilt allows adjustment of +15/-5° without the use of tools.  The maximum downward tilt is 15 degrees and the distance from the wall becomes 2.82 inches.



ST632 HEAVY-DUTY WALL MOUNT
WALL PLATE

ST632 heavy-duty monitor wall mount specification drawing front view with measurements

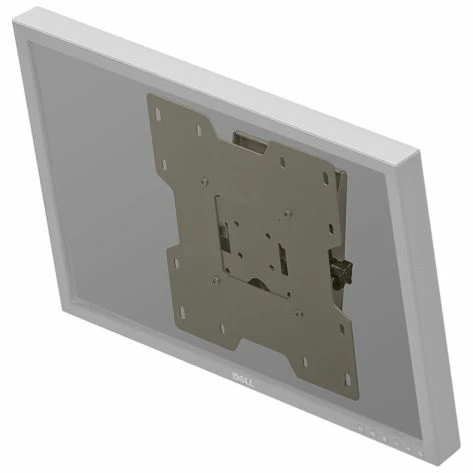

The 6.1 inch tall by 6.56 inch wide screen adapter plate simply hooks onto the wall component for quick and easy installation.
