SKU

VIEWTRACK-CB

INTRODUCING VIEWTRACK HORIZONTAL MOUNTING

$65.99
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

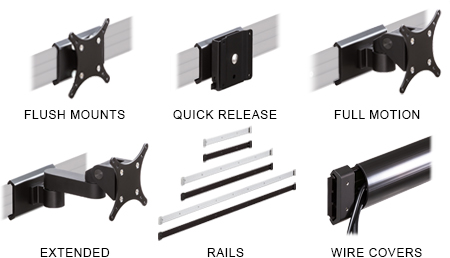

VIEWTRACK HORIZONTAL MULTI-MONITOR WALL MOUNT COMPONENTS

SIDE-BY-SIDE MOUNTING OF MULTIPLE MONITORS

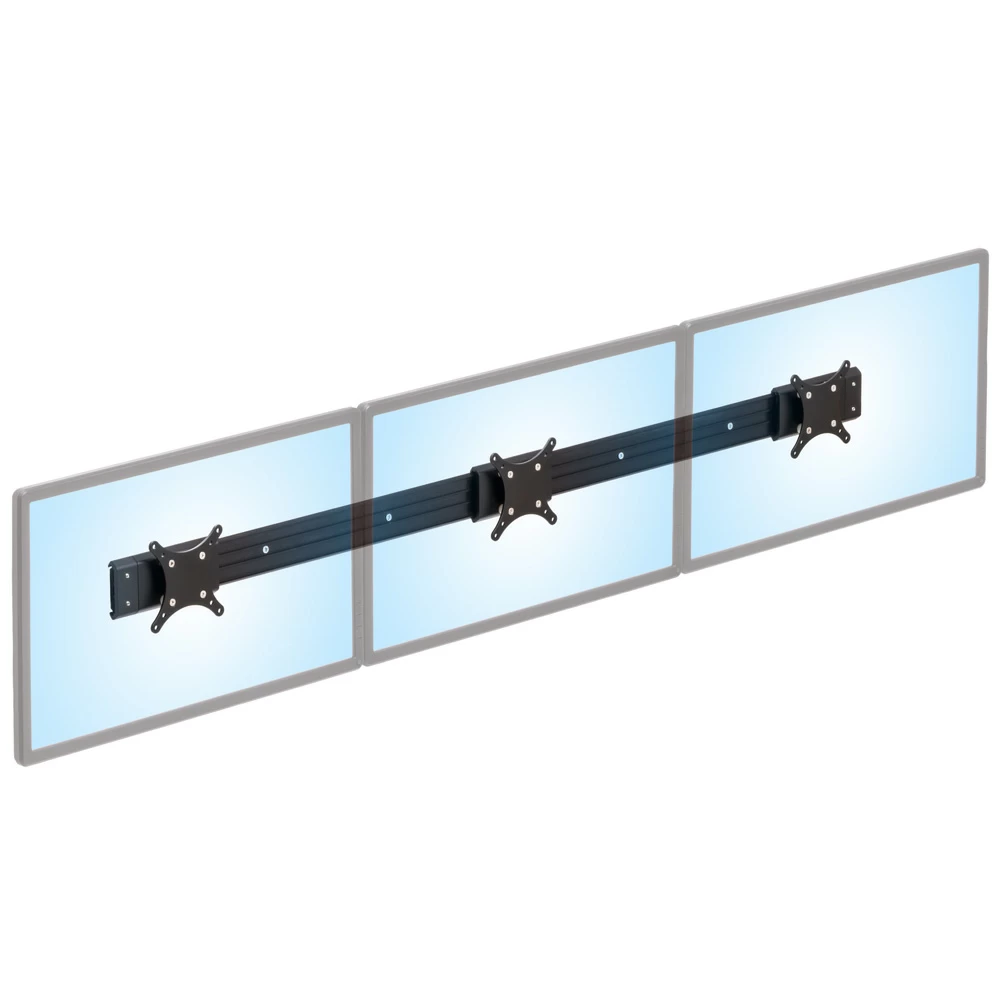

Three monitors mounted in a low-profile side-by-side arrangement using the ViewTrack low profile VESA positioners.
Low profile VESA positioners support up to 35 pounds each and set monitors a mere 1.4 inches from the wall. The mounts can be placed anywhere along the track to ensure perfect positioning.



EASY INSTALLATION AND REMOVAL OF MONITORS

Animation showing how a monitor mounted on the ViewTrack using a Monolok slider readily can be installed and removed independently of all other equipment on the same track.
Quick-Release Monolok Sliders facilitate easy and fast replacement of VESA compliant equipment. Available for 75 x 75 mm 100 x 100 mm (shown above) and 100 x 200 mm VESA compatible monitors.



PRECISE TILT AND ANGLE ADJUSTMENT

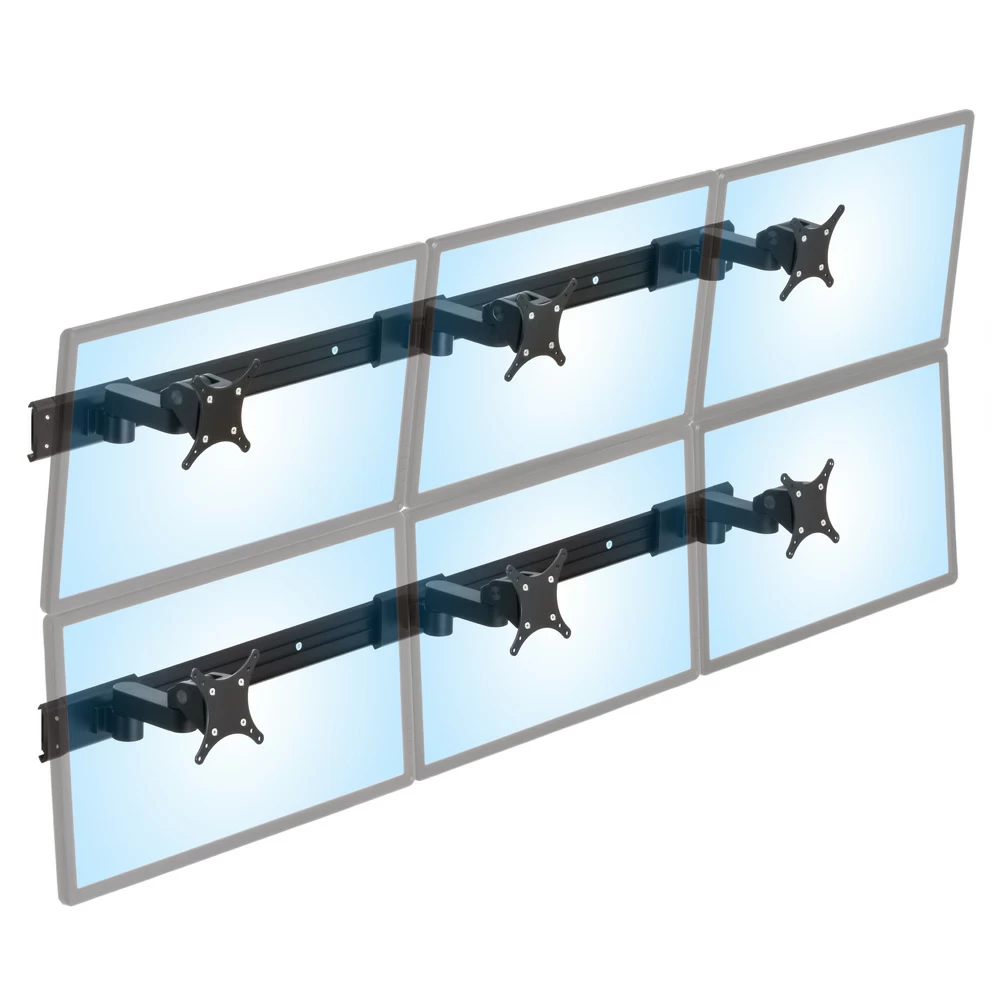

Six monitors mounted in two rows of three on two ViewTracks with the top monitors slightly tilted down and the bottom monitors tilted up.
Articulating Tilters with Extensions enable precise multi-monitor arrangements. The mounts can be angled, tilted, and panned independently enable an optimal viewing angle for a group of monitors.



SIGNAGE IN LANDSCAPE OR PORTRAIT ORIENTATION

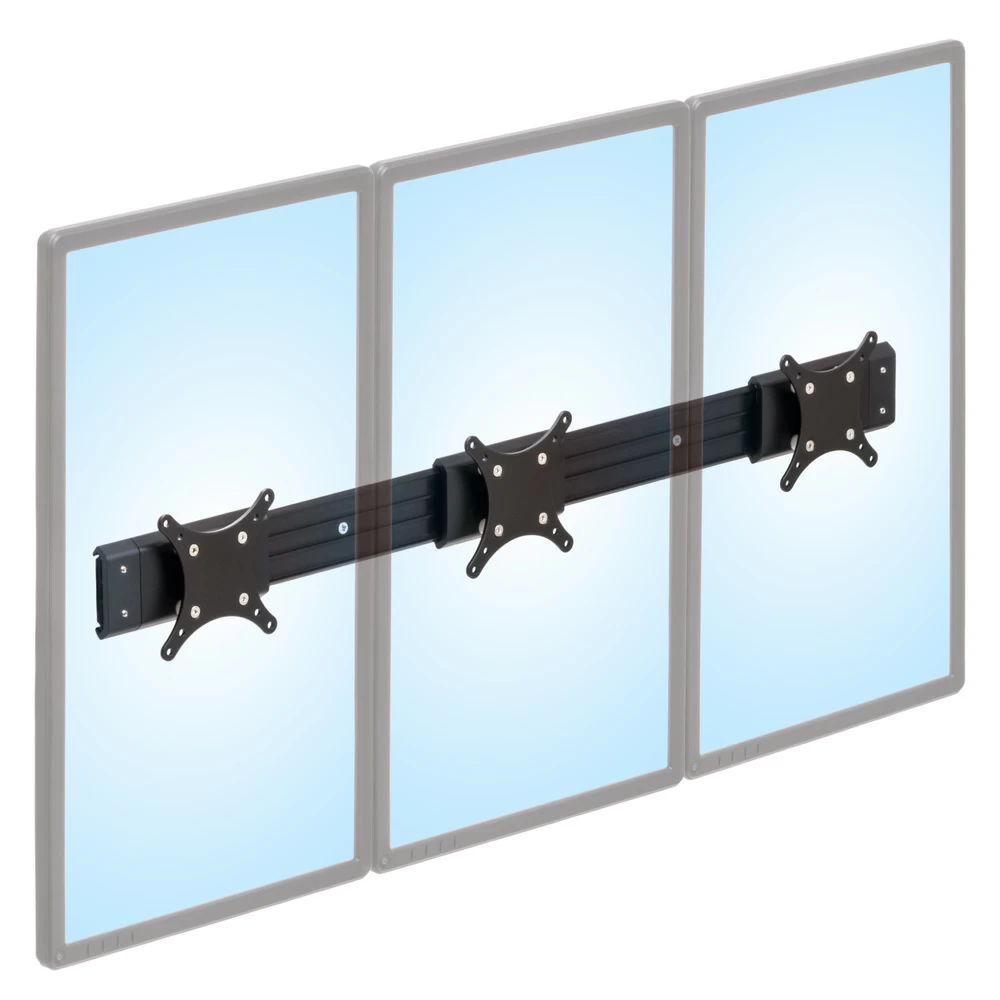

Three monitors mounted in portrait orientation in a low-profile side-by-side arrangement using the ViewTrack low profile VESA positioners.
Flush and Quick Release ViewTrack Mounts are suited to digital signage requirements in portrait and/or landscape orientation and are adaptable for monitors up to 35 pounds.



LOW-PROFILE 75 AND 100 MM VESA MONITOR POSITIONER

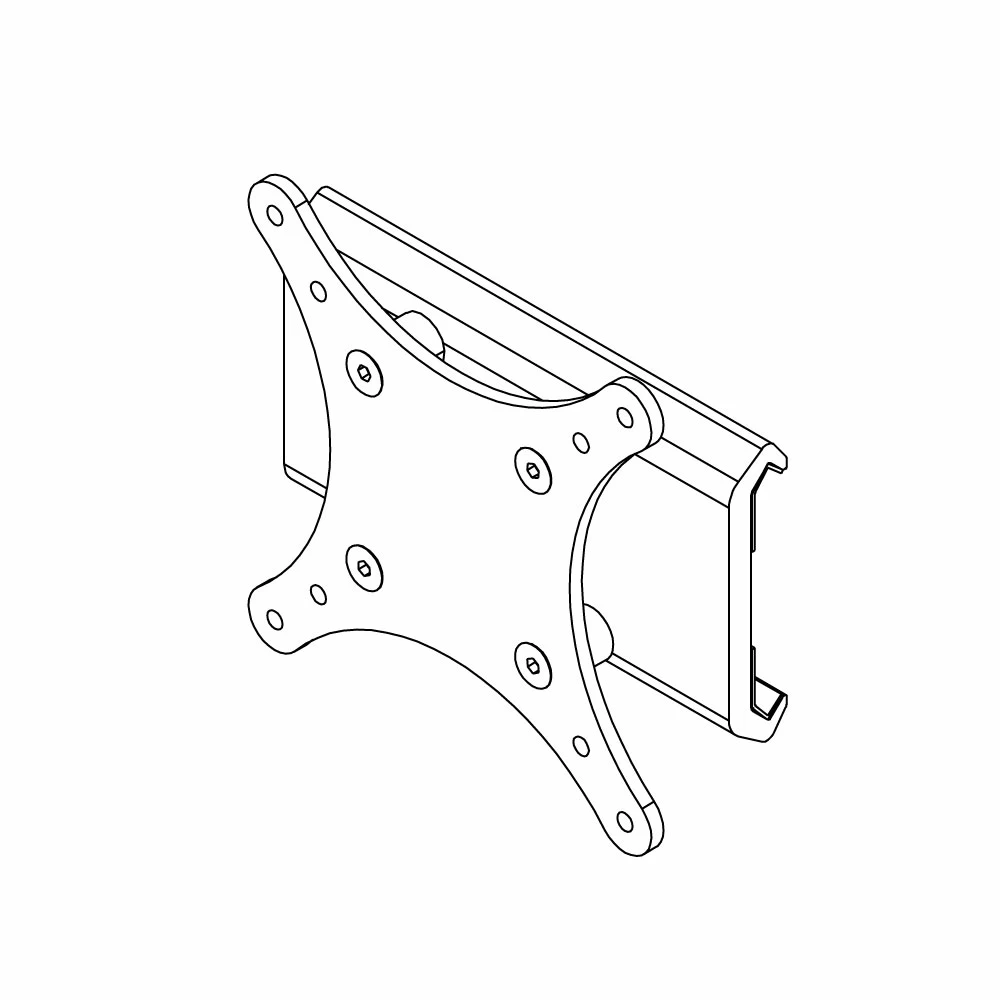

Line drawing showing ViewTrack low-profile wall mount  positioner with VESA bracket supporting 75 x 75 and 100 x100 mm VESA patterns.
A309 - $26.88
This Low-Profile Positioner adapts to 75 x 75 and 100 x 100 mm VESA compliant monitors and devices such as Thin Client CPUs. The mounting plane is only 1.4 inches from wall. The maximum load is 35 lb.



LOW-PROFILE 100 x 200 MM VESA MONITOR POSITIONER

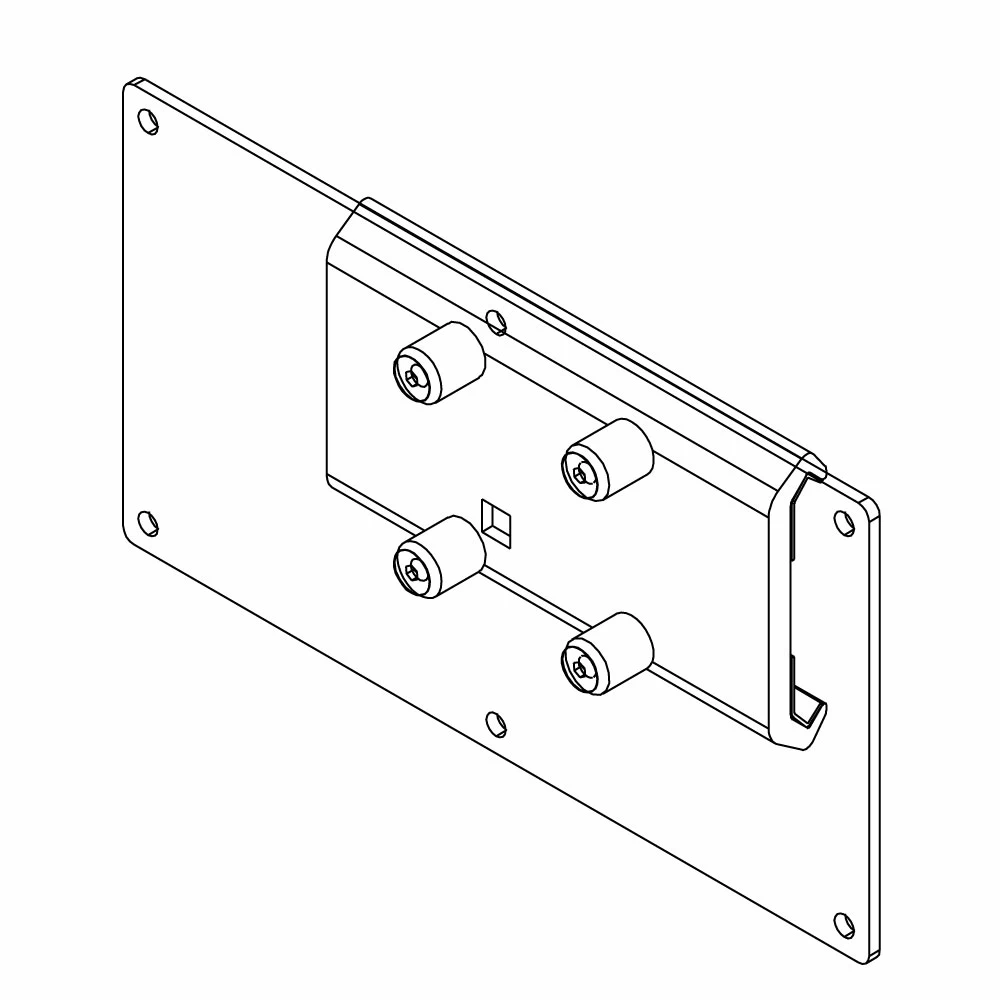

Line drawing showing ViewTrack low-profile wall mount  positioner with VESA bracket supporting 100x200 mm VESA pattern.
A310 - $37.28
This Low-Profile VESA Positioner handles 100 x 200 mm VESA compliant touch screens and monitors. The mounting plane is a mere 1.4 inches from wall. The maximum load is 35 lb.



MONOLOK QUICK-RELEASE, 75 MM VESA MONITOR POSITIONER

Line drawing showing ViewTrack quick release Monolok positioner with VESA bracket supporting 75x75 mm VESA pattern.
A271 - $45.96
The Quick-Release, rotating Monolok supporting monitors and other equipment compatible with 75 x 75 mm VESA patterns positions the device at 1.9 inches from the wall and has a 35 pound payload capacity.



MONOLOK QUICK-RELEASE, 100 MM VESA MONITOR POSITIONER

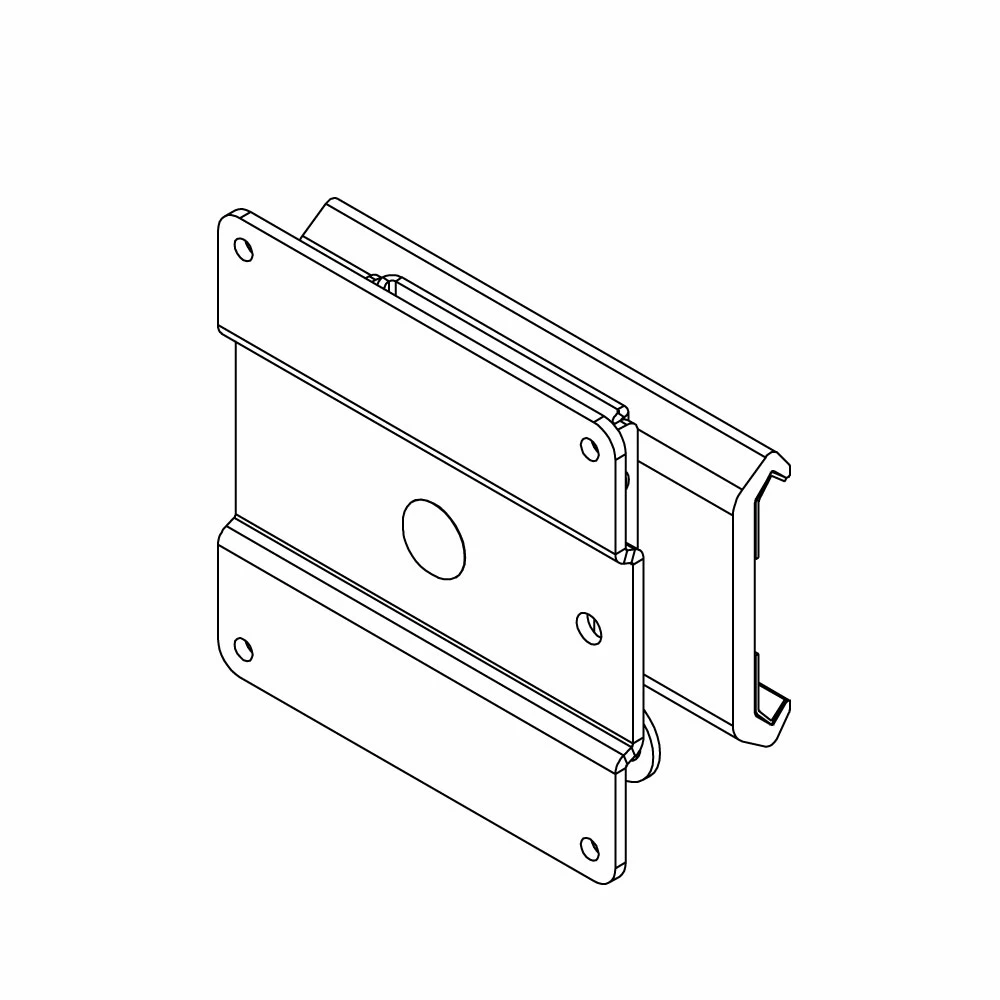

Line drawing showing ViewTrack quick release Monolok positioner with VESA bracket supporting 100x100 mm VESA pattern.
A272 - $46.44
This Quick-Release, rotating Monolok slider is a monitor mounting and positioning bracket with a 100 x 100 mm VESA adapter. Like all Monolok mounts, it features theft deterrent configurations and a 35 pound payload capacity.



MONOLOK QUICK-RELEASE, 100 X 200 MM VESA POSITIONER

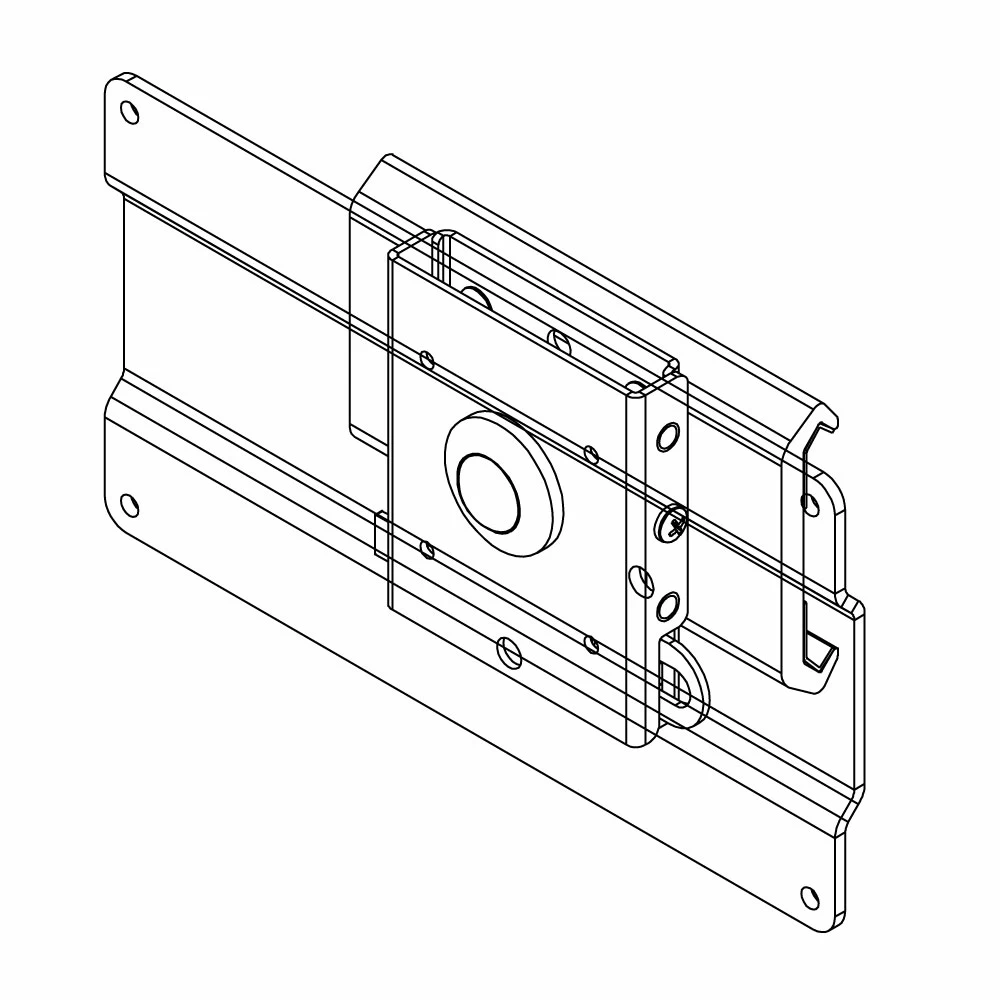

Line drawing showing ViewTrack quick release Monolok positioner with VESA bracket supporting 100x200 mm VESA pattern.
A273 - $47.85
This Quick-Release Monolok Positioner handles 100 x 200 mm VESA compliant touchscreens and boasts a mounting plane just 1.9 inches from the wall.



ARTICULATING 75/100 MM VESA MONITOR POSITIONER

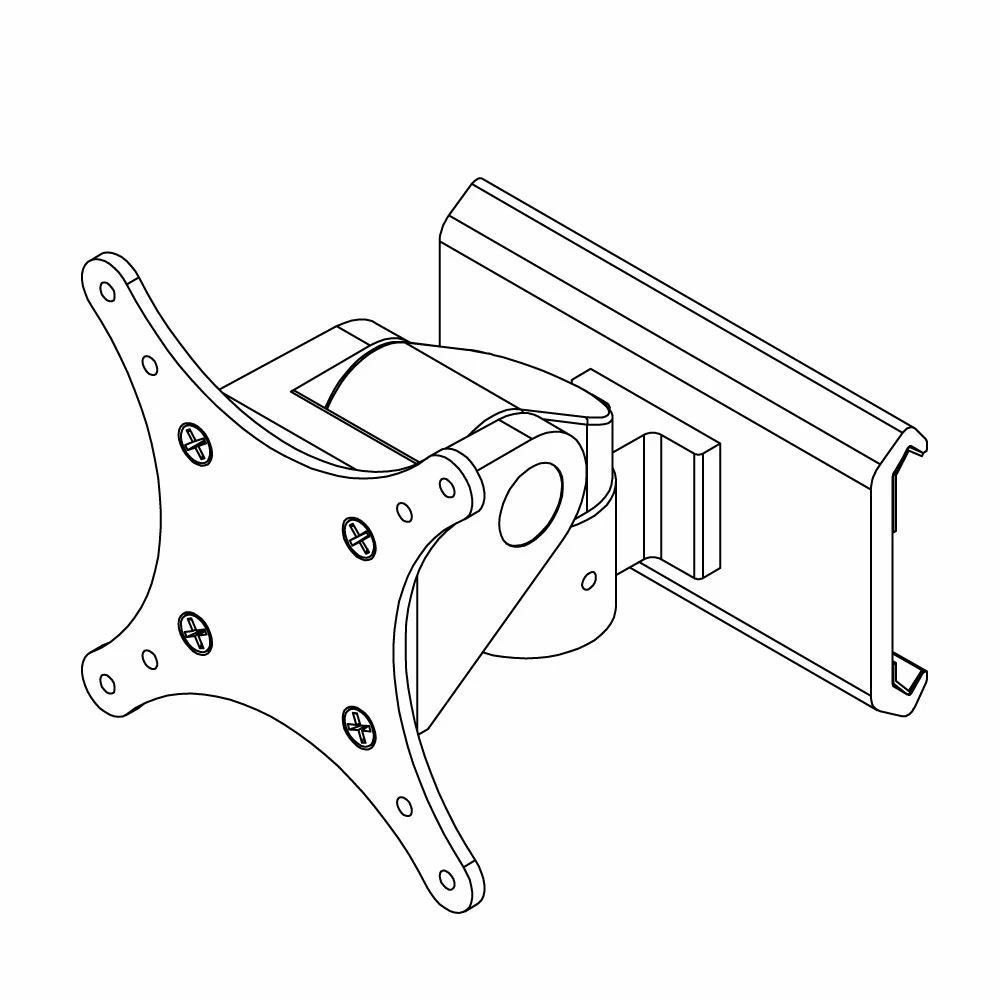

Line drawing showing ViewTrack articulating monitor positioner with VESA bracket supporting 75x75 and 100x100 mm VESA patterns.
HVT001 - $74.32
The articulating positioner for monitors and touchscreens with 75 x 75 and 100 x 100 mm VESA patterns includes easy tilt and swivel functions coupled with screen rotation. The mounting plane is 5.2 inches from wall and the max payload is 25 lb.



ARTICULATING 100 x 200 MM VESA MONITOR POSITIONER

Line drawing showing ViewTrack articulating monitor positioner with VESA bracket supporting 100x200 mm VESA patterns.
HVT002 - $81.57
This articulating positioner for monitors with 100 x 200 mm VESA patterns features easy tilt and swivel functionality as well as with screen rotation from portrait to landscape. Its mounting plane is 5.2 inches from the wall and the maximum payload is 25 lb.



ARTICULATING 75/100 MM VESA POSITIONER WITH EXTENSION

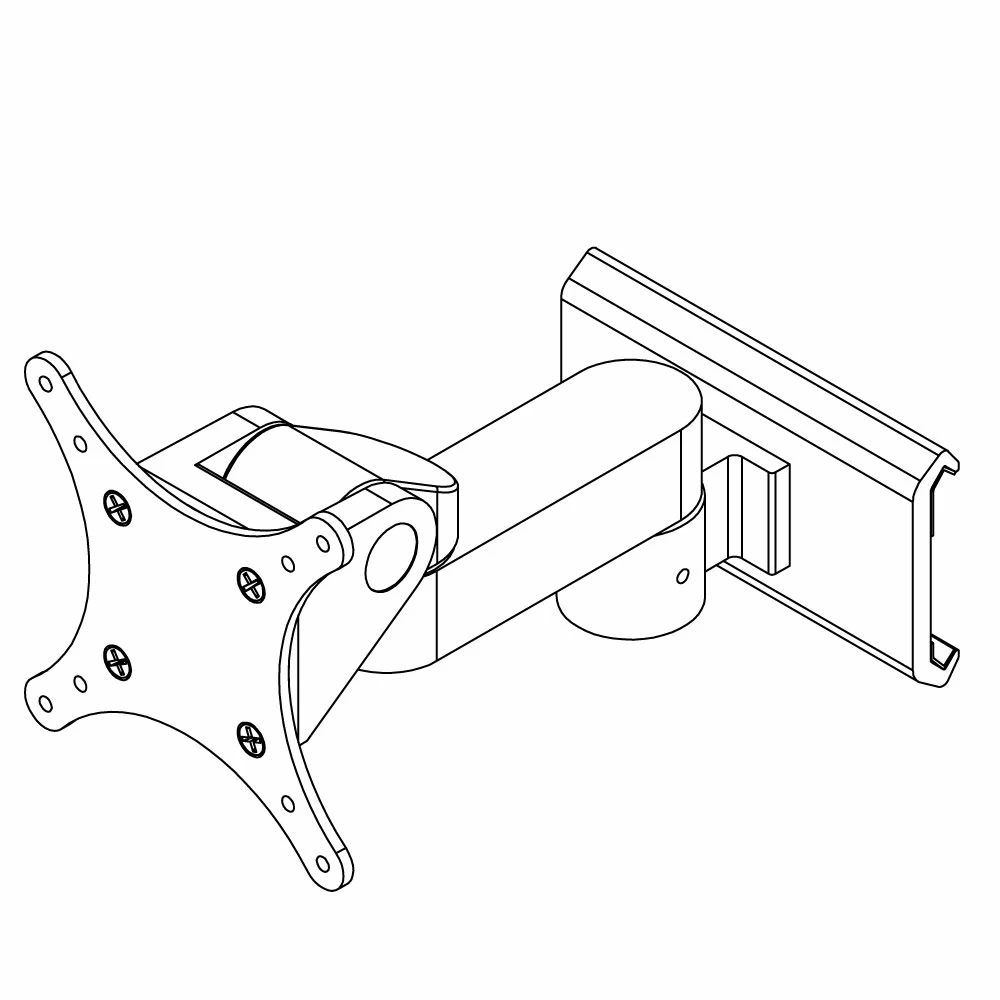

Line drawing showing ViewTrack articulating monitor positioner and extension with VESA bracket supporting 75x75 and 100x100 mm VESA patterns.
HVT003 - $100.72
The articulating positioner with extension provides great flexibility to angle, orient, tilt, and rotate a 75 x 75 or 100 x 100 mm VESA monitor. It is especially useful in positioning multiple monitors in an arc formation or in multiple rows of monitors. It can fold the VESA mounting plane to 4.2 and extend it to 8.6 inches with a maximum payload capacity of 17 pounds.



27” VIEWTRACK HORIZONTAL MOUNTING RAIL

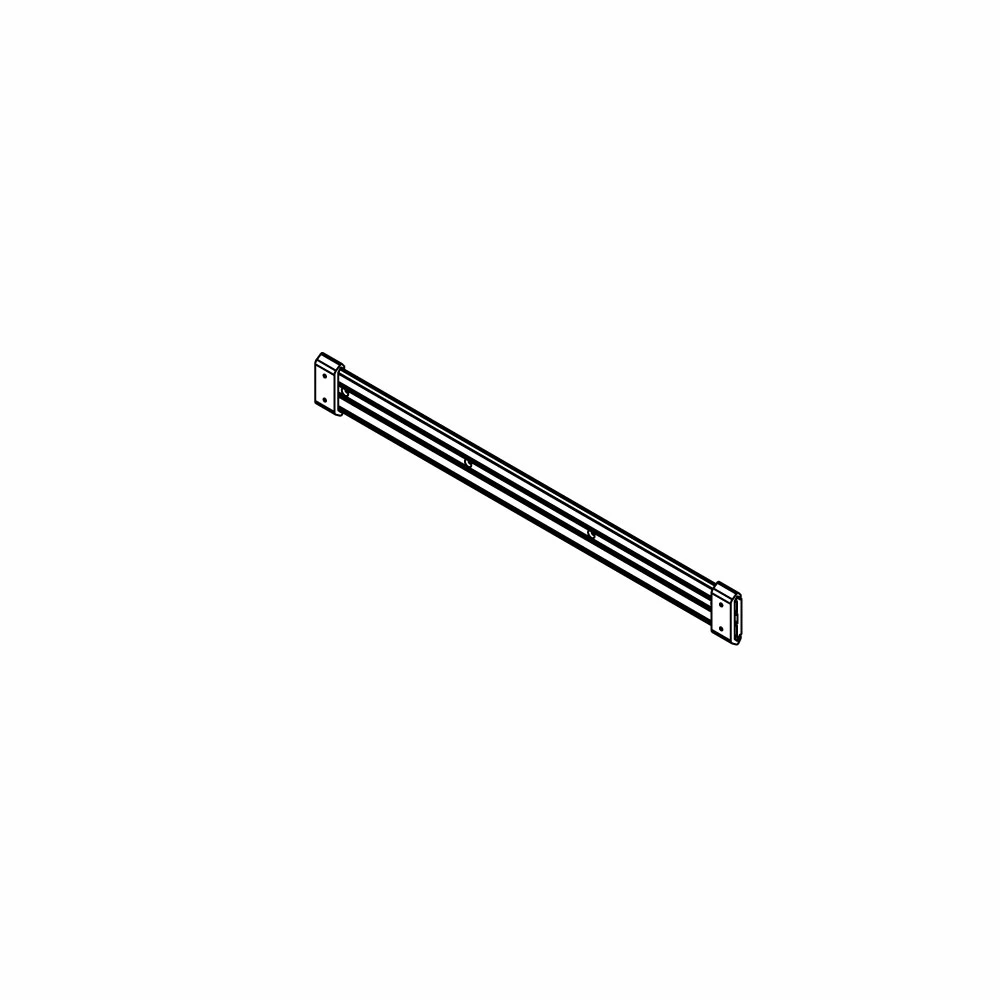

Line drawing showing 27-inch rail for ViewTrack horizontal wall track monitor mounting system.
HVT-27 - $40.90
27” ViewTrack supports devices with our easily installed brackets and includes fastener system for drywall mounting.



51” VIEWTRACK HORIZONTAL MOUNTING RAIL

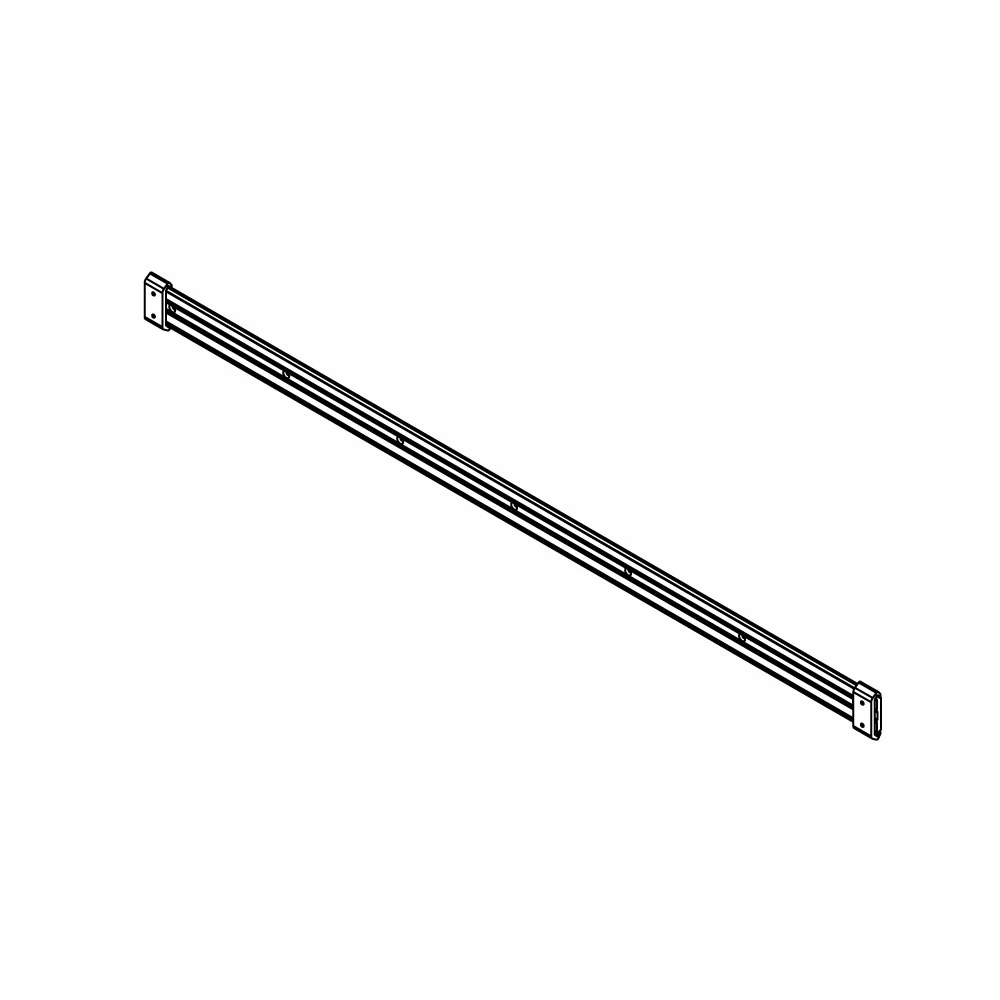

Line drawing showing 51-inch rail for ViewTrack horizontal wall track monitor mounting system.
HVT-51 - $55.92
51” ViewTrack supports multiple monitors and includes fastener system for drywall mounting.



75” VIEWTRACK HORIZONTAL MOUNTING RAIL

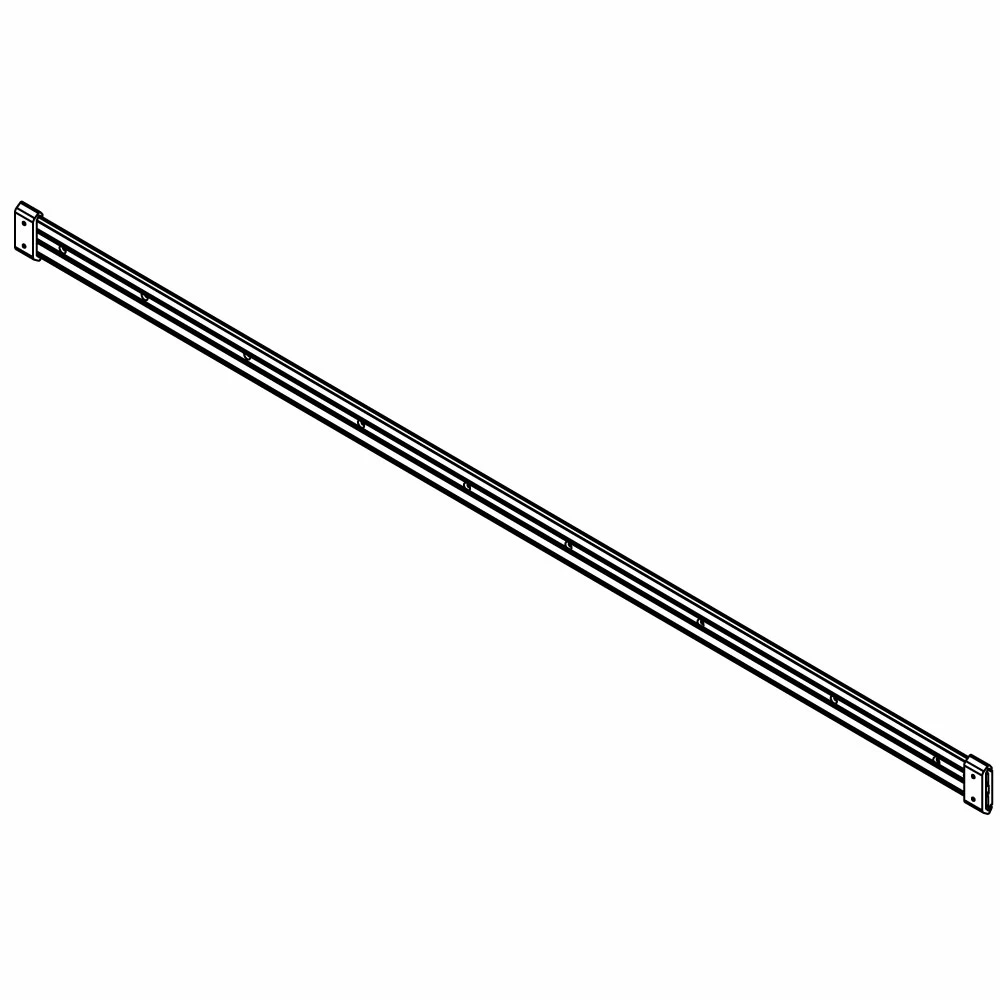

Line drawing showing 78-inch rail for ViewTrack horizontal wall track monitor mounting system.
HVT-75 - $73.51
75” ViewTrack supports multiple monitors and includes fastener system for drywall mounting - special order item.



SNAP ON WIRE MANAGEMENT COVERS

Line drawing of snap on 2 inch wire management clip and the standard cover lengths of 12, 20, 44 and 71 inches
WIRE COVERS - $2.18 & UP
Multiple sizes available to completely cover gaps between mounting position as well as 2” clips @ $2.18 each.
