SKU

HVT

ViewTrack™ Monitor Wall Mounting Rail

Grouped product items
Option Price Qty
Horizontal ViewTrack™ - 27-inch - Black
$42.95
Horizontal ViewTrack™ - 27-inch - Metallic Gray
$42.95
Horizontal ViewTrack™ - 51-inch - Black
$58.72
Horizontal ViewTrack™ - 51-inch - Metallic Gray
$58.72
Horizontal ViewTrack™ - 75-inch - Black
$77.19
Horizontal ViewTrack™ - 75-inch - Metallic Gray
$77.19

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

ViewTrack™ Monitor and VESA Device Wall Mount Support System

  • Designed for office walls, cabinets and most rigid vertical surfaces
  • Comes with all the necessary parts and fasteners for simple drywall installation
  • Supports mounts for flat and flush display sets to rows of gently angled and tilted screens
  • Rail Only - Monitor Mounting Brackets and Wire Managers sold separately

The ViewTrack™ Rail supports a family of inexpensive and easy to install side by side display screen positioners. Create rows of monitors in landscape or portrait orientations that are perfectly aligned. The basis for the system is the ViewTrack™ Rail. It is made in the USA and available in lengths up to 75" while longer custom lengths may be ordered in quantity.

Rail installation is optimized for drywall locations. It is quickly and effectively installed using the included SnapToggle fasteners at 8 inch intervals. Stud attachment is not necessary and avoiding steel studs is desirable to promote ease of installation and track to wall attachment integrity.
Rails may be field cut using a non-ferrous metal cutting blade. Use a fine tooth small file to clean up burrs. Rails are anodized black or clear so cut rail ends will reveal unfinished natural aluminum. If you require extra end stops contact customer service email us at sales@ergomart.com or call 888 420 3200 and then press one.

27" width allows for two monitors up 19.25" wide.

51" wide track accommodates three monitors up to 20.5" wide or two monitors up to 42" wide each.

Contact Ergomart for questions and to discuss best options when selecting rail lengths.

Shipping Weight Up to 5 lbs
Shipping Dimensions Up to 77" x 4" x 4"
Warranty 5 year limited

Mount Type

Horizontal Wall Track

Number of Monitors

Varies based on track length and monitor size

Mounting

Wall Track Mount

Weight Range

Up to 35 lb per monitor

VESA Options

75 x 75 mm 100 x 100 mm 100 x 200 mm

Portrait to Landscape

Yes

Max Swivel (at Monitor)

Up to 180°

Monitor Tilt Range

+90° up, -45° down

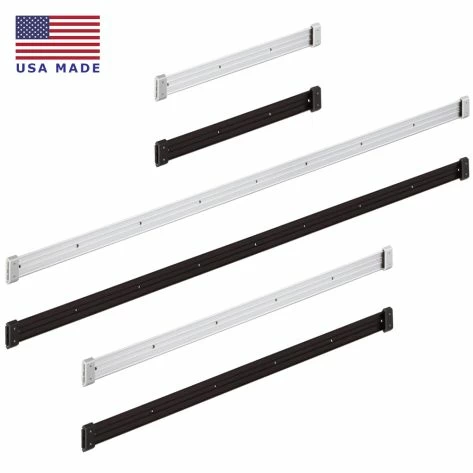

Track Lengths

27" 51" 75"

ViewTrack™ Horizontal Mounting Rail

Horizontal ViewTrack™ Dimensions

This image shows the mounting holes that are pre-drilled into each of the three standard track lengths. All tracks include hole spacing on 8” centers. A 27” track will accommodate two (relatively small) monitors up to 19.25 inches wide measured edge to edge.

Track Stops

Horizontal ViewTrack™ End Stops

Each track assembly includes two end stop brackets. Once properly secured, the stops prevent the inadvertent detachment of mounting positioners.

Extended Articulating Display Mounts for ViewTrack™
Extended Articulating Display Mounts for ViewTrack™

Components Start From $105.76

Articulating Monitor Mount For ViewTrack™
Articulating Monitor Mount For ViewTrack™

Components Start From $78.04

Quick Release Rotating Monitor Mount for ViewTrack™
Quick Release Rotating Monitor Mount for ViewTrack™

Components Start From $48.26

Low-Profile Monitor Mount for Horizontal Track
Low-Profile Monitor Mount for Horizontal Track

Components Start From $28.22

ViewTrack™ Snap-On Wire Managers
ViewTrack™ Snap-On Wire Managers

Components Start From $2.29
