Roller Track Sliding Horizontal Mount System

Grouped product items
Option Price Qty
39-inch Roller Track with Black End Caps, Stops, Bumpers, Screws - Clear Anodized
$118.00
78-inch Roller Track with Black End Caps, Stops, Bumpers, Screws - Clear Anodized
$193.00
156-inch Roller Track with Black End Caps, Stops, Bumpers, Screws - Clear Anodized
$382.00
Please Call
Mount Kit M - Stationary 118 Mount for Roller Track - Black
$55.50
Mount Kit M - Stationary 118 Mount for Roller Track - Metallic Gray
$60.00
Mount Kit N - Roller Track Trolley with 118 Mount - Black
$155.00
Mount Kit N - Roller Track Trolley with 118 Mount - Metallic Gray
$155.00
192BracketD with Roller Track Mounting Hardware
$73.00
Shaft Collar for Pole Mounts
$10.94
Roller Track Clamp Block - Clear Anodized
$9.50
Roller Track Mount Clip 39-inch - Clear Anodized
$35.00
Roller Track Mount Clip 78-inch - Clear Anodized
$60.00
Roller Track Mount Clip 156-inch - Clear Anodized
$122.00
Please Call
39-inch Wire Management Trough
$33.55
78-inch Wire Management Trough
$51.16

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

R-TRACK DELIVERS COMPLETE POSITIONING CONTROL, MODULARITY, SCALABILITY AND EFFORTLESS MOBILITY

  • Trolley allows movement of monitors and peripherals along the length of the track
  • Glide monitors, workstations and various equipment with finger-tip ease
  • Standard tracks are available in 39, 78 and 156 inch lengths
  • Trolley mounted solutions handle payloads up to 125 pounds
  • Fixed mounting options are available where instant lateral motion is not required
  • Use with horizontal extensions and pole mounted assemblies to add versatility
  • Add one or more of Ergomart’s monitor arms for vertical reach and mobility
  • High capacity cable management trough handles cables and even surge suppressors
  • Optional cable management systems protect, control and conceal wires and cables
  • Professional Installation required - must attach to wood studs or correctly engineered heavy backer

The Ergomart Roller Track (R-Track) System is a heavy duty horizontal track/rail that allows equipment to slide or roll laterally with ease. The R-Track System provides a unique and powerful set of answers to meet many mounting challenges encountered across a broad range of applications and environments. This specialty mounting solution is ideal for technical, manufacturing and industrial workstations, broadcast and monitoring environments and medical facilities where sliding monitor mounts are needed. A variety of Ergomart lifting arms and mounts work in conjunction with mobile trolleys or repositionable brackets to deliver vertical travel of up to 28".

Unlike most slat-wall systems, the R-Track can manage substantial loads between 24" fastening locations. The Rail component can handle 90 pound loads with four feet of space between anchoring points while still providing instant lateral mobility. The R-Track system is ideally suited for pairing with dynamic work environments like ball transfer tables and conveyor based manufacturing environments where a monitor and other equipment can be continuously repositioned for optimal usability.

The R-Track system serves as a scalable wall mounting infrastructure accommodating countless possibilities for reconfiguration and expansion while maintaining organization and visual harmony as equipment needs evolve. Dynamically height-adjustable systems result by mounting compatible monitor, keyboard, or other equipment arms to the available RT Mount Kits. Examples of many compatible products are listed below in the Compatibility tab. These products can be ordered from their respective product pages or you may contact Ergomart for a configuration quoted to your exact requirements.

When fixed height positioning is needed, a combination of Straight Arms, Poles, Pole Mounts, Monitor Tilter Heads and VESA adapters can be used to achieve the desired result. A simple system consists of monitors mounted close to the track using a short horizontal arm, and the appropriate tilter head and VESA plate combination. A longer horizontal arm can provide additional separation from the wall. A pole attached to the RT Mount or to the receiver at the end of the arm can provide vertical reach. Pole mounts allow equipment to be positioned along the shaft of the pole and come in single or dual mount varieties.

The R-Track is for:

  • Equipment moved frequently (e.g., audio visual studios, manufacturing or packing workstations)
  • Monitors or other devices mounted overhead and moved laterally and pulled down for user interface and then pushed back out of the way after use (e.g., medical/patient care)
  • Equipment that must be added or replaced relatively frequently (e.g., showrooms, stores, gyms, restaurants and sports bars, growing businesses)
  • Disparate sized monitors that need to be arranged on a wall in logical and useful configurations to create order and organization (e.g., security monitoring stations, showrooms)

For assistance putting together a customized R-Track solution call 1-888-420-3200 (international 214-742-6066)

RT RAIL

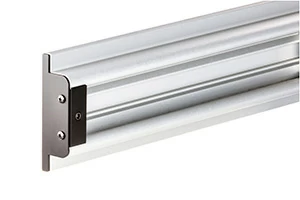

Roller Track rail shown from the front.

The US made aluminum anodized RT Rail is the foundation of the Roller Track system. It can be mounted on the wall, vertical struts, or poles and accepts movable or stationary mounts that support the desired equipment. Each rail includes 2 end caps and 2 stops. The rail is not pre-drilled for fasteners and is designed to be drilled to accommodate on-site installation. It is available in three standard lengths of 39", 78", and 156" and comes in anodized metallic gray as a standard color with anodized black available as an option. It can be cut down after purchase to shorter lengths during installation. Since the ends are drilled and tapped, an end that is shortened on-site will require re-tapping or modification to ensure the end stop functions properly. Fasteners are always attached on the outside flanges.



RT CLAMP BLOCKS

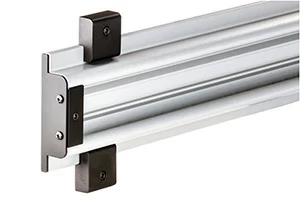

Roller Track rail shown from the front with clamp blocks installed.

RT Clamp Blocks are small clamping components that press against the top and bottom flange edges of the RT Rail and are fastened to the vertical surface. Clamp blocks are specifically used to attach the R-Track to vertical standards (also known as Unistrut or "vertical strut channels") commonly seen in manufacturing, assembly and packaging to provide additional bracing so the rail/track does not pull away along the top edge under heavier loads.



RT MOUNT KIT M

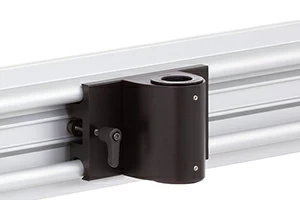

Roller Track rail shown from the front with mount kit M installed.

RT Mount Kit M is 6" wide and fixed. It is designed to be secured to the RT rail with four set screws for stationary positioning of equipment. This is an appropriate solution when occasional reconfiguration of the wall-mounted equipment is required, since the mounting infrastructure (e.g. the rails, clamps, and wire management) is installed once and the same mounts can be reused, saving the labor, time, and cost of having to rework supporting wall.



RT MOUNT KIT N

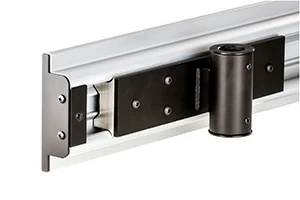

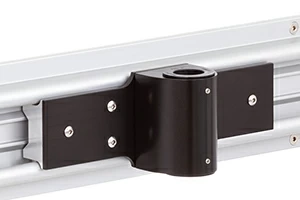

Roller Track rail shown from the front with mount kit N installed.

RT Mount Kit N is a 12" wide heavy-duty mount with a roller track trolley. It is designed to move freely along the length of the rail so that equipment mounted on the R-Track is repositioned effortlessly. Whenever a pole is mounted on an RT Mount Kit, a Shaft Collar must also be used to hold the pole, allowing for placement of peripherals above and below the mount.



192 D BRACKET CLAMPS

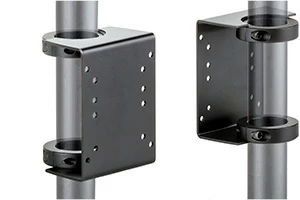

192 D bracket clamps, shown from the front and rear.

192 D Bracket Clamps attach the RT Rail to 1.5" schedule 80/160* poles. This component allows the installer to use poles mounted to a ceiling, wall or floor to securely deploy a Roller Track system. Ergomart recommends consulting a mechanical engineer to determine the limitations for the specific project based on the structural characteristics and limitations of the mounting locations.



RT WIRE MANAGEMENT TROUGH

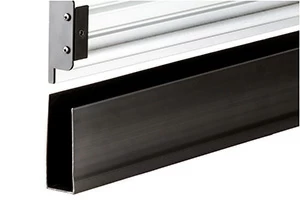

Roller Track wire management trough shown from the front.

The RT Wire Management Trough is a simple but effective wire management conduit that can be mounted below the RT Rail to contain and conceal wires attached to the equipment. The trough does not come pre-drilled and is designed so that holes for fasteners and outlet access can be custom-drilled on location during installation. It is available in black and can be ordered in 39" and 78" lengths. Other colors may be available for large orders - Please call for details.



RT CLAMP EXTRUSIONS

Roller Track rail shown from the front with extrusions installed.

RT Clamp Extrusions are long aluminum extrusions that rest atop the flange edges of the RT Rail to increase and expand the vertical attachment footprint and address aesthetic concerns by presenting a fascia with the fewest possible visible fastener heads. Contact your Ergomart representative for further information and details regarding deployment of this accessory.



R-TRACK SHAFT COLLAR

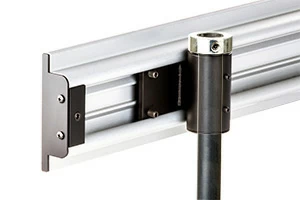

Roller Track rail shown from the front with shaft collar installed.

The R-Track Shaft Collar is used for suspending a variety of poles to the M and N mounts. Whenever attaching a LS413, LS413D, LS9137S, LS9137D, LS1512D, or LS1512Q select 2 shaft collars per unit to affix the pole at the desired vertical position.



Straight Arms, Poles, Pole Mounts, Tilter Heads and VESA adaptors can be used to create customized fixed-height mounting solutions that complement our sizable offering of off-the-shelf solutions. All types and sizes of monitors can be mounted tight to the track or using horizontal arms of differing lengths. Various monitor tilter heads can accommodate monitors weighing up to 75 lbs. Pole mounts allow equipment to be positioned along the shaft of the pole above and/or below the mount and come in single or dual mount varieties. Please call for help in creating a solution that suits your specific needs.

Shipping Weight Varies depeding on order. Call for non-UPS ground shipping arrangements.
Shipping Dimensions Varies depeding on order. Call for non-UPS ground shipping arrangements.
Warranty 5 year limited
RT Rail is aluminum manufactured with 70% - 100% post industrial and post consumer content and is fully recyclable.
Optional Wire Mangement Trough is fully recyclable.

ROLLER TRACK
TRACK - ISOMETRIC VIEW

RT horizontal track wall mounting system specification drawing isometric view

The US made aluminum anodized RT Rail is the foundation of the Roller Track system. It can be mounted on the wall, vertical struts, or poles and accepts movable or stationary mounts that support the desired equipment. Each rail includes 2 end caps and 2 stops. The rail is not pre-drilled for fasteners and is designed to be drilled to accommodate on-site installation.



ROLLER TRACK
TRACK - FRONT VIEW

RT horizontal track wall mounting system specification drawing front view with measurements

The Roller Track is available in three standard lengths of 39", 78", and 156" and comes in anodized metallic gray as a standard color with anodized black available as an option. It can be cut down after purchase to shorter lengths during installation.



ROLLER TRACK
TRACK - SIDE VIEW

RT horizontal track wall mounting system specification drawing side view with measurements

Since the ends of the Roller Track are drilled and tapped, an end that is shortened on-site will require re-tapping or modification to ensure the end stop functions properly.



ROLLER TRACK
WITH CLAMP BLOCKS - ISOMETRIC VIEW

RT horizontal track wall mounting system clamp blocks specification drawing isometric view

Roller Track Clamp Blocks are small clamping components that press against the top and bottom flange edges of the RT Rail and are fastened to the vertical surface.



ROLLER TRACK
CLAMP BLOCKS - FRONT VIEW

RT horizontal track wall mounting system clamp blocks specification drawing front view with measurements

Clamp blocks are specifically used to attach the R-Track to vertical standards (also known as Unistrut or "vertical strut channels") commonly seen in manufacturing, assembly and packaging to provide additional bracing so the rail/track does not pull away along the top edge under heavier loads.



ROLLER TRACK
CLAMP BLOCKS - SIDE VIEW

RT horizontal track wall mounting system clamp blocks specification drawing side view with measurements

The Clamp Blocks easily attach around the Roller Track and do not add any additional depth from the wall.



ROLLER TRACK
WITH CLAMP EXTRUSIONS - ISOMETRIC VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing isometric view

Roller Track Clamp Extrusions are long aluminum extrusions that rest atop the flange edges of the RT Rail to increase and expand the attachment footprint and to address aesthetic concerns by presenting a fascia with the fewest possible visible fastener heads. Contact your Ergomart representative for further information and details regarding deployment of this accessory.



ROLLER TRACK
CLAMP EXTRUSIONS - FRONT VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing front view with measurements

Clamp Extrusions are specifically used to attach the R-Track to vertical standards (also known as Unistrut or "vertical strut channels") commonly seen in manufacturing, assembly and packaging to provide additional bracing so the rail/track does not pull away along the top edge under heavier loads.



ROLLER TRACK
CLAMP EXTRUSIONS - SIDE VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing side view with measurements

The Clamp Extrusions easily attach around the Roller Track and do not add any additional depth from the wall.



ROLLER TRACK
MOUNT KIT M - ISOMETRIC VIEW

RT horizontal track wall mounting system MKIT-M fixed mount specification drawing isometric view

Mount Kit M is designed to be secured to the RT rail with four set screws for stationary positioning of equipment. This is an appropriate solution when occasional reconfiguration of the wall-mounted equipment is required, since the mounting infrastructure (e.g. the rails, clamps, and wire management) is installed once and the same mounts can be reused, saving the labor, time, and cost of having to rework the supporting wall.



ROLLER TRACK
MOUNT KIT M - FRONT VIEW

RT horizontal track wall mounting system MKIT-M sliding mount specification drawing front view with measurements

Roller Track Mount Kit M is 6" wide and fixes in place.



ROLLER TRACK
MOUNT KIT M - TOP VIEW

RT horizontal track wall mounting system MKIT-M fixed mount specification drawing top view with measurements

Top view of the Mount Kit M on the Roller Track. The Mount Kit extends approximately 2.2 inches from the front of the Roller Track.



ROLLER TRACK
MOUNT KIT N - ISOMETRIC VIEW

RT horizontal track wall mounting system MKIT-N sliding mount specification drawing isometric view

Mount Kit N is designed to be secured to the RT rail with four set screws for stationary positioning of equipment. This is an appropriate solution when occasional reconfiguration of the wall-mounted equipment is required, since the mounting infrastructure (e.g. the rails, clamps, and wire management) is installed once and the same mounts can be reused, saving the labor, time, and cost of having to rework the supporting wall.



ROLLER TRACK
MOUNT KIT N - FRONT VIEW

RT horizontal track wall mounting system MKIT-N sliding mount specification drawing front view with measurements

Roller Track Mount Kit N is 11.5" wide and rolls freely across the track.



ROLLER TRACK
MOUNT KIT M - TOP VIEW

RT horizontal track wall mounting system MKIT-N sliding mount specification drawing top view with measurements

Top view of the Mount Kit N on the Roller Track. The Mount Kit extends just over 3 inches from the front of the Roller Track.



ROLLER TRACK

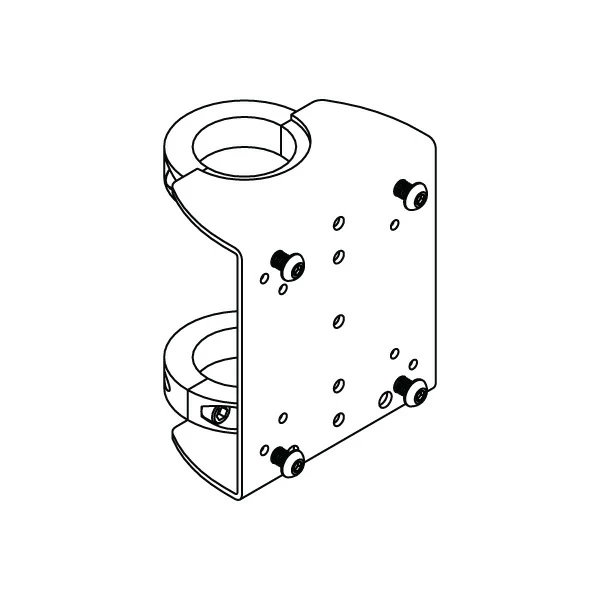

192D BRACKET CLAMP - ISOMETRIC VIEW

RT horizontal track wall mounting system 192 bracket clamp specification drawing isometric view

192 D Bracket Clamps attach the Roller Track Rail to 1.5" schedule 80/160 poles. This component allows the installer to use poles mounted to a ceiling, wall or floor to securely deploy a Roller Track system. Ergomart recommends consulting a mechanical engineer to determine the limitations for the specific project based on the structural characteristics and limitations of the mounting locations.



ROLLER TRACK

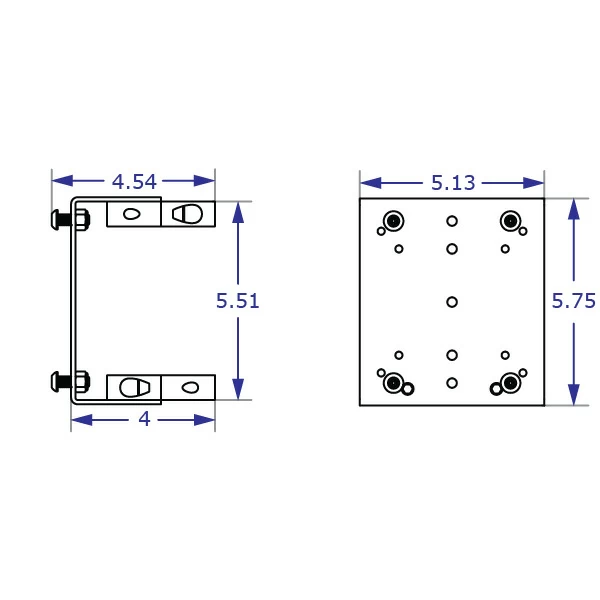

192D BRACKET CLAMP - FRONT & SIDE VIEW

RT horizontal track wall mounting system 192 bracket clamp specification drawing side and front views with measurements

In the drawing on the left the Roller Track would be attached to the left side of the Bracket Clamp.



ROLLER TRACK
192D BRACKET CLAMP - TOP VIEW

RT horizontal track wall mounting system 192 bracket clamp specification drawing top view with measurements

Top view of the 192D Bracket Clamp.



ROLLER TRACK

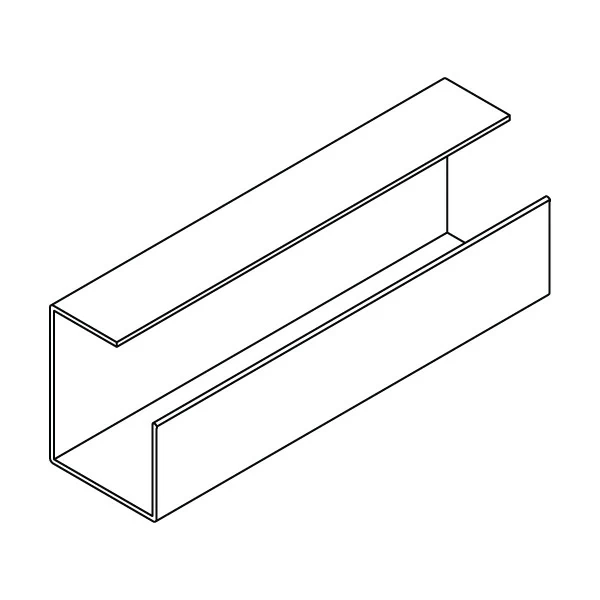

C CHANNEL - ISOMETRIC VIEW

RT horizontal track wall mounting system c-channel wire manager specification drawing isometric view

Designed to hold a wide variety of components such as power strips and small routers, the C Channel is robust enough to hold up to 3 pounds of payload per linear foot when properly attached to the above work surface.



ROLLER TRACK

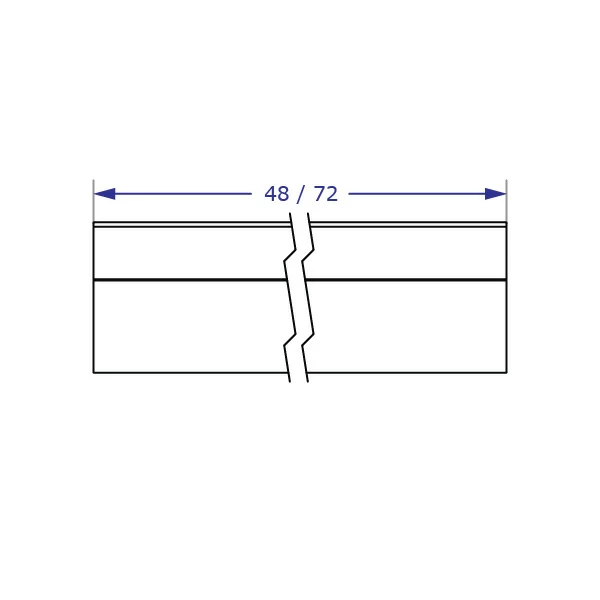

C CHANNEL - FRONT VIEW

RT horizontal track wall mounting system c-channel wire manager specification drawing front view with length measurement

This channel length is easily altered in the field during installation with a fine-toothed saw.



ROLLER TRACK

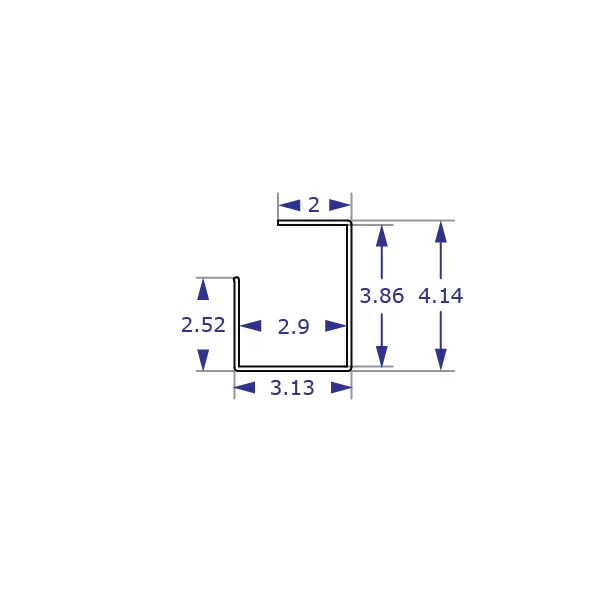

C CHANNEL - SIDE VIEW

RT horizontal track wall mounting system c-channel wire manager specification drawing side view with measurements

This roomy wire manager has interior dimensions of 3" x 3.85" and may be oriented in several ways to best adapt to the requirements of individual installations.



ROLLER TRACK
J CHANNEL - ISOMETRIC VIEW

RT horizontal track wall mounting system j-channel wire manager specification drawing isometric view

The J Channel chase is wide and deep enough to contain small power supplies and routers as well as various adapters. The units come without holes so that placement of holes can be determined by the installer; typically corresponding to the studs on either 16" or 24" centers.



ROLLER TRACK
J CHANNEL - FRONT VIEW

RT horizontal track wall mounting system j-channel wire manager specification drawing front view with length measurement

This channel length is easily altered in the field during installation with a fine-toothed saw.



ROLLER TRACK
J CHANNEL - SIDE VIEW

RT horizontal track wall mounting system j-channel wire manager specification drawing side view with measurements

The J Channel dimensions are 5.36" x 1.92" and provide an effective cable storage cross section of 4.43" x 1.71".



Leave a Review
You're reviewing:Roller Track Sliding Horizontal Mount System
Start Rating
  • Why does the rail/track come in a silver color and not black like many of the other components?

    The extrusion facility is only setup to anodize clear metallic gray. We will black anodize your tracks for orders with greater than 1000 feet of track. Call for information. (Cost is an additional $3.00 per foot).

  • Can I attach this to a sheetrock wall with steel studs without further reinforcement?

    The short answer is no. In some cases when the device or devices are very light and are flush mounted to the rail and not subject to movement, sheet rock mounting may be permissible. Since the system is designed for movement and the repositioning of components, intermittent and abrupt mechanical stresses are transmitted to the fasteners. The fasteners slowly pulverize the gypsum media every time a vibration is transmitted through them. Sheet rock alone is not suitable when presented with repeated changes in mechanical pressure. Consult a mechanical engineer and/or use a competent equipment installation professional to determine the type of reinforcement requirements for your installation.

  • Can I attach this to a sheetrock wall with wood studs without further reinforcement?

    In most cases, serviceable wood studs on 16 or 24 inch centers make the perfect mounting medium. It's never a bad idea to consult a mechanical engineer and/or use an equipment installation professional to determine the reinforcement requirements for your installation.

  • Why would I need the RT Clamp blocks?

    RT Clamp blocks are typically used as a means of attachment on certain exposed vertical standards (unistrut) and tracks on technical and manufacturing desks and tables. They may be attached so that they accept the rail from the bottom during installation. Top clamp blocks are then clamped along the top RT flange to secure the rail to the structure. They can also be used to enhance security by providing an additional point of attachment to prevent the track from pulling away from the structure to which it is attached. Normally, ff you fasten through the flanges, the clips will not be necessary.

  • Why don't you include fasteners for attaching to the wall?

    Ergomart can warrant the mechanical capacities and limits of the products it designs and sells but can't know the properties and reliability of the media to which our products will be attached. Methods of attachment to various surfaces and structures can only be deemed appropriate by trained personnel on site. Consult with a mechanical engineer or work with an equipment installation professional to determine the correct fastening system in the actual application.

  • Is Roller Track made in the USA?

    Yes, the roller track system and the mounting components that receive and support arms and pole components are manufactured in the USA. Ergomart strives to manufacture and source as much product from the USA as is competitively possible.

  • What is UNISTRUT or Strut Channel and how does that work?

    Information on Unistrut or Strut Channel can be found here: http://en.wikipedia.org/wiki/Strut_channel

    Besides being used widely in the construction industry for supporting lightweight loads of ceilings, it is used by many OEM workbench manufacturers. The front open side allows for the attachment of various bench components and accessories as well as add-ons such as the R-Track.

  • Can I attach CPUs or other devices on the track behind my monitors?

    Yes – determine your requirements and contact us. Options that include a thin client holder are readily available. We are happy to work with our customers to build affordable custom solutions for short production runs. Virtually any accessory requirement you desire can be accommodated.

  • Will I have to drill holes in the track to attach the track to my wall (or unistrut)?

    Yes, custom installation is the norm for this product and it is not designed as a "slap-it-together-in-ten-minute-DIY-project". The installer should be familiar with attaching heavy loads to varying materials and locations. In special circumstances, Ergomart can custom-drill RT Rails however lead times will be extended.

  • I think slatwall will do the job for me, why should I consider the more expensive R-Track?

    In many applications, slatwall is the appropriate solution. But, sometimes the RT track can be competitive with costs or the performance associated with slatwall. There are many applications where the R-Track may prove a better fit:

    • Where strength is a concern and the need to span unsupported widths are required
    • Above or behind workstations with individual struts or poles as anchoring points
    • Where aesthetics are important and a slatwall does not communicate a look of robustness or strength
    • Attached to a freestanding frame where “walk behind" access to cabling and wiring is important
