SKU

RT-CLAMP

RT-CLAMP
$38.59
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

Roller Track Clamping Flange Cover

USA MADE

REQUIRED ITEMS

  • Attaches to the Roller Track Horizontal Rail
  • Aluminum extrusions rest atop the flange edges
  • Expands the vertical attachment footprint
  • Covers fastener heads to present a sleeker look
  • Available in two sizes to work with all standard rails
  • RAIL, OTHER MOUNTING DEVICES SOLD SEPARATELY
  • Not compatible with Flush Mounts with Brake

OPTIONAL COVERS CLAMP OVER THE FLANGES OF ERGOMART'S ROLLER TRACK HORIZONTAL RAIL

Roller Track Clamping Flange Covers are long aluminum extrusions that rest atop the flange edges of the Roller Track Horizontal Rail to increase and expand the vertical attachment footprint. They create a cleaner overall look by presenting a fascia with the fewest possible visible fastener heads. The Clamping Flange Covers are available in two lengths to accommodate the standard sizes of Roller Track Horizontal Rails: 39" and 78". A 156" rail requires using two 78" covers. Contact an Ergomart representative for further information and details regarding deployment of this accessory.

ROLLER TRACK WALL MOUNTS

VIEW
SERIES-118 MOUNTING CATALOG

BROWSE
ALL ROLLER TRACK BUYING OPTIONS

LEARN
ROLLER TRACK REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

SLIDING AND REPOSITIONABLE MOUNTS

VERSATILE • ADAPTABLE • FUTURE-PROOF






  39-inch 78-inch
Shipping Weight 5.5 pounds 11 pounds
Shipping Dimensions 41" x 4" x 4" 80" x 4" x 4"
Warranty 5 Year Limited 5 Year Limited

ROLLER TRACK

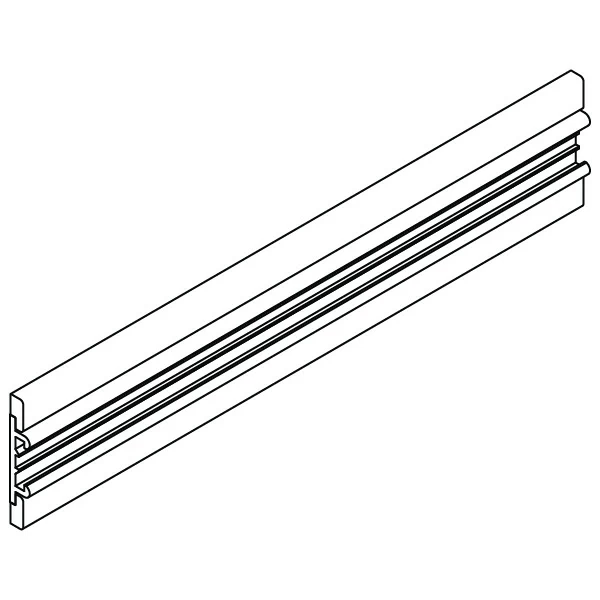

WITH CLAMPING FLANGE COVERS - ISOMETRIC VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing isometric view



ROLLER TRACK

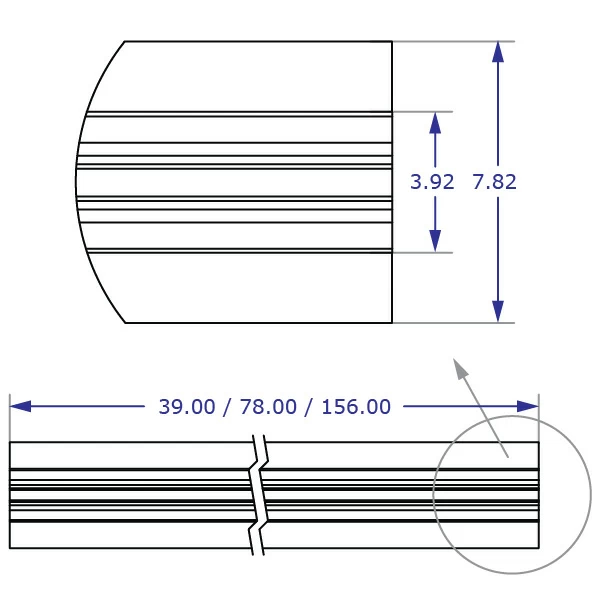

CLAMPING FLANGE COVERS - FRONT VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing front view with measurements

The Clamping Flange Cover expands the vertical footprint of the Roller Track rail. It is available in two nominal lengths of 38 and 78 inches to match the corresponding rails. Two 78-inch covers can be used for the longest rail.



ROLLER TRACK

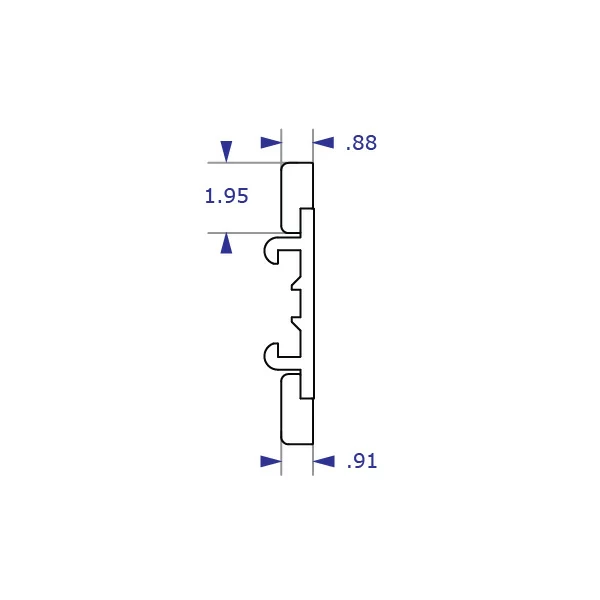

CLAMPING FLANGE COVERS - SIDE VIEW

RT horizontal track wall mounting system clamp extrusion specification drawing side view with measurements

The Clamping Flange Covers easily attach around the Roller Track and do not add any additional depth from the wall.
