"Three MONOLOK locking wall mounts with 75 x 75 New

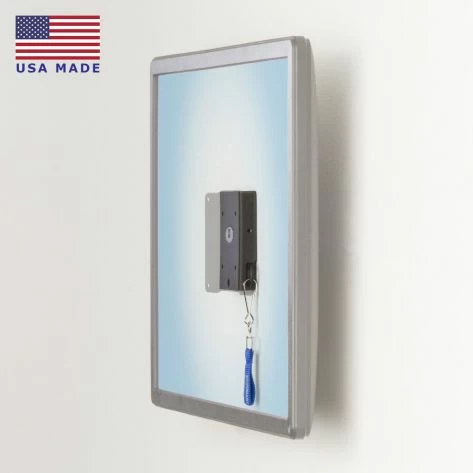

Monolok Flush Mount: Rotating, Secure, Quick Release

In stock

From $28.70

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

Monolok Flush Mount: Rotating, Secure, Quick Release

New USA MADE
Please wait while your content is loading.

REQUIRED ITEMS

INSTANT LANDSCAPE/PORTRAIT POSITIONING FOR VIRTUALLY ALL COMPUTER MONITORS AND TVS UP TO 32 INCHES

  • Instant, hassle-free attachment and removal of monitor or other VESA compatible device
  • Rigid design is ideal for applications requiring touchscreen use
  • Handles payloads of less than 3" thickness up to 30 lb
  • Attach to walls with wood studs, metal and most other materials*
  • Intuitive and simple rotation from landscape to portrait
  • User may adjust rotation resistance to suit application and device weight
  • Standard kit includes hardware to lock into portrait or landscape orientation
  • When configured for rotation lock, wall distance is approximately 1.00"
  • Rotationally adjustable wall mount is approximately 1.12" thick
  • VESA mount patterns available for larger monitors and TVs under 30 lbs
  • Ideal for use in motor homes and RVs - Remove and reinstall in seconds

The Monolok wall mount securely affixes monitors weighing up to 30 lb. The VESA compatible vertical surface mounting system works with most LCD, LED monitors, touch screens and VESA compliant all-in-one computers from 10" to 32" as well as many lighter TV monitors up to 42" that have 100 x 200 VESA hole patterns on back. Rotation resistance is user adjustable to accommodate a wide weight range of monitors and ensures optimal control of movement between portrait or landscape modes. Powder-coated cold-rolled steel construction makes this wall bracket suitable for a variety of commercial, industrial, and consumer applications. Use the included screw lock to inhibit removal or an anti-theft fastener for added security.

Black is our standard quick-ship color. Metallic Gray is also available but may require longer lead times. Questions? Please call us at 888 420 3200.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Shipping Weight 2 pounds for VESAs up to 100x200 and a single receiver
Shipping Dimensions 9" x 6" x 5"
Warranty 5 year limited

Mount Type

Wall Mount

Number of Monitors

1 as is
2 with dual bracket

Mounting

Wall Mount

Weight Range

Up to 30 lb on wall

Monitor Horizontal Reach

1.1" low profile

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape

Yes

MONOLOK - VESA 100 MM WITH LANYARD
ISOMETRIC VIEW

MONOLOK rotating monitor wall mount with 100mm VESA plate specification drawing isometric view

Isometric view of the complete Monolok wall mount assembly with a 100 mm VESA adaptor plate mounted on the front bracket. The lanyard attached to the loop on the bottom right of the receiver (back) bracket facilitates the quick release of the monitor, tablet, or thin client CPU from the receiver.



MONOLOK - NO VESA
FRONT VIEW

MONOLOK quick-release monitor wall mount specification drawing front view with measurements

This front view of Monolok wall mount assembly shows the central 1.90" square hole pattern, which is designed for an Ergomart tilter head (not shown) or a standard Ergomart VESA adaptor. The mount measures 2.93" in width and .80" of space exists above and below the hole pattern. The square-shaped central hole is for an Ergomart rotating VESA plate (examples shown in later images). The lanyard attached to the Monolok receiver bracket is omitted in this and all subsequent images.



MONOLOK - NO VESA
BACK VIEW

MONOLOK compact monitor wall mount specification drawing back view with measurements

The back plate features three hole patterns. The four holes 1.90" apart allow mounting to a flat surface (e.g. wall, table) or an Ergomart tilter head (articulating mounting device). A single, square-shaped central hole accepts an Ergomart VESA adaptor or can used to attach this quick release bracket to a keyboard/monitor combo arm. Finally, the two holes 2.58" apart accommodate a maximum screw size of ¼” for mounting to a flat surface.



MONOLOK - NO VESA
TOP VIEW

MONOLOK rotating monitor wall mount specification drawing top view with measurements

In this top view of the Monolok assembly (with no VESA plate attached), the mounting surface is to the right of the image. The spring mechanism implementing the quick release feature is visible from this angle. Excluding this quick release tab, the Monolok wall bracket takes up 2.93” in width against the mounting surface and extends only 0.65” from it.



MONOLOK - NO VESA
SIDE VIEW

MONOLOK quick-release monitor wall mount specification drawing side view with measurements

This side view of the Monolok assembly shows the mounting surface to the right of the image. The Monolok wall bracket is 3.50” high and extends only 0.65” from the wall without accounting for the VESA bracket (not shown).



MONOLOK - 75MM VESA
FRONT VIEW

MONOLOK quick-release monitor wall mount with 75mm VESA plate specification drawing front view with measurements

The Monolok wall mount assembly is shown with the 75 mm VESA plate (drawn in gray) attached to the front bracket. Depending on how it is assembled, the VESA plate can be fixed in the desired orientation (portrait or landscape) or rotate from one position to the other. In the latter case, the resistance to rotation is adjustable.



MONOLOK - 75MM VESA
SIDE VIEW





MONOLOK rotating monitor wall mount specification drawing top view with measurements

Monolok rotating monitor wall mount with 75mm VESA plate specification drawing side view with measurements.



MONOLOK - 100MM VESA
FRONT VIEW





MONOLOK quick-release monitor wall mount with 100mm VESA plate specification drawing front view with measurements

The front view of the Monolok wall mount assembly with the 100 mm VESA plate (in gray) attached to the front bracket. If desired, the portrait/landscape configuration of the monitor can be changed instantaneously. Alternatively, the Monolok can be assembled in a way that ensures the monitor will always remain in the preferred position.



MONOLOK - 100MM VESA
SIDE VIEW





MONOLOK compact monitor wall mount with 100mm VESA plate specification drawing side view with measurements

Side views of two configurations of the 100 mm VESA Monolok assembly. The Monolok is installed on a vertical surface to the right side of the image, with the VESA monitor adapter (in gray) to the left. In the rotating configuration, the front of the VESA plate is 1.12” from the wall. In the locked configuration, it is only 1.00” deep.



MONOLOK - 100X200MM VESA
LANDSCAPE - FRONT VIEW





MONOLOK compact monitor wall mount with 100x200mm VESA plate in landscape position specification drawing front view with measurements



The Monolok assembly can handle larger monitors with 100 x 200 mm VESA hole patterns. The picture shows the assembly with the monitor in landscape orientation. The VESA plate (in gray) is attached to the central hole of the Monolok front bracket: its orientation can either be fixed or allowed to rotate between landscape or portrait with a user adjustable resistance.



MONOLOK - 100X200MM VESA
LANDSCAPE - SIDE VIEW





MONOLOK rotating monitor wall mount with 100x200mm VESA plate in landscape position specification drawing side view with measurements



Side view of the Monolok assembly with a 100 x 200 mm VESA plate positioned in landscape orientation. When the Monolok is assembled to allow portrait/landscape rotation, the front of the plate is 1.12” from the wall or mounting surface. When it is locked to a landscape orientation, the depth is only 1.00”.



MONOLOK - 100X200MM VESA
PORTRAIT - FRONT VIEW





MONOLOK quick-release monitor wall mount with 100x200mm VESA plate in portrait position specification drawing front view with measurements



Front view of the Monolok assembly with a 100 x 200 mm VESA plate in portrait orientation. The total surface footprint of the assembly is that of the VESA adaptor, which is 4.52” x 8.45”.



MONOLOK - 100X200MM VESA
PORTRAIT - SIDE VIEW





MONOLOK rotating monitor wall mount with 100x200mm VESA plate in landscape position specification drawing side view with measurements

Monolok assembly viewed from the side with the mounting surface on the right in two different configurations. In this instance the 100 x 200 mm VESA plate is in portrait orientation. This low-profile mount is 1.12” when assembled to allow portrait/landscape rotation and only 1.00” when locked in portrait orientation.



200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$20.00
200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$25.00
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
Leave a Review
You're reviewing:Monolok Flush Mount: Rotating, Secure, Quick Release
Start Rating
  • Does this style mount (Monolok) allow me to rotate my monitor from landscape to portrait without unlocking something?

    Yes it does. Once the monitor is installed you will be able to grasp the monitor like a steering wheel and easily turn it.

  • I am frustrated trying to make the front part of the mount snap into the wall part when it is on the wall. Parts were shipped together and they came apart easily enough so I know they must work - what am I doing wrong?

    It is difficult to align the components when you can’t see them properly from the top. Simply use a step ladder or stool so you can watch what you are doing from above and visually align the parts as you slide them together.

  • Could I mount to a non-vertical surface or slanted surface?

    Yes in many cases. The design of the Monolok allows it to be used for a wide variety of applications where a flat object needs to be securely attached to a flat surface. As long as the weight of the removable object rests on the four lock pins and is not resting the weight of the object on the latch, the Monolok will perform the job. Contact Ergomart for further clarification at 888 420 3200.

  • Will the Monolok attach to the underside of my desk so that I can attach a small computer (thin client) with a four inch by four inch square hole set?

    Yes you can use the Monolok to attach a VESA compliant device under a desk. Check your “four inch" hole pattern very carefully. That measurement should be exactly 100mm x 100mm which is actually about 3.937" or 3 and 15/16" and it should use a metric screw called an M4.

  • I want to attach a group of art works that each weight less than 20 lbs and then rearrange them on an ongoing basis. My pieces have rigid backs that I can screw wood screws into. I also want these pieces to be offset by about an inch from the wall. So the Monolok seems ideal for my goals. Do you see any problems?

    It should work fine. The quick release mechanism can be used to securely affix wall hung objects with rigid backed surfaces capable of interfacing with #8 or #10 wood or machine screws. Hang-able objects may include certain artwork, decorative panels, certain wall hung audio speakers, sound absorbing panels and other moderate sized objects that must be removed from a wall occasionally with ease.

  • Do you provide hardware to attach to a wall cinder block wall?

    We do not provide hardware since there are so many possible applications where this device can be used and such a wide variety of available fasteners. We recommend using high quality fasteners available at any hardware store.

  • How difficult is it to change the resistance to rotation?

    Easy. Simply detach the front bracket from the back bracket and adjust using the included ½" wrench.

  • I have four places I want to be able to move my touch screen PC and your shopping cart options stop at just two back plates.

    Please call us at 888 420 3200 and we will take your custom order over the phone. We are happy to sell you any number of back brackets that your installation requires.

  • How can this thing be "quick release" and "theft deterrent" at the same time? This is an oxymoron to my ears.

    The anti-theft screw head comes with a special bit. The bit and screw head are not commonly found in any hardware store. It does take about 10 seconds to unscrew the security screw if you have the right driver bit and then just another 2 or 3 seconds to detach the monitor. So in that sense it is "quick release" and "secure". If a thief does not have the correct security driver bit, he will be slowed down.

  • I have my own proprietary security screw and bit that uses a #8-32 with machine threading. Can I custom order a screw for this specific threading?

    You may order our standard configuration. We use a self-tapping #8-32 that is prefitted into the unit. Simply remove with a Philips screwdriver and replace with your #8-32 machine screw.

  • Can I add a monolok to one of your tilter heads to give it the quick release function?

    Yes. The two products work together

  • Can I use one of these in conjunction with one of your iMac adapters?

    Yes. The two products work together
