When you need an easy to level wall mount for your LCD monitor and you require quick landscape to portrait adjustability, Ergomart's Rotating LCD Wall Mount is the answer.
|Shipping Weight||2 pounds|
|Shipping Dimensions||7" x 6" x 4"|
|Warranty||3 year limited|
Caution: Cords and cables must enter and exit vertically or to the sides. Protruding cables will prevent the monitor from fitting against the wall! Check how your cables enter or exit before purchasing this product: some LCD monitors are not compatible with this product because the cables exit horizontally.

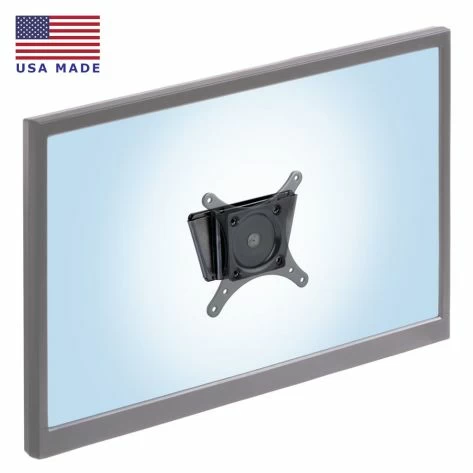

The mounting assembly of the WM9135 is shown with its combination 75x75 - 100x100mm VESA interface bracket.
The back mounting plate of the WM9135 has six mounting holes, which are .375 inches wide. The plate is secured flush to the wall.
WM9135 LCD Wall Mount mounting assembly has dimensions of 4.6 inches across and 2.5 inches tall.
The side view of the WM9135 showing less than an inch of distance from the wall to the front of the mouting plate. With a VESA bracket in front the monitor will have than an inch of space to fit cables. Some monitors have wire mounting that may not fit within .9 inches.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
