Articulating Monitor Wall Mount For ViewTrack™

USA ASSEMBLED MODULAR

Grouped product items
Option	Price	Qty
Articulating Positioner in Black for one 75/100mm Monitor HVT001-104 The articulating positioner for monitors with 75x75mm or 100x100mm VESA pattern includes easy tilt, swivel, and rotation functions. The mounting plane is 5.2 inches from wall and the max payload is 25 lb.	$89.00
Articulating Positioner in Metallic Gray for one 75/100mm Monitor HVT001-124 The articulating positioner for monitors with 75x75mm or 100x100mm VESA pattern includes easy tilt, swivel, and rotation functions. The mounting plane is 5.2 inches from wall and the max payload is 25 lb.	$89.00
Articulating Positioner in Black for one 100x200mm Monitor HVT002-104 This articulating positioner with a 100x200mm VESA pattern features easy tilt, swivel, and rotation functionality. Its mounting plane is 5.2 inches from the wall and has a max payload is 25 lb.	$100.18
Articulating Positioner in Metallic Gray for one 100x200mm Monitor HVT002-124 This articulating positioner with a 100x200mm VESA pattern features easy tilt, swivel, and rotation functionality. Its mounting plane is 5.2 inches from the wall and has a max payload is 25 lb.	$100.18

Save for later

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Track Mounted Articulating Monitor Positioner

Easily mount and articulate monitors to exact tilt angles and lateral placement
Tilter mechanism pivots your monitor or touchscreen upward past +90° and down -45°
Precisely and instantly rotate between landscape and portrait or slide positioner along the horizontal track
Monitor Mounting Bracket Only - Rail and Wire Managers sold separately

HVT Articulating Wall Track Mounts position VESA compliant devices in a side by side arrangement on the ViewTrack™ wall mounting system. They are particularly useful for tilting monitors up and down and have industry leading range of motion specs. Installers and users will find it easy to swivel the monitor left to right, tilt up and down and change the screen orientation from vertical to horizontal. Independently change the level of resistance for swivel and tilt using the included tools.

Prices are for a single monitor mount. Please enter the number of monitors you wish to mount in the QTY box.

VIEWTRACK™ WALL MOUNTS

REPOSITIONING

EASILY MOVE MONITORS AND CHANGE YOUR CONFIGURATION ALONG TRACK

VERSATILE

SEVERAL OPTIONS: LOW-PROFILE, QUICK-RELEASE, ARTICULATING, EXTENDED

FUTURE-PROOF

REPLACE/ADD ONLY THE COMPONENTS YOU NEED AS REQUIREMENTS CHANGE

LOW-PROFILE

COMPACT MOUNTS WITH ADA-COMPLIANT OPTIONS AND WIRE COVERS

MOUNT ANYWHERE

INSTALL ON WALL, SERVER/PALLET RACKS, CABINETS, DRYWALL, ORIGINAL EQUIPMENT

FOR HELP WITH YOUR DESIGN
EMAIL [email protected] OR CALL +1 888 420 3200

BROWSE ALL VIEWTRACK™ OPTIONS

EXPLORE RECENT VIEWTRACK™ CUSTOM PROJECTS

Shipping Weight	Up to 3 lb
Shipping Dimensions	9" x 6" x 5"
Warranty	5 year limited

Specifications

Mount Type	Horizontal Wall Track
Number of Monitors	Varies based on track length and monitor size
Mounting	Wall Track Mount
Weight Range	Up to 25 lb per monitor
Monitor Horizontal Reach	5.12"
VESA Options	75 x 75 mm 100 x 100 mm 100 x 200 mm
Portrait to Landscape	Yes
Max Swivel (at Monitor)	Up to 180°
Monitor Tilt Range	+90° up, -45° down
Track Lengths	27" 51" 75" (sold separately)

Drawings

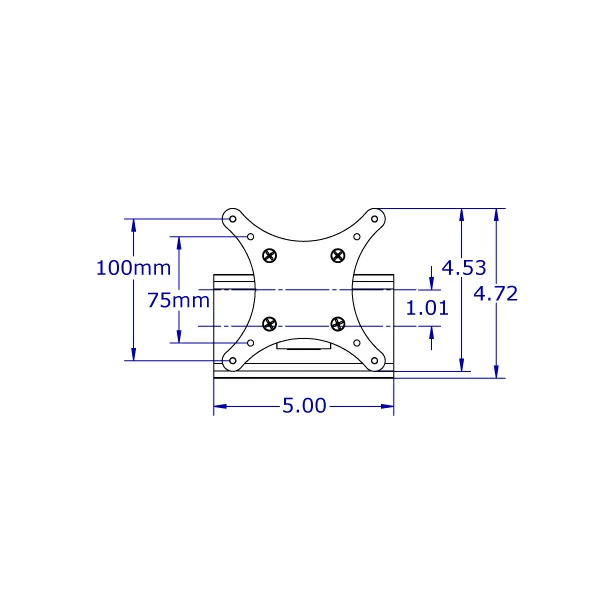

HVT001 Front View

Articulating 75/100mm VESA Positioner dimensions - Front View

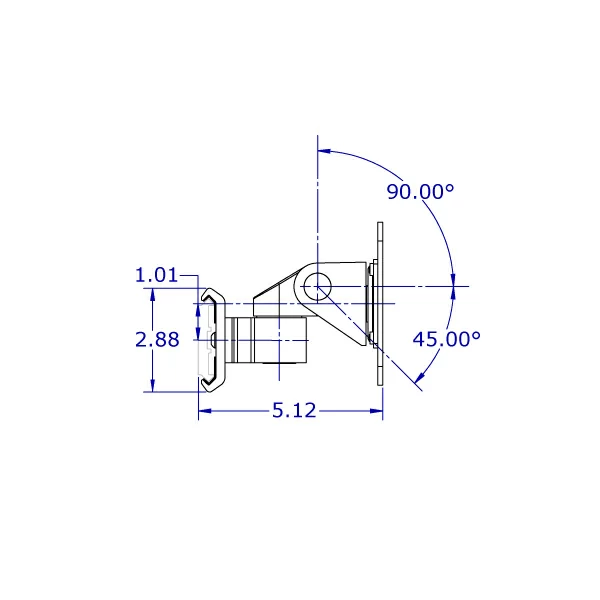

HVT001 Side View

ViewTrack™ Articulating 75/100mm VESA Positioner dimensions - Side View

Dimensions shown are from the wall with the positioner mounted on a ViewTrack™. Range of motion will be limited by mounting location and the size of the monitor attached.

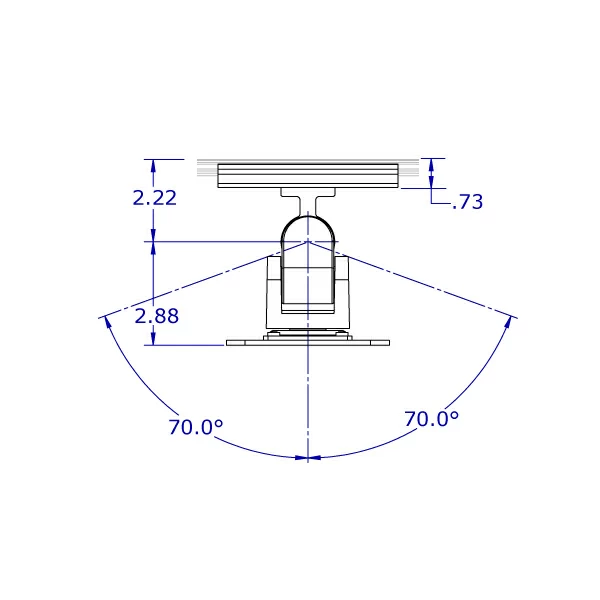

HVT001 Top View

ViewTrack™ Articulating 75/100mm VESA Positioner dimensions - Top View

Dimensions shown are from the wall with the positioner mounted on a ViewTrack™. Range of motion will be limited by mounting location and the size of the monitor attached.
