DUOLIFT-ACCESS
DuoLift 51-Inch Sit-Stand Computer Wall Station
The DuoLift is an industry leading solution for multi-user work environments. Thanks to separately operable LeverLift mechanisms for both monitor and keyboard, posture perfect positioning is assured for users of all sizes. Each positioner provides 24” of smooth independent adjustment.
The DuoLift is designed for computer workstations used in workplaces where space is at a premium. Monitor and keyboard mounts are contained within a slim and sleek low-profile cabinet, designed to hide and route power, data and video cables thanks to built-in wire management features, and an option to access wall outlets concealed behind the cabinet.
Several options are available for the monitor and keyboard sliders. They are fully modular and interchangeable.
Monitor Sliders:
There are two types of monitor sliders.
Low-profile monitor mounts allow most monitors to be placed within less than 4” of depth from the wall, thus meeting The Joint Commission wall protrusion standards for hospital hallways. These mounts come with 75, 100, and 100 x 200 mm VESA options and rotate between landscape and portrait modes.
Articulating monitor mounts provide tilt, swivel and rotational adjustments, and result in slightly more total distance from the wall to the front of the monitor. The articulating mounts supports 75, 100, and 100 x 200 mm VESA compatible monitors.
Keyboard Sliders:
There are two main configurations for the keyboard sliders.
The low-profile keyboard slider comes with a folding tray that protrudes less than 4” from the wall when stowed up.
The keyboard tray also provides positive and negative tilt to adjust the keyboard to a comfortable keying position.
The articulating keyboard slider can also be folded away when not in use, but takes up a little more depth compared to the low profile option.
The tray's tilt can also be adjusted up and down for an optimal position during use.
An additional feature of the articulating tray is left to right swivel.
All keyboard sliders can be purchased with a 20” or 26” tray, both of which include an ergonomic palm rest. The 26” tray also has a mousetrap which secures the mouse when the tray is folded up when not in use.
Additional Accessories:
CPU Holder: The DuoLift CPU holder is designed to be mounted above or below the cabinet.
Scanner Bracket: The optional scanner bracket can be attached adjacent to the keyboard tray, facing forward or sideways.
Highlights
- 24-inch independent adjustment of tray and monitor for individualized ergonomics
- Slim and sleek low profile configuration with less than 4 inches of depth
- Meets The Joint Commission wall protrusion standards for hospital hallways
- DuoLift sliders promote easy, intuitive, and precise component positioning
- Articulating slider mounts with tilt and swivel are available
- Mousetrap secures mouse when tray is folded up when not in use
- Optional CPU Holder can be mounted above, below, or beside the DuoLift cabinet
- Optional Scanner Bracket can be attached adjacent to keyboard tray
- System is also available for single or triple lift configurations for special applications
- Shorter 39-inch cabinet with single or dual lift mechanisms available in quantity orders
- Primarily constructed from recyclable steel and aluminum
- Industry-leading USA-manufactured system has over 90% USA-made components
Cabinets are available in White, Silver, and Black*
- White cabinets come standard with Metallic Gray components and a white phenolic keyboard tray.
- Metallic Gray cabinets come standard with Metallic Gray components and a black phenolic keyboard tray.
- Black cabinets come standard with all matching black components.
*Special order powder-coated aluminum trays may be ordered as an alternative to standard white or black trays. Discuss additional color options with your Ergomart customer service representative.
|

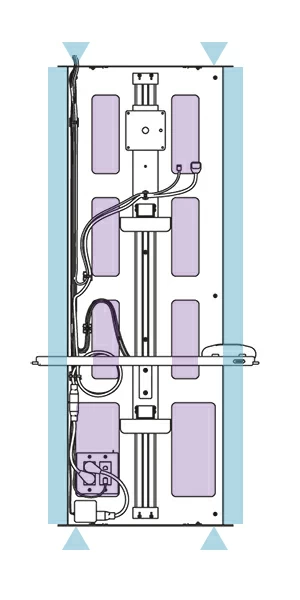

INTERNAL CABLE ROUTING
Wire clips manage and secure cables ensuring tangle-resistant routing while providing strain relief at termination points.
Internal perimeter cable wireways accommodate concealed cable paths for ease of installation no matter where incoming wires originate.
CABLE ACCESS
Two lowest openings in the cabinet allow for quad box outlets and standard faceplates. Additional openings away from cable paths will accommodate duplex boxes and faceplates.
Incoming wires can be inserted and secured at any point along the left and right sides of the cabinet. Additionally, a total of four access ports are located at the top and bottom.
