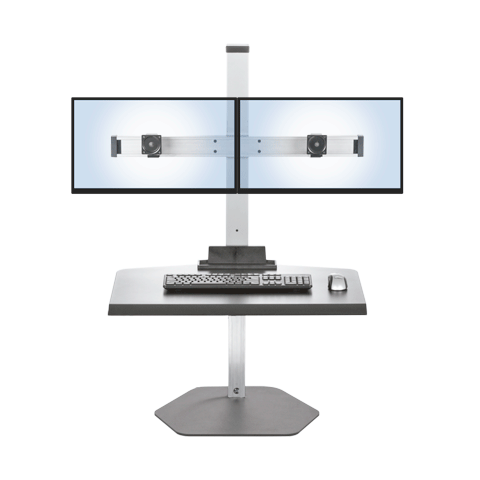

Benefit from the increase in productivity and improvements in well-being facilitated by a sit-to-stand work area. The height of the Dorian can be quickly and easily adjusted with just the press of a button anywhere in its 17-inch vertical adjustability range.
The 30" x 24" work surface can hold a keyboard and mouse in addition to various small essentials. This allows for items to stay in easy reach even when the Dorian is lifted above the desktop. The height is changed by pressing a button on the edge of the worksurface and simply moving the device up or down to the desired location. The movement is facilitated by a built-in motion assist mechanism inside the column. Once the correct position is reached, the user can simply release the button and the unit will stay firmly in position without falling over time. The device remains stable even during heavy keyboarding. A small tray is positioned underneath the monitor and holds small items in a convenient and safe location.
The position of the monitors in relation to the work surface is set during assembly. This can be adjusted in less than two minutes at a later time if required. Once the device is complete, both the monitor and work surface will move vertically together as a single unit. Each monitor can tilt, swivel and rotate landscape to portrait independently. The two outside monitors are attached to extension beams which can be angled on the hinges inwards to create an arc positioning.
While the Dorian is typically placed on a desktop surface and maintains its stability via the substantial, weighted base, clamp and through-desk mounting is also an option. Pads located underneath the base allow the unit to smoothly move and swivel for better positioning.
The total weight capacity of the Dorian Quad is between 24-40 pounds. This weight is the total of all elements attached to and placed on the device.
Questions? Please call us at 888 420 3200.
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
The vertical position of the Dorian can be adjusted with a button press. While pressing the button located on the bottom right of the work surface, simply lift or lower the device and release the button when the desired height is reached.
A small tray is located at the base of the vertical column beneath this monitors. It provides a place to store small items such as keys, pens and phones in an easy-to-reach location.
During assembly, the horizontal beam can be positioned anywhere along the vertical column. This allows the user to optimize the distance between the monitors and the worksurface.
Each of the four monitors is attached to the horizontal beams by a VESA compatible tilter mechanism. The tilter heads can be secured at any position along the horizontal beam. The tilters can swivel, tilt and rotate the monitors individually.
Cables and wires can be routed along each side of the vertical column by the cable management clips.
Each end of the horizontal beam has an end cap for a cleaner, finished appearance. They also house the tools required for installation and adjustment of the Dorian system.
The end cap holds a 1/8" and 7/32" Allen Wrench. These are kept safe and convenient for adjustments required after assembly.
In addition to cable clips, cable guides are situated on the back surface of the horizontal beam. Wires can be organized by routing them through these guides into the clips.
|Shipping Weight||Box 1: 32 lbs | Box 2: 56 lbs | Box 3: 18 lbs|
|Shipping Dimensions||Box 1: 28" x 26" x 3" | Box 2: 35" x 33" x 7" | Box 3: 40" x 14" x 6"|
|Warranty||5 Year limited|
Each of the four monitors can independently swivel left and right.
Lift or lower the Dorian over 17.1" of vertical travel, providing sit-to-stand capability for most users.
Each individual monitor can be tilted 90° or 45° from its vertical position, providing the user with the optimal viewing angle.
PORTRAIT & LANDSCAPE
Every monitor can independently be rotated from landscape to portrait.
Each monitor can be attached where desired along the horizontal beam. This flexibility allows for accommodation of a wide range of screen sizes.
The Dorian Quad features a 30" central beam and two 20" extension beams, one on each side. The extensions are attached to the central beam via two articulating hinges that allow the monitors to be placed either flat or in an arc-like orientation if desired.
When the monitor mounting beam is attached to the main column at is lowest practical position, 4.5", the monitors can adjust from 6" to 23" above the desk surface.
With the monitor beam mounted to its highest position on the vertical column, the monitors sit 28" to 45" above the desk surface.
The Dorian's 30" large work surface provides plenty of room for a keyboard, mouse and other office supplies.
Many users like to create a curved effect with their monitors inwards. When the outer beams of the Dorian Quad are moved inwards 20 degrees, the maximum allowable width for the monitors is reduced to approximately 22 inches.
In some instances a colinear or flat orientation of monitors is preferred over monitors angled inward. In this case the Dorian Quad’s monitors can be displayed flat with a maximum width of approximately 24.67 inches each.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
