Adjustable Document Hanger for Engineers, Architects

USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

STANDARD AND EXTENDED WIDTH DOCUMENT HANGERS

  • Vertical document height options: 28" or 36"
  • Standard Width hanger expands to 36" & contracts to 24"
  • Extended Width hanger expands to 42" & contracts to 28"
  • Clamp neatly handles up to 15 sheets of paper
  • Space efficient when collapsed and stowed
  • System folds to a depth of less than 4"
  • Height can be reset in seconds along the pole
  • Available in Black; call for other color options
  • Attach stand to wall, desk edge or bolt to desk
  • Compatible with our Pole and Wall Track Mounts (under related products at bottom of page)
  • Work comfortably; place reference materials precisely

Width adjustable articulating document hangers provide comfortable and quick positioning for engineering, architectural and other large format documents. The Standard Width has two 12" paper gripping slides that come together to form a continuous 24" clamp. Slide the grips apart to accommodate documents 36" wide.

The Extended Width is capable of handling even larger documents and can be expanded to accept E size engineering drawings as well as larger maps, blueprints, or design layouts. Like the Standard Width, it can quickly be moved back and forth effortlessly.

Friction clamp grips securely handle 1 to 15 sheets of paper and virtually any media up to .05" thick. Hang multiple smaller sheets or photos side by side: the patented clamp system even allows positioning of thicker and thinner items side by side. These document hangers are also excellent for holding very large unfolded maps.

Because the document clip rail can be rotated into a vertical position, the entire product can be collapsed into a very small space when not in use. See specification drawings in the specifications tab. Some assembly required.

Shipping Weight 11 - 12 pounds
Shipping Dimensions
Shipping Dimensions
28 Vertical Height: 32 x 13 x 6 inches
36 Vertical Height: 36 x 13 x 6 inches
Warranty Limited 3 Year Warranty

DOC HANGER STANDARD WIDTH

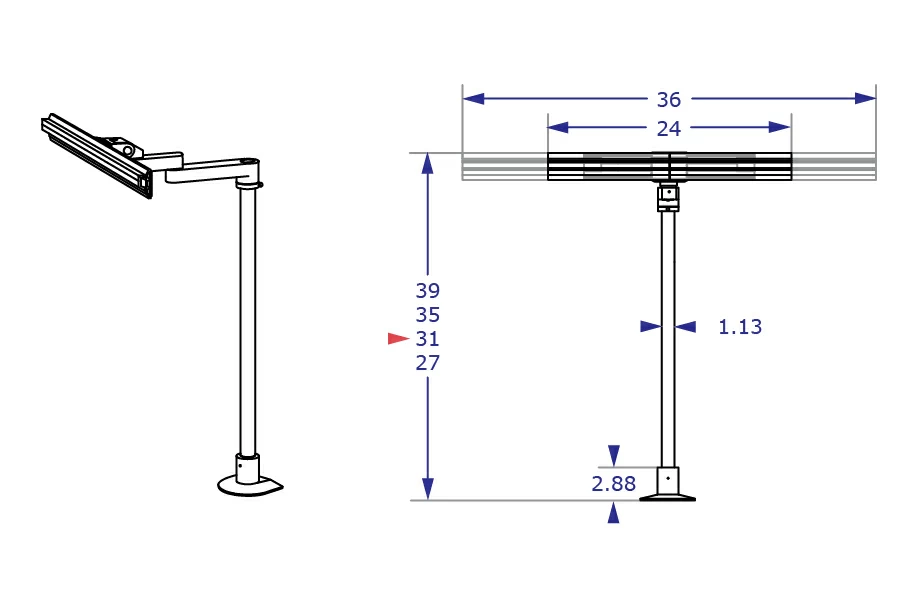

DOCHANGER document hanger specification drawing showing measurements in front view

The DH003 Standard Width Document Hanger in the above specification images is shown as the 31 inch tall option.



DOC HANGER STANDARD WIDTH

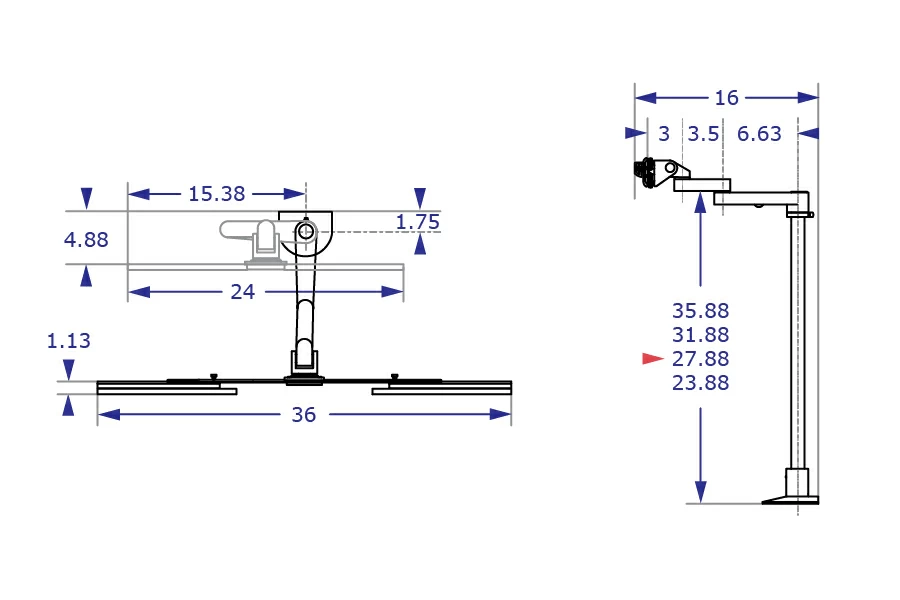

DOCHANGER document hanger specification drawings showing fully extended and folded views with measurements

The DH003 Standard Width Document Hanger is shown from a top view in both outreached in collapsed positions and in a side view using the 27 inch tall pole option.



DOC HANGER EXTENDED WIDTH

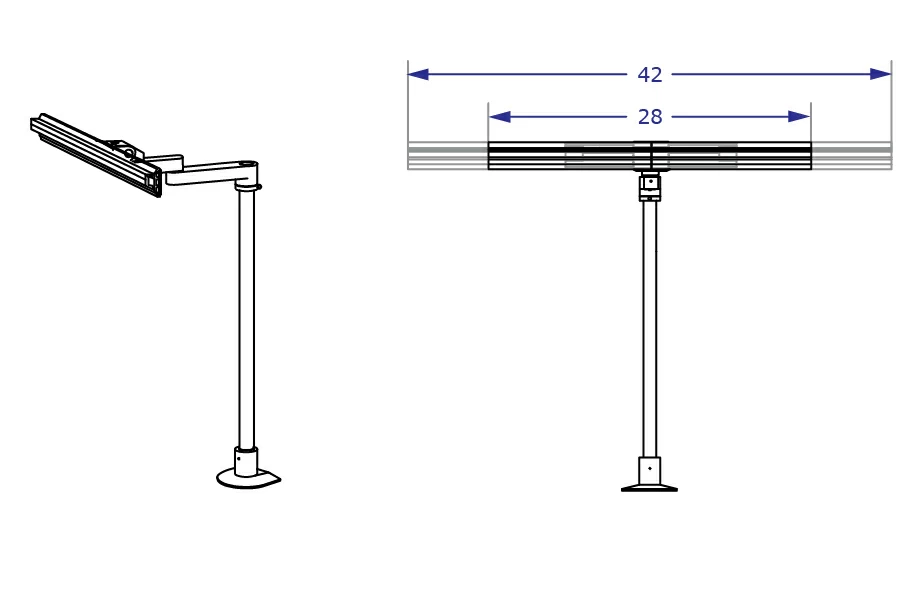

DOCHANGER extended width document hanger specification drawing showing measurements in front view

The DH004 Extended Width Document Hanger in the above specification images is shown as the 31 inch tall option.



DOC HANGER EXTENDED WIDTH

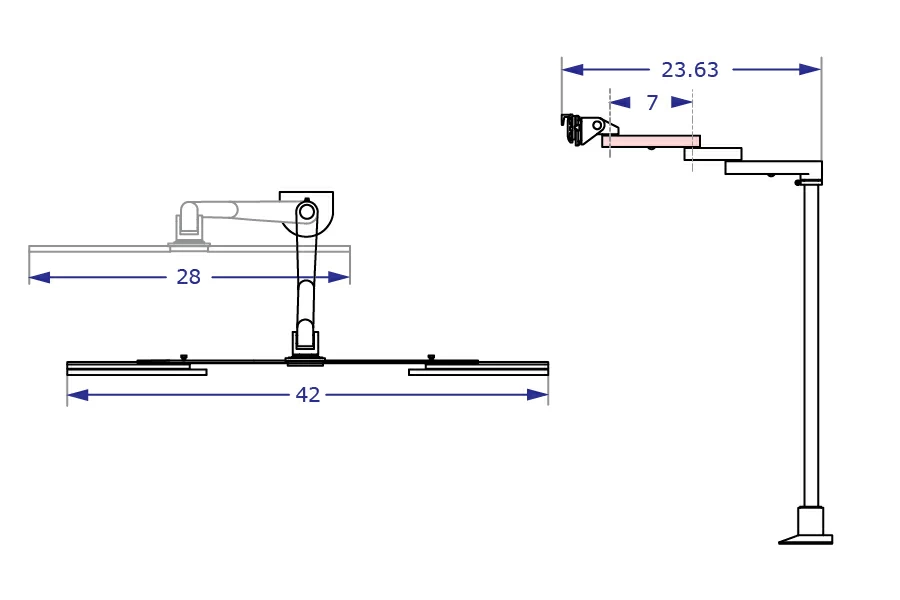

Two DOCHANGER document hanger specification drawings with measurements for the extended width top view and side view with extension

The DH004 Extended Width Document Hanger in the above specification images is shown from a top view and in a side view with the 31 inch tall pole and an additional horizontal extension which increase the height by one inch and the reach by 7 inches



DOC HANGER COLLAPSED

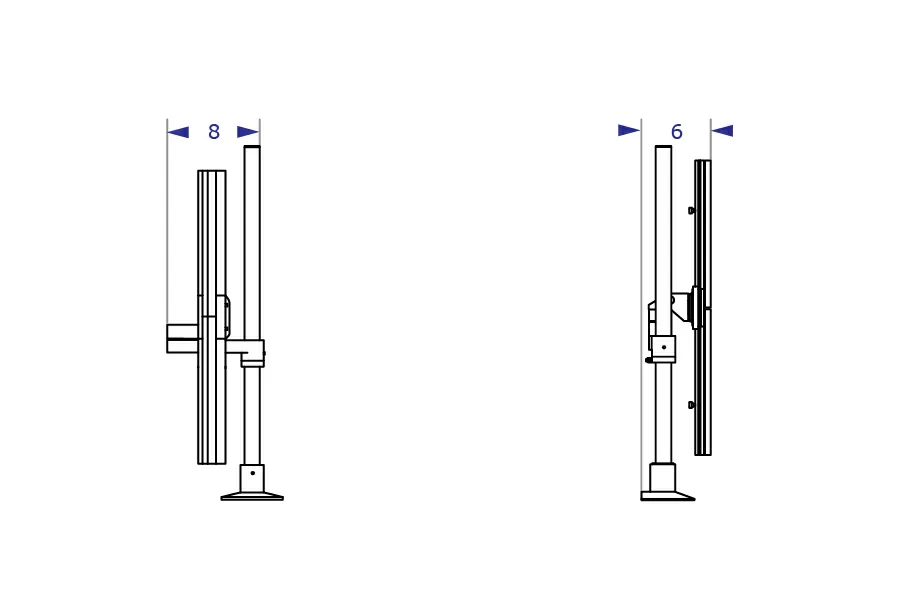

DOCHANGER document hanger specification drawings demonstrating the dimensions of the device when folded

The Document Hangers can collapse into a compact position 8 x 6 inch desktop footprint when not in use



Leave a Review
You're reviewing:Adjustable Document Hanger for Engineers, Architects
Start Rating
  • Can I stop these from rotating?

    There are set screws that can be tightened to prevent it from rotating.

  • I see that your other document holders come with articulating arms, is that an option for this?

    You may purchase a document hanger with one of several arms. Cost per unit will vary depending on bracket size on quantity ordered. Please speak with an Ergomart sales and customer service representative.
