SKU

ENVOY-S

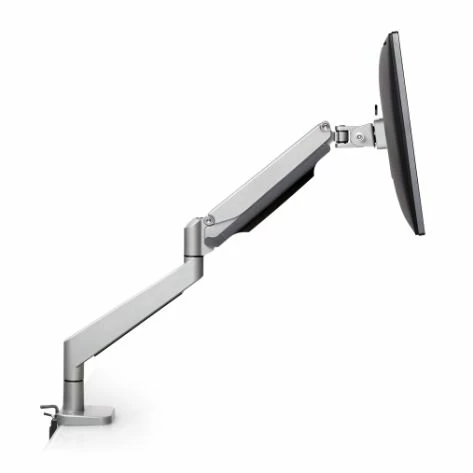

Envoy™ Affordable Articulating Monitor Arm

SHIPS FREE

Handles 75 mm and 100 mm VESA-compatible monitors
Supports monitors from 2.2 to 19.8 pounds
One-touch, simple adjustment of the attached monitor
Offers 13.2" of vertical adjustment at the middle articulation point
Attached monitor can tilt, swivel and rotate
Mounts to the desk edge or thru-desk
Each articulation point rotates 180° or more
Cables are cleanly routed through the base of the arm
Quick release VESA bracket for easy monitor installation and removal
Also available in a dual monitor mount

$184.58

Increase Up

Save for later

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

HIGHLY ADJUSTABLE YET AFFORDABLE ERGONOMIC MONITOR ARM

The Envoy articulating arm is a powerful ergonomic tool that doesn’t break the bank. Designed for ease-of-use, the arm features one-touch monitor adjustment that stays in place once positioned. The monitor arm enhances any workspace, bringing an attractive design and freeing up valuable desk space. The cable management system routes wires beneath the length of the arm, ensuring a clean look and unhampered movement. This height adjustable monitor arm is compatible with any 75 mm or 100 mm VESA monitor between 2.2 – 19.8 lb. In addition to the three adjustment points on the arm, the attached monitor can swivel, tilt and rotate from portrait to landscape. The Envoy mounts to either the desk edge or is bolted through the desk surface.

The Envoy is also available as the Dual Envoy two-monitor mount offering the same impressive adjustment capabilities.

Please note the Envoy is a stand-alone product that is not compatible with other Ergomart mounts and accessories. Please see Ergomart's full range of monitor arms for a selection of adaptable, versatile arms.

Shipping Weight	9.55 pounds
Shipping Dimensions	19.25" x 12.5" x 4.5"
Warranty	10 year limited

Specifications

Mount Type	Monitor Arm
Number of Monitors	1 2 with dual bracket
Mounting	Desk Clamp Thru-Desk
Weight Range	2.2-19.8 lb
Monitor Horizontal Reach	23.7"
Vertical Adjustment	13.2"
VESA Options	75 X 75 100 X 100
Portrait to Landscape	Yes
Max Swivel (at Base)	270°
Max Swivel (at Elbow)	360°
Max Swivel (at Monitor)	180°
Monitor Tilt Range	+90° up, -90° down

Accessories

VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:

$2.10

VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:

$3.15

Two Universal Scanner Brackets front view

VESA Barcode Scanner Holder Bracket

From $120.17

View detail

Mid-Size Dual Monitor Bracket with 75mm VESA

ADJ1523-VSL75

Mid-size adjustable dual monitor bracket for two monitors each measuring up to 23 inches in width and with 75x75 mm VESA hole patterns.

QTY:

$66.22

Mid-Size Dual Monitor Bracket with 100mm VESA

ADJ1523-VSL1

Mid-size adjustable dual monitor bracket for two monitors each measuring up to 23 inches in width and with 100x100 mm VESA hole patterns.

QTY:

$61.72

Large Dual Monitor Bracket with 100mm VESA

ADJ1430-VSL1

Large adjustable dual monitor bracket for two monitors each measuring up to 30 inches in width and with 100x100 mm VESA hole patterns.

QTY:

$67.48

Large Dual Monitor Bracket with 100x200mm VESA

ADJ1430-VSL12

Large adjustable dual monitor bracket for two monitors each measuring up to 30 inches in width and with 100x200 mm VESA hole patterns.

QTY:

$71.98

100x200mm Flat VESA Plate with Hardware

V12

The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

QTY:

$16.54

Front view of V22 200 x 200 mm VESA adapter plate for large computer monitors and TVs

200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:

$22.05

Download

Envoy™ Installation Instructions

Envoy™ Brochure
