SAA7000 Monitor arm desk mounted in high position from a front isometric view in black - badge tile MODULAR SERIES-118
SAA7000 Articulating Monitor Mount

In stock

From $187.83

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

SAA7000 Articulating Monitor Mount

USA ASSEMBLED MODULAR SERIES-118
Please wait while your content is loading.

REQUIRED ITEMS

THIS LCD ARM IS AN EXCELLENT SOLUTION FOR MOST COMPUTER WORK ENVIRONMENTS

  • Monitor arm reaches out 22.9" and folds up into 3.9"
  • Includes LCD monitor rotation from landscape to portrait
  • Effortlessly Float LCD/LED monitors weighing 5 to 28 pounds
  • Floats your LCD with 16 inches of vertical travel
  • Attaches easily to tables & desks up to 2.5 inches thick
  • LCD Arm even configures to 3/8" bolt hole attachment
  • Kit A is adaptable and clamps to desk or mounts to wall
  • Compatible with our 192 Pole Floor Mount Systems
  • Effortlessly tilt the display back past 90° or down 45°
  • Black is a SAA7000 quick-ship color
  • VESA 75 x 75mm and 100 x 100mm compliant
  • Optional VESA 100 x 200mm available
  • Cable management controls cords
  • Please watch the YouTube Video for monitor arm installation tips and adjustment instructions

Our high-performance VESA-compliant LCD Arm handles your LCD monitors and touch screen monitors with ease. It is finely engineered and constructed from diecast and finely machined powder coated aluminum components. Assemble it in mere minutes and then never twist a knob or push a lever; this LCD Monitor Arm simply floats your LCD monitor from one position to another without effort. Move the flat screen virtually anywhere in an area 16" high x 20" deep x 38" wide. Customers planning to use this arm in conjunction with lateral extensions should select the "No Mount Kit" option on this page and purchase the Flexible Mounting Kit C separately.

We have heavily discounted our remaining inventory of the SAA7000 in a recently discontinued Light Gray color. Visit our special offer page for more information.

The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A is incompatible with the Heavy-Duty extensions and the 5", 8", and 12" vertical extensions.

Shipping Weight 12 pounds
Shipping Dimensions 23" x 14" x 4"
Warranty 5 year limited

Standard delivery time on the SAA7000 LCD Arm is 3 to 7 business days. Please order before 12 noon CST for next day delivery. Black is a guaranteed Quick Ship color. Quick Ship guaranteed in black with 9.5 to 21 pounds LCD weight rating.

If your LCD or panel PC weighs more than 20 pounds OR you want more vertical travel or longer reach, check out our Heavy-Duty LCD Arms.

INSTALLING AND ADJUSTING YOUR SAA ARM:

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting questions or concerns.

MORE THAN 20 MOUNT OPTIONS
INTEGRATES WITH FOUR SYSTEMS


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW ALL SIMILAR MOUNTING DEVICES

MOUNT KITS
VIEW COMPATIBLE INSTALLATION OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF




Mount Type

Monitor Arm

Number of Monitors

1 as is
2 with dual bracket

Mounting

  • Flex Kit A
  • Tall Flex C
  • Wall Kit D
  • Dual Wall Kit D3
  • Pole Mount E
  • HD Track F
  • Thru Desk G
  • Slatwall H
  • Dual Pole Mount J
  • Column Mount K
  • Offset Surface Mount K2
  • Dual Desk L
  • Horizontal Track Slider M
  • Horizontal Track Slider M2
  • Wall Mount Roller Trolley N2
  • Economical Flex Kit P
  • Desk Top Roller Trolley Q
  • OEM Mount R
  • Medical Dovetail S
  • Ceiling Roller Trolley U
  • Pole Top Mount Y

Weight Range

5-28 lb

Monitor Horizontal Reach

22.9" from center of mounting pin to front of VESA plate

Vertical Adjustment

16" instant adjustment

Horizontal Extensions

4.5", 9.5", 15.5" HD extensions
Weight restrictions may apply

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape

Yes

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° based on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

The SAA7000 belongs to the SERIES-118 family of products, which offers a great deal of flexibility in configuring your product using a variety of mounting points with optional vertical or horizontal extensions and other accessories. Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components. You may consult the table below to determine the compatibility of various components.


Category Mount Kits Vertical
Extensions
Heavy Duty
Horizontal
Extensions
Category Does product below
fit into product
to the right?
Mount
Kit A
Mount
Kit C
All Other
Mount
Kits
2"
6"
5"
8"
12"
4.5", 9.5"
and 15.5"
Monitor Arm SAA7000 Y Y Y Y Y Y
Vertical
Extensions
2" and 6" Y Y Y Y Y Y
   5", 8", and 12" - Y Y - Y Y
Heavy Duty
Horizontal
Extensions
4.5", 9.5", and 15.5" - Y Y - Y Y



Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

The measurements in these drawings are relative to a generic mounting kit into which the arm is installed: the horizontal measurements are relative to the center of the mounting pin, while the vertical measurements are relative to the top of the mounting kit. As you configure your mounting solution, please refer to the specifications of the individual mounting kits to determine the reach and adjustment range within your workspace.



SAA7000 - VERTICAL REACH

SAA7000 monitor arm specification drawing demonstrating the arm extended in high, mid and low positions with measurements

Side view of the SAA7000. With no obstructions, the arm offers 16" of vertical travel and has a horizontal reach of up to 22.9" from the center point of the mounting pin to the front of the VESA plate.

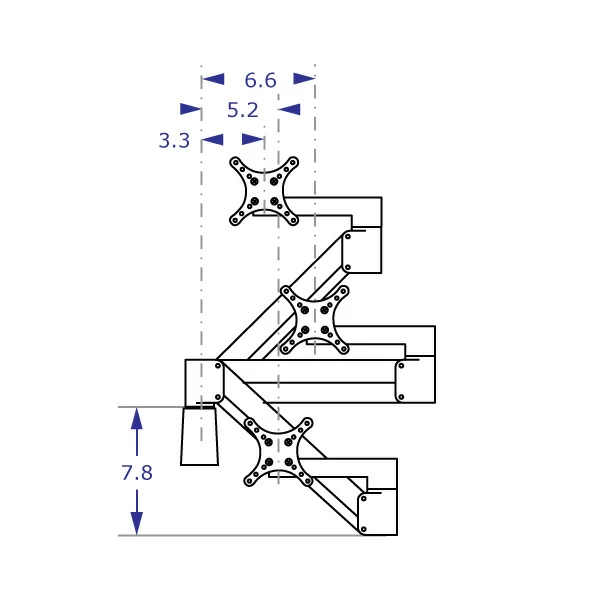

SAA7000 - FOLDED SIDE VIEW

SAA7000 monitor arm specification drawing demonstrating the arm folded in high, mid and low positions with measurements

Side view of the SAA7000. The arm is folded so that the monitor is perpendicular to the wall when wall-mounted. The distance from the center point of the mounting pin to the center of the VESA plate depends on the vertical position of the arm. This measurement varies from 3.3 to 6.6 inches. Note that at the lowest position, the arm cannot be completely perpendicular due to the lifting portion of the arm inhibiting further movement.

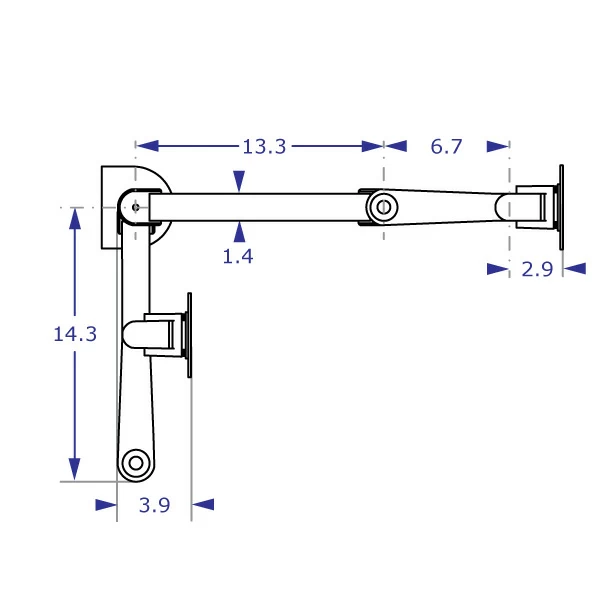

SAA7000 - DESK MOUNTED HORIZONTAL REACH

SAA7000 monitor arm specification drawing top view showing the arm in fully extended and folded positions with measurements

Top view of SAA7000 when desk mounted. When fully extended, the arm reaches out as far as 22.9". When retracted in the horizontal position, the arm can be folded into as little as 3.9".

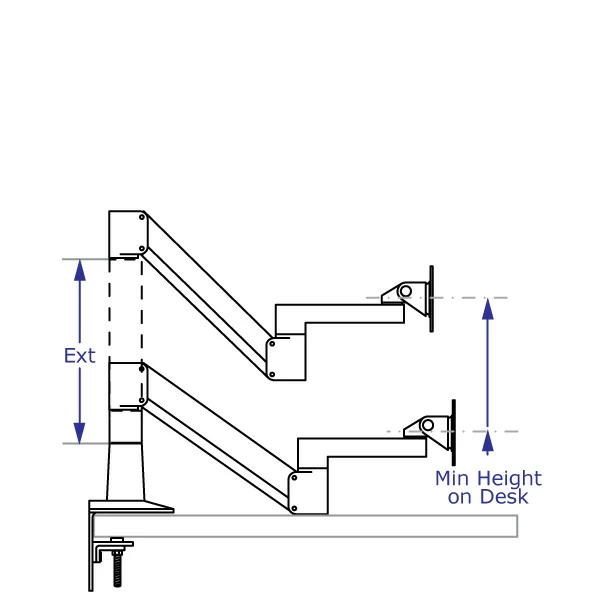

SAA7000 - DESK MOUNTED MIN HEIGHT

SAA7000 monitor arm specification drawing with arm desk-mounted shown with and without an extension in lowest position

Side-view of the SAA7000 when desk-mounted. The surface of the desk will inhibit the arm from traveling to its lowest possible position. As a result, the total instant vertical adjustability will be limited to 12.3" (10.9" with Mount Kit A) compared to 16" with the wall mount option. To reclaim the range of motion, optional vertical extensions can be added. Please note, Mount Kit A is not compatible with the 5, 8 and 12 inch extensions.

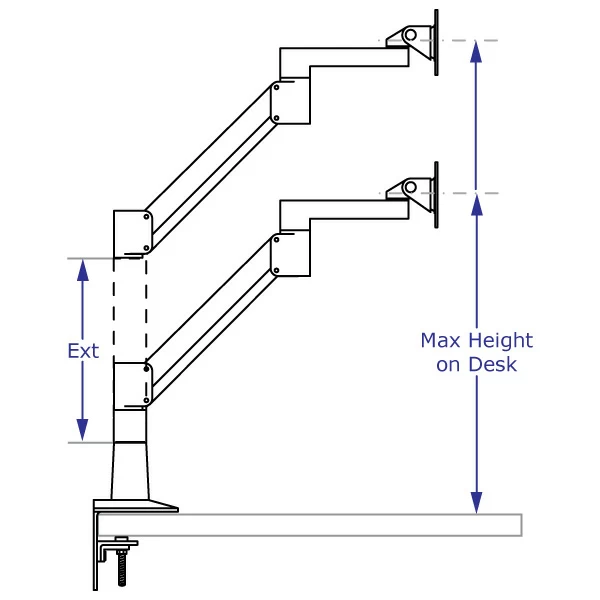

SAA7000 - DESK MOUNTED MAX HEIGHT

SAA7000 monitor arm specification drawing with arm desk-mounted shown with and without an extension in highest position

Side-view of the SAA7000 when desk-mounted. The figure shows the impact of adding vertical extensions on the maximum height the arm can reach. The 12" extension (with Mount Kit C) allows the maximum height to reach 29.6".

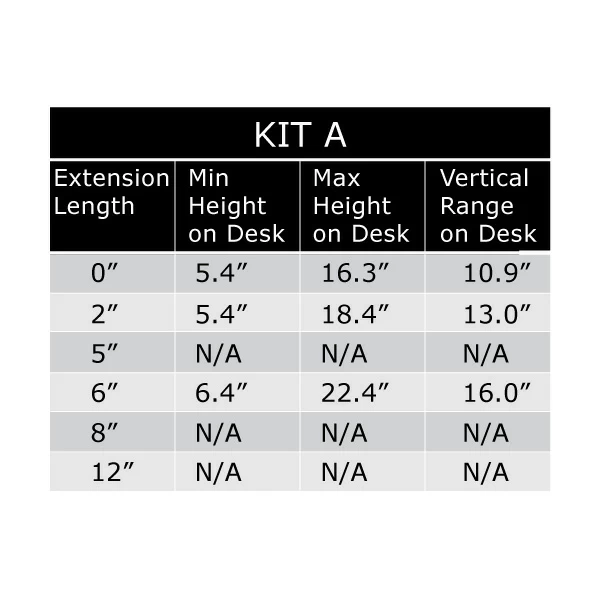

SAA7000 - VERTICAL EXTENSION TABLE
MOUNT KIT A

Vertical Extension Table for the SAA7000 with Mount Kit A

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit A.

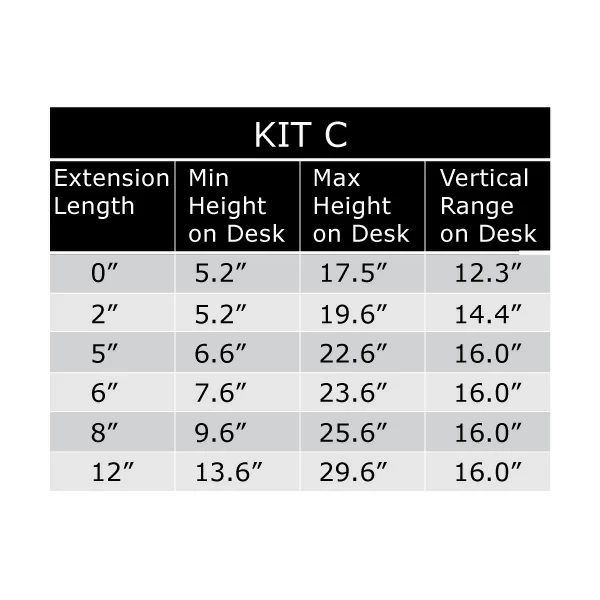

SAA7000 - VERTICAL EXTENSION TABLE
MOUNT KIT C

Vertical Extension Table for the SAA7000 with Mount Kit C

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit C.
