SKU

ENVOY-D

Dual Envoy™ Desk Mounted Dual Monitor Arm

New SHIPS FREE
  • Supports monitors with 75/100 mm VESA hole patterns
  • Compatible with flat panels weighing 2.2 to 19.8 lb each
  • Arms are adjusted simply and quickly with one touch
  • Each arm provides over 13" of vertical adjustment
  • Each monitor can rotate, swivel and tilt independently
  • Offers both desk clamp and and thru-desk mounting capabilities
  • Each of 3 articulation points on each arm rotates 180° or more
  • Cables are routed underneath each arm from top to base
  • Detachable VESA brackets support quick removal and installation of monitors
  • Also available as a single monitor mount
$324.80
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

AFFORDABLE DUAL ARM MONITOR MOUNT OFFERS ULTIMATE ADJUSTABILITY

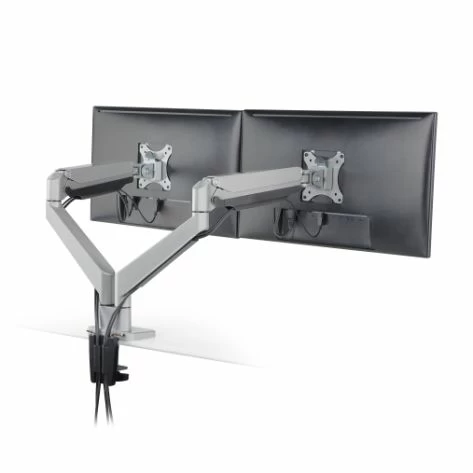

The Dual Envoy dual monitor arms mount two 2.2 to 19.8-pound monitors on separate hyper-flexible ergonomic arms. Each arm has three articulation points, offering varying degrees of rotation. The middle articulation point provides over 13 inches of easy vertical travel. Cables are routed along the underside of the arm, maintaining the clean, sleek design and keeping the wires from hampering movement. Adjusting the arm is easy, accomplished by simply holding the monitor and moving it to the desired position. Each attached monitor can also be tilted, rotated and swivelled for optimal positioning. The Dual Envoy is compatible with monitors featuring 75 mm or 100 mm VESA hole patterns. The VESA plate has a quick release mechanism, which it means the monitor can be detached and replaced quickly, reducing installation time. The monitor arms attach to the work surface at a single point, either clamped to the desk edge or bolted through the desk.

The Dual Envoy is also available as the Envoy, a single monitor arm that offers the same great features and affordable price.

Please note the Dual Envoy is a stand-alone product that is not compatible with other Ergomart mounts and accessories. Please see Ergomart's full range of multi-monitor arms for a selection of adaptable, versatile arms for dual monitor set-ups.

Shipping Weight 17.06 pounds
Shipping Dimensions 22.50" x 18.50" x 4.63"
Warranty 10 year limited

Mount Type

Monitor Arm

Number of Monitors

2

Mounting

  • Desk Clamp
  • Thru-Desk

Weight Range

2.2-19.8 lb

Monitor Horizontal Reach

23.7"

Vertical Adjustment

13.2"

VESA Options

75 X 75
100 X 100

Portrait to Landscape

Yes

Max Swivel (at Base)

270°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

180°

Monitor Tilt Range

+90° up, -90° down

100x200mm Flat VESA Plate with Hardware
100x200mm Flat VESA Plate with Hardware

V12

The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

QTY:
$15.75
200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$21.00
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
VESA Barcode Scanner Holder Bracket
VESA Barcode Scanner Holder Bracket

From $114.45

Economical and Durable Rolling CPU Stand
Economical and Durable Rolling CPU Stand
$33.08
