Ideal for trading desks, control rooms and more, our Dual Arm Floating LCD Mounting system delivers stellar performance and top notch quality at a very affordable cost. This multi mount system allows complete and instant floating movement of both monitors with the touch of the hand, there's no need to twist a knob or push a lever!
This dual arm is designed for those who spend long hours at their workstation and need to sit or stand. VESA compliant LCD arms handle your flat screens, touch screen monitors or even new style 20" or 23" Apple Cinema monitors. Finely engineered, durable, and highly functional, the SA2A performs better than any other LCD arm in its price category.
|Shipping Weight||31 pounds|
|Shipping Dimensions||20" x 16" x 10"|
|Warranty||5 year limited|
INSTALLING AND ADJUSTING YOUR SAA ARM:
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

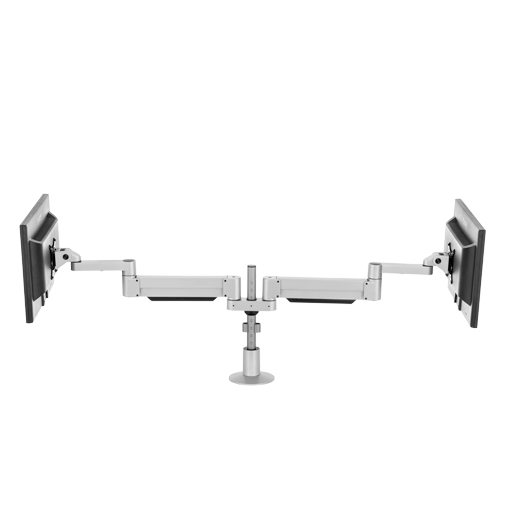

With the dual brackets mounted along the vertical pole, the arms can be independently adjusted within a maximum vertical range of 16.5 inches.
Both tilters can independently swivel up to 360° allowing for fine instant adjustment of the angle for each monitor.

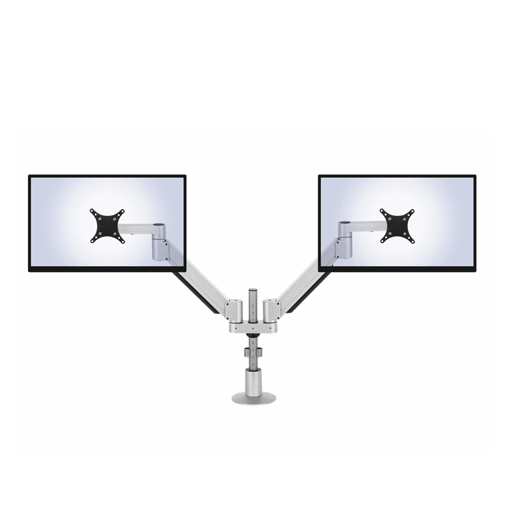

The orientation of each screen can be changed from portrait to landscape and back with ease.

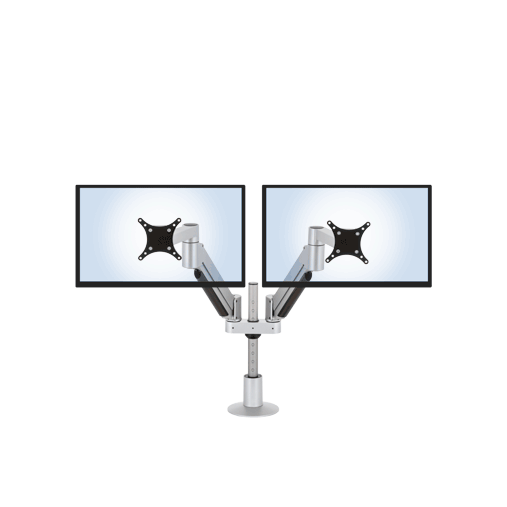

The arms rotate at the dual mount bracket and at their respective elbows providing virtually unlimited flexibility in horizontal positioning.

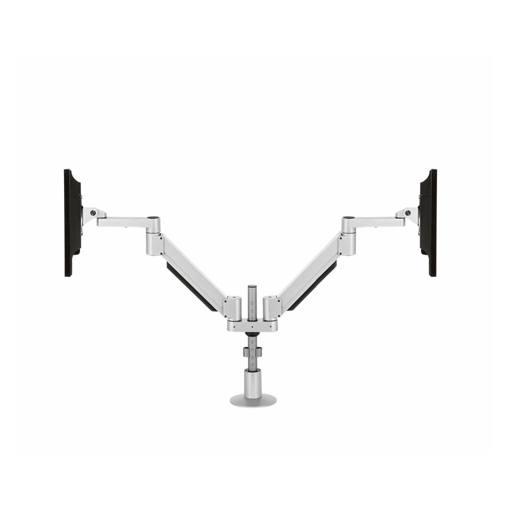

The monitors independently tilt up and down, allowing for optimal adjustment of the viewing angle.

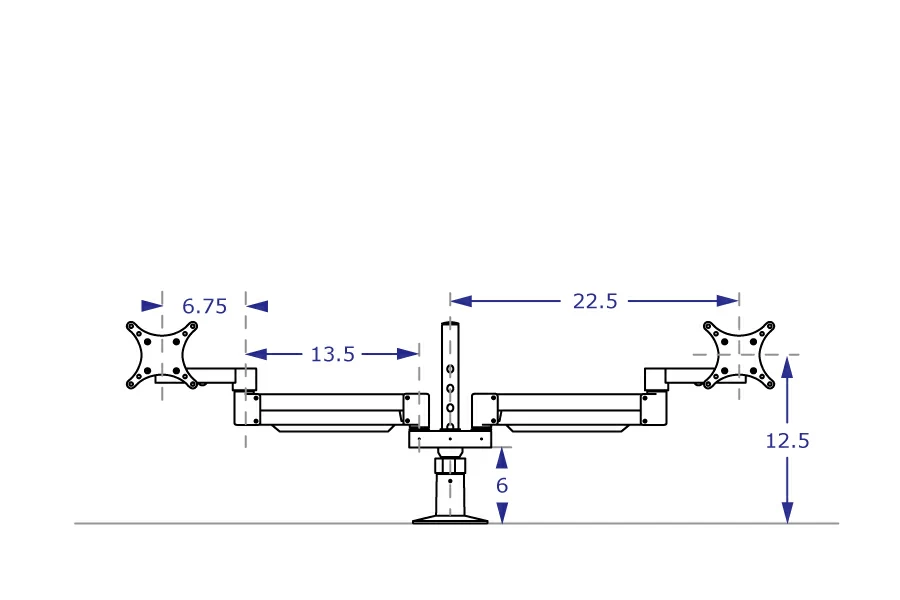

The SA2A includes a 14" dimpled vertical mounting pole that allows the dual bracket to be secured at various heights from the mount kit. The image illustrates the monitor height and the lateral reach of the arms in a desk mounted configuration with the monitors facing forward and the dual bracket at its lowest point along the mounting pole. The image shows the SA2A with the arms extended horizontally. Please note that in this case the work surface inhibits the downward adjustment of the arm at the elbow.

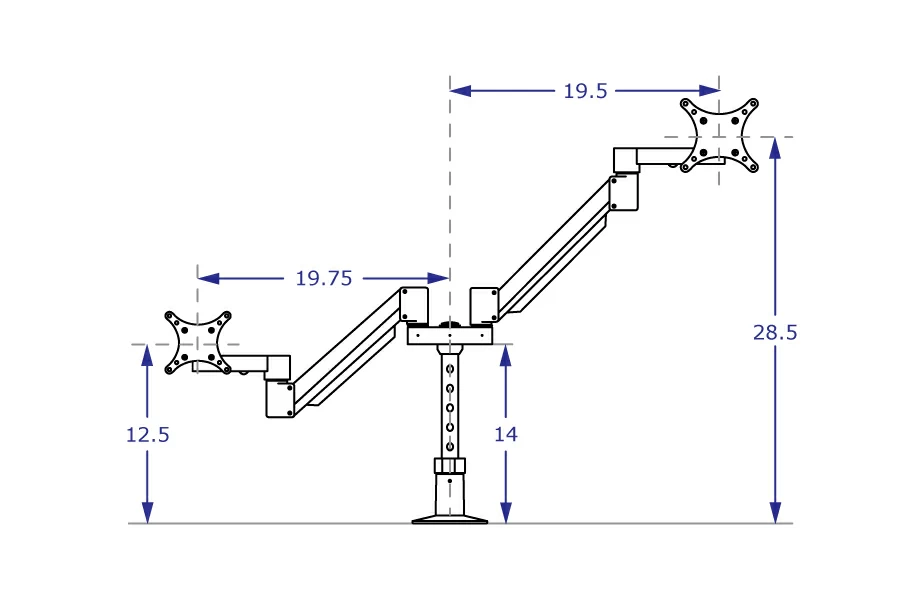

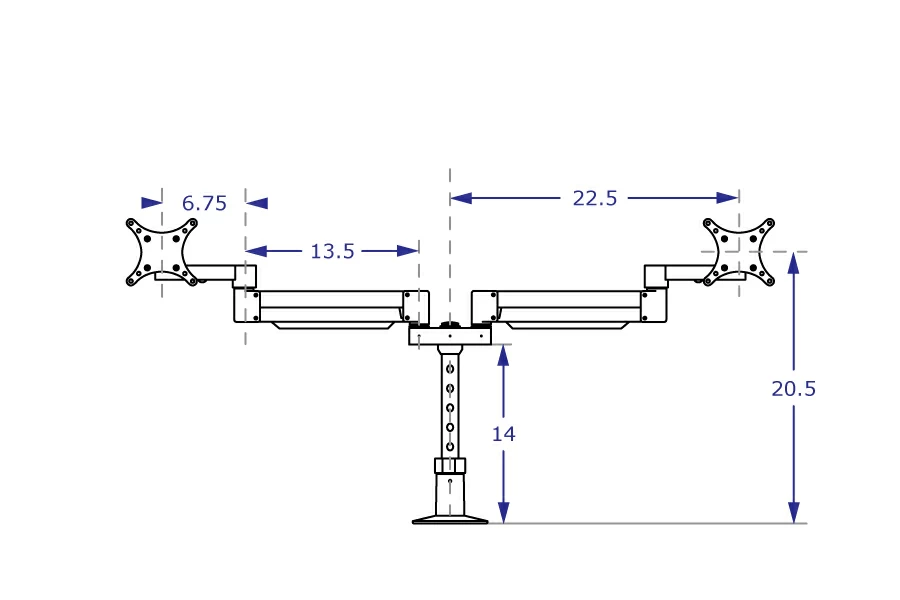

The SA2A is shown with the vertically adjustable arms in the highest configuration.

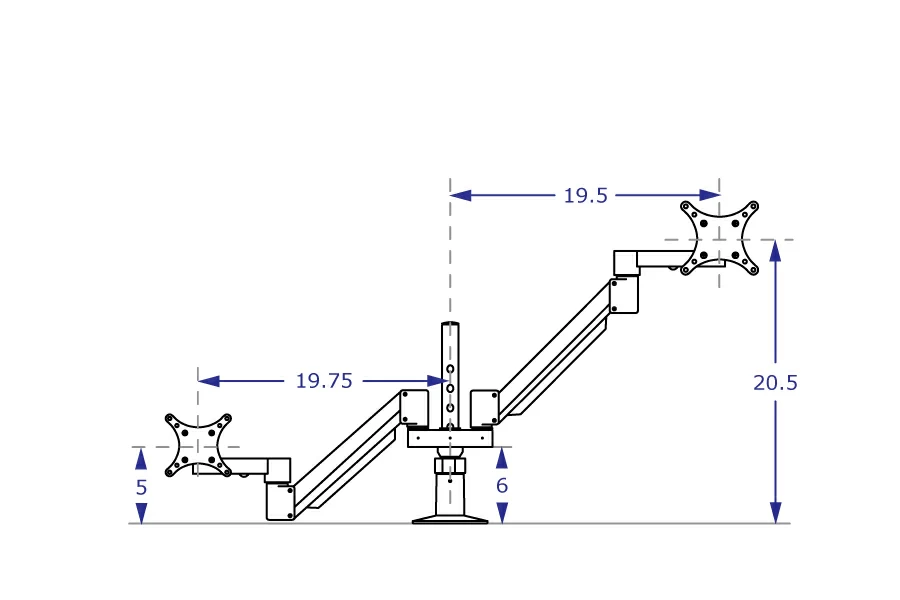

When the yoke holding the arms is at its lowest point the arm will be stopped by the desk surface before reaching its maximum lowest potential.
With the dual bracket mounted at the highest set point along the mounting pole, the arm is able to extend downwards to its lowest point without touching the work surface.

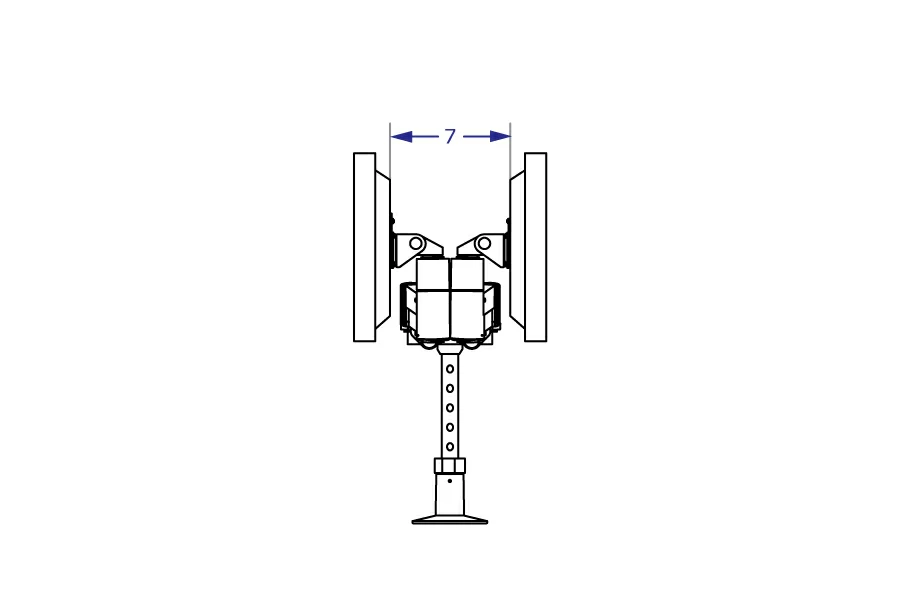

The SA2A is able to retract into an extremely compact space with just 7 inches of distance between the front of the two tilter heads. Here the maximum retraction of the arms is seen shown from the side

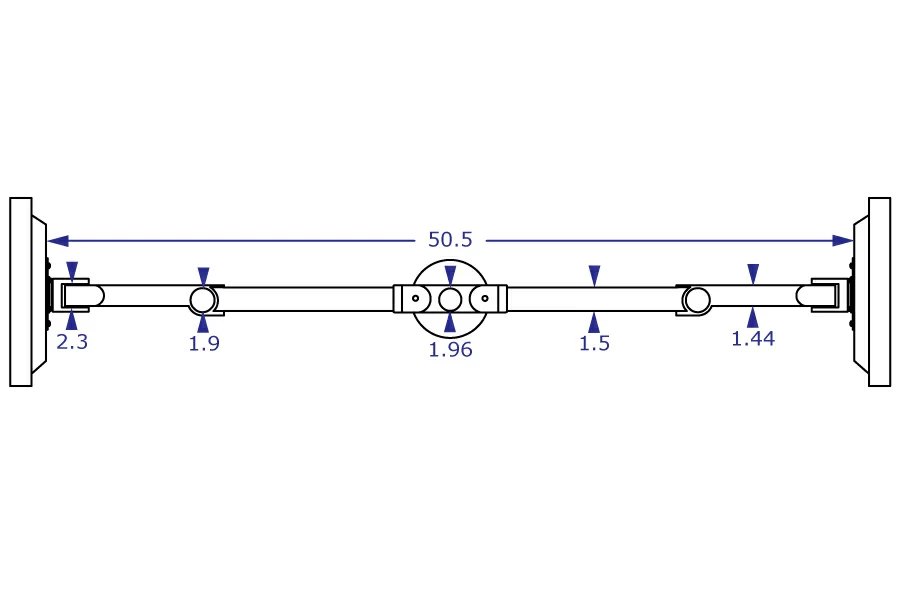

The maximum arm extension of the SA2A as viewed from the top.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
