Ergomart's low profile LCD stand is the perfect solution where ever monitor users need to see over, in front, and above the LCD. Many people with vision issues can benefit from the low angle adjustability offered by the DS9109XS. Tilt, swivel and landscape/portrait rotation are adjustments that ensure the user will be able to place a monitor in just the right position. The product name has been updated from LS9109XS.
|Shipping Weight||7 Pounds|
|Shipping Dimensions||15" x 11" x 4"|
|Warranty||5 Year limited|
The DS9109XS in profile with the monitor at the lowest setting.
The monitor display is shown in the lowest setting possible on the pole mount. In this orientation, downward tilt is restricted by the mount base. When tilted 37.5° the center of the VESA plate sits 4.08" from the worksurface.
The monitor display is shown in the highest setting possible on the pole mount. This position allows the monitor to be tilted so that the monitor faces the ceiling if desired. The 6.45 inch measurement indicates the center of the VESA bracket to the worksurface when it is rotated perpendicular to the surface.

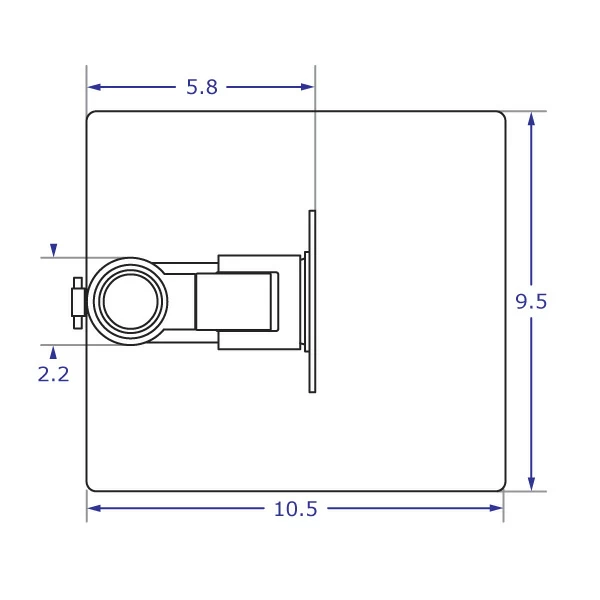

The top view of the LCD desk mount base, with dimensions of 9.5 x 10.5 inches.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
