The LS9137S single monitor stand positions a flat screen monitor or VESA compliant device weighing as much as 35 lb. It has several optional pole lengths. Height can be easily reset for different users by removing the monitor and adjusting the arm assembly to the desired height.

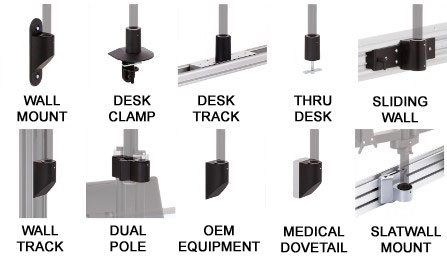

Optional mounts are also available. If you do not see your desired mounting kit in the drop down menu please call us at 888 420 3200 to order an optional mount. Recessed VESA mounting patterns may require an optional Spacer Kit; see bottom of page 2 of instructions.
Want to mount a second monitor along the pole? Check out the LS9137D Dual Monitor Stand.
|Shipping Weight||8 pounds|
|Shipping Dimensions||17" x 14" x 6"|
|Warranty||5 Year limited|
The LS9137S can extend 14 inches from the back of the mouting plate A to the front of the tilter head.
The LS9137D can rotate the monitor at the tilterhead about 180 degrees in relation to the forearm on which it rests. When the monitor is tilted up so that it clears the forearm the display can then actually rotate 360 degrees if unencumbered by cables and wiring.
The LS9137D can rotate the monitor at the tilterhead at the central point of articulation 360 degrees if wires are not present. The image illustrates the rotation capability.
The LS9137S flat screen monitor stand shares many of the same dimensions as the 9137D. The drawing above depicts the stand with the standard 14 inch high pole. Optional 20, 24 and 28 inch poles respectively increase the 16.75" tallest height measurement to 22.75, 26.75 and 30.75 inches.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
