Perfect for digital signage, plasmas in office applications or anywhere in the home, Peerless Heavy Duty Universal LCD TV Wall Mounts come with everything you need for a quick and easy install: LCD screens engage with an audible click, and a VESA compatible adapter plate and an ultra-thin wall plate that can be mounted to a single wood stud or concrete. Plus, the fastener pack includes all screen attachment hardware, which means no guesswork and no trips to the hardware store.
|Shipping Weight||4 pounds; Net weight 1.7 pounds|
|Shipping Dimensions||12.75" x 9.5" x 3"|
|Warranty||3 year limited|
The SF632 mount can accomodate many different monitor sizes. Standard configuration accomodates both 75 x 75 mm and 100 x 100 mm VESA compatible devices.
The SF632 with 75/100 VESA has a side profile of only 0.95 inches.
The Wall Plate can be permanently attached to the wall with the VESA plates allowing quick on/off access. All display and wall hardware included.
The 100/200 VESA plate size is to accomodates 22 to 40 inch displays.
The SF632 with 100/200 VESA has a side profile of only 1.02 inches.

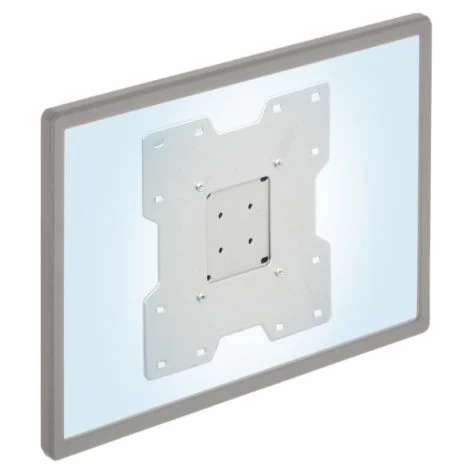

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
