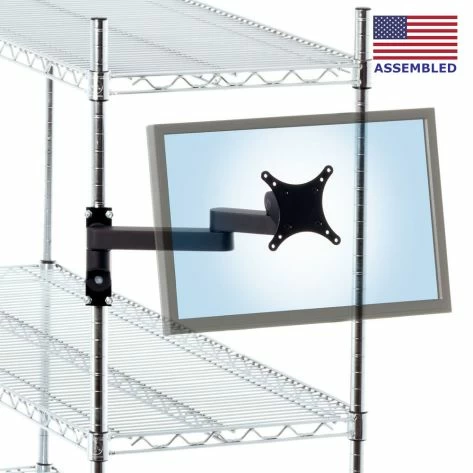

Wire shelving systems are commonly used in the workplace as they provide an economical and scalable way to organize storage. Our Wire Shelving Monitor Mount allows sturdy and convenient placement of a VESA compatible monitor weighing up to 35 pounds right on the wire shelving system for convenient access. It consists of a mount that secures anywhere along a wire shelf post with a 1" diameter and provides effortless monitor adjustability, including 90° upward and 45° downward tilt, left/right swivel, and instant change between portrait and landscape orientations. It is an ideal solution for IT server rooms, food service areas, industrial storage systems where wire shelving is found. Optional extensions add up to 14" of horizontal reach to the monitor.
|Shipping Weight||11 pounds|
|Shipping Dimensions||23" x 14" x 4"|
|Warranty||5 year limited|
The screen can rotate 360° on the tilter head allowing the user to switch from portrait or landscape viewing with ease.
With the two 7'' extensions, the horizontal arm can be extended up to 18.25'' from the shelf.
The direction of the monitor can be changed by rotating the tilter horizontally within it's range, allowing viewing from different angles.
The monitor can be adjusted 90° upward and 45° downward with respect to the vertical orientation, allowing the user to select the most comfortable viewing angle.
The wire shelving monitor mount attaches to a 1" inch diameter shelf post using the U-brackets shown at the top and bottom. The vertical footprint of the mount on the shelf is 5.75".
WS9110 has a distance of 4.3 inches from the shelf to the monitor and a maximum weight capacity of 35 pounds.
With the 3.5 inch extension the WS9110 has a distance of 7.75 inches from the shelf to the monitor and a maximum weight capacity of 35 pounds.
With the 7 inch extension the WS9110 has a distance of 11.25 inches from the shelf to the monitor and a maximum weight capacity of 32 pounds.
With two 3.5 inch extensions the WS9110 has a distance of 11.25 inches from the shelf to the monitor and a maximum weight capacity of 32 pounds.
With one 7 inch and one 3.5 inch extension the WS9110 has a distance of 14.75 inches from the shelf to the monitor and a maximum weight capacity of 28 pounds.
With two 7 inch extensions the WS9110 has a distance of 18.25 inches from the shelf to the monitor and a maximum weight capacity of 23 pounds.
The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.
This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.
The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.
The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
