SA1288 Rigid straight arm mount shown with monitor and affixed to kit D wall mount.
Straight Arm Extensions for LCD Monitor Arms

In stock

From $82.83

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

Straight Arm Extensions for LCD Monitor Arms

USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

INCREASE THE HORIZONTAL REACH OF MANY OF ERGOMART'S MONITOR MOUNTS

  • A simple and strong arm that provides reach and articulation
  • Works with most popular Ergomart mount kits (MKIT family)
  • Straight Arms are compatible with Wall Track Combos and EC wall tracks
  • Straight Arms are compatible with all 192 and most LS Ergomart Pole systems
  • Straight Arms are compatible with HD Wall Mounts and Medical Dovetail Mounts
  • Choice of three lengths: 4.5", 9.5" or 12.88"

Ergomart's Straight Arms allow users to achieve lateral reach and rock solid reliability when vertical adjustment is not a requirement. Add 13 inches of lateral reach to any desk, wall, or pole mount application. Maintain full tilt and swivel and screen rotation at the display or monitor while maintaining a second point of articulation at the point the arm affixes to the appropriate mount.  Use different lengths for your track mounted monitor and keyboard tray to create a custom workstation. The pin end will fit most MKITS while the opposite end accepts tilter head pins for attaching interface components such as the Ergomart standard and spring tilter mechanisms.

Not sure if your application is the right fit for the straight arm? Just give us a call and we will do our best to assist you: 888 420 3200.

Shipping Weight SA0450 2 pounds
Shipping Dimensions 8" x 5" x 5" when individually boxed
Warranty 5 year limited
Shipping Weight SA0950 3 pounds
Shipping Dimensions 11" x 5" x 5"
Warranty 5 year limited
Shipping Weight SA1288 3 pounds
Shipping Dimensions 18" x 6" x 4"
Warranty 5 year limited

Extending heavy loads from standard mounting configurations increases stress and torque on mounting components. Always consult Ergomart technical support regarding load limits and compatibility before assembling components that include HD extensions.

SA0450 - PERSPECTIVE VIEW

SA 4.5" straight arm extension isometric specification drawing

Pespective view of the SA0450 component that fits into MKIT receivers with (118 poles size) and accepts .75" shafts of of various Ergomart components such as monitor tilter heads.



SA0450 - FRONT VIEW

SA 4.5" straight arm extension specification drawing front view with measurements

End view of the SA0450 arm shows pin is 2.8 inches long and 1.18 inches in diameter.  Also illustrates that the arm component is 1.5 x 1.5 inches.



SA0450 - SIDE VIEW

SA 4.5" straight arm extension specification drawing side view with measurements

The image depicts a side view with various measurements including overall length of 6.13 inches and the center to center 118 pin to .75 receiver hole distance of 4.5 inches.

SA0950 - PERSPECTIVE VIEW

SA 9.5" straight arm extension isometric specification drawing

Pespective view of the SA0950 component that fits into MKIT receivers with (118 poles size) and accepts .75" shafts of of various Ergomart components such as monitor tilter heads.



SA0950 - FRONT VIEW

SA 9.5" straight arm extension specification drawing front view with measurements

End view of the SA0950 arm shows pin is 2.8 inches long and 1.18 inches in diameter.  Also illustrates that the arm component is 1.5 x 1.5 inches.



SA0950 - SIDE VIEW

SA 9.5" straight arm extension specification drawing side view with measurements

The image depicts a side view with various measurements including overall length of 11.38 inches and the center to center 118 pin to .75 receiver hole distance of 9.5 inches.



SA1288 - PERSPECTIVE VIEW

SA 12.88" straight arm extension isometric specification drawing

Pespective view of the SA1288 component that fits into MKIT receivers with (118 poles size) and accepts .75" shafts of of various Ergomart components such as monitor tilter heads.



SA1288 - FRONT VIEW

SA 12.88" straight arm extension specification drawing front view with measurements

End view of the SA1288 arm shows pin is 2.8 inches long and 1.18 inches in diameter.  Also illustrates that the arm component is 1.5 x 1.5 inches



SA1288 - SIDE VIEW

SA 12.88" straight arm extension specification drawing side view with measurements

The image depicts a side view with various measurements including overall length of 14.75 inches and the center to center 118 pin to .75 receiver hole distance of 12.88 inches.



VERTICAL EXTENSION - 5"

SA 12.88" straight arm extension isometric specification drawing

Vertical Extensions add vertical reach to various Ergomart devices. The mounting kits offered above accept all vertical extensions, other mounting kits may only accept vertical extensions with the shorter 119mm diameter pin. Call or email for answers to questions regarding specific component compatibility. Image above is of the 5 inch Vertical Extension



VERTICAL EXTENSION - 8"

SA 12.88" straight arm extension specification drawing front view with measurements

8 inch Vertical Extension.



VERTICAL EXTENSION - 12"

SA 12.88" straight arm extension specification drawing side view with measurements

12 inch Vertical Extension.



TILTER HEAD - STANDARD
for Monitor weights 1-25 lb

Standard Tilter Head for attaching to Heavy-Duty Horizontal Monitor Arm Extensions

If your monitor falls into a gray area, where tilter head specifications overlap, consider the following: monitor thickness (touch-screens especially tend to be front heavy and thicker), frequency of tilt adjustment desired and/or the added use of a thin client holder or bracket between the monitor and tilter.



TILTER HEAD - HEAVY-DUTY
for Monitor weights 25-62 lb

Heavy-Duty Tilter Head for attaching to the Heavy-Duty Horizontal Monitor Extensions

Thicker monitors and touch screens weighted more toward the front create a greater lever force on the tilter head. If you plan to adjust the tilt frequently, opt for the stronger tilter head as it is will be easier to move up and down. If you plan to put the monitor at a fixed tilted position and rarely change it, then a the standard tilter head is usually a good choice. For questions or help deciding which titer head is best suited for your application, call 888 420 3200 or email us.



MSU 400X600MM VESA PLATE
MINIMUM AND MAXIMUM WIDTHS

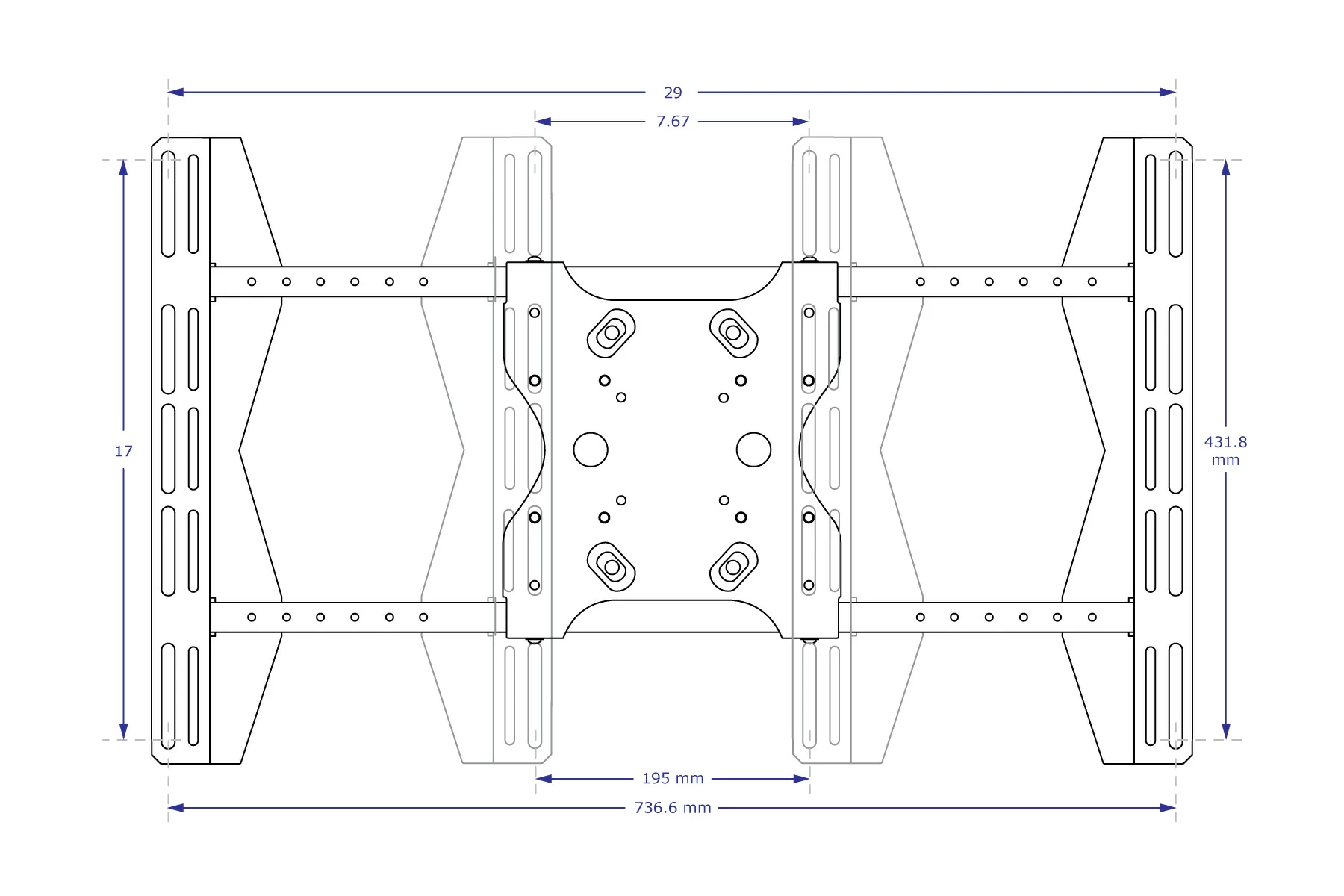

Specification drawing of the MSU4x6 vesa plate at its widest and narrowest settings

The MSU4X6 VESA plate can attach to VESA patterns from 100mm x 300mm up to 400mm x 600mm. MSU4x6 Large VESA Adapter Bracket weighs 9 pounds and thereby reduces the weight capacity of the Mount and or tilter head by 9 pounds.
