SKU

WMHA2480

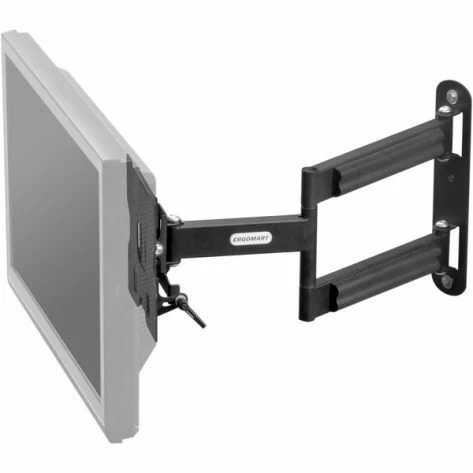

WMHA2480 Heavy Duty Wall Mounted Monitor Arm

  • Fits most 23" to 37" screens—check your VESA pattern
  • Fits most 32" to 46" screens with optional MSU4X6
  • Handles LED TVs and LCD Monitors up to 80 pounds
  • Multi-articulating for flat folding and a range of extension
  • 20º of tilt via the tilt lever (5º up, 15º down)
  • Built-in cable management controls wires for clean look
  • Includes 75x75, 100x100, 100x200, and 200x200mm VESA mount patterns
  • Larger VESA adapters available under Accessories below, or see item WMHA24125
$56.25
Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

MOUNT YOUR LCD OR LED SCREEN UP TO 80 POUNDS WITH EASE

Our WMHA2480 LED and LCD articulating wall mount supports most TV and LCD monitor screens from 23 to 37 inches and up to 80 pounds. While it extends out to 23.5 inches, it can also fold back into a mere 2.5 inches from the wall. The plate tilts to adjust viewing angle with an easy-to-use tilt lever. Resistance to movement can be adjusted—each joint can be individually set for easy movement or to be highly resistant. The black finish compliments most LED TV or LCD screens and it provides cable management along both of the base arms to keep the look clean. The standard mount fits 75mm x 75mm, 100mm x 100mm, 100mm x 200mm, and 200mm x 200mm VESA compliant screens, though it can be fitted with an optional adapter plate to fit VESA patterns from 100mm x 300mm up to 400mm x 600mm.

WMHA2480 Wall Mount

Shipping Weight 13 pounds
Shipping Dimensions 16" x 15" x 3"
Warranty 3 year limited

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Please call for expedited or international shipping.

WMHA2480
EXTENDED FRONT VIEW

WMHA2480 articulating monitor wall mount specification drawing front view shown extended with measurements

The standard plate allows for attachment to 100x100, 100x200, and 200x200mm VESA patterns on monitors and smaller Televisions.



WMHA2480
FOLDED FRONT VIEW WITH ADAPTER

WMHA2480 articulating monitor wall mount with MSU4x6 VESA adapter specification drawing front view shown folded with measurements

When folded, the center of the VESA bracket offsets 4.75" to the left or right of the center of the wall mounting location.



WMHA2480
FOLDED TOP VIEW

WMHA2480 articulating monitor wall mount specification drawing top view folded with measurements

When completely folded, the wall mount arm collapses to only 2.5 inches from the wall.



WMHA2480
EXTENDED TOP VIEW

WMHA2480 articulating monitor wall mount specification drawing top view extended with measurements

When fully extended, the wall mount arm reaches out over 23" from the wall.  The tilt lock lever is highlighted in the above top view.



WMHA2480
TILT VIEWS

WMHA2480 articulating monitor wall mount specification drawing side view extended demonstrating monitor tilt with measurements

The viewing angle can be adjusted with the tilt lever located on the back of the VESA plate. The computer monitor or larger display can be tilted downwards 15 degrees and upwards 5 degrees.



MSU 400X600
DIMENSIONS

MSU4x6 large VESA adapter specification drawing front view with components separated for clarity with measurements

The VESA plate can attach to VESA patterns from 100mm x 300mm up to 400mm x 600mm.  Various dimensions are illustrated.





MSU 400X600
MINIMUM AND MAXIMUM EXTENSION

MSU4x6 large VESA adapter specification drawing front view shown at maximum and minimum widths with measurements

At its most narrow configuration the MSU 400x600 can accomodate monitors with hole patterns as small as 7.67 inches.





200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$25.00
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm

The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.

QTY:
$65.00
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
