TRS2415 Heavy-Duty Keyboard and Monitor Arm

In stock

From $572.69

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

TRS2415 Heavy-Duty Keyboard and Monitor Arm

USA ASSEMBLED MODULAR SERIES-118
Please wait while your content is loading.

REQUIRED ITEMS

Heavy-Duty Wall-Mounted Data Entry Workstation for Keyboard, Mouse and Monitor

  • Up to 15" of vertical travel in many configurations
  • Tray reaches up to 35.75" from mounting point when extended
  • Folds to within 7.9" of the mounting point when collapsed
  • Wire manager routes cables under arm segments
  • Effortlessly floats LCD monitors up to 35 pounds
  • Works with monitors as light as 4 pounds
  • Choose from Black, Metallic Gray & Matte White
  • Adjusts the height of the monitor above the tray
  • Mounting Options for wall, desk, poles & slatwall
  • Keyboard trays with palm rests available
  • Keyboard is securely affixed to tray with Velcro
  • Standard lead time is 2 to 8 business days
  • In a hurry? Need Customizing? Questions? Call 888-420-3200 between 8:30 & 6:00 CST
  • Please watch our YouTube Video for tips on installing and adjusting the arm component included with this product

Our new TRS2415 LCD Arm Keyboard Tray Combo is designed for intensive use in demanding environments. This combination of components is appropriate for busy medical workstations and intensive use in technical, manufacturing and industrial settings. The TRS2415 works with LCD monitors weighing as much as 35 pounds. The system delivers users with an intuitive and logical ease of use and movement. Move the unit by placing hands on either side of keyboard. Moderate effort is required to lower and raise the unit. No knobs or tools are ever used after the initial setup. It can be configured for use with a keyboard only or for a keyboard and mouse. Both keyboard tray and monitor can be tilted to most required angles. Flip the keyboard tray up and the entire arm can be quickly and compactly positioned out of the way. The arm and tray rotate 360° with three points of articulation while cables are routed beneath both major arm components.

The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components.

Shipping Weight Arm: 15 pounds
Tray/Backbar: 7 pounds
Shipping Dimensions Arm: 23" x 14" x 4"
Tray/Backbar: 26" x 18" x 8" or 20" x 18" x 8"
Warranty 3 year limited

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

MORE THAN 20 MOUNT OPTIONS
INTEGRATES WITH FOUR SYSTEMS


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW ALL SIMILAR MOUNTING DEVICES

MOUNT KITS
VIEW COMPATIBLE INSTALLATION OPTIONS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF




Mount Type

Monitor and Keyboard Arm

Number of Monitors

1 as is
2 with dual bracket

Mounting

  • Tall Flex C
  • Wall Kit D
  • HD Track F
  • Thru Desk G
  • Column Mount K
  • OEM Mount R
  • Slatwall H
  • Pole Mount E
  • Dual Pole Mount J
  • Medical Dovetail S
  • Horizontal Track Slider M
  • Wall Mount Roller Trolley N
  • Desk Top Roller Troller Q
  • Celiing Roller Trolley U

Weight Range

2-35 lb for monitor (with 1 lb for keyboard/mouse)

Monitor Horizontal Reach

23" to VESA mounting point

Vertical Adjustment

15" instant and simultaneous adjustment of monitor and keyboard

Horizontal Extensions

Call for availability.

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape

Yes

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° based on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

Keyboard Trays

20" x 8.5" Tray 26" x 8.5" Tray

Keyboard Tray Height Adjustment

15" instant and simultaneous adjustment of monitor and keyboard

Keyboard Tray Tilt Range

+135° up, -80° down

Keyboard Horizontal Reach

35.75"

Monitor Height Relative to Keyboard

VESA plate 6.7 to 13.4" above keyboard

Perspective View
Wall-Mounted High and Low
Positions

TRS2415 Specification drawing of HD keyboard monitor arm on wall extending in high and low positions.

The TRS2415 LCD monitor arm with keyboard tray has a total vertical travel range of over 14" providing there are no obstructions.



Front View
Backbar and Tray Configuration
Options

TRS2415 specification drawing showing tilter mounting points and slider range

The backbar assembly features several options for configuring the relative height of the keyboard and monitor. There are three 1.9” square patterns that can be used to mount the backbar in high, medium and low positions on the tilter head. The rotating VESA plate for the monitor can be set at any point along the 6.7” vertical slot and can be positioned as high as 13.4" and as low as 6.7” from the tray.



Front View
Backbar and Tray Configuration
Options

TRS2415 specification drawing showing 75mm attachment mounting positions

There are also two 75 mm hole patterns that can be used to mount the backbar in high or low positions on the tilter head or another 75 mm VESA-compatible device.



Side View
Monitor Height Relative to Keyboard Tray and Mounting Location

TRS2415 Specification drawing illustrating measurements for different backbar mount locations

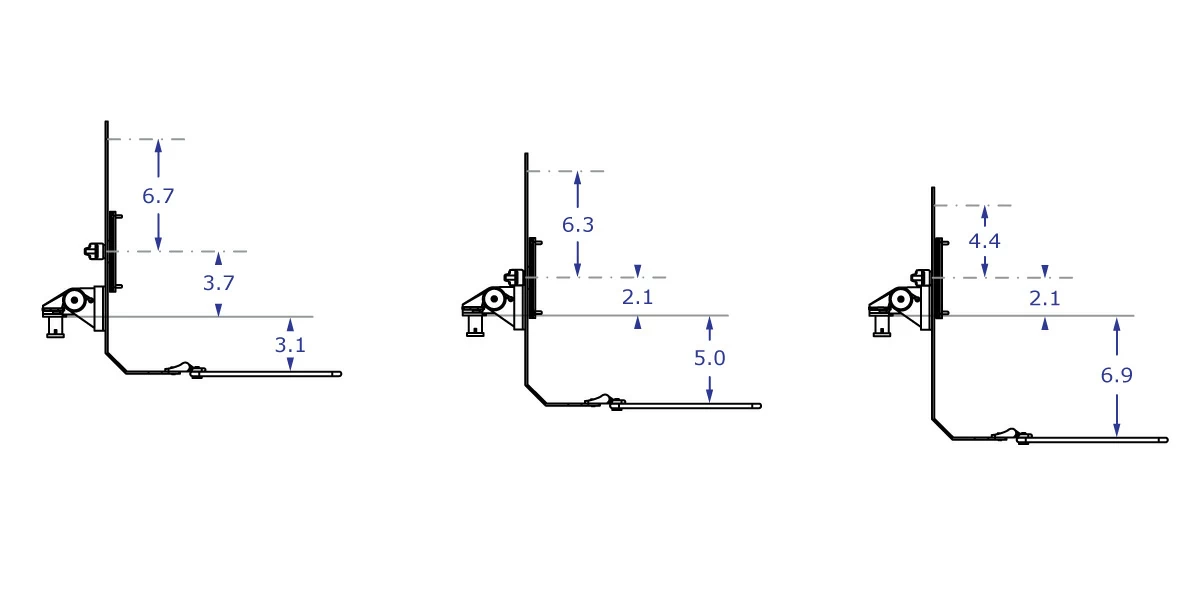

This set of drawings illustrates the three positions available on the backbar for mounting it on the tilter head, shown independently from the rest of the mounting assembly. In all cases, the maximum distance between the center of the monitor’s VESA pattern and the keyboard is 13.4”. The first drawing has the back bar in the high position allowing the monitor VESA plate to be adjusted downward along the entire length of the 6.7” slot. In the other two positions, this range is reduced since part of the slot is blocked due to interference from the tilter head.



Side View
Full Extension

TRS2415 Specification drawing showing measurements of the side view with arm extended horizontally

The TRS2415 has a maximum forward reach of 23” to the back of the monitor and an additional 12.7” to the front of the 20” or 26”-wide keyboard tray. These measurements are relative to the center of the mounting pin which is compatible with the mounting kits in the SERIES-118 catalog. Please refer to the specific mounting kit measurements you are interested in to find out the geometry in the context of your configuration.



Side View
Height Adjustment

TRS2415 Specification drawing of HD keyboard monitor arm in side view showing highest and lowest positions

This side view illustrates the height adjustment of the TRS2415. The arm can move 7.7" up and 7.3" down relative to the horizontal position. At the top of the range, the back of the monitor extends to 19.8”, at the bottom of the range it extends to 20.25", and the keyboard tray reaches an additional 12.7”. At its highest setting, the center of the VESA plate is at 25.3” above the mounting point and 13.4” above the tray. Several options for configuring the relative height of the monitor and keyboard tray are described in additional drawings. Note that when desk-mounted, the arm’s downward movement will be limited by the worksurface. The use of a vertical extension restores the full range of movement.



Side View
Full Retraction

TRS2415 Specification drawing of HD keyboard monitor arm in side view with arm and tray retracted and folded

This side view illustrates the maximum retraction of the TRS2415, with the arm folded so that the forearm is parallel to the lifting arm. With the tray folded up, the arm extends only 7.9” from the center of the mounting pin. The arm may be further folded by pushing the lifting arm back, depending on the workspace.



Top View
20" Standard Keyboard Tray

TRS2415 specification drawing of keyboard monitor arm top view with 20-inch keyboard tray

This partial top view of the TRS2415 shows, from top to bottom, the heavy-duty tilter head, the monitor/keyboard backbar, the sliding VESA adaptor and the 20” folding keyboard tray with the optional palm rest. The distance from the center of the tilter head pin to the front of the VESA plate is 3.4”. The keyboard tray extends 12.7” from the VESA plate. The 1.6” deep optional palm rest adds 0.7” to the overall depth.



Top View
26" Standard Keyboard Tray

TRS2415 specification drawing of keyboard monitor arm top view with 26-inch keyboard tray

This top view illustrates a subset of the TRS2415. From top to bottom, the components are the heavy-duty tilter head, the monitor/keyboard backbar, the sliding VESA plate and the folding keyboard tray with the “mouse trap” and the optional palm rest. The distance from the center of the pin used to install the tilter head on the arm to the front of the VESA adaptor is 3.4”. The keyboard tray reaches out 12.7” from the VESA plate. The optional palm rest is 1.6” deep and adds 0.7” of depth to the assembly.
