SKU

WS9110

Your Customization
WS9110 monitor mount attached to metro style 1 inch steel shelving
Wire Shelving Monitor Mount

In stock

From $57.02

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

Wire Shelving Monitor Mount

USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

MOUNT YOUR IT EQUIPMENT RIGHT ONTO YOUR WIRE SHELVING

  • Reposition monitor with one hand
  • Instantly rotate between landscape to portrait orientation
  • Up to 135° tilt and over 180° swivel
  • Increase horizontal reach and articulation with 3.5" and 7" extensions
  • Compatible with all VESA monitors
  • Includes 75 mm and 100 mm VESA mounting plates

Wire shelving systems are commonly used in the workplace as they provide an economical and scalable way to organize storage. Our Wire Shelving Monitor Mount allows sturdy and convenient placement of a VESA compatible monitor weighing up to 35 pounds right on the wire shelving system for convenient access. It consists of a mount that secures anywhere along a wire shelf post with a 1" diameter and provides effortless monitor adjustability, including 90° upward and 45° downward tilt, left/right swivel, and instant change between portrait and landscape orientations. It is an ideal solution for IT server rooms, food service areas, industrial storage systems where wire shelving is found. Optional extensions add up to 14" of horizontal reach to the monitor.

Shipping Weight 11 pounds
Shipping Dimensions 23" x 14" x 4"
Warranty 5 year limited
  • MONITOR ROTATION

    WS9110 Monitor Rotation Animation

    The screen can rotate 360° on the tilter head allowing the user to switch from portrait or landscape viewing with ease.

  • ARM EXTENSION

    WS9110 Arm Extension Animation

    With the two 7'' extensions, the horizontal arm can be extended up to 18.25'' from the shelf.

  • TILTERHEAD ROTATION

    WS9110 Tilterhead Rotation Animation

    The direction of the monitor can be changed by rotating the tilter horizontally within it's range, allowing viewing from different angles.

  • TILTERHEAD ADJUSTMENT

    WS9110 Tilterhead Adjustment Animation

    The monitor can be adjusted 90° upward and 45° downward with respect to the vertical orientation, allowing the user to select the most comfortable viewing angle.

WS9110
PERSPECTIVE VIEW

WS9110 wire shelving monitor mount specification drawing isometric view with measurements

The wire shelving monitor mount attaches to a 1" inch diameter shelf post using the U-brackets shown at the top and bottom. The vertical footprint of the mount on the shelf is 5.75".



WS9110 SIDE VIEW
NO EXTENSION

WS9110 wire shelving monitor mount specification drawing side view with measurements

WS9110 has a distance of 4.3 inches from the shelf to the monitor and a maximum weight capacity of 35 pounds.



WS9110
3.5" EXTENSION

WS9110 wire shelving monitor mount with 3.5-inch extension specification drawing side view with measurements

With the 3.5 inch extension the WS9110 has a distance of 7.75 inches from the shelf to the monitor and a maximum weight capacity of 35 pounds.



WS9110
7" EXTENSION

WS9110 wire shelving monitor mount with 7-inch extension specification drawing side view with measurements

With the 7 inch extension the WS9110 has a distance of 11.25 inches from the shelf to the monitor and a maximum weight capacity of 32 pounds.



WS9110
7" ARTICULATING EXTENSION

WS9110 wire shelving monitor mount with two 3.5-inch extensions specification drawing side view with measurements

With two 3.5 inch extensions the WS9110 has a distance of 11.25 inches from the shelf to the monitor and a maximum weight capacity of 32 pounds.



WS9110
10.5" ARTICULATING EXTENSION

WS9110 wire shelving monitor mount with a 7-inch and 3.5-inch extension specification drawing side view with measurements

With one 7 inch and one 3.5 inch extension the WS9110 has a distance of 14.75 inches from the shelf to the monitor and a maximum weight capacity of 28 pounds.



WS9110
14" ARTICULATING EXTENSION

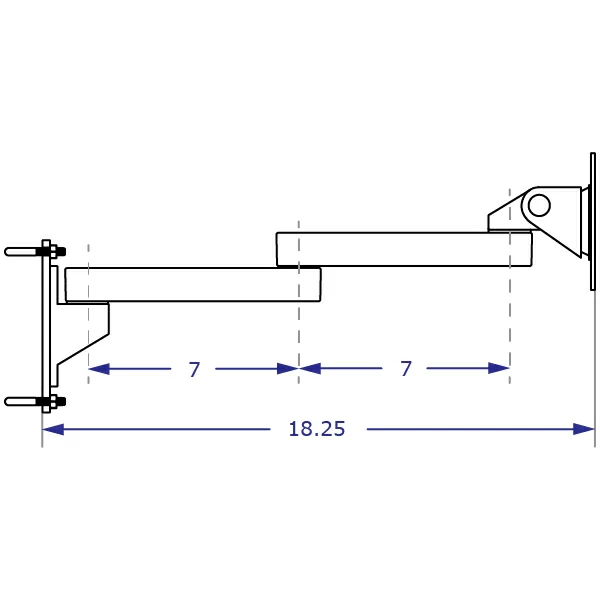

WS9110 wire shelving monitor mount with two 7-inch extensions specification drawing side view with measurements

With two 7 inch extensions the WS9110 has a distance of 18.25 inches from the shelf to the monitor and a maximum weight capacity of 23 pounds.



100x200mm Flat VESA Plate with Hardware
100x200mm Flat VESA Plate with Hardware

V12

The 100 x 200 mm VESA adaptor is compatible with certain larger monitors. It is used to attach the monitor to an Ergomart tilter head, present in all SAA, SA, and LS arms and mounts. If your monitor has a recessed VESA attachment point, you may also need an Ergomart VESA spacer kit, available below in the accessories tab.

QTY:
$15.00
200x200mm Flat VESA Plate with Hardware
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$20.00
200x400mm Flat VESA Plate with Hardware
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$25.00
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm
Heavy-Duty Mount Adapter Plate 100x300 to 400x600mm

The extra large MSU4X6 VESA adaptor bracket attaches to a wide range of VESA patterns from 100x300 mm up to 400x600 mm. The hole patterns on the central plate allow it to be mounted to tilter heads or wall mounts, often using an additional smaller VESA plate (e.g., 75 mm, 90 mm, 100 mm, 200 mm or 100x200 mm) in between.

QTY:
$65.00
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
