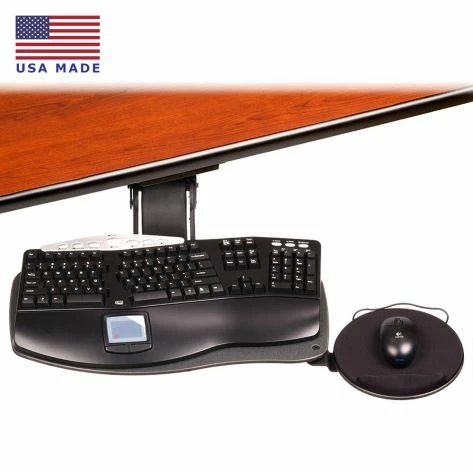

IS-SS-KIT Slim Natural keyboard tray attached to front edge of desktop with round mouse tray to the right
IS-SS Cobra Sit-to-Stand Keyboard Tray System

In stock

From $138.52

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

IS-SS Cobra Sit-to-Stand Keyboard Tray System

USA MADE
Please wait while your content is loading.

REQUIRED ITEMS

Sit-Stand Keyboard Tray with Height Adjustable Tray and Optional Platforms

  • Easy, precise and intuitive fingertip height adjustment
  • Raises 7.5" above track & 5.75" below—Great vertical reach!
  • Keyboard is counter-balanced for effortless vertical travel
  • Welded steel arm design assures maximum stability
  • Ergonomic tilt wheel gives 20° negative tilt and 10° positive tilt
  • Positive tilt lockout available
  • Optional swivel plate provides additional rotation at the tray
  • Also see the IS-SSW Sit-Stand Keyboard Tray, which is easier to use and easier to tilt!

According to several medical studies, spending the majority of the day in a sitting posture can adversely affect health in a variety of ways. Sit-stand ergonomic products are designed to allow workers to alternate between sitting and standing at their desks throughout the day. The IS-SS Cobra sit-to-stand articulating keyboard platform and spring-assisted mechanism form a combination that is practically impossible to beat in performance, cost and durability.

From a track height of 27.5" (corresponding to a 28.5" tall work surface), the arm raises 7.5" to accommodate most standing workers up to 5’ 6”. The tray height is adjusted effortlessly using the intuitive lift-and-release mechanism to position it anywhere within the vertical range of 13.25" without the need for knob activation. The workstation arm rotates 360 degrees at the base, where the mechanism meets the track. The arm is compatible with a large variety of different trays that include options such as keyboard and mouse gel palm rests.

The IS-SS offers a keyboard tray tilt adjustment from -20° to +10°. Some ergonomic guidelines suggest that positive tilt may be detrimental to wrist comfort and safety. The "positive tilt lockout" selection on the IS-SS restricts the motion to the negative range.

This adjustable keyboard tray system offers, as standard, the ability to rotate the mechanism a full 360° where the arm meets the track. Select the "front swivel" option if you would like to add the ability to rotate the keyboard tray 360° on the arm mechanism.

Shipping Weight 12 pounds
Shipping Dimensions 28" x 9" x 7"
Warranty 5 Year limited
Not a Quick Ship item: please allow 10 days for shipment

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Keyboard/Mouse Weight Range

All Keyboards/Mice

Max Tray Height Above Desk

6.75"

Reach/Track Length

17.75", 21", 23" tracks

Max Swivel (Arm on Track)

360°

Front Swivel (Tray on Arm)

Optional 360°

Tray Tilt Range

+10° up, -20° down

Positive Tilt Lockout

Optional

Trays

  • Slim Natural 19"
  • SlimForm 19"
  • Clamp w/ Mouse Tray
  • SlimForm 27"
  • Mouse Around
  • Spectra Aesthetic
  • 20" Budget Tray
  • 26" Budget Tray
  • Omniboard

ARM & TRACK
TRAY OPTIONS
ARM & TRACK

IS-SS - ARM AND TRACK

IS-SS-KIT ergonomic keyboard tray specification drawing isometric view with measurements

The arm and track combined together have a total length of 31.25". The arm, not including levers, has a width of 5.75" while the track is slightly more narrow with a width of 5.5".



IS-SS - ARM - TOP VIEW

IS-SS-KIT ergonomic keyboard tray with track and tray removed specification drawing top view with measurements

The arm by itself, without either the keyboard platform or track is 18.5" in length and 5.75" in width at its widest, not including the lever mechanism.



IS-SS VERTICAL RISE

IS-SS-KIT ergonomic keyboard tray specification drawing showing a side view of tray height adjustment with measurements

The IS-SS has a large vertical range of 13.25", 7.5" above the surface. From a 29" tall worksurface, this range allows for a sit-to-stand accessibility for users up to 5' 6" tall.





IS-SS - ARM RETRACTION

IS-SS-KIT ergonomic keyboard tray specification drawing demonstrating the tray fully stowed and pulled outwards side view with measurements

When pulled to the front of the track, the arm and tray reach out 16.5" beyond the the edge of the desk. When fully retracted, most of the arm is hidden beneath the desk surface, with a portion of the keyboard tray extending out past the edge.



IS-SS - TRAY TILT

IS-SS-KIT ergonomic keyboard tray specification drawing side view showing keyboard tray tilt measurements

The IS-SS platform has a total tilt range of 30 degrees, 20 degrees negative and 10 degrees positive. The positive tilt can be removed with the positive tilt lock-out option.



IS-SS - TRAY ROTATION

IS-SS-KIT ergonomic keyboard tray specification drawing top view demonstrating keyboard tray swivel

If there are no obstructions to inhibit movement, the arm can rotate a full 360 degrees where the arm meets the track. This illustration shows the Slim Natural type keyboard in various positions.



TRAY OPTIONS

SLIMNATURAL19 KEYBOARD TRAY
FOR MICROSOFT® NATURAL™ KEYBOARD

Image of SlimNatural19 Keyboard Tray for Microsoft Natural Keyboard isometric view

Fits Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards.  This tray option does not come with a palm rest.



SLIMNATURAL19 KEYBOARD TRAY
TOP VIEW

Image of SLIMNATURAL19 KEYBOARD TRAY top view

The thin yet durable phenolic tray material allows complete knee clearance while the Tilt and Swivel mouse platform provides infinite adjustment.  The mouse tray may be installed to the left or right side.The SlimNatural19 tray also comes with an adjustable cord manager that also functions as a backstop to help prevent the mouse from sliding off the surface.

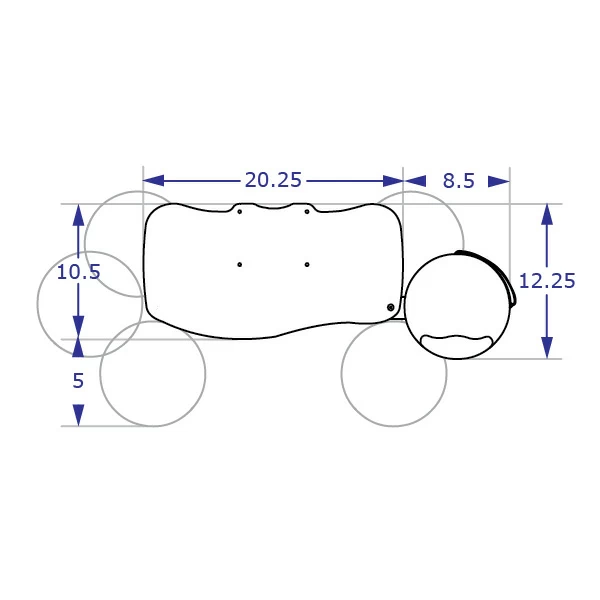

SLIMNATURAL19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMNATURAL19 KEYBOARD TRAY with measurements top view

The mouse platform is removable and can be placed on either the right or left side for quick and easy customization.  Mouse platform comes complete with cord manager and integrated mousing surface that includes a mini palm support.

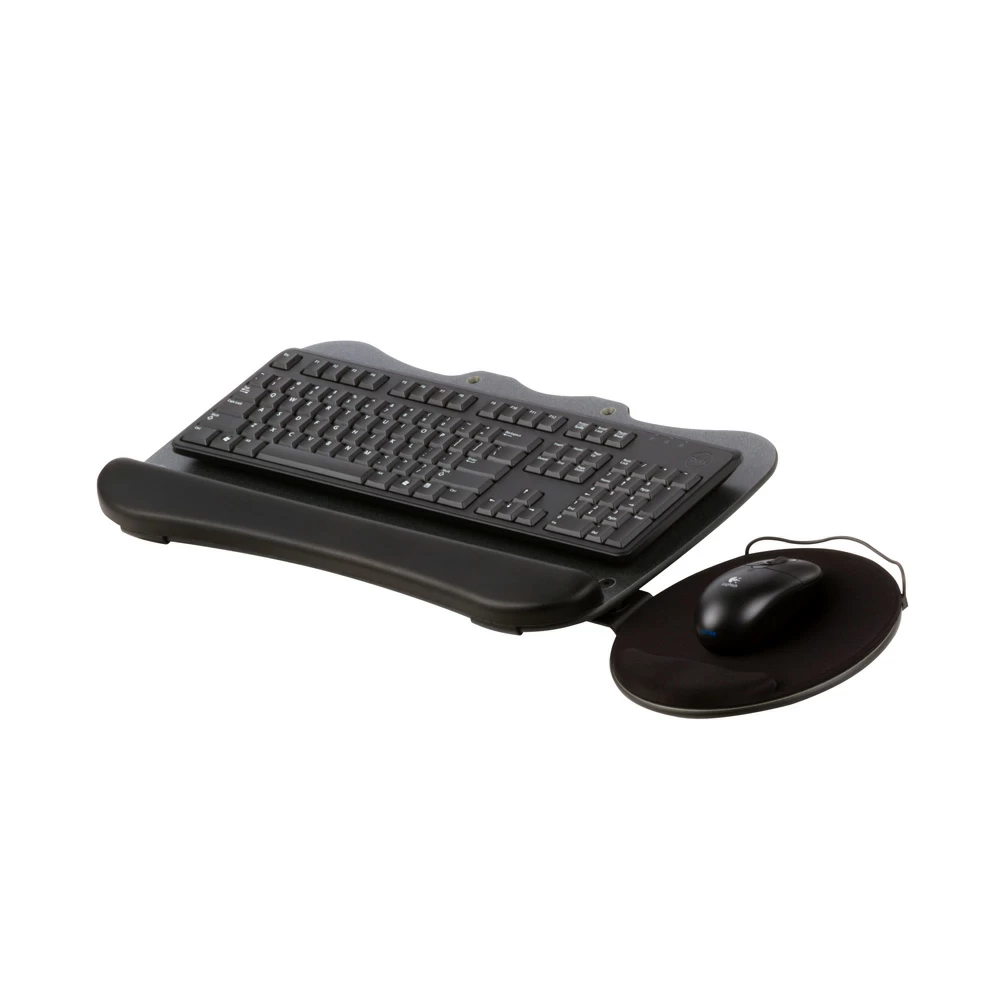

SLIMFORM19 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForml19 Keyboard Tray for Microsoft Natural Keyboard isometric view

This stylish and popular SLIMFORM19 design handles any standard keyboard and comes equipped with a mouse tray that may be assembled to the right or left side.  The palm rest is a cormfortable soft foam material that may be wiped clean with water and mild detergent.



SLIMFORM19 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM19 KEYBOARD TRAY top view

The SLIMFORM19 tray is constructed from a thin phenolic material that will last many years and will maintain its finish just like tough plastic laminate surfaces materials used for commercial furniture. Tilting and Swiveling mouse platform with removable Gel pad provides infinite adjustment and ensures correct ergonomic positioning.



SLIMFORM19 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM19 KEYBOARD TRAY with measurements top view

The main keyboard platform is 19.5 inches wide and easily accomodates keyboards up to 7.5 inches deep and 19 inches wide.  The 8.5 inch mouse surfaces pivots front to back and can actually be rotated underneath the surface if the mouse is removed.

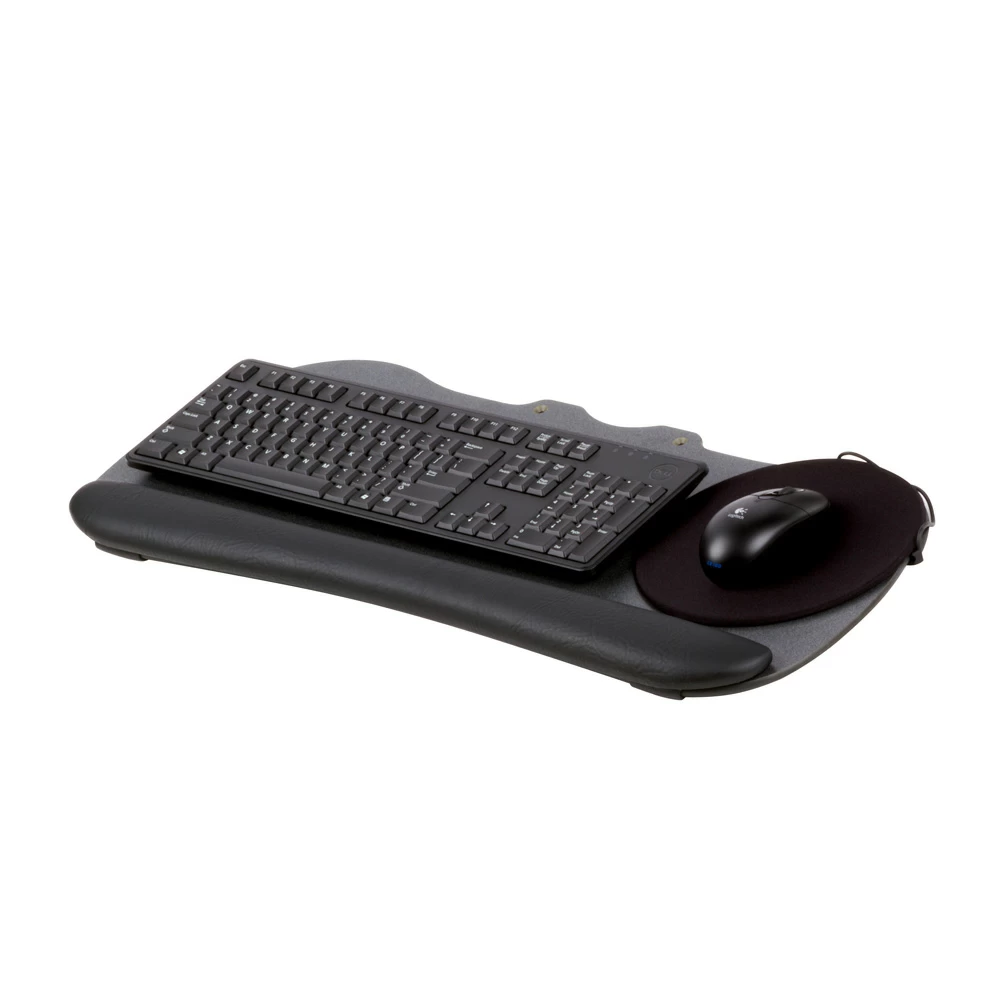

SLIMFORM27 KEYBOARD TRAY
ISOMETRIC VIEW

Image of SlimForm27 Keyboard Tray for Microsoft Natural Keyboard isometric view

The most popular keyboard tray offering from Ergomart is the SLIMFORM27.  It provides ample room for a standard keyboard and a mouse, vertical mouse or most specialty input devices. A palm waterproof foam rest reaches across the entire front edge.  Wipe tray and palm rest with a damp cloth to keep the kit looking brand new for years to come.  Built for and used in commercial applications, this system is preferred by facilities managers and Ergonomists over many other competing products.

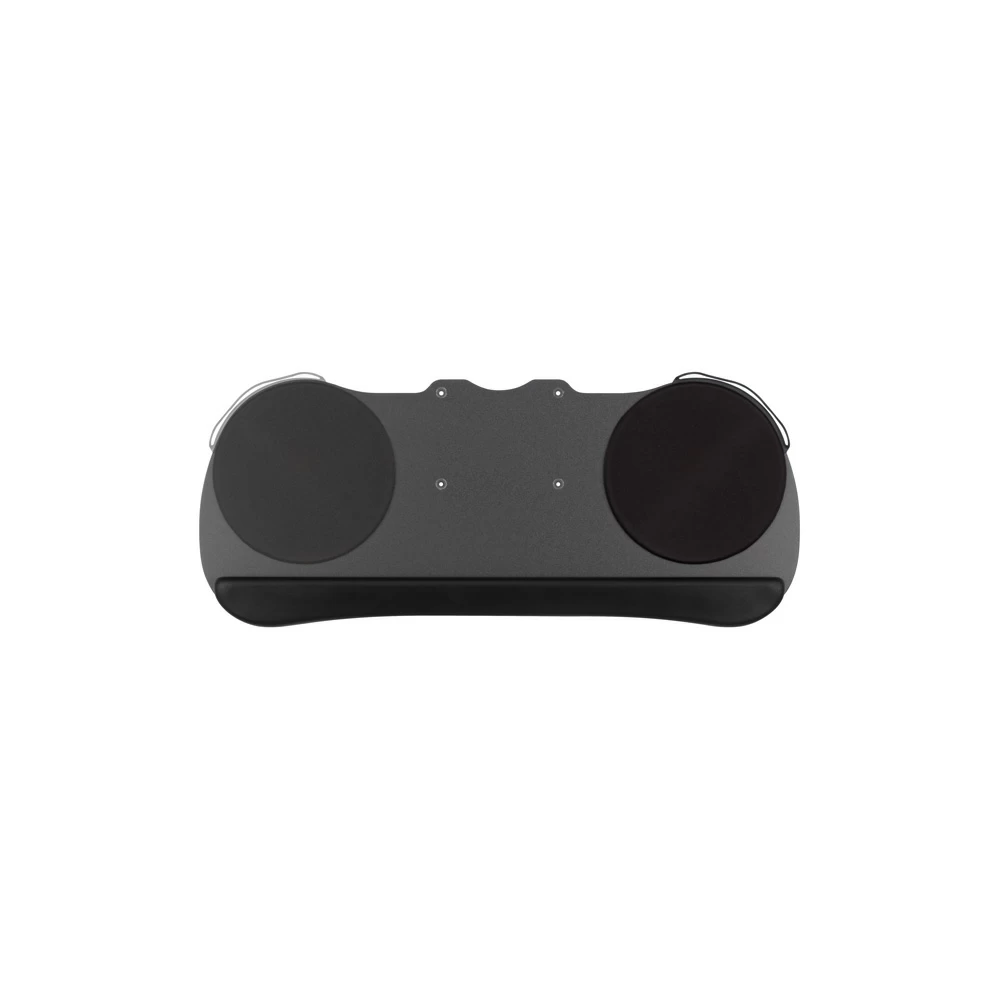

SLIMFORM27 KEYBOARD TRAY
TOP VIEW

Image of SLIMFORM27 KEYBOARD TRAY top view

The 1/4" thin phenolic tray material enhances knee clearance.  The SLIMFORM27 comes with one mouse pad that can be placed either the left or right side of the keyboard.  The cord manager along the back edge also helps prevent the mouse from rolling off of the surface when the tray front is tilted upward.

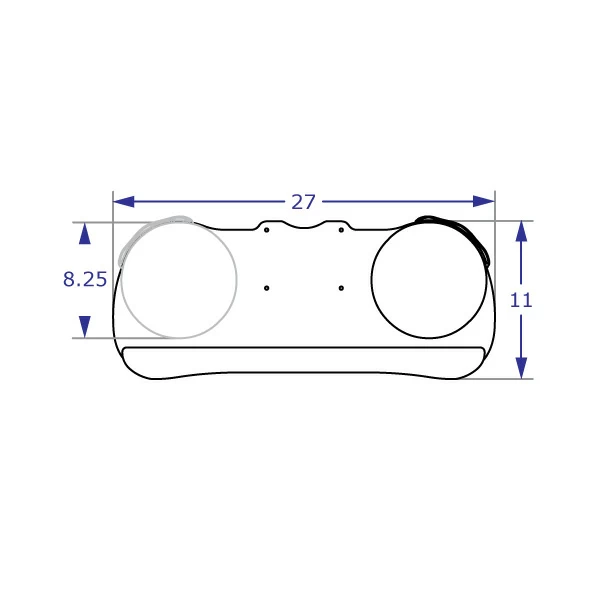

SLIMFORM27 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of SLIMFORM27 KEYBOARD TRAY with measurements top view

With a 27 inch horizontal span the SlimForm27 keyboard tray has plenty of room for both a keyboard and mouse in one solid unit The 8.25 inch diameter mouse pad can be placed on either the right or left side.



CLAMP STYLE KEYBOARD HOLDER
WITH MOUSE TRAY

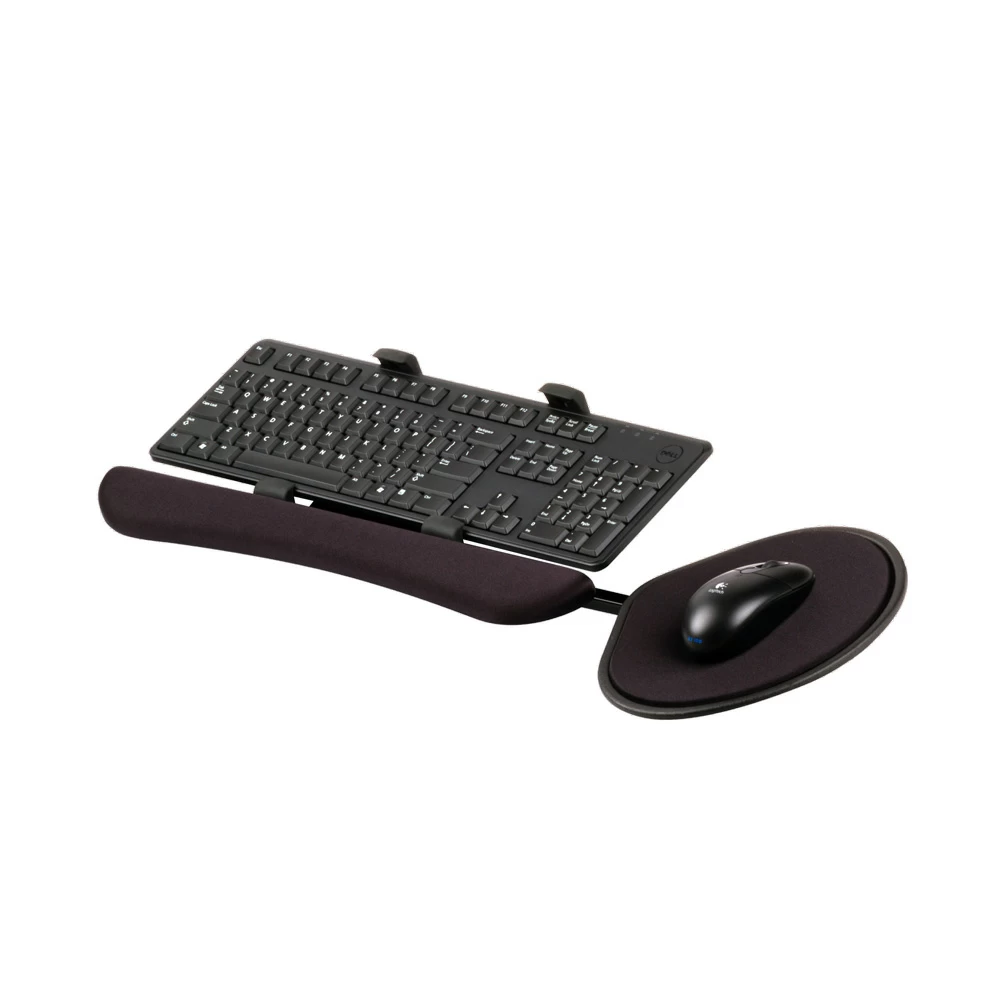

Image of CLAMP STYLE KEYBOARD HOLDER isometric view

Sure squeeze design firmly holds keyboard in place



CLAMP STYLE KEYBOARD HOLDER
TOP VIEW

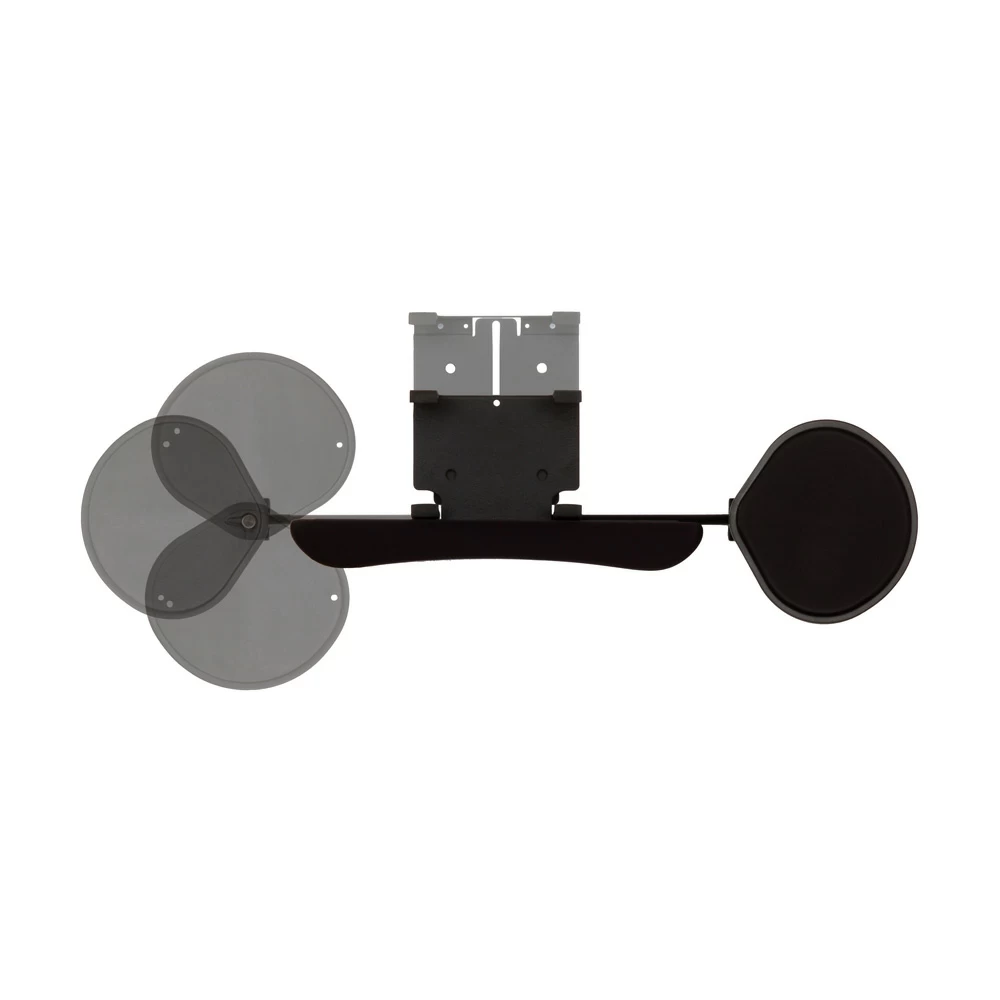

Image of CLAMP STYLE KEYBOARD HOLDER top view

Mouse platform plugs in for right or left handed use. Tilt & Swivel mouse provides infinite adjustment, while the Gel palm rest provides maximum ergonomic comfort. The Clamp Style Keyboard Holder also comes with an adjustable mouse catcher with cord manager.

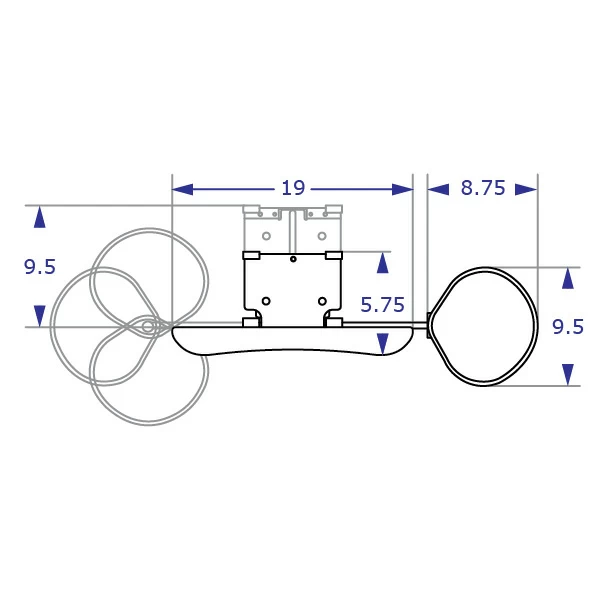

CLAMP STYLE KEYBOARD HOLDER
SPECIFICATION DRAWING

Specification drawing of CLAMP STYLE KEYBOARD HOLDER with measurements top view

The mouse platform is removable and can be placed on either the right or left side for easy customization.



MOUSEAROUND KEYBOARD TRAY
ISOMETRIC VIEW

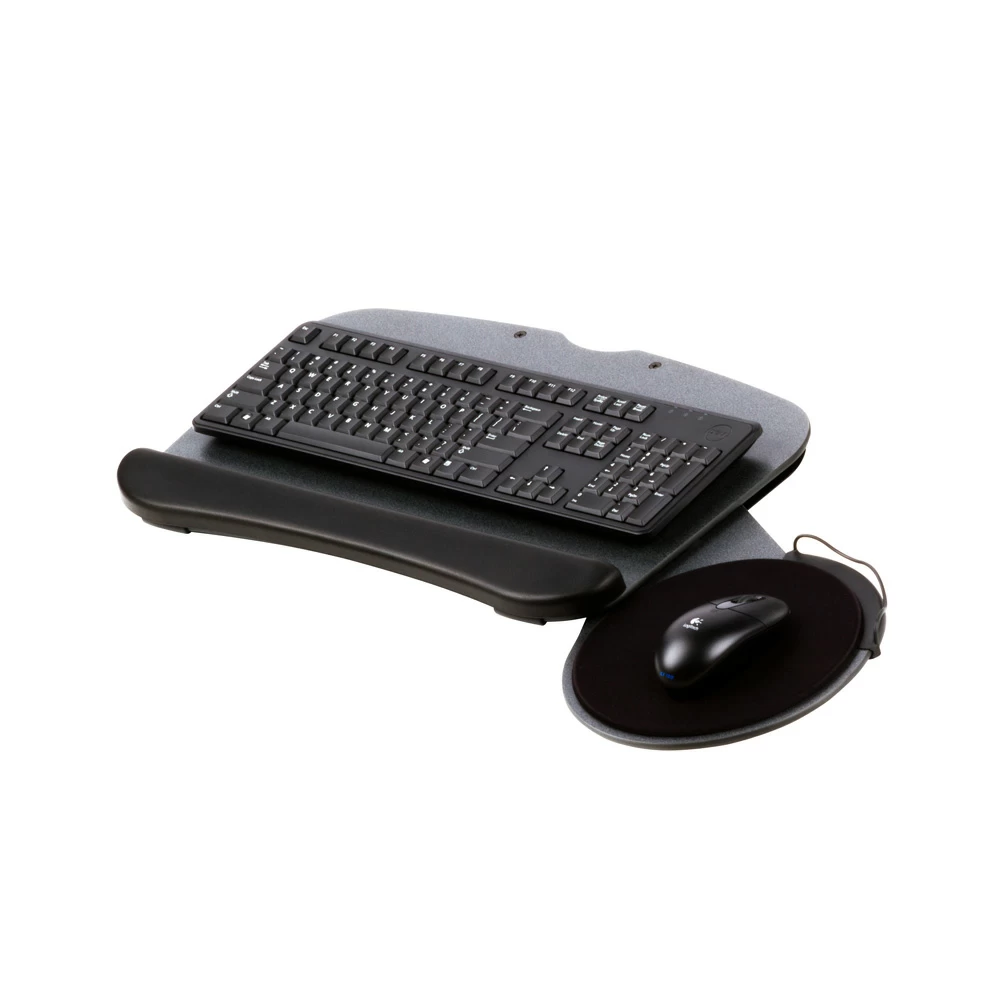

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform isometric view

Mouse design smoothly slides right-to-left & and has forward adjustment, and features both straight and curved sliding mouse motion in one tray.



MOUSEAROUND KEYBOARD TRAY
TOP VIEW

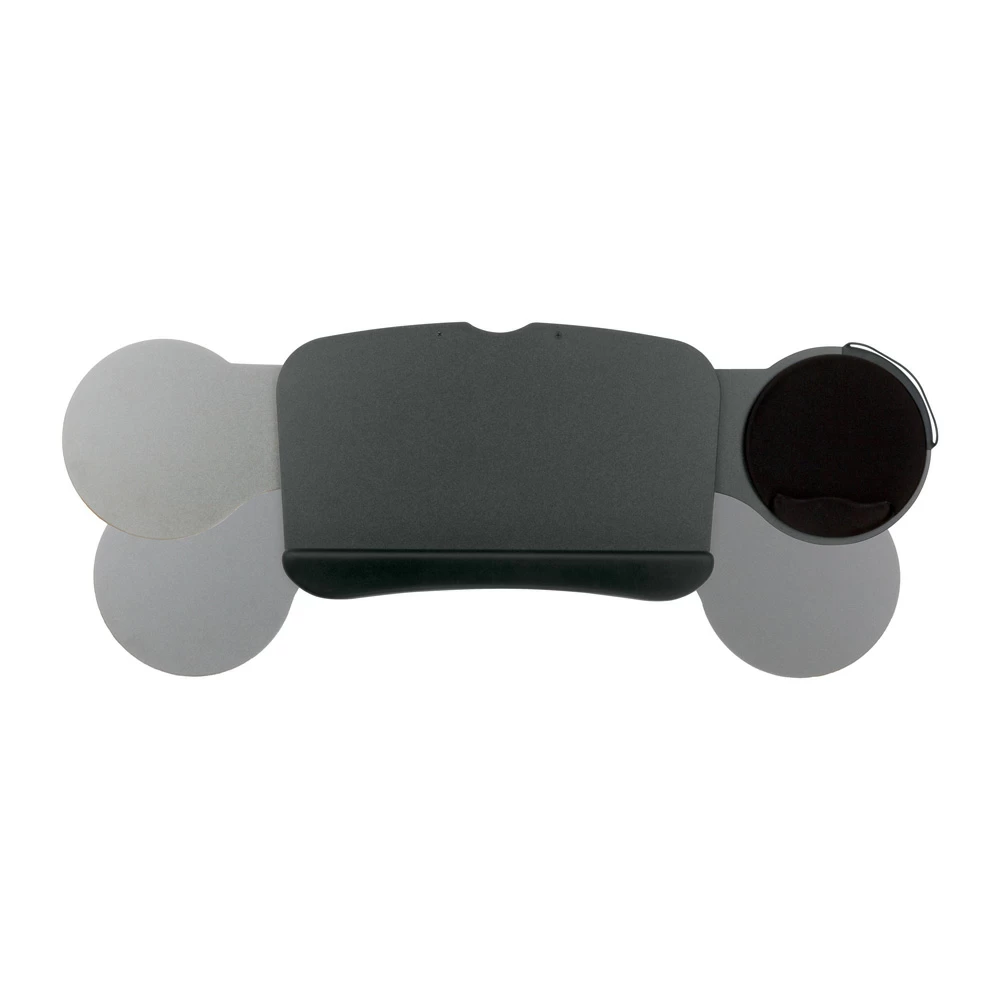

Image of MouseAround Keyboard Tray Holder with adjustable mouse platform top view

Mouse platform plugs in for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort. The MouseAround Keyboard Holder also comes with an adjustable mouse catcher with cord manager.



MOUSEAROUND KEYBOARD TRAY
SPECIFICATION DRAWING

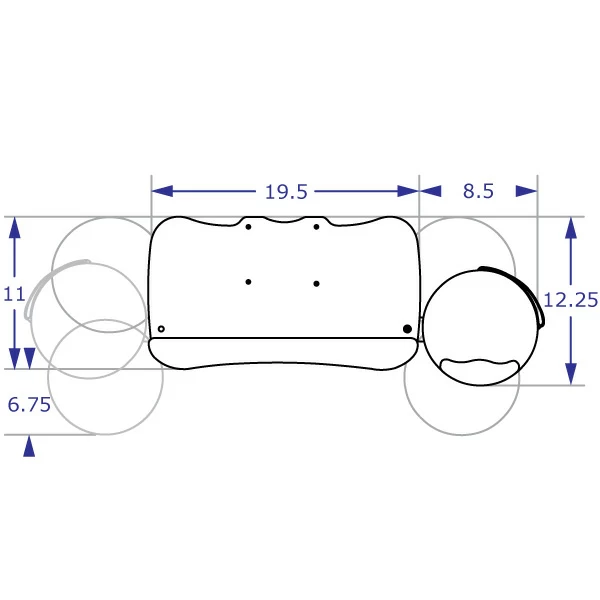

Specification drawing of MouseAround Keyboard Tray Holder with adjustable mouse platform with measurements top view

The mouse platform can be easily placed on either the right or left side for easy customization.

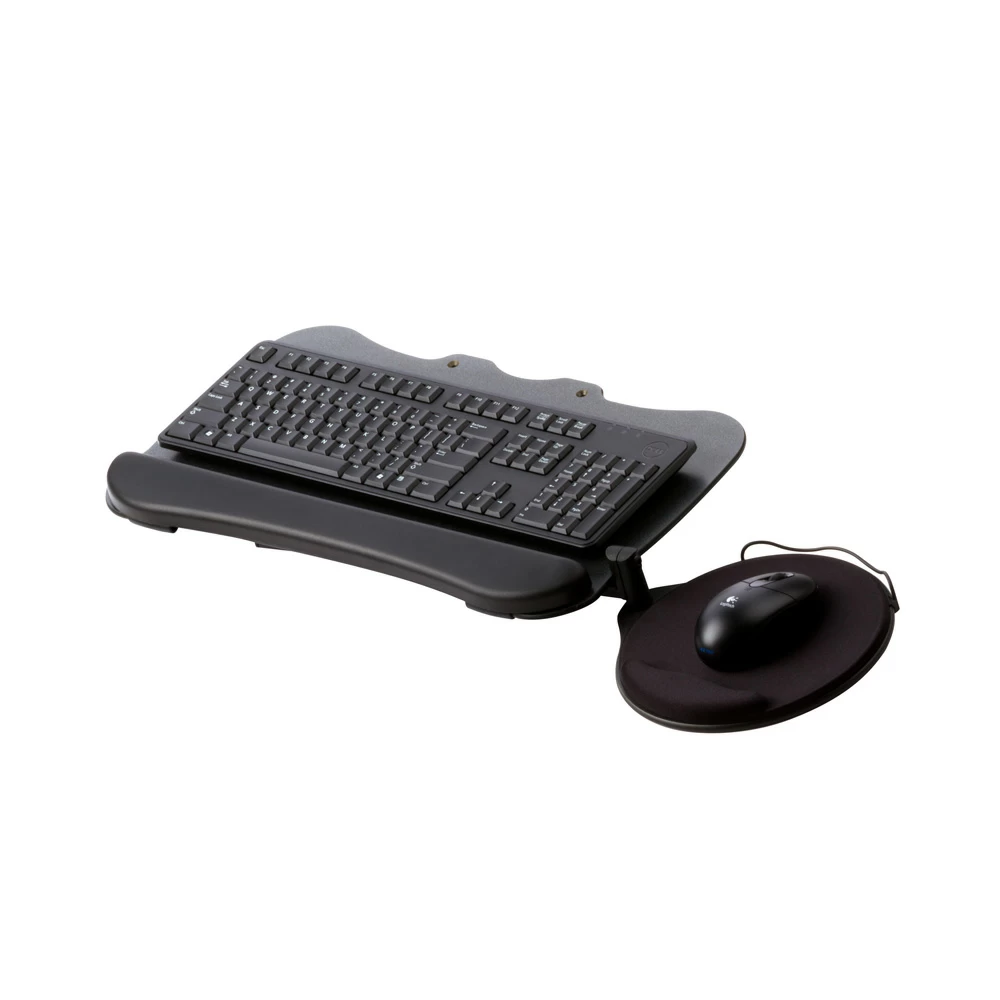

OMNIBOARD KEYBOARD TRAY
ISOMETRIC VIEW

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform isometric view

Simply the best solution for multiuser workstations, no other keyboard tray comes close to this overachiever. The Mouse platform instantly moves for left and right handers.

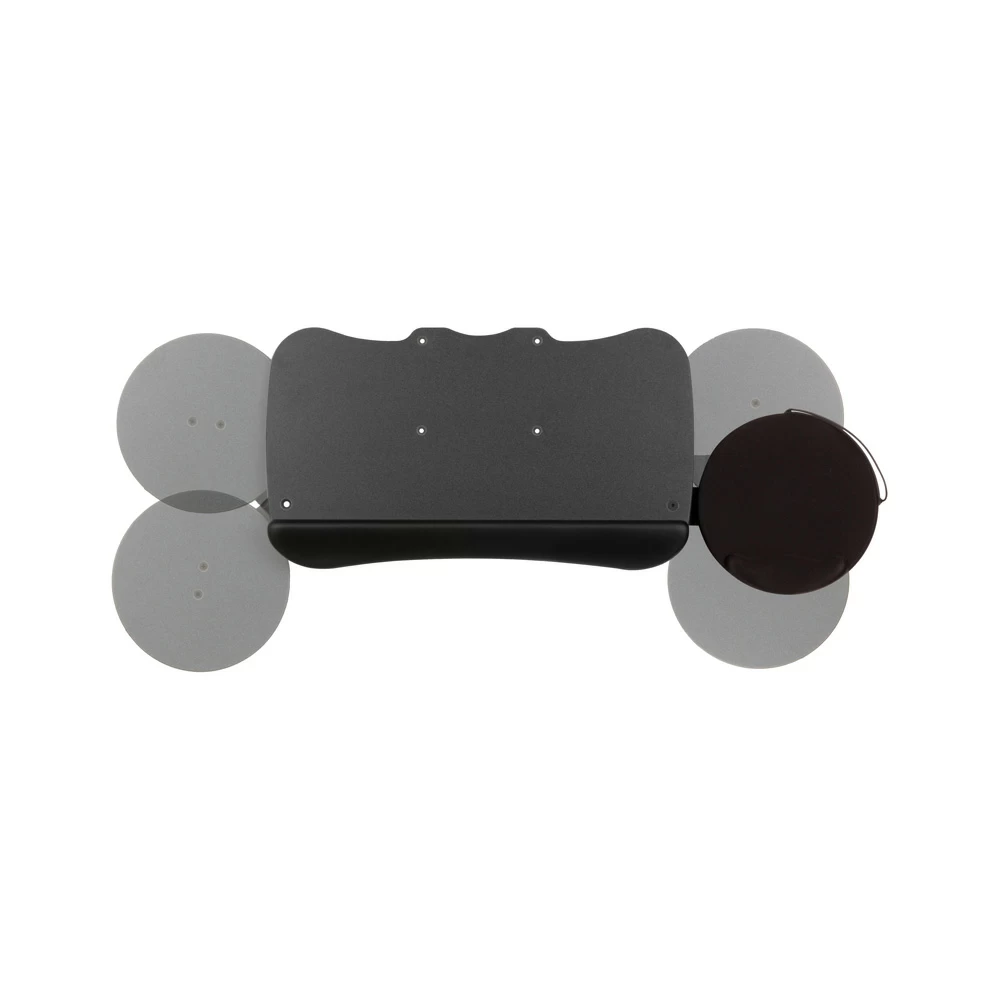

OMNIBOARD KEYBOARD TRAY
TOP VIEW

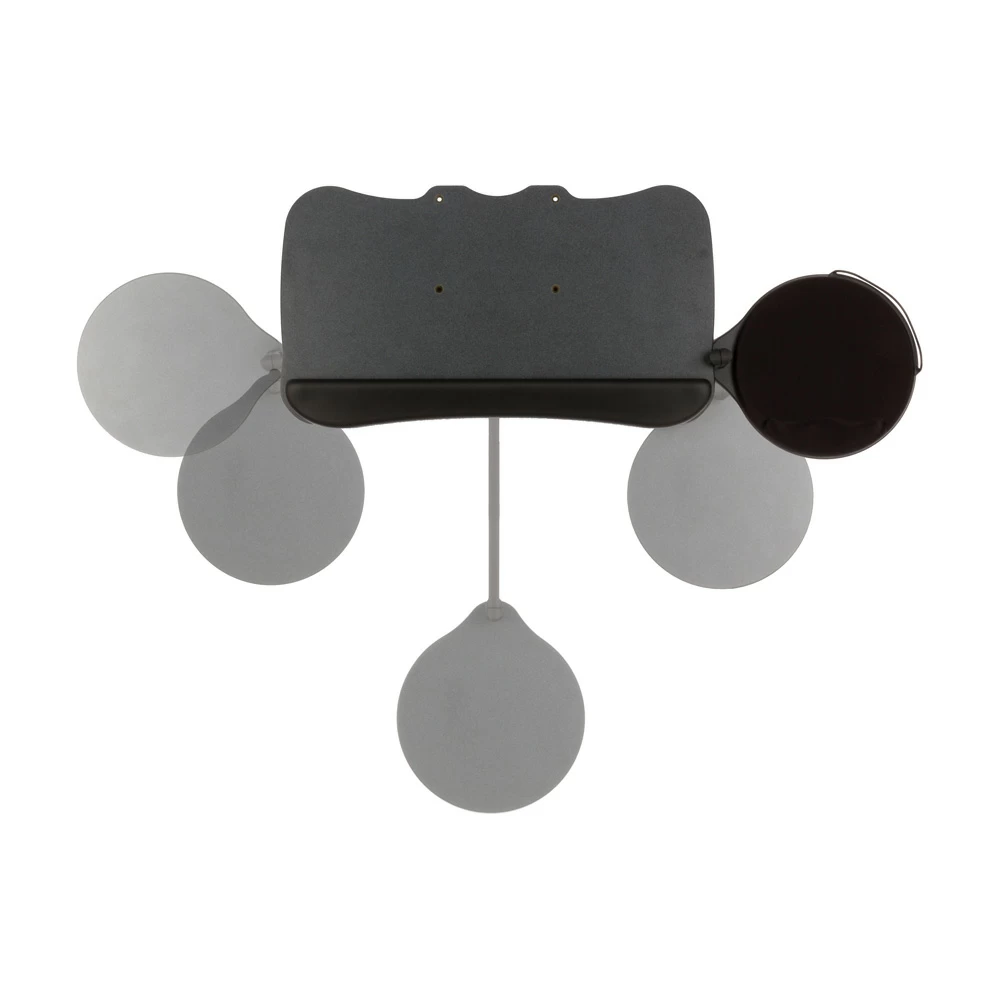

Image of OmniBoard Keyboard Tray Holder with adjustable mouse platform top view

The mouse platform with cord manager of the OmniBoard can be moved for right or left handed use, while the Gel palm rest provides maximum ergonomic comfort.



OMNIBOARD KEYBOARD TRAY
SPECIFICATION DRAWING

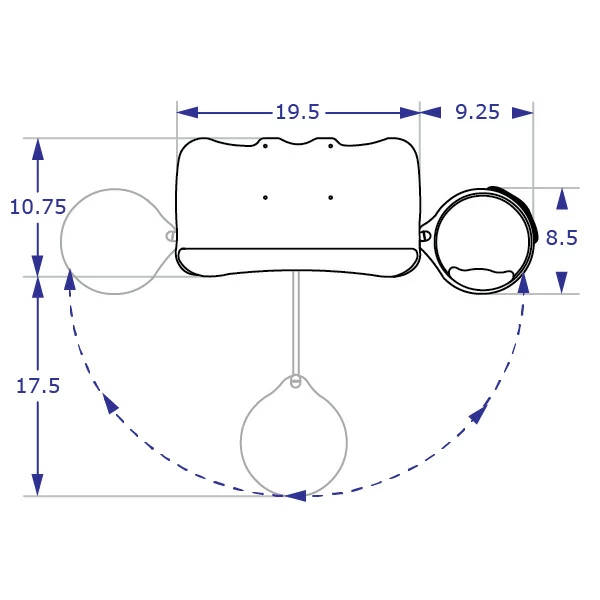

Specification drawing of OmniBoard Keyboard Tray Holder with adjustable mouse platform with measurements top view

The OmniBoard mouse platform can be easily swung from the right or left side for easy customization.



TRS20
20" BUDGET TRAY

Image of TRS20 Keyboard Tray Holder isometric view

Standard 20 x 8.5 inch tray is ideal for use with keyboard only.

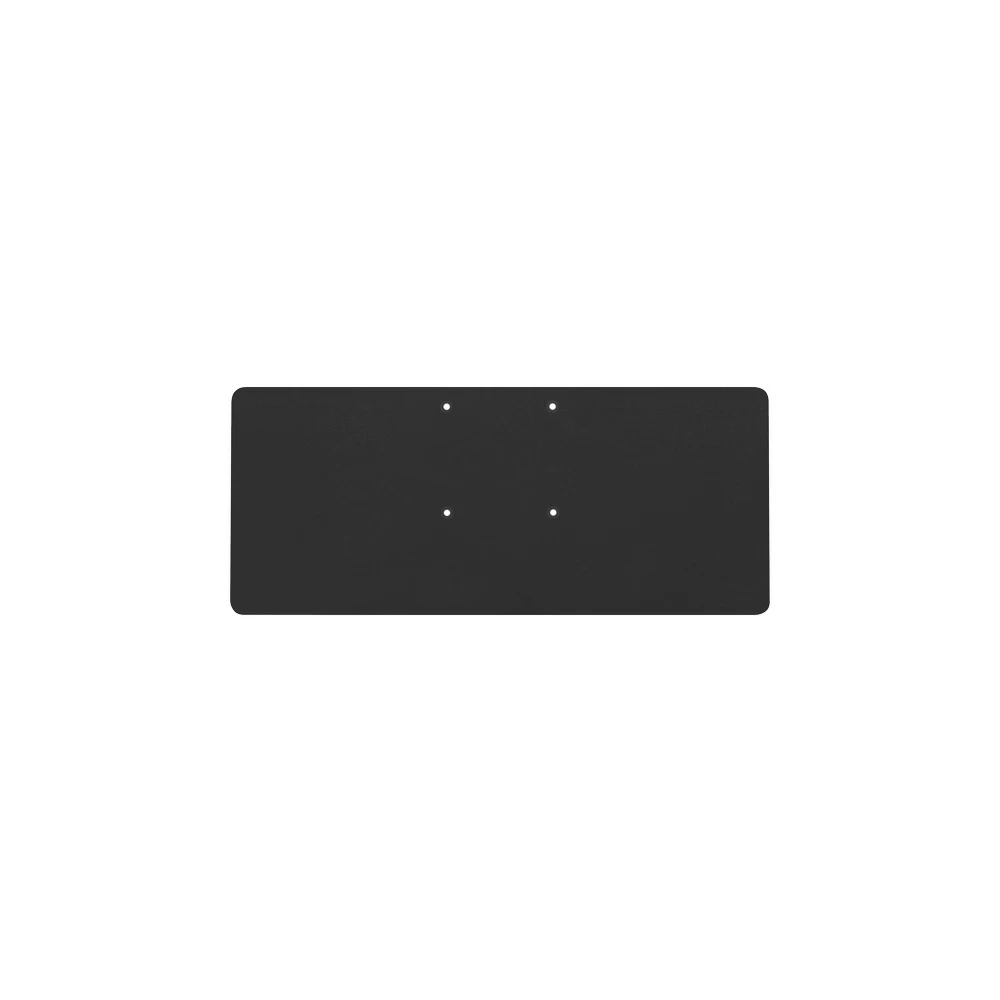

TRS20 KEYBOARD TRAY
TOP VIEW

Image of TRS20 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.



TRS20 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS20 Keyboard Tray Holder with measurements top view

The total footprint of the TRS20 is a mere 20 by 8.5 inches.

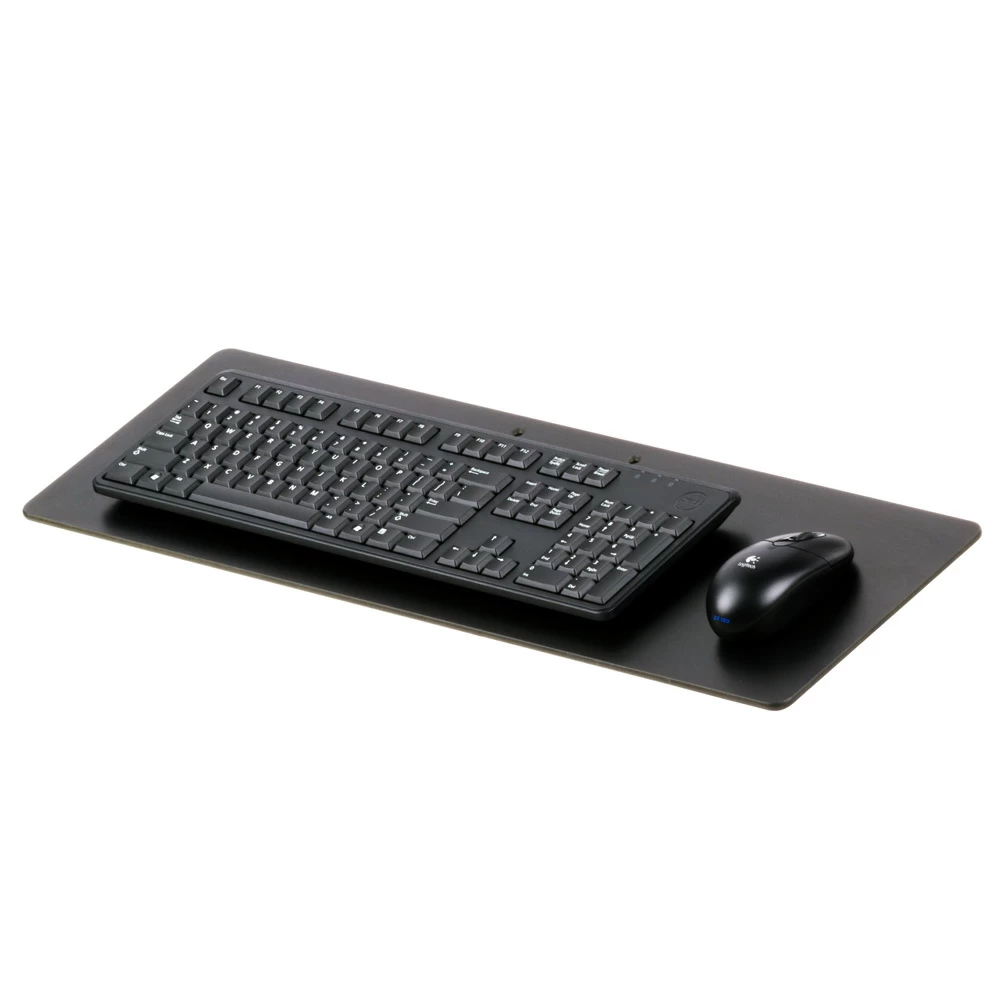

TRS26
26" BUDGET TRAY

Image of TRS26 Keyboard Tray Holder isometric view

Standard 26 x 8.5 inch tray is ideal for use with keyboard only.

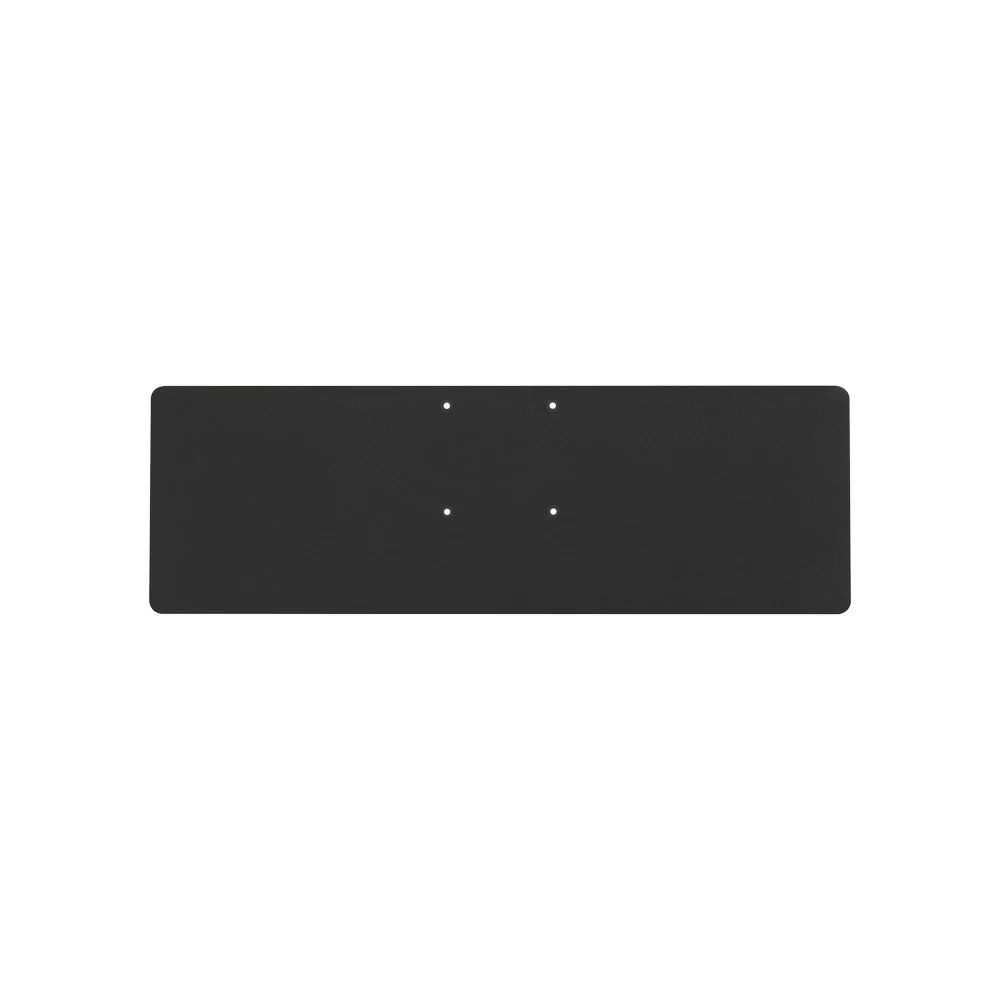

TRS26 KEYBOARD TRAY
TOP VIEW

Image of TRS26 Keyboard Tray Holder top view

Also works with mini keyboard alongside your mouse or trackball.

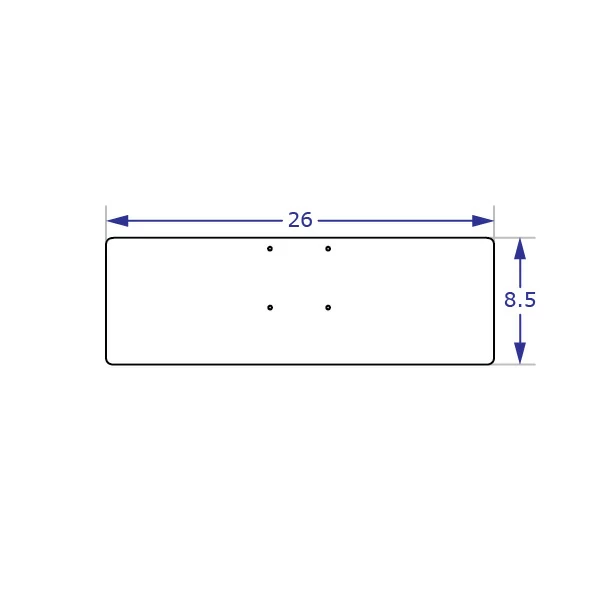

TRS26 KEYBOARD TRAY
SPECIFICATION DRAWING

Specification drawing of TRS26 Keyboard Tray Holder with measurements top view

The total footprint of the TRS26 is a mere 26 by 8.5 inches.



  • Can you explain what "positive tilt lockout" is? I see that is restricts the tilt range to -20 to horizontal. But I'm not sure which direction is positive and which is negative.

    Positive tilt is when the back side of the tray is higher than the front edge. We offer the positive tilt lockout for those who do not want to utilize positive tilt.

  • What happens if the lever breaks? Can it be replaced?

    In the unlikely event that the lever breaks, the component will be replaced free of charge during the 5 year warranty period. To date we have had no experience with breakage of this type with this USA-manufactured product.

  • Can I order a gel wrist pad for the SlimNatural 19 Keyboard Tray?

    This particular keyboard tray does not have a wrist or palm pad. This platform is made for specific keyboards that generally fit over the entire tray, specifically the Microsoft® Natural™, Natural Elite™, and Natural Pro™ keyboards. At the time of the writing of this response, 3M was manufacturing a retrofit palm rest solution called the MMMWR314LE that could serve as a solution.
