SKU

192CENTER

Heavy Duty Monitor Floor Stand - Center Pole

USA ASSEMBLED MODULAR

Grouped product items
Option	Price	Qty
PM192 Center Base BE30-104 30" Diameter Free-Standing Heavy Steel Base.	$315.68	Please Call
PM192 Pole 4-foot - Black P192-104-48 4-foot steel mounting pole with 1.92" outside diameter and two wire management access ports. All poles require a base.	$158.45	Please Call
PM192 Pole 5-foot - Black P192-104-60 5-foot steel mounting pole with 1.92" outside diameter and two wire management access ports. All poles require a base.	$173.28	Please Call
PM192 Pole 6-foot - Black P192-104-72 6-foot steel mounting pole with 1.92" outside diameter and two wire management access ports. All poles require a base.	$212.31	Please Call
PM192 Pole 7-foot - Black (longer lead times may apply) P192-104-84 7-foot steel mounting pole with 1.92" outside diameter and two wire management access ports. All poles require a base.	$250.34	Please Call
PM192 Pole 8-foot - Black (longer lead times may apply) P192-104-96 8-foot steel mounting pole with 1.92" outside diameter and two wire management access ports. All poles require a base.	$265.43	Please Call
Mounting Kit J2L: Heavy Duty Pole Mounting Kit - Black MKIT-J2L Heavy-duty Dual Pole Mount attaches to our 192 Series Poles and accepts two SAA, SA, LS Series Ergomart products.	$140.20	Please Call
Mounting Kit E2L: Heavy Duty Pole Mounting Kit - Black MKIT-E2L Heavy-duty Single Pole Mount attaches to our 192 Series Poles and accepts an SAA, SA, LS Series Ergomart mount.	$85.71
Heavy-Duty 4.5-Inch 118 Single Pin Horizontal Extension - Black HDEXT118S-0450-104 Adds 4.5" of reach and articulation to SAA, SA, LS arms and stands. May cause tipping hazard. Consult a professional or Ergomart representative. CLICK "?" for details.	$109.26
Heavy-Duty 9.5-Inch 118 Single Pin Horizontal Extension - Black HDEXT118S-0950-104 Adds 9.5" of reach and articulation to SAA, SA, LS arms and stands. May cause tipping hazard. Consult a professional or Ergomart representative. CLICK "?" for details.	$134.24
Heavy-Duty 15.5-Inch 118 Single Pin Horizontal Extension - Black HDEXT118S-1550-104 Adds 15.5" of reach and articulation to SAA, SA, LS arms and stands. May cause tipping hazard. Consult a professional or Ergomart representative. CLICK "?" for details.	$150.66
Base Cover for PM192 Monitor Floor Stands A000320 Base cover provides a clean look and additional wire management.	$41.90
Pole Mount Adapter Kit A000403 The pole mount adapter kit allows the MKIT-E2 and MKIT-J2 to fit a wider range of poles diameters, from 1.375" to 2.0".	$2.76

Save for later

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

PM192 Floor Center Mount: Sturdy, Adaptable Freestanding Floor Stand

NOTE: A PM192 Center Base is required for each pole purchased!
Multiple monitor display: stack monitors or screens vertically
2" steel pole available in 4, 5, 6, 7, and 8-foot lengths
Pole mount stand easily handles 12 monitors
Custom pole lengths are available for unique installation situations
Heavy duty construction means it will stand up to trade shows and point of sale use
Choose from numerous arm and accessory options including most SAA products
Select single and dual pole mounts to create one sided or dual workstation kiosks
Wire entrance near top and exit at the the side of the base of pole
Add base cover to complete the look while concealing and guiding cables
Internal wire management capacity of 1.6" in diameter can be augmented with external clips
Center Mount Pole Stand is black; custom colors are available with large quantity orders

BUILD YOUR PM192 SOLUTION

VIEW

SERIES-118 MOUNTING CATALOG

BROWSE

ALL PM192 BUYING OPTIONS

EXPLORE

RECENT PM192 CUSTOM PROJECTS

LEARN

PM192 REFERENCE GUIDE

CONSULT

[email protected] | 888 420 3200

FLOOR STANDS AND CEILING MOUNTS
HEAVY-DUTY • ADAPTABLE • HIDES WIRES

The PM192 Center Mount Floor Stand is compatible with a wide variety of equipment mounting solutions from Ergomart. Choose the appropriate combination of single mounts (MKIT-E2) and dual mounts (MKIT-J2) for mounting SERIES-118 arms and extensions to the pole. SAA (lifting arms), HDEXT (HD extensions), SA (simple extension arms) are SERIES-118 compatible products.

Since the system is not attached to the floor, it allows mobility when unloaded. While movable, it is designed with a low center of gravity due in large part to the 1/4" thick, 30" diameter base.

Save desk space by mounting multiple LCD monitors on this sturdy, heavy-duty pole mount stand. Multiple monitors can be stacked vertically and/or front to back. The PM192 Center Mount Floor Stand easily suspends 12 monitors at a time in a symmetrical balanced configuration for a freestanding informational flat screen display kiosk, medical work station or any place you need quick access to stacked monitors. The stand is especially useful for presentation display screens in business settings, retail, public access, hospitals or specialty work, and is excellent as portable and freestanding multi-user computer kiosks and work stations. In fact, the system can be configured to handle as many as four computer users positioned around the unit. When space is limited and the need for intermittent computer access by numerous users is required, this system can be the answer. Useful as a point of sale solution and as a basis for handling multiple components in trade show environments, it is also ideal for users who need multiple adjustable monitors but do not wish to attach them to a desk.

The Floor Center Pole Stand accommodates many of the arms and stands available on our website. Compatible products may be installed on the single (Kit E2) or dual (Kit J2) pole mounts which can be positioned anywhere along the length of the pole. Mount kits E2 and J2 may be purchased on this page or with each product.

The optional base cover is easily installed over the flange where the heavy-duty pole is mounted. It hides and routes the cables through a convenient opening that can be oriented as desired.

Single Mount Kit E2L

isometric view of mount kit-E2

Dual Mount Kit J2L

isometric view of mount kit-J2

Additionally, several additional mounting solutions enable mounting monitors close to the pole. These can be purchased on individual pages along with various extensions, tilter heads, and VESA plates.

Please call with questions or to order custom pole lengths: 888 420 3200.

Shipping Weight	Base: 65 pounds Pole: 14 to 30 pounds, depending on length
Shipping Dimensions	Base: 30 x 30 x 6 inches Pole: size varies, ships in second box
Warranty	5 Year Limited

Black is our Quick Ship (QS) color. Please call us about custom colors with four to six week lead times. Orders are usually shipped within 48 hours. Questions? We are here to help you! Please call 888 420 3200 or 214 742 6066.

Specifications

Mount Type

Heavy Duty Floor Stand Moveable

Number of Monitors

Configure with one or more Ergomart PM mounts, SAA monitor arms or LS stands.

Mounting

Accepts:
Single Pole Mount E2
Dual Pole Mount J2
A97 Pole Top Arm Mount
PM90 Pole Top
PM40 Single Monitor
PM80 Heavy Duty Single

PM44 side by side dual
PM42 back to back dual
PM62 Dual Pole Mount
PM63 Triple Pole Mount
PM64 Quad Pole Mount
Ergomart SAA arms
Ergomart LS Stands

Weight Range

Application Dependent. Available mounts support up to 80 lb/monitor.

Monitor Horizontal Reach

Depends on monitor mount components selected

Vertical Adjustment

Readjustable on 4', 5', 6', 7', 8' or custom pole

Horizontal Extensions

Heavy Duty Horizontal

VESA Options

75 x 75
100 x 100
100 x 200
200 x 200
200 x 400
Adjustable up to 400 x 600

Portrait to Landscape

Yes

Max Swivel (at Base)

Accepts Ergomart SAA monitor arms, LS stands and HDEXT and VE extensions.

Max Swivel (at Elbow)

Variable based on selected mounts.

Max Swivel (at Monitor)

Variable based on selected mounts.

Monitor Tilt Range

+90° up, -45° down

Keyboard Trays

Compatible with Ergomart articulating and height-adjustable keyboard trays and monitor/keyboard arms

Keyboard Tray Height Adjustment

Accepts keyboard arms and monitor/keyboard arms

Keyboard Tray Tilt Range

Variable. Most trays tilt +90° up, -45° down

Keyboard Horizontal Reach

Compact, standard, or long-reach

Monitor Height Relative to Keyboard

Variable

Max Equipment Weight

Call for Info

Equipment Platform Size

Call for Info

Equipment Vertical Travel

Call for Info

Drawings

PM192 CENTER POLE STAND - MULTIPLE VIEWS

192CENTER pole floor stand specification drawings showing pole and base side and top views with measurements

Image on left illustrates the proportions of the floor mounted stand with a 72 inch pole. The second image illustrates the optional wire management clip that may be needed for excess cables. The center images include the upper portion of the pole with cable access port location common in all standard pole sizes. The outside dimension of the pole is 1.92 inches as noted and a side elevation view of the floor stand assembly includes multiple dimensions that can be relevant depending on placement and use. The final image to the right shows the base dimensions from a top view without a pole. The slot for the pole has a 1.94" inner diameter.

PM192 CENTER POLE STAND - AVAILABLE STANDARD LENGTHS

192CENTER pole floor stand specification drawings showing five available pole lengths

The above images are depictions of various standard pole lengths available with the PM192 Center Pole Stand. All poles come standard with access ports at top and bottom.

PM192 CENTER POLE STAND - MOUNT KIT E2

MKIT-E2 pole mount specification drawing shown from front, top and side with measurements

Single Pole Mount isometric, front, top, and side views. Adapter kit includes bushings that allow users to use this same mount to attach poles of diameters between 1.375 and 2 inches.

PM192 CENTER POLE STAND - MOUNT KIT J2

MKIT-J dual pole mount specification drawing shown from front, top and side with measurements

Dual Pole Mount is shown in isometric, front, top, and side views. Adapter kit includes bushings that allow users to use this same mount to attach poles of diameters between 1.375 and 2 inches.

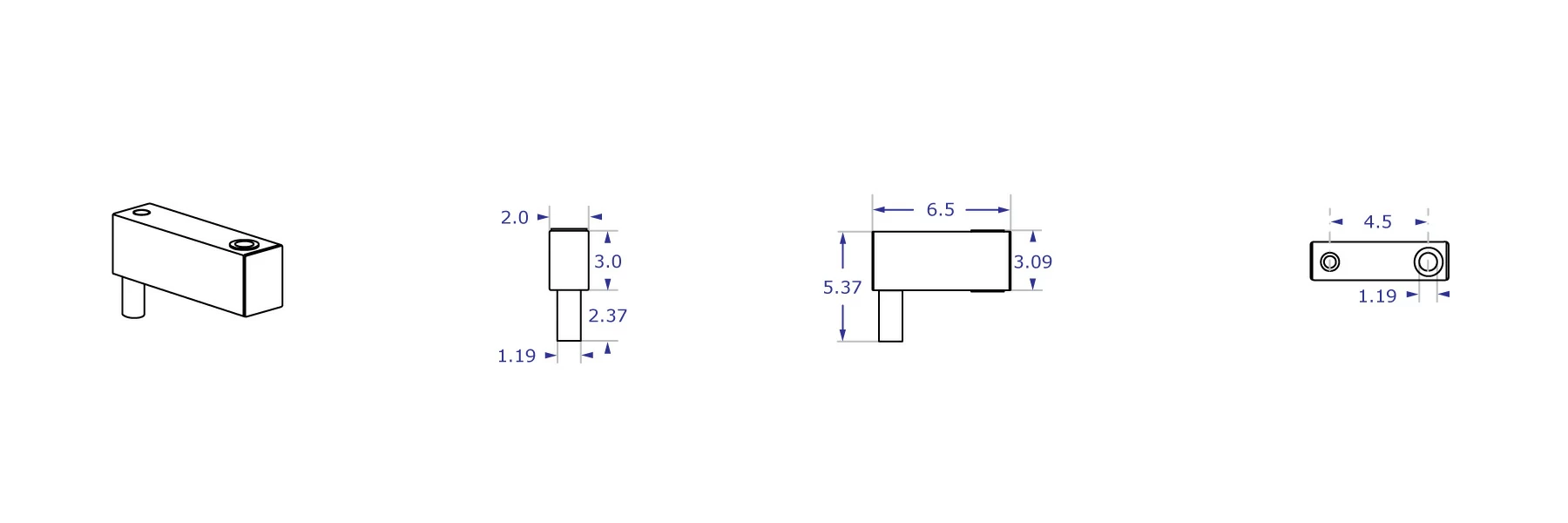

PM192 CENTER POLE STAND - HEAVY-DUTY EXTENSION - 4.5 INCHES

HDEXT 4.5" heavy-duty mount extension specification drawing shown from front, side and top with measurements

Select this Heavy Duty Extension to add 4.5 inches of horizontal extension. Extensions can create a tipping hazard if paired with certain devices and payloads. Always consult a professional or work with your Ergomart representative when introducing extensions into applications where the mount system is not mechanically affixed to an immovable object. HD Extensions utilize a 1.18 pin and 1.18 receiver. It accepts SA, SAA and LS Ergomart products.

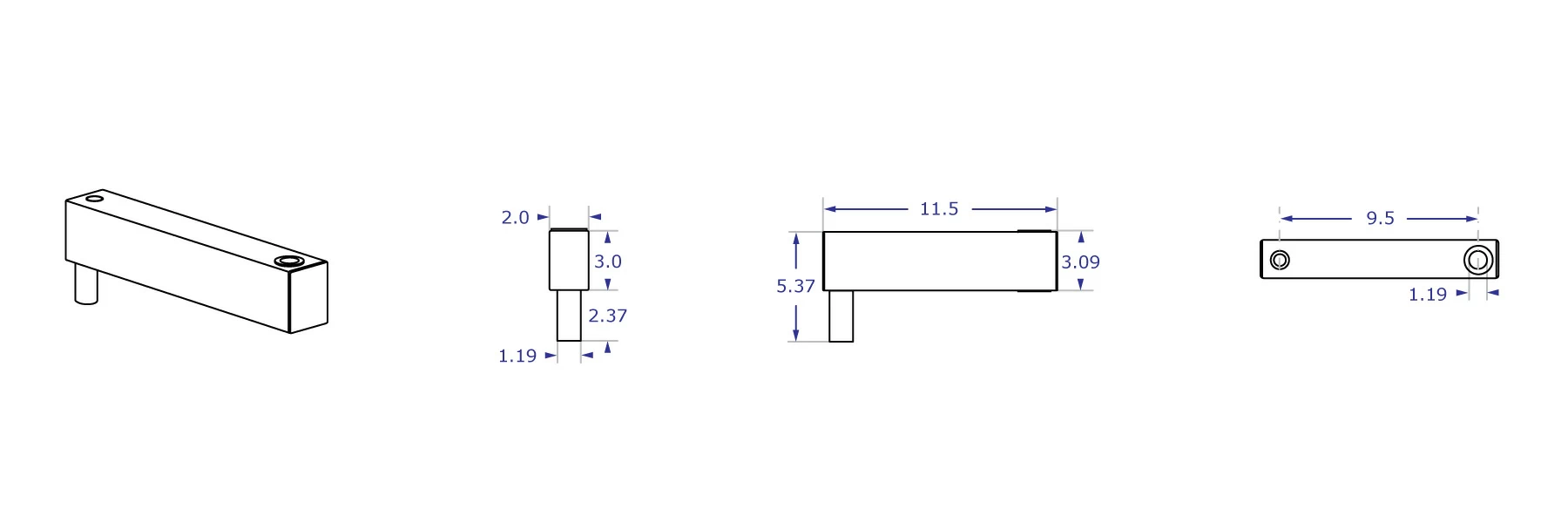

PM192 CENTER POLE STAND - HEAVY-DUTY EXTENSION - 9.5 INCHES

HDEXT 9.5" heavy-duty mount extension specification drawing shown from front, side and top with measurements

Select this Heavy Duty Extension to add 9.5 inches of horizontal reach. Extensions can create a tipping hazard if paired with certain devices and payloads. Always consult a professional or work with your Ergomart representative when introducing extensions into applications where the mount system is not mechanically affixed to an immovable object. HD Extensions utilize a 1.18 pin and 1.18 receiver. It accepts SA, SAA and LS Ergomart products.

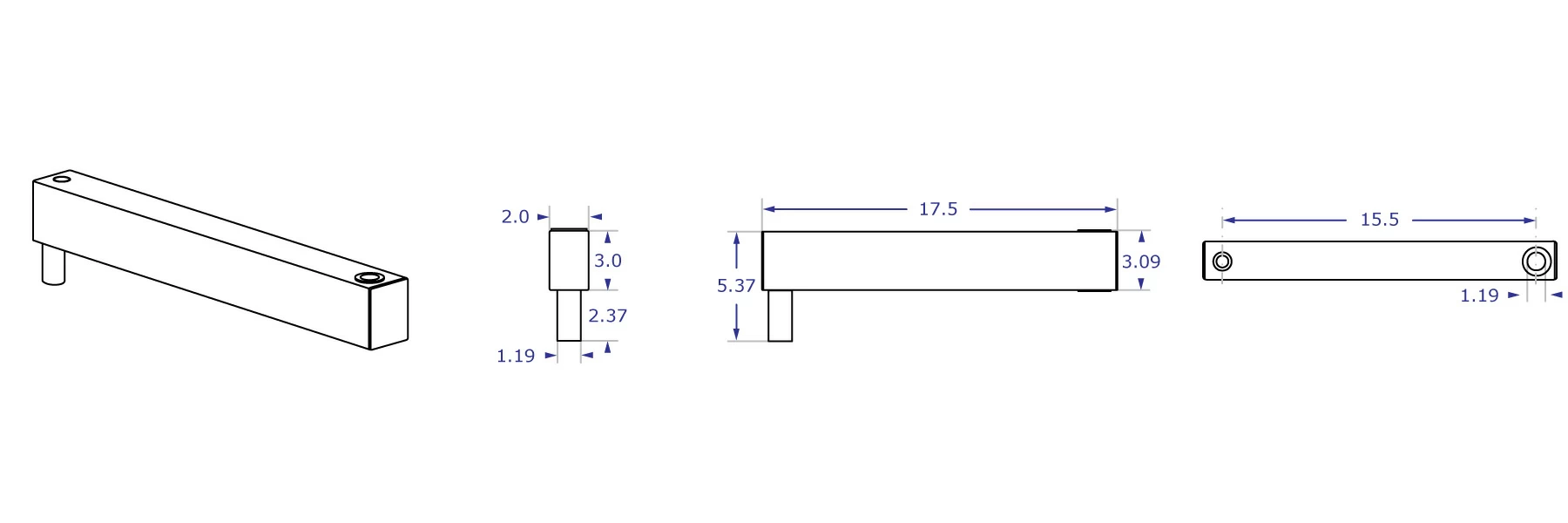

PM192 CENTER POLE STAND - HEAVY-DUTY EXTENSION - 15.5 INCHES

HDEXT 15.5" heavy-duty mount extension specification drawing shown from front, side and top with measurements

Select this Heavy Duty Extension to add 15 inches of horizontal reach to most mounting kits. Extensions can create a tipping hazard if paired with certain devices and payloads. Always consult a professional or work with your Ergomart representative when introducing extensions into applications where the mount system is not mechanically affixed to an immovable object. HD Extensions utilize a 1.18 pin and 1.18 receiver. It accepts SA, SAA and LS Ergomart products.

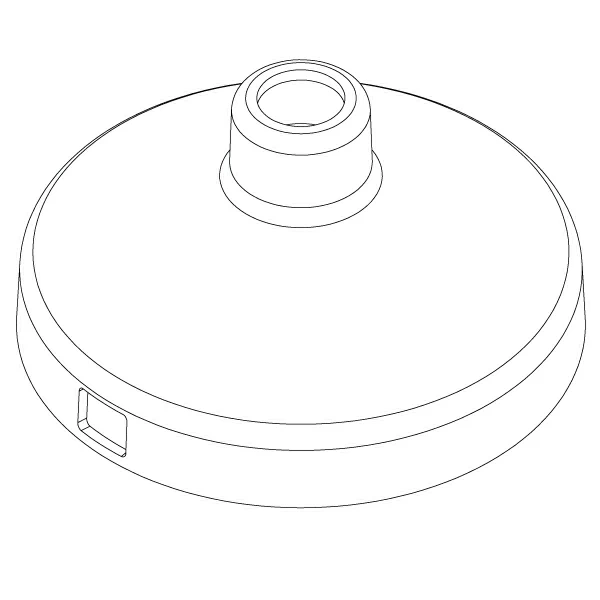

FLOOR STAND BASE COVER - ISOMETRIC VIEW

Isometric line drawing of PM192 floor stand base cover.

The above drawing depicts an isometric view of the base cover designed to cover the entirety of the flange that accepts the 1.92" diameter pole on all PM192 floor stands.

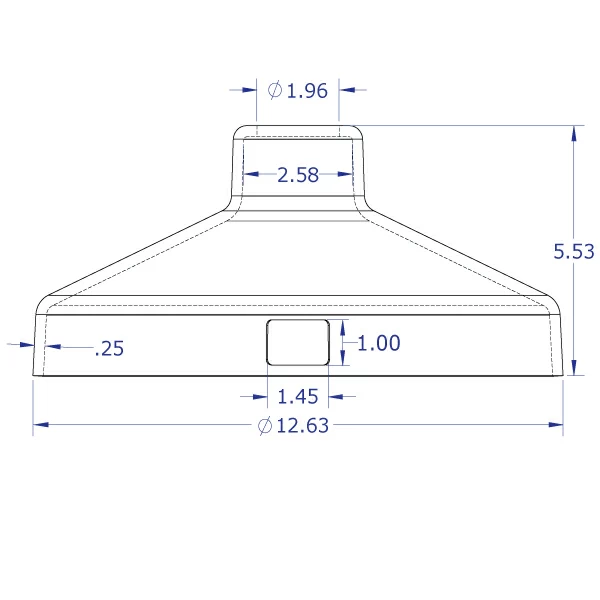

FLOOR STAND BASE COVER - SIDE VIEW

Side view line drawing of PM192 floor stand base cover showing all key measurements.

This side view of the base cover shows all of its critical dimensions. The total height is 5.53", the diameter is 12.63". The rectangular wire access hole is 1" x 1.45". The wall thicknes is 0.25" and the hole at the top that accepts the pole is 1.96" in diameter.

Accessories

Front view of V22 200 x 200 mm VESA adapter plate for large computer monitors and TVs

200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:

$32.28

Front view of V24 200 x 400 mm VESA adapter plate for very large computer monitors and TVs

200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:

$27.56

VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:

$2.10

VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:

$3.15

FAQs

How thick are the bases? I want to put a desk over it.

The base is a quarter inch thick
Can I use my own pole?

The BE30-104 30" Floor Base is designed to be used with poles that have an outside diameter of 1.90 inches. If your pole/pipe meets that description then yes, you can. We use powder coated schedule 80 pipe with .250 thick walls. Thinner pipe walls are not recommended unless the payload is within six inches of the pipe.
Does the flange come already attached to the round base plate? If not, is hardware included for that purpose?

Yes, the flange comes attached to the base plate. The allen wrench needed to secure the pole in place once installed is included.
