PM192 POLE MOUNT SYSTEM

The PM192 Pole Mount System is a robust and versatile approach for creating easily configurable floor-bolted and movable monitor stands and kiosks, as well as ceiling-installed drop-down displays and workstations. The PM192 system is built around several sturdy base options and a heavy-duty pole that can be outfitted with a wide selection of compatible modular mounting devices for monitors, keyboards and other computing equipment, making it a versatile platform with nearly unlimited uses.



SYSTEM COMPONENTS
The system comes with three base options: two movable and one that is designed to be bolted into the floor or ceiling. Five standard pole lengths are available. Longer poles up to 20 feet may be requested for certain custom designs. Wires from attached devices can be fed through the length of the pole, which has an entry point at the top and an exit through the bottom. More information on the pole and the base options can be found in the respective sections of this component reference guide.

HEAVY-DUTY CONSTRUCTION
The PM192 Pole Mount System is built with high quality, durable materials and constructed in the US. The pole and base are made with heavy-duty steel to ensure years of reliable performance. Whenever possible, the floor-bolted Flange Base is recommended for maximum stability. Of the two repositionable options, the Center Base is suitable for symmetrical load balancing, whereas the Offset Base can handle asymmetrical loads in the forward direction.

COMPATIBLE MOUNTS
As with other Ergomart mounting systems, the PM192 Pole Mount System offers a great deal of flexibility for addressing a wide variety of applications.

The PM192 mounting catalog provides three options for building a solution:

• PM192-EZ Complete Kits are pre-assembled designs for several common applications of the PM192 System. These include the pole, base, optional base cover and monitor/keyboard mounting device(s).
• Modular Direct Pole Mounts attach directly to PM192 poles without the need for additional equipment. Multiple Direct Mounts can be added to a single pole when weight and balance requirements are met. These mounts are purchased separately from the PM192 pole and base.
• The SERIES-118 System consists of a large selection of modular mounting devices with a range of capabilities. Extremely versatile, these compatible mounting units can be used to fine-tune the PM192 to suit nearly any application.

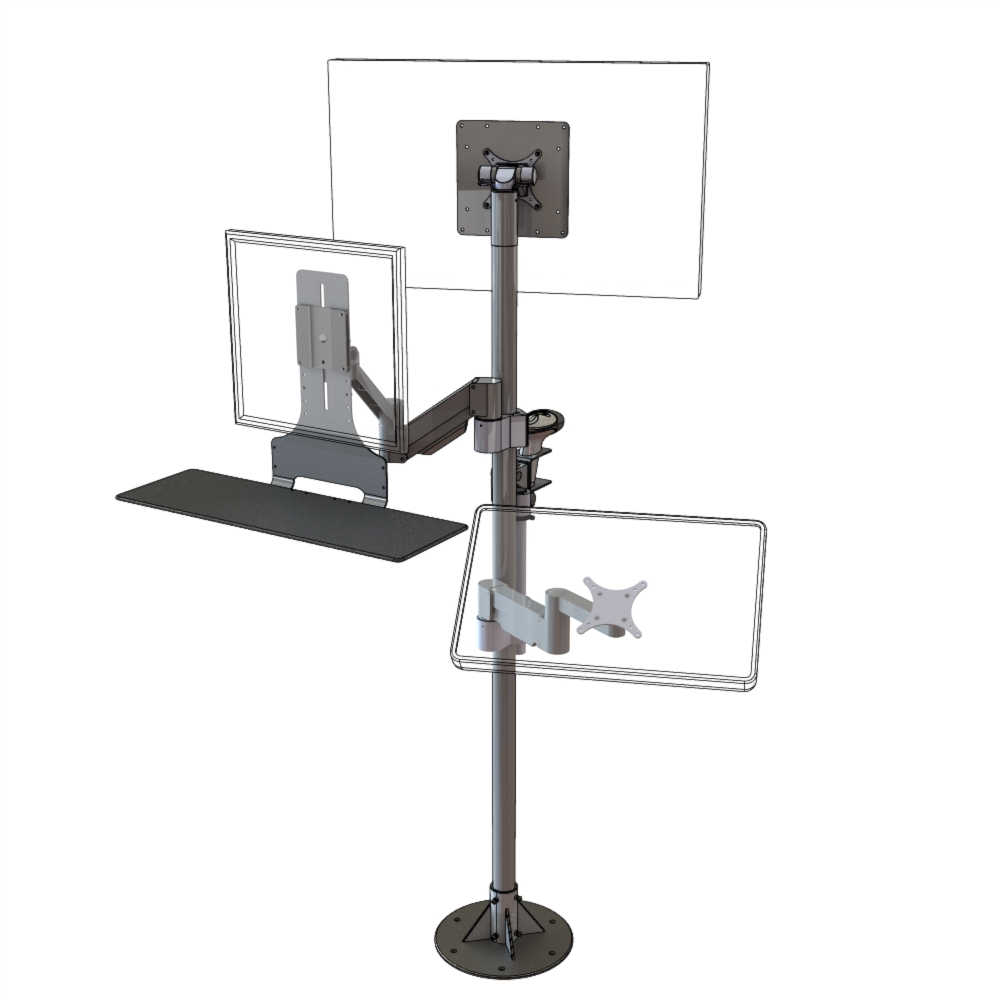

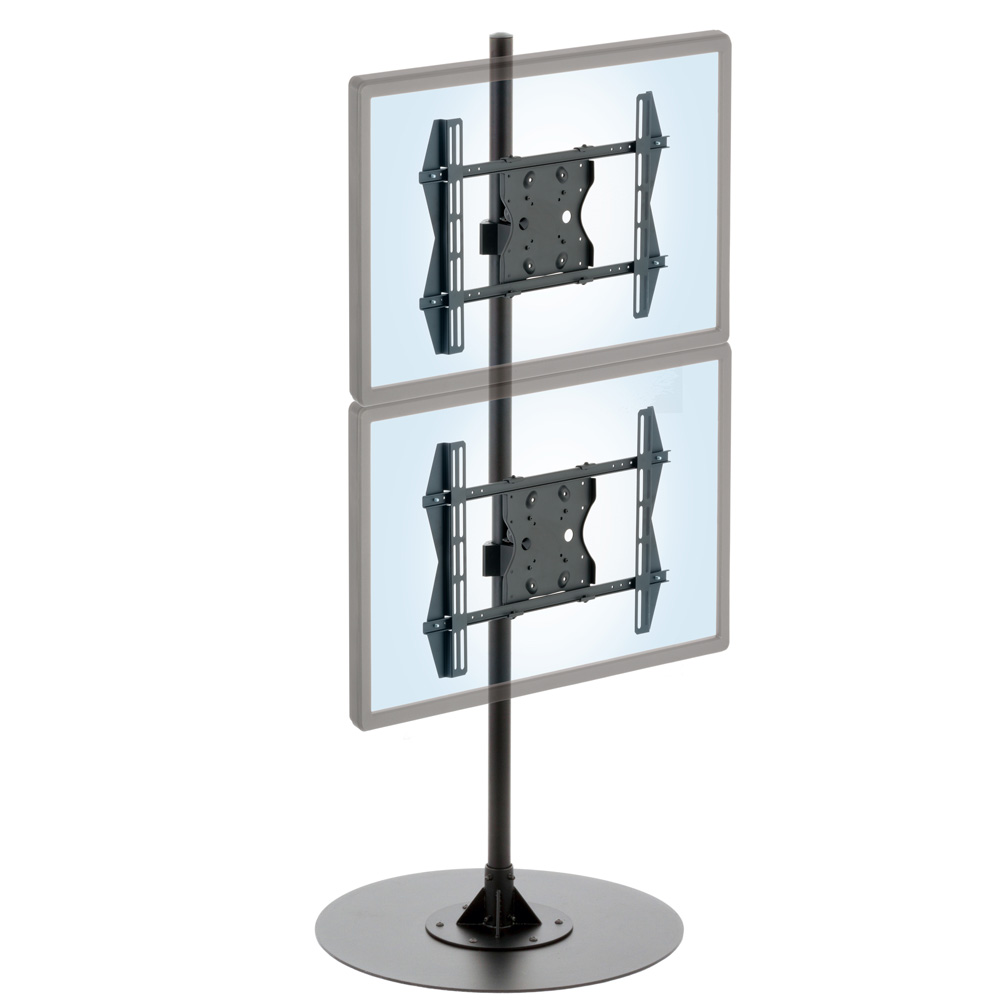

The images below illustrate some of the possibilities and with examples of the mounting components used to achieve the desired set ups.



FUTURE-PROOF MOUNTING
The modular nature of this system makes modification and maintenance remarkably easy. As user requirements, applications and technology components evolve, any given stand can be updated by simply replacing or adding a subset of the mounting devices. Superior durability and a highly modular nature make the PM192 Pole Mounting System a highly cost-effective long term proposition.

CUSTOM POLE STANDS AND MOUNTS
The PM192 catalog of Complete Kits, Direct Pole Mounts, and SERIES-118 Modular Devices offers a powerful way to configure a solution for the large majority of cases. For applications that are not addressed by these options, the right solution is often within reach. Ergomart’s engineering team has helped countless organizations create mounting solutions that address special use cases. Some of these have involved custom modifications and components. While each workspace is different, it is often possible to reuse an existing design to get the job done economically. Please contact an Ergomart representative to leverage our 20+ years of experience and/or explore custom designs.

APPLICATIONS
PM192 setups are suitable for virtually all work environments and have been used in a wide number of industrial, office, showroom, hospitality, point-of-sale, healthcare and residential applications. Some examples include:

• Informational, single- or double-sided large-screen or multi-monitor presentation display units
• Free-standing workstation kiosks that can be configured to accommodate up to four computer users positioned around the unit
• Work areas or showrooms with limited floor space that can benefit from drop-down monitor mounts over any open floor
• Floor stand infrastructure for users who need multiple adjustable monitors but do not wish to attach them to a wall or a desk
