EC-EZ3 MULTI-MONITOR COMPLETE KIT
EC-EZ Complete Kits are highly configurable mounting packages that cover common usage layouts and applications. The EC-EZ3 Complete Kit is a heavy-duty workstation that can support up to four monitors at once - each with individual depth, tilt, swivel and rotation adjustment. The details for each component are explained below and include both dual and quad monitor options.
The EC-EZ3 consists of multiple selections for each of the following items:
The EC-EZ3 consists of multiple selections for each of the following items:
- EC Track Rail
- Fixed-Height Multi-Monitor Mount
- Fixed-Height Keyboard Tray (Optional)
- CPU Holder (Optional)
Five standard track sizes (19”, 27”, 39”, 51” and 78”) are available with each EC-EZ Complete Kit. The 51” and 78” tracks have optional port access holes, cut-outs in the track that are designed to be aligned over duplex outlets so that power plugs and/or network connectors can be accessed behind the track.
The tracks are available in three colors - black, metallic gray and matte white. Black is the standard quick-ship color. Other colors will most often require additional lead times.
Custom lengths and colors can be accommodated in quantity - please contact Ergomart with any queries regarding customizations.
Additional information about EC Tracks, including specifications and key features, can be found on the EC-TRACK Wall Tracks section of this Reference Guide.
The tracks are available in three colors - black, metallic gray and matte white. Black is the standard quick-ship color. Other colors will most often require additional lead times.
Custom lengths and colors can be accommodated in quantity - please contact Ergomart with any queries regarding customizations.
Additional information about EC Tracks, including specifications and key features, can be found on the EC-TRACK Wall Tracks section of this Reference Guide.
MULTI-MONITOR MOUNT
The EC-EZ3 multi-monitor mount features a central pole that has two sets of articulating straight arms attached to VESA-compatible tilter mechanisms. This design allows for individual tilt, swivel, rotation and depth adjustment from each of the monitors. Each pair of monitors can be attached anywhere along the central pole, whether it is a dual monitor set-up, or quad monitor. This adjustment allows for monitors of different heights to be accommodated within a quad-monitor system. In addition, the entire mount supporting 2 or 4 monitors can be attached anywhere along the track.
The monitor mount accommodates monitors up to 35 lb each and, when the articulating arms are placed closest to the mounting surface, up to 24” in width. As the articulating arms are pulled outward, the width is reduced as the edges of the monitors will touch.
DUAL MONITOR MOUNT
- Install mount at any height along the track
- Individual tilt, swivel and rotation for each monitor
- Handles up to 35 lb each
QUAD MONITOR MOUNT
- Position mount anywhere along track
- Individual monitor tilt, swivel and rotation
- Up to 35 lb per monitor
FRONT VIEW
- For side-by-side monitors measuring up to 24” in width
- When arms are moved forward, maximum width is reduced

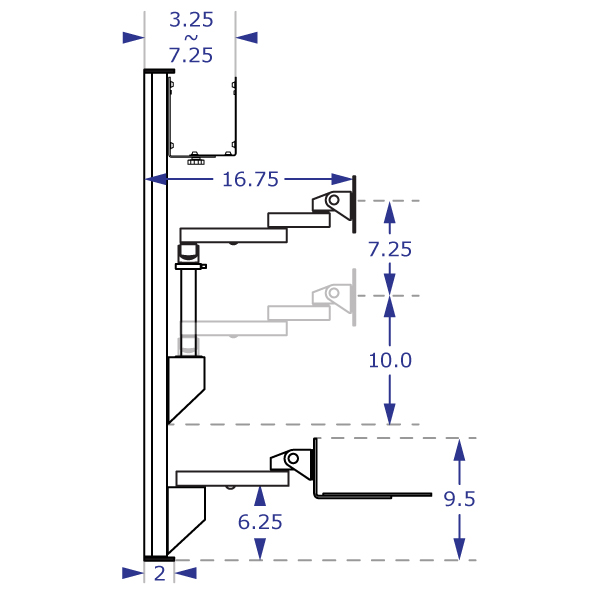

SIDE VIEW
- Mount each monitor pair anywhere along central pole
- Allows quad monitor setup to adjust for range of monitor heights
FIXED-HEIGHT KEYBOARD TRAY
The fixed-height keyboard tray has a compact footprint with a lot of adjustability. When not in use, the keyboard tray can be folded upwards and out of the way. It also provides 360° of left-right swivel (inhibited only by the wall), and optional articulating arm extensions provide further positioning flexibility while increasing the reach of the keyboard tray up to 10”.
The articulating keyboard tray does not provide instant height adjustment, but it can be installed and repositioned anywhere along the track.
The tray folds upwards 90° to stow away when not in use. The tray can also tilt downward up to 45° if needed.
Optional extensions provide up to 10” of additional reach. Extensions are available as
- Single 3.5-inch segment
- Single 7-inch segment
- Two 3.5-inch segments
- 7-inch and 3.5-inch segments
The keyboard platform can also be used for other equipment such as laptops.
There are six standard keyboard tray options. Additional trays in the SERIES-118 family can be seen on the Keyboard Trays section of the SERIES-118 Reference Guide. If you need to customize an EC-EZ3 or any EC-TRACK mount with a non-standard tray, please contact us at 888 420 3200 or [email protected].
20” PHENOLIC TRAY
- Suitable for keyboard-only set-ups
- 20”x8.5” compact phenolic keyboard tray
- Includes cable clips to manage wires
- Included Velcro strips keep keyboard from slipping
20” PHENOLIC TRAY WITH PALMREST
- Features ergonomic palmrest for added comfort when using the keyboard
26” PHENOLIC TRAY
- Ideal for keyboard and mouse
- 26”x8.5” wide phenolic keyboard tray
- Includes cable clips to manage wires
- Included Velcro keeps keyboard in place
- Included MouseTrap captures mouse when folded
26” PHENOLIC TRAY WITH PALMREST
- Features ergonomic palmrest for added comfort when keying and mousing
PREMIUM NPE SOFT TRAY
- Wide 26”x12” tray suited for keyboard and mouse
- Anti-skid, soft surface prevents slipping
- Made with lightweight, noise- reducing urethane over sturdy steel plate
- Rounded, raised edging with built-in palm rest
- Cut-outs along back of tray for wire management
LEFT/RIGHT MOUSE TRAY
- Deluxe left/right mouse tray with non-skid keyboard pad
- Built-in document holder on back edge
- Two integrated cable management slots
- Memory foam palm support
- Raised edge keeps mouse from falling
CPU HOLDER (OPTIONAL)
The EC-EZ3 Complete Kit includes an option to add a CPU Holder. Similar to all other components, the CPU Holder can be mounted anywhere along the track. This allows the CPU to sit either below or above the rest of the components, depending on what best suits the user’s needs. The CPU Holder has 5 sizes to accommodate a wide range of CPU widths:
When purchasing the optional CPU Holder, it is recommended to select a standard track larger than 19” to ensure all components will fit.
- 1.12” - 2.38” Thin Client
- 2” - 3.5” Small
- 3” - 5” Medium
- 4” - 6.25” Large
- 5” - 8.25” Extra Large
When purchasing the optional CPU Holder, it is recommended to select a standard track larger than 19” to ensure all components will fit.
GOING BEYOND THE EC-EZ3
The EZ-EC3 is a one-stop solution for configuring a complete multi-monitor wall mounted workstation. However, it represents only a portion of what is possible. The EC-EZ3 can be useful as a reference point to help conceive a system optimized for a specific application. One approach is to start with an EC-EZ3 configuration and complete it by adding modular components. You can begin by selecting a rail and a multi-monitor mount from the EC-EZ3 product page and then add other standalone EC-TRACK modular mounts (such as the Height Adjustable Keyboard Tray) or choose a mounting device from the SERIES-118 catalog and integrate it with the EC-TRACK using the MKIT-F mounting kit.
The large number of possibilities may initially seem overwhelming, but Ergomart is always happy to help guide you to a solution. Don’t hesitate to contact us at 888 420 3200 or [email protected] so you can leverage our team’s product knowledge and prior experience.
