SERIES-118 MOUNTING DEVICES - MONITOR & KEYBOARD MOUNTS
SERIES-118 monitor and keyboard mounts offer a range of monitor and keyboard combinations, including arms, stands and single and dual monitor options. They provide a simple way to create a workstation in a single device. Which monitor and keyboard mount best suits a particular application depends on the number of monitors, the weight and size of the monitor(s) and keyboard, and the adjustability required for the task.
CAPABILITIES
The following images illustrate the main features found in most SERIES-118 monitor and keyboard mounts, with emphasis on the TRS2018, TRS2415, TRS2718, TRS7000, and TRS413.
The TRP2718 achieves much of the same functionality in slightly different ways, as noted below. The TRS2818 is structured differently and is briefly discussed at the end of this section.
BACKBAR INSTALLATION ON TILTER MECHANISM
Most of Ergomart’s workstation mounts feature an L-shaped bracket called the backbar that provides several ways to attach and adjust a monitor and a keyboard tray in relation to an underlying mounting arm or stand.
The backbar has multiple sets of mounting holes providing significant flexibility when it comes to setting the baseline vertical position of the keyboard and monitor with respect to the mounting device.
Most of Ergomart’s workstation mounts feature an L-shaped bracket called the backbar that provides several ways to attach and adjust a monitor and a keyboard tray in relation to an underlying mounting arm or stand.
The backbar has multiple sets of mounting holes providing significant flexibility when it comes to setting the baseline vertical position of the keyboard and monitor with respect to the mounting device.
SETTING MONITOR HEIGHT RELATIVE TO KEYBOARD
The backbar has a 6.6” groove for attaching the VESA adapter, allowing the user to set the center point of the monitor’s VESA pattern anywhere between 13.2” and 6.6” above the keyboard .
Similarly, the TRP2718 (not pictured) has multiple sets of holes for attaching the monitor at varying distances above the keyboard tray.
The backbar has a 6.6” groove for attaching the VESA adapter, allowing the user to set the center point of the monitor’s VESA pattern anywhere between 13.2” and 6.6” above the keyboard .
Similarly, the TRP2718 (not pictured) has multiple sets of holes for attaching the monitor at varying distances above the keyboard tray.
MONITOR ROTATION, KEYBOARD TILT

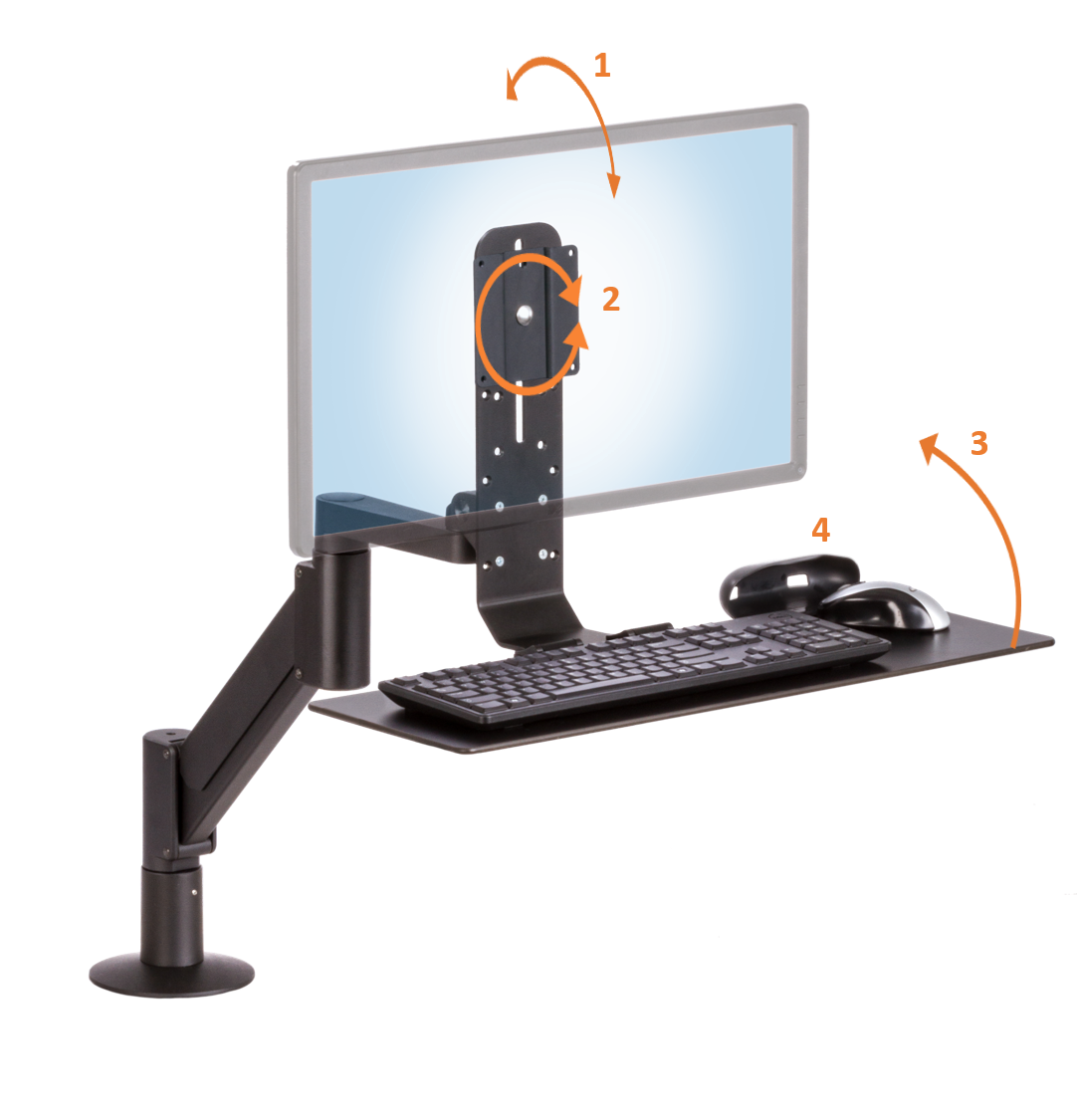

The backbar is attached to a tilter mechanism providing simultaneous adjustment to the monitor and keyboard. Most useful is the tilt (1) and swivel (discussed later). Simultaneous monitor/keyboard rotation is generally not desired and can be prevented using an optional device.
Instant independent rotation of the monitor is useful and made possible by the fact that the VESA slider attached to the backbar can be rotated 360° between landscape and portrait (2). This feature is not available in the TRP2718.
The tray can be folded upwards to stow the keyboard and mouse (3), which helps conserve space when the arm is not in use. When folded back, the mouse is captured by the Mousetrap (available with 26”-wide trays) to keep it secure (4).
The backbar is attached to a tilter mechanism providing simultaneous adjustment to the monitor and keyboard. Most useful is the tilt (1) and swivel (discussed later). Simultaneous monitor/keyboard rotation is generally not desired and can be prevented using an optional device.
Instant independent rotation of the monitor is useful and made possible by the fact that the VESA slider attached to the backbar can be rotated 360° between landscape and portrait (2). This feature is not available in the TRP2718.
The tray can be folded upwards to stow the keyboard and mouse (3), which helps conserve space when the arm is not in use. When folded back, the mouse is captured by the Mousetrap (available with 26”-wide trays) to keep it secure (4).
INSTANT HEIGHT ADJUSTMENT
Monitor arms provide instant vertical height adjustment for the monitor and keyboard simultaneously. The arm can be lifted or lowered by hand and then will remain at the specified height until adjusted again.
The total adjustable range depends on the arm being used. The table below details the distance each monitor and keyboard mount can travel in the “Instant Vertical Adjustment” column.
Monitor stands such as the TRS413 do not provide instant height adjustment.
Monitor arms provide instant vertical height adjustment for the monitor and keyboard simultaneously. The arm can be lifted or lowered by hand and then will remain at the specified height until adjusted again.
The total adjustable range depends on the arm being used. The table below details the distance each monitor and keyboard mount can travel in the “Instant Vertical Adjustment” column.
Monitor stands such as the TRS413 do not provide instant height adjustment.
HORIZONTAL REACH AND RETRACTION
Monitor arms and stands allow the monitor and keyboard to be extended out a distance from the mounting point. The articulating arm can be folded back when not in use to conserve space. The ability to fold the keyboard tray up creates an even more compact footprint.
The total extended reach for each mount depends on which arm is utilized. The arm length when at maximum extension for each mount is shown in the table below in the column “Instant Horizontal Reach”.
Monitor arms and stands allow the monitor and keyboard to be extended out a distance from the mounting point. The articulating arm can be folded back when not in use to conserve space. The ability to fold the keyboard tray up creates an even more compact footprint.
The total extended reach for each mount depends on which arm is utilized. The arm length when at maximum extension for each mount is shown in the table below in the column “Instant Horizontal Reach”.
MONITOR ARM ADJUSTMENT
All monitor and keyboard mounts inherit the capabilities of the underlying mounting device.
SERIES-118 height adjustable arms generally offer three points of articulation: at the base where the arm attaches into the mounting kit (1), at the “elbow” where the lifting arm meets the forearm (2) and at the tilter mechanism (3) to which the backbar is attached. Each articulation point offers 360° of rotation.
The simplest example of a SERIES-118 stand with a keyboard tray is the TRS413 (not shown). The straight arm segments in such devices provide similar rotational adjustment at each joint.
All monitor and keyboard mounts inherit the capabilities of the underlying mounting device.
SERIES-118 height adjustable arms generally offer three points of articulation: at the base where the arm attaches into the mounting kit (1), at the “elbow” where the lifting arm meets the forearm (2) and at the tilter mechanism (3) to which the backbar is attached. Each articulation point offers 360° of rotation.
The simplest example of a SERIES-118 stand with a keyboard tray is the TRS413 (not shown). The straight arm segments in such devices provide similar rotational adjustment at each joint.
TRS2818 FEATURES
TRS2818S and TRS2818D (pictured) differ from other monitor and keyboard mounts. They do not feature a backbar. Instead, there are two tilter mechanisms that provide independent tilt, swivel and rotation to the monitor and keyboard. The monitor is attached to a pole at a fixed distance from the keyboard.
TRS2818S and TRS2818D (pictured) differ from other monitor and keyboard mounts. They do not feature a backbar. Instead, there are two tilter mechanisms that provide independent tilt, swivel and rotation to the monitor and keyboard. The monitor is attached to a pole at a fixed distance from the keyboard.
DUAL MONITOR BRACKETS
Dual monitor and keyboard mounts are equipped with dual monitor brackets that allow for two monitors to be mounted side-by-side. The ADJ1523 works for monitors up to 23” in width, whereas the ADJ1430 accommodates monitors up to 30” in width. Each bracket has two slots for horizontal positioning of monitors and supports 75 mm, 100 mm and 100x200 mm rotating VESA adapters. The total weight capacity of the solution must take into account the weight of this bracket.
The TRP2718D and TRS2818D have this feature.
Dual monitor and keyboard mounts are equipped with dual monitor brackets that allow for two monitors to be mounted side-by-side. The ADJ1523 works for monitors up to 23” in width, whereas the ADJ1430 accommodates monitors up to 30” in width. Each bracket has two slots for horizontal positioning of monitors and supports 75 mm, 100 mm and 100x200 mm rotating VESA adapters. The total weight capacity of the solution must take into account the weight of this bracket.
The TRP2718D and TRS2818D have this feature.
| Mount | Type | Number of Monitors | Weight Capacity (with 1 lb for keyboard/mouse) |
Instant Horizontal Reach | Instant Vertical Adjustment | Monitor Position Adjustment |
| TRS2018 | Arm | 1 | 1-20 lb | 20” | 18" | VESA center 6.5” to 13.25" above keyboard |
| TRS2415 | Arm | 1 | 2-35 lb | 27” | 14.5" | VESA center 6.5” to 13.25" above keyboard |
| TRS2718 | Arm | 1 | 1-20 lb | 27” | 17.5" | VESA center 6.5” to 13.25" above keyboard |
| TRS7000 | Arm | 1 | 5-16 lb | 27” | 15.25" | VESA center 6.5” to 13.25" above keyboard |
| TRP2718S | Arm | 1 | 1-20 lb | 27” | 17.5" | VESA center 11” to 13" above keyboard |
| TRP2718D | Arm | 2 | 0-8 lb per monitor | 27” | 17.5" | VESA center 11” to 13" above keyboard |
| TRS2818S | Arm | 1 | 4-37 lb | 24” | 18" | VESA center fixed at 12” above keyboard |
| TRS2818D | Arm | 2 | 0-22 lb per monitor | 24” | 18" | VESA center fixed at 12” above keyboard |
| TRS413 | Stand | 1 | 0-35 lb | 5.5” | N/A, but can be readjusted along pole | VESA center 6.5” to 13.25" above keyboard |
