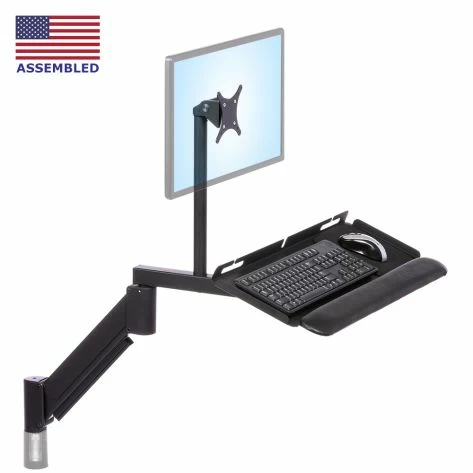

TRS2818S monitor arm and keyboard tray wall mounted side view MOUNTS!
TRS2818S Monitor and Keyboard Arm

In stock

From $508.90

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

Usually ships in 3-7 business days.

madein

Need a mounting option not listed here? Call (888) 420-3200 or visit our

Custom Solutions page.

TRS2818S Monitor and Keyboard Arm

MOUNTS! USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

SUBSTANTIAL VERTICAL RANGE CREATES A TRUE SIT-STAND SOLUTION

  • Instantly and easily position tray and LCD
  • LCD and tray can be tilted to extreme angles
  • Available in Black and Metallic Gray
  • Some colors in limited quantities
  • Compatible with our 192 Pole Floor Mount Systems
  • Handles a single flat screen monitor from 4 to 37 pounds
  • Up to 23 inches of reach from mount to LCD monitor
  • 18 inches height adjustment in wall mount applications
  • Comes with 75mm or 100mm VESA; 100 x 200mm VESA optional

This heavy-duty LCD Monitor Arm with Keyboard Tray is very sturdy and designed for frequent keying sessions. The gas-spring cylinder is resistant to vertical travel because it uses a motion-resistant cylinder. The placement of the keyboard tray and LCD monitor in respect to one another is fixed. However, both the tray and LCD can be tilted to accommodate personal preferences. The TRS2818S is available with three tray options: the standard 20 inch wide platform, 26 inch wide platform and the 27 inch wide metal platform without palm rests. Note that the metal platform is heavier than the the other two, meaning that a system with the 27-inch tray will not be able to handle as heavy a monitor. Wire management molding below arm segments allows cabling to be managed below the arm.

MONITOR WEIGHTS

The lifting capacity depends on the gas-spring cylinder selected (800N and 1000N). The weight of the monitor that can be floated by the arm also depends on the tray: the 27-inch metal platform weighs more than the 20-inch and 26-inch trays. In summary:

  • The 800N arm floats a monitor weighing 8-30 lb if using the TRS20 or TRS26 tray and 4-30 lb if using the TRT27 tray.
  • The 1000N arm floats a monitor weighing 15-37 lb if using the TRS20 or TRS26 tray and 15-33 lb if using the TRT27 tray.

This mount is also available as the TRS2818D dual monitor arm and keyboard tray combo, which features a dual monitor bracket, allowing for two monitors to be mounted side-by-side.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Shipping Weight (with Padded Metal Tray)
Shipping Weight (with 20" or 26" Tray)
Box 1: 21 pounds | Box 2: 8 pounds
25 pounds
Shipping Dimensions (with Padded Metal Tray)
Shipping Dimensions (with 20" or 26" Tray)
Box 1: 19" x 17" x 4" | Box 2: 27" x 11" x 2"
26" x 20" x 8"
Warranty 5 year limited

DESK MOUNT - LOW POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in low position on through desk mount

Downward movement is restricted by the desk's surface in a desk-mounted configuration. Consider an extension for greater vertical movement.  The tray distance at 8.5 inches above the surface illustrates the main reason this product is typically used for wall situations.



DESK MOUNT - MIDDLE POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in middle position on through desk mount

The horizontal position of the arm illustrates the greatest possible reach of the tray at 40 inches as measured from the center of the thru desk mount to the front edge of the tray.



DESK MOUNT - HIGH POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in high position on through desk mount

Arm is shown at its highest point without a vertical extension when attached to a horizontal surface.  The tray is 22.5 inches above the surface and the VESA bracket for monitors is at 35 inches.



5" EXTENSION - LOW POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in low position with 5 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with a 5 inch Vertical Extension. Note that the 5" extension allows the arm its full vertical movement without being impeded by the desk surface.



5" EXTENSION - HORIZONTAL POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in middle position with 5 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with a 5 inch Vertical Extension in the middle of its vertical travel..



5" EXTENSION - HIGH POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in high position with 5 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with an 5 inch Vertical Extension with the arm illustrated at its highest position.



8" EXTENSION - LOW POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in low position with 8 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with an 8 inch Vertical Extension. Note that the 8 inch extension will only allow the tray to within 12 inches of the surface.



8" EXTENSION - HORIZONTAL POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in middle position with 8 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with an 8 inch Vertical Extension in the middle position.



8" EXTENSION - HIGH POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm side view in high position with 8 inch vertical extension

Measurements of various dimensions of Desk Mounted TRS2818 with an 8 inch Vertical Extension.  Here the tray is over 30 inches off the desk and the monitor is about 43 inches above the horizontal mounting plane.



WALL MOUNT - LOW POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm wall mounted in low position

Measurements of various dimensions of a wall mounted TRS2818 with a Wall Mount Kit (MKIT-D) and with the arm in its lowest position.



WALL MOUNT - MIDDLE POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm wall mounted with tray folded down

Measurements of various dimensions of the wall mounted arm shows how little space it takes up when it is positioned tight against the wall.



WALL MOUNT - HIGH POSITION

TRS2818S Specification drawing of long reach keyboard monitor arm wall mounted in high position

Measurements of various dimensions of Desk Mounted TRS2818 installed on an MKIT-D.



VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.00
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.00
