DIRECT POLE MOUNTS

Direct Pole Mounts are modular mounting devices that allow TVs, monitors, keyboards and other equipment to be attached to PM192 and MCART poles without the need for additional mounting equipment. They include multiple options for VESA adapters, allowing for the attachment of a wide range of monitor sizes. A Direct Pole Mount can be used as the sole mount on a stand, such as in the PM192-EZ1 Lobby Display Complete Kit, or in combination with other Direct Pole Mounts or SERIES-118 Modular Mounting Devices to build a more complex system suited to specific needs.

An overview of the available Direct Pole Mounts is presented below. Please note that the pole and base must be purchased separately from the Direct Pole Mount. Each tile links directly to the product purchasing page for more detailed information regarding the mount.

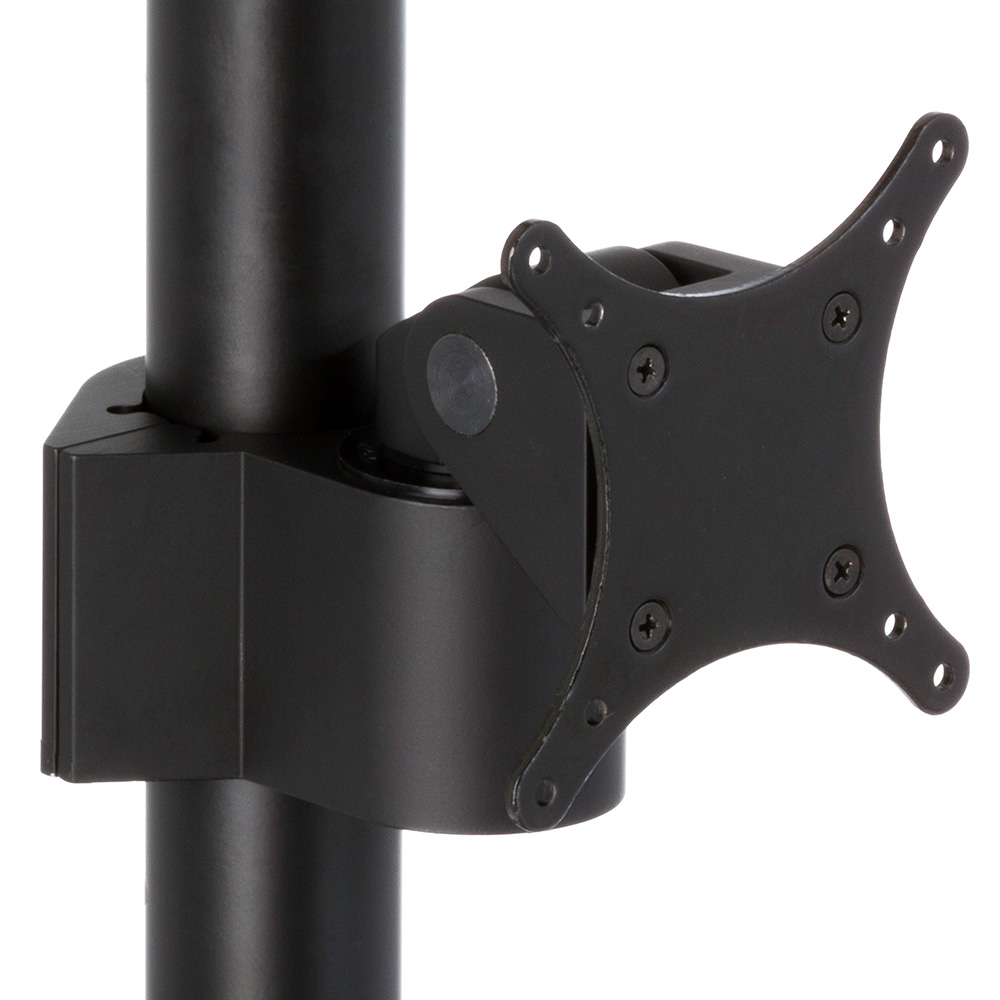

PM40 - MONITOR MOUNT

PM40 Tilter mechanism for computer monitors attached to a 1.9 inch diameter pole in black

Mounts large VESA-compatible LCDs and TVs up to 55 pounds
Tilt, swivel and rotation capabilities
Modular extensions can be added to increase reach

PM80 - HEAVY-DUTY MONITOR MOUNT

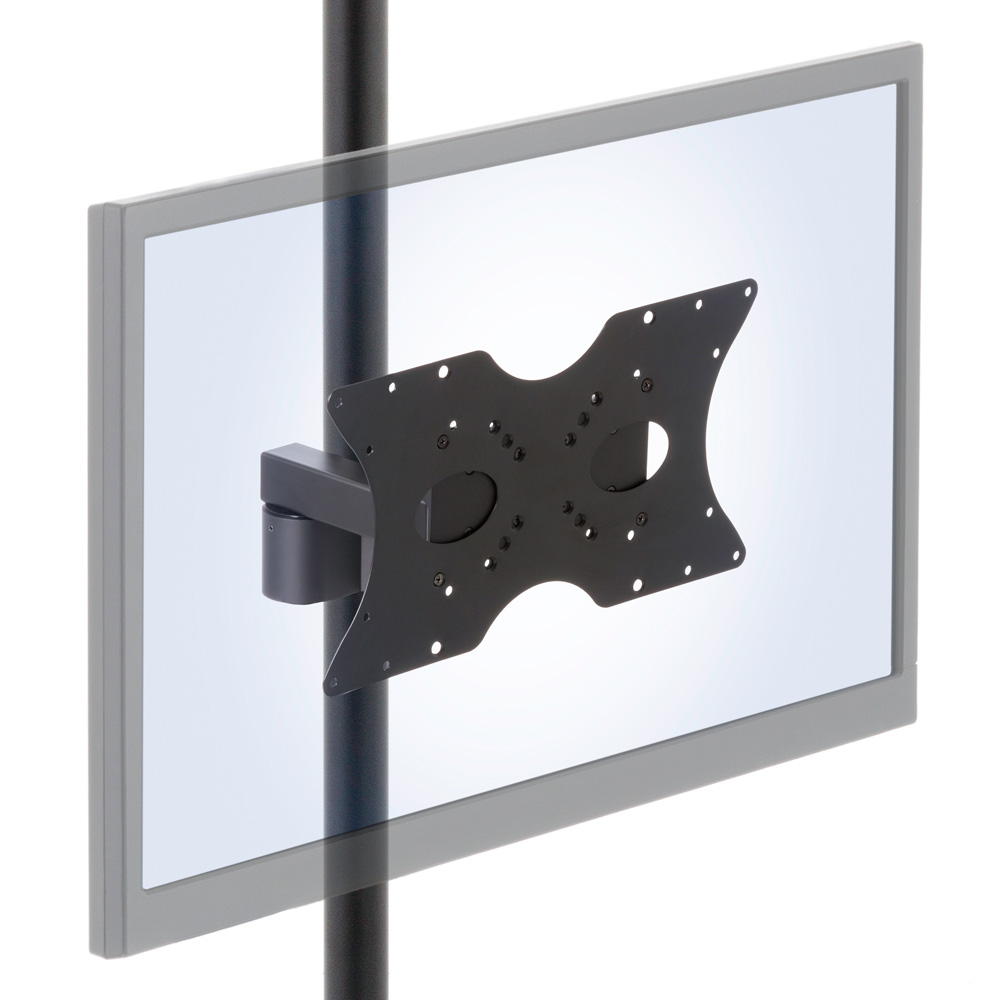

PM80 heavy-duty monitor and TV pole mount with large monitor front view

Handles monitors weighing 35 to 80 lb
Tilts backwards up to 45° or forward by 44°
Optional large VESA bracket for sizes up to 400 x 600mm

PM90 - POLE TOP MOUNT

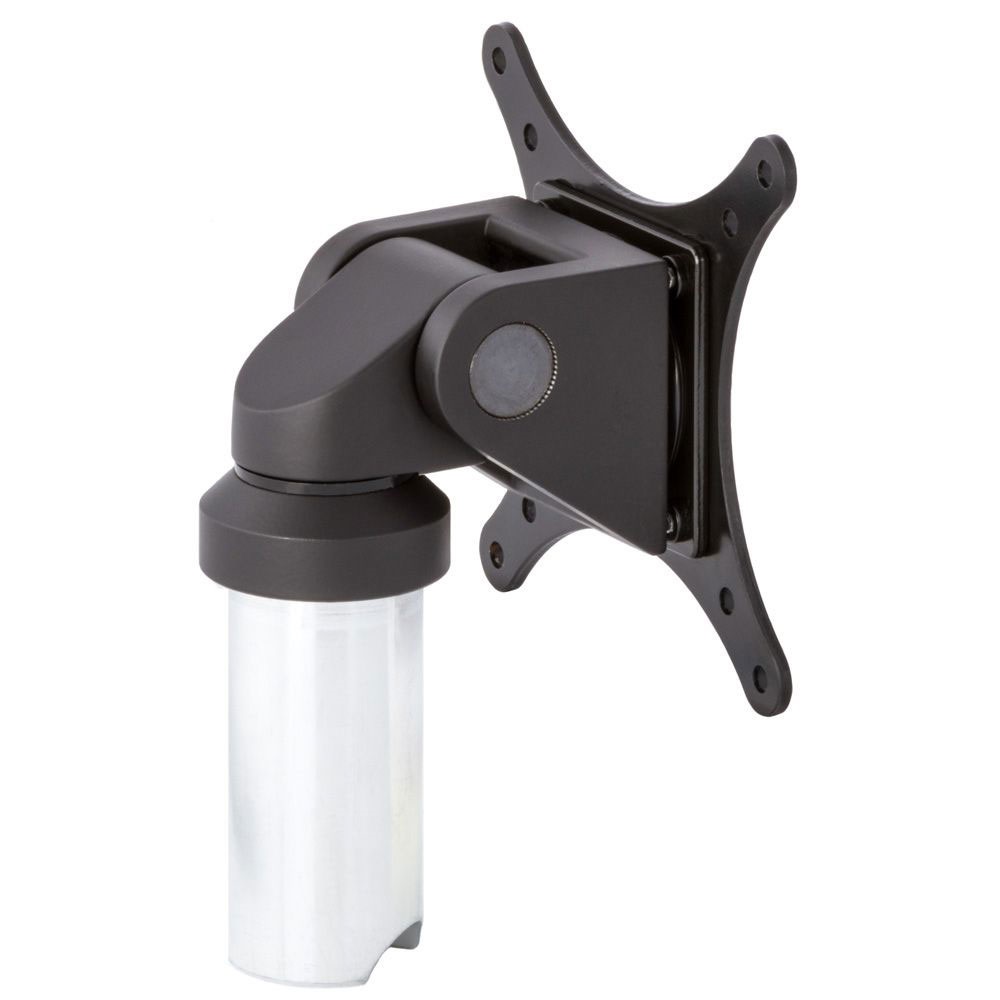

PM90 pole top monitor mount shown from the side

Pole top mount handles monitors up to 55 lb
Tilt, swivel, and portrait/landscape rotation
Supports VESA patterns up to 200 x 400mm with optional accessories

PM42 - BACK-TO-BACK MOUNT

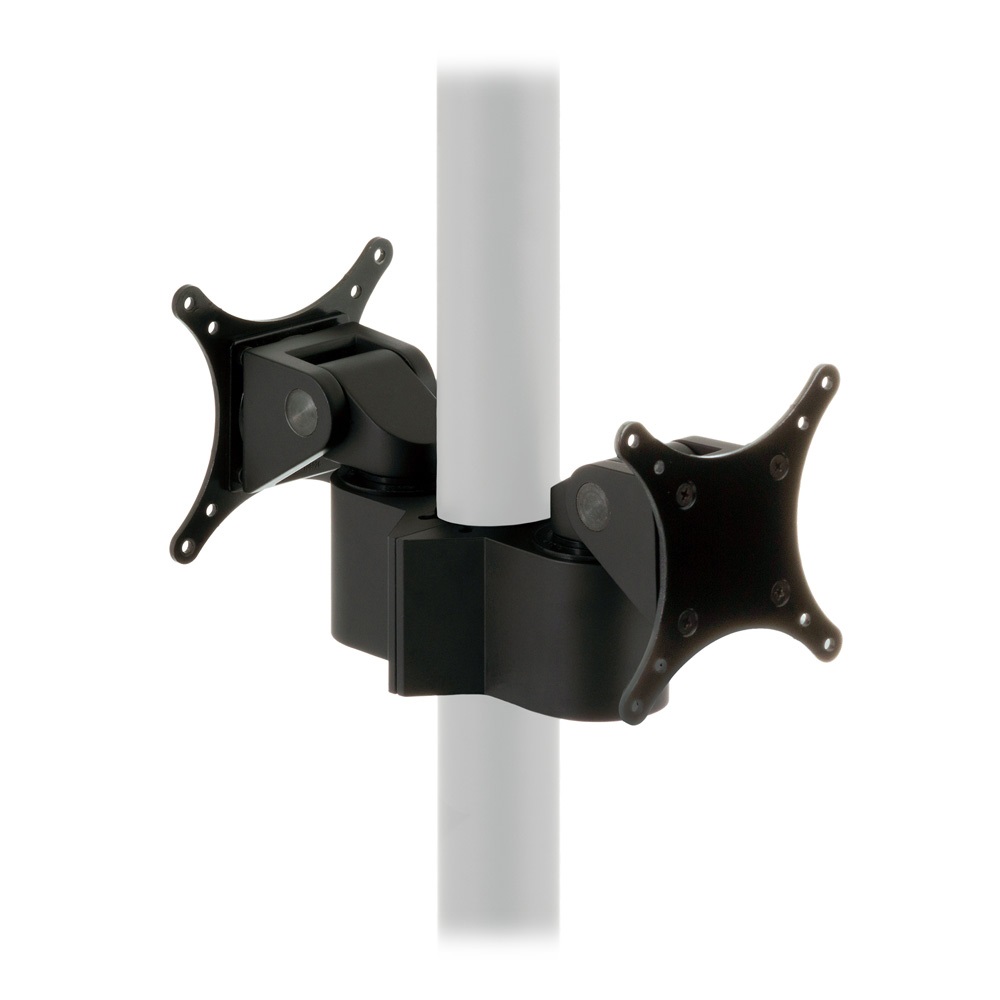

PM42 Back to Back dual articulating monitor tilter mechanisms attached to a P192 pole both with 75x75 - 100x100 VESA plates ghosted

Back-to-back dual mount handles monitors up to 55 lb each
Individual tilt, swivel and portrait/landscape rotation
Optional horizontal extensions increase reach

PM44 - DUAL MONITOR MOUNT

PM44 side by side dual pole mount for pole diameters between 1.5 and 2 inches compatible with P192 products ghosted

Dual mount handles monitors up to 40 lb each
Individual tilt, swivel, portrait/landscape rotation
Each monitor reaches out up to 18.5”

PM62 - DUAL MONITOR MOUNT

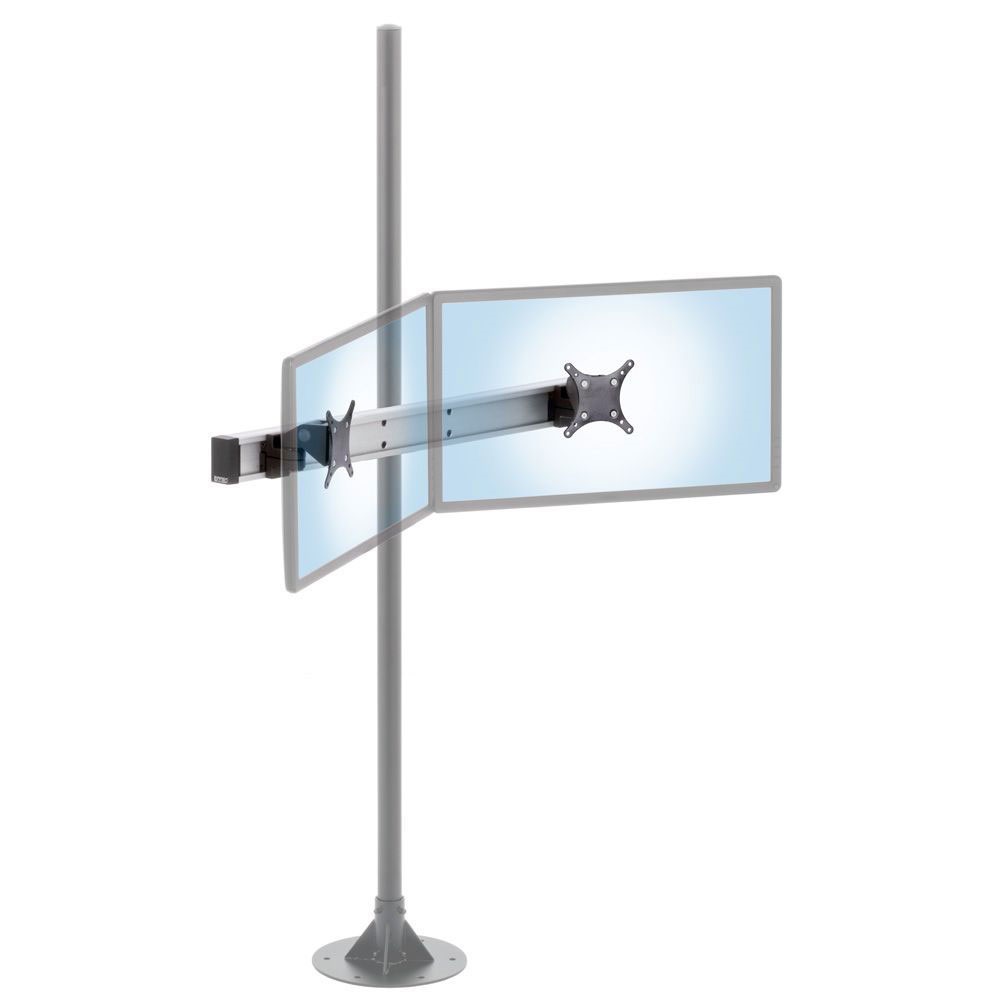

Dual-monitor articulating beam mounted to 1.5" to 2" diameter heavy-duty pole in black

Dual mount handles monitors up to 30 lb each
Individual monitor tilt, swivel, portrait/landscape rotation
Mount each monitor anywhere along horizontal beam

PM63 - TRIPLE MONITOR MOUNT

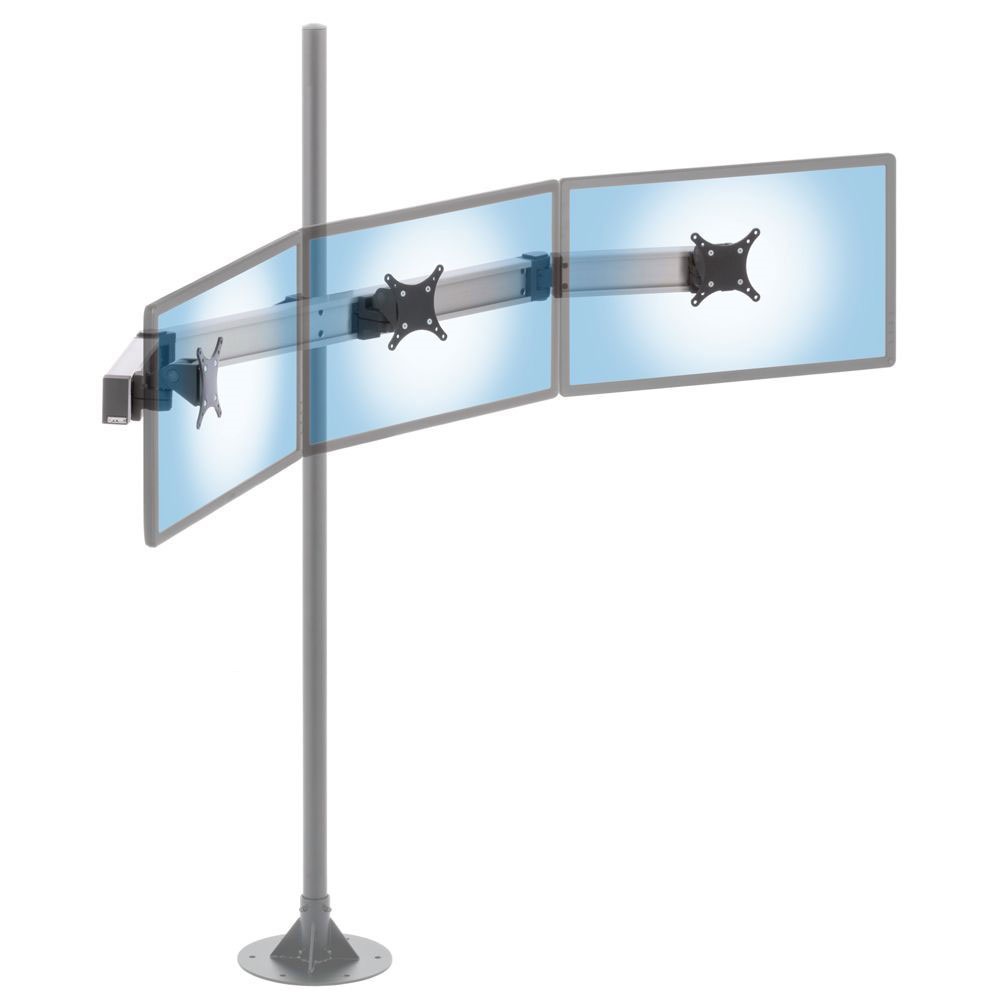

Triple-monitor articulating beam mounted to 1.5" to 2" diameter heavy-duty pole in black

Triple mount handles monitors up to 30 lb each
Individual monitor tilt, swivel, portrait/landscape rotation
Mount each monitor anywhere along horizontal beam

PM64 - QUAD MONITOR MOUNT

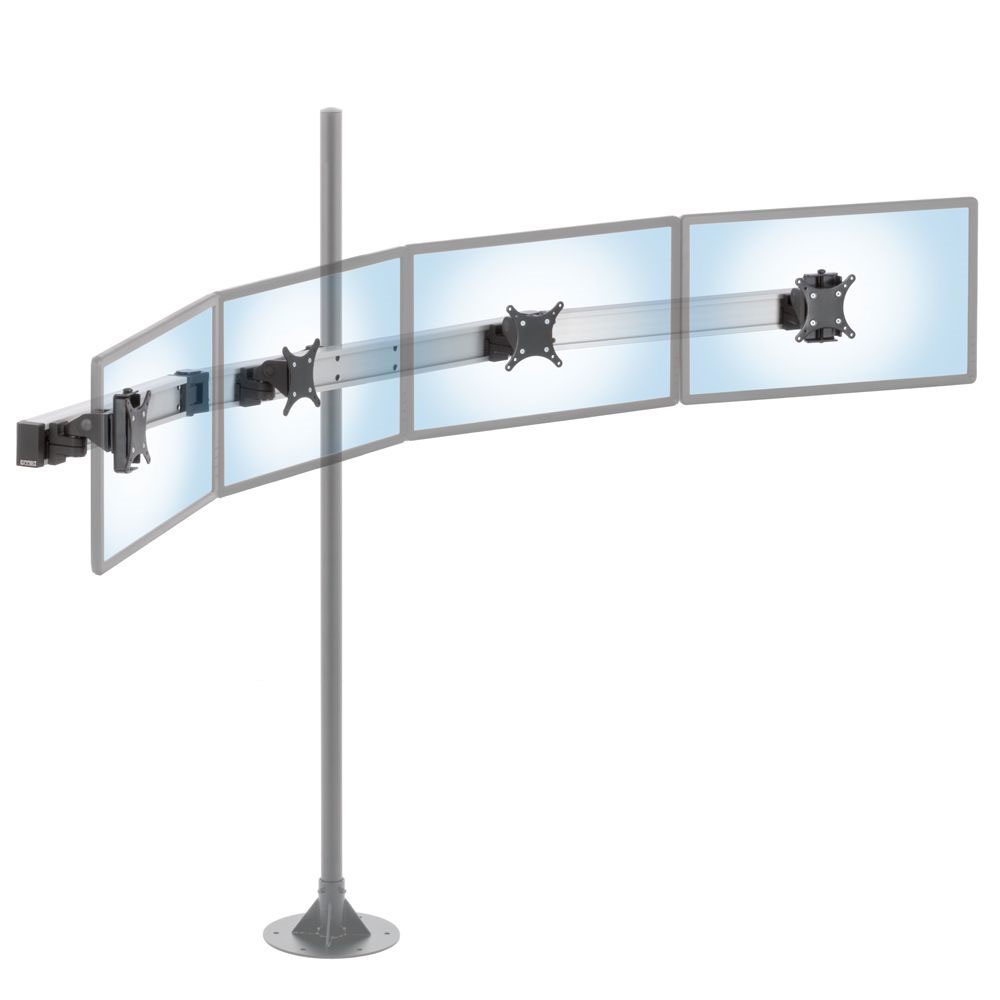

Quadruple-monitor articulating beam mounted to 1.5" to 2" diameter heavy-duty pole in black

Quad mount handles monitors up to 30 lb each
Individual monitor tilt, swivel, portrait/landscape rotation
Mount each monitor anywhere along horizontal beam

PM40-BB103 - MONITOR/KEYBOARD COMBO

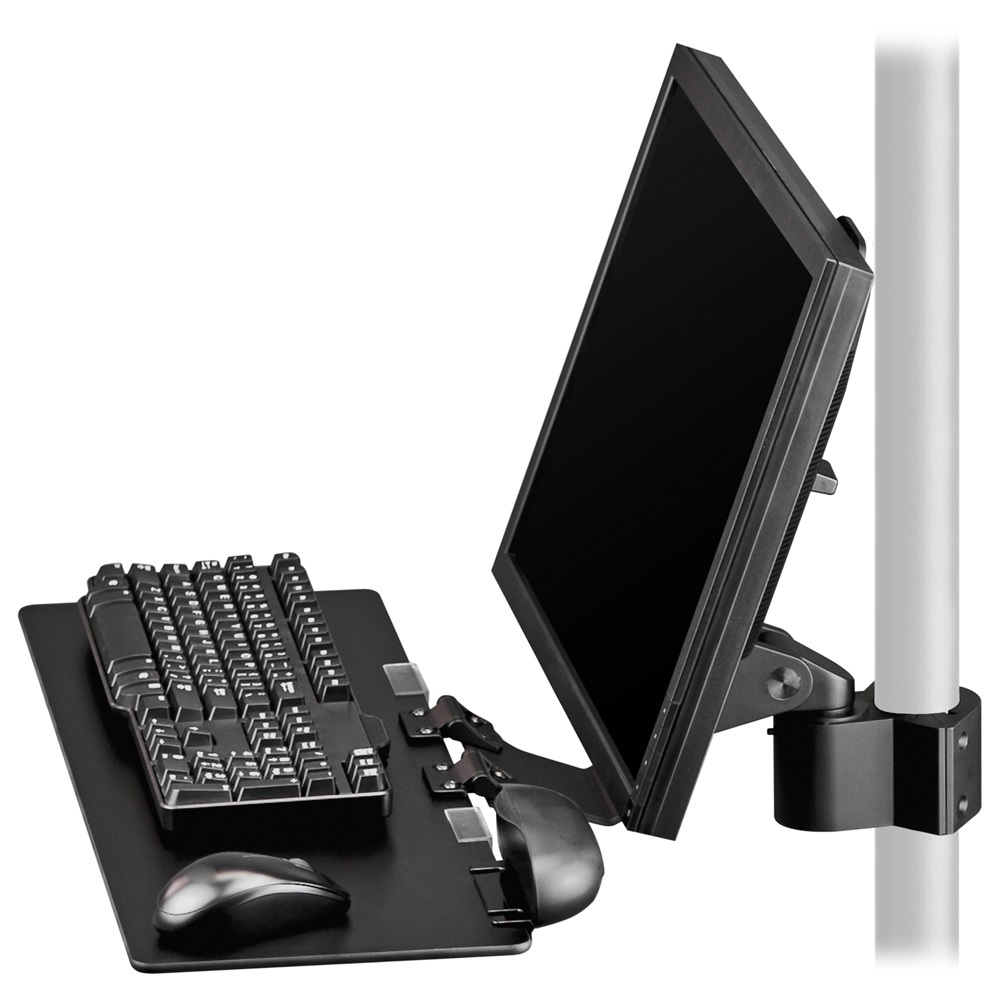

PM40-BB103 keyboard tray - monitor mount with screen leaning back attached to articulating bracket on Ergomart P192 pole - ghosted

Monitor and keyboard combo handles monitors up to 35 lb
Tilt, swivel and monitor portrait/landscape rotation
Optional extensions increase horizontal reach

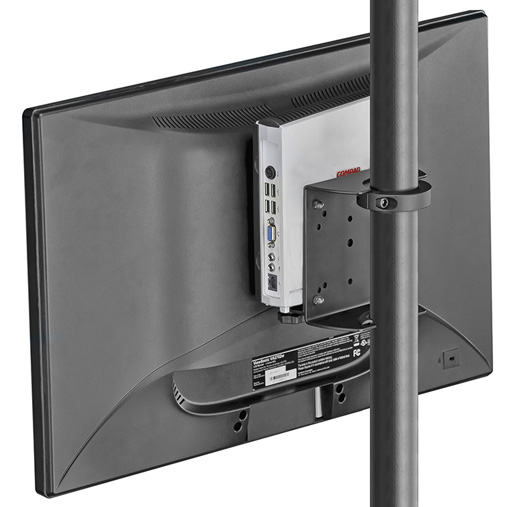

THIN CLIENT HOLDER

Fits Thin Clients and small CPUs from 1.125” to 3.5” wide
Select standalone unit or VESA-compatible front plate to mount additional equipment

CPU HOLDER

Cradles and protects CPUs from 2” to 8.25”
Four sizes and four colors available to match any set-up
Mount anywhere along PM192 or MCART pole

If you have any questions or need assistance in putting together a PM192 or MCART mount, please don’t hesitate to contact Ergomart at 888 420 3200 or [email protected].
