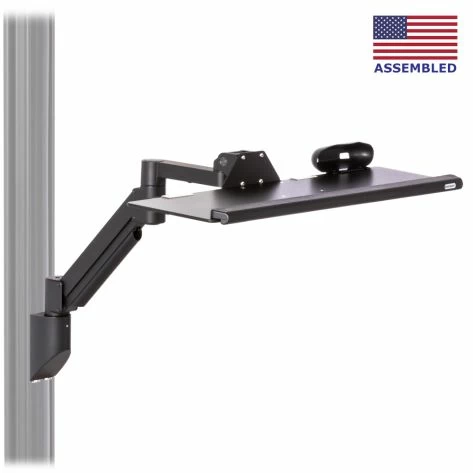

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT FOR EC-TRACK
HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT FOR EC-TRACK

In stock

From $261.75

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT FOR EC-TRACK

USA ASSEMBLED
  • Tilt, swivel and sit-stand height adjustment
  • Customize with six keyboard tray options
  • Fold tray & retract arm when not in use to save space
  • Can be configured for ADA compliance
  • Add other modular mounting devices to create a wall mounted workstation suited to your application
  • Keyboard mount only: track sold separately
Please wait while your content is loading.

REQUIRED ITEMS

WALL TRACK KEYBOARD MOUNT WITH HEIGHT ADJUSTABILITY, TILT, SWIVEL AND LATERAL REACH

The Height Adjustable Keyboard Wall Mount for the EC-TRACK represents the ultimate in keyboard tray adjustability. It provides over 15 inches of instant vertical travel, positive and negative tilt, left to right swivel and up to 29 inches of lateral reach. The keyboard arm mount can be customized with 6 tray options. Multiple points of articulation allow you to stow the keyboard tray to a minimal footprint when not in use, while still providing excellent reach and height adjustment. This keyboard mount arm is ideal for sit-to-stand workstations or multi-user environments.

The Height Adjustable Keyboard Wall Mount is an EC-TRACK Direct Mount modular component that is designed to be placed at any height on Ergomart’s Extended Capacity Vertical Track with the included fasteners and an Allen Wrench. To build a complete workstation for almost any application, simply combine with additional modular mounting devices and accessories. Don't hesitate to email us at sales@ergomart.com or call us at 888 420 3200 with any questions.

The Height Adjustable Keyboard Wall Mount for the EC-TRACK is available in black, metallic gray and matte white.

NOTE: This page is for the Height Adjustable Keyboard Wall Mount for EC-TRACK only. The track and other compatible components are sold separately. Please visit our EC-TRACK system page to view all the options for building a workstation that works for you.

The advantages of the Extended Capacity Vertical Track Computer Monitor Mounting System

The Advantages of Ergomart's Modular Mounting System for Monitors, Workstations, and Other Equipment

Shipping Weight 6.7 lb to 16 lb depending on selections
Shipping Dimensions 20" x 18" x 6" to 26" x 18" x 6" depending on selections
Warranty 5 year limited

SHIPPING GUARANTEE: Black is our quick ship color. Orders received before 12:00 noon CST normally ship the same day if all components are in the color black. Call to ensure your order will ship the same day and determine transit time. The metallic gray color takes longer to ship. Most orders ship from Texas.

If you require expedited shipping, please call an Ergomart customer representative at 888 420 3200 or 214 742 6066 for pricing. In a hurry? Black is our quick ship color.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Black is the default color for this item. For all color options, please call.

Mount Type

Vertical Wall Track

Mounting

Wall Track Mounting

Vertical Extensions

Available

Horizontal Extensions

Call for information

Keyboard Trays

20" Articulating
26" Articulating
20" Articulating with palm rest
26" Articulating with palm rest
Premium NPE Soft Tray
Deluxe - Sliding Right/Left Mouse

Keyboard Tray Height Adjustment

15.63" of instant height adjustability

Keyboard Tray Tilt Range

Up 90o and down 45o

Keyboard Horizontal Reach

Up to 39" of horizontal reach

Track Lengths

Not included

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - FRONT VIEW

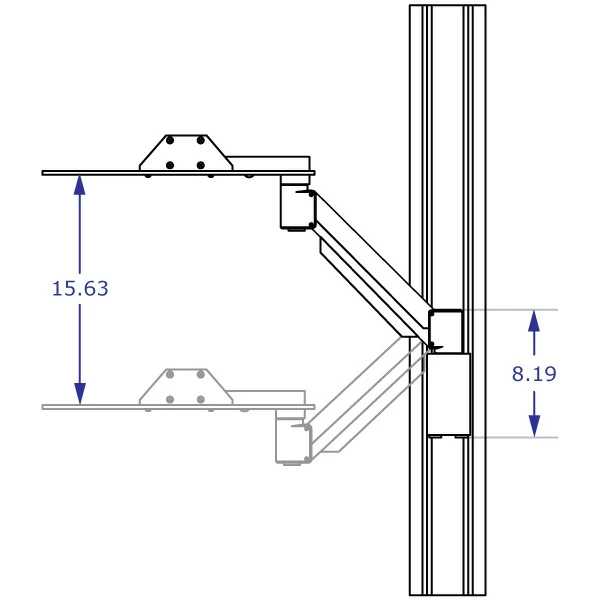

Line Drawing of side view of height adjustment range of keyboard tray for EC-TRACK

The full vertical height adjustment of the keyboard tray is 15.63 inches. When attached to an EC track, the arm mount occupies 8.19 inches of the track length.



KEYBOARD ARM DIMENSIONS WITH STANDARD TRAY - SIDE VIEW

COMBO2 specification drawing of wall mount track system with extended monitor arm from side view

Here the arm is extended out to its furthest position with 8.5 inch deep keyboard tray front at just over 36 inches from the wall.

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - TOP VIEW

COMBO2 specification drawing of wall mount track system top view depicting standard keyboard arm extended at its lowest position

The TRS 20" and 26" Keyboard Trays (that are both 8.5 inches deep) extend an ample 34.75 inches.

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - LATERAL EXTENSION - COMPACT SETTING

COMBO2 specification drawing of wall mount track system with extended standard tray arm in horizontal position with component measurements

With both the 20" and 26" Phenolic Keyboard platforms, when the keyboard tray arm is folded in upon itself the front of the tray extends out only 13.5 inches from the mounting surface.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT FOLDED - COLLAPSED - SIDE VIEW

COMBO2 specification drawing of wall mount track system from side view with keyboard tray arm folded back toward wall

Arm folded to left side of wall track with EGT keyboard tray in upright folded position. In this extreme position, the keyboard is 6.5 inches from the wall or mounting source. Note that the arm, when folded, is flush with the wall track mount.

HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - STANDARD TRAY - LATERAL REACH

COMBO2 specification drawing of wall mount track system depicting an extended standard tray arm travel and reach

A wide range of keyboard trays are available. Shown here is an 8.5 inch deep TRS type Keyboard Tray.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - NPE SOFT TRAY - LATERAL REACH

COMBO2 side view specification drawing of wall mount track system depicting an extended soft tray arm

Shown with the Premium NPE Soft Tray. Unlike other trays, this unique tray is encapsulated in a soft foam rubber.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - BANANA BOARD TRAY - LATERAL REACH

COMBO2 specification drawing of wall mount track system depicting vertical travel and lateral reach of deluxe left right mousing tray arm

Shown with the Deluxe Left Right Moving Mouse Keyboard Tray aka the Banana Board. The Banana Board allows the user to easily choose either left or right mouse placement.  It extends as much as 39.25 inches from the wall.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - STANDARD TRAY - TILT

COMBO2 specification drawing of wall mount track system depicting lateral reach and head tilt of keyboard tray arm

When the arm with the 26 x 8.5 inch Keyboard Tray is maximally extended, the front edge of the keyboard tray reaches out 34.75 inches from the mounting surface.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - NPE SOFT TRAY - TILT

COMBO2 specification drawing of wall mount track system depicting an extended soft tray arm tilting range

The arm with the NPE Premium Keyboard Tray extends as far out as 38.25 inches from the wall in the middle position.



HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT - BANANA BOARD TRAY - TILT

COMBO2 specification drawing of wall mount track system depicting an extended arm supporting a deluxe left right mousing tray tilted and down

At the middle position, the arm and Deluxe Left Right Moving Mouse Keyboard Tray extend the farthest: a full 39.25 inches.



Leave a Review
You're reviewing:HEIGHT ADJUSTABLE KEYBOARD WALL MOUNT FOR EC-TRACK
Start Rating
  • Does the mount slide easily on the track for readjustment?

    The EC-TRACK is designed to have mounts locked into one vertical position during initial installation. To move an arm you will need to remove the payload, use an allen wrench to loosen the set screw, adjust the mount on the track, tighten set screw with allen wrench and put the payload back on the mount. IMPORTANT NOTE: This height-adjustable arm delivers instant movement up and down. In most cases the built in range of the arm eliminates any requirement to reposition the mount on the wall track. For instant vertical height adjustment along a track, review our Leverlift family of products.

  • Is there a way to increase the reach for the arm?

    You can use our HD extensions coupled with this arm to increase your overall reach. Contact Ergomart for assistance selecting the right extension for your project.
