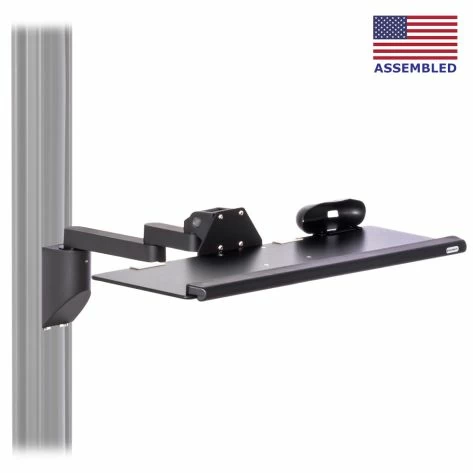

Articulating keyboard wall mount for EC Track shown with 26-inch keyboard tray with palm rest and mousetrap and 7.5-inch and 3.5-inch horizontal extensions MODULAR
Articulating Keyboard Wall Mount for EC-TRACK

In stock

From $180.87

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

Articulating Keyboard Wall Mount for EC-TRACK

USA ASSEMBLED MODULAR
  • Durable wall mount with exceptional adjustment
  • Positive/negative tilt & left/right swivel
  • Fold away tray when not in use for saved space
  • Extensions add up to 14" reach & articulation points
  • Add other modular mounting devices to create a wall mounted workstation suited to your application
  • Keyboard mount only: track sold separately
Please wait while your content is loading.

REQUIRED ITEMS

WALL TRACK KEYBOARD TRAY MOUNTS FEATURE TILT, SWIVEL AND OPTIONAL EXTENSIONS

The Articulating Keyboard Wall Mount for the EC-TRACK provides exceptional adjustability and several tray options. The attached keyboard tray can be tilted upwards 90 degrees, allowing for the keyboard to be stowed away when not in use. The tray also tilts downward, allowing the user to comfortably position the tray during use. Left to right swivel is included, generally restricted only by the edge of the tray reaching the mounting surface. With the standard configuration without extensions, the tray edge sits at 13.75 inches from the wall. Keyboard tray reach can be increased with optional extensions, providing an additional 3.5 to 14 inches of reach. There are 6 keyboard options to choose with multiple widths and attachments such as palm rests and mousing platforms.

The Articulating Keyboard Wall Mount is an EC-TRACK Direct Mount modular component. It can be attached at any height on Ergomart's Extended Capacity Vertical Track with simply an Allen wrench and the provided fasteners. It's easy to create an instant wall-mounted workstation suited for your application when combined with other modular mounting devices. Please contact us with any questions.

The Articulating Keyboard Wall Mount for the EC-TRACK is available in black, metallic gray and matte white.

BUILD YOUR EC TRACK SOLUTION

VIEW
SERIES-118 MOUNTING CATALOG

BROWSE
ALL EC-TRACK BUYING OPTIONS

EXPLORE
RECENT EC-TRACK CUSTOM PROJECTS

LEARN
EC-TRACK REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

HEAVY-DUTY TRACKS • WIRE MANAGEMENT

VERSATILE • ADAPTABLE • ECONOMICAL






Looking for Instant Height Adjustment?

This product does not provide instant height adjustment, however, we offer other components that do:

NOTE: This page is for the Articulating Keyboard Wall Mount for the EC-TRACK only. The track and other compatible components are sold separately. Please visit our EC-TRACK system page to view all the options for building a workstation that works for you.

Shipping Weight 6.75 lb to 13.95 lb depending on selections
Shipping Dimensions 20" x 18" x 6" to 26" x 18" x 6" depending on selections
Warranty 5 year limited

SHIPPING GUARANTEE: Black is our quick ship color. Orders received before 12:00 noon CST normally ship the same day if all components are in the color black. Call to ensure your order will ship the same day and determine transit time. The metallic gray color takes longer to ship. Most orders ship from Texas.

If you require expedited shipping, please call an Ergomart customer representative at 888 420 3200 or 214 742 6066 for pricing. In a hurry? Black is our quick ship color.

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Black is the default color for this item. For all color options, please call.

Mount Type

Vertical Wall Track

Mounting

Wall Track Mounting

Vertical Adjustment

Readjustable along track

Horizontal Extensions

Light duty horizontal

Keyboard Trays

20" Articulating
26" Articulating
20" Articulating with palm rest
26" Articulating with palm rest
Premium NPE Soft Tray
Deluxe - Sliding Right/Left Mouse

Keyboard Tray Height Adjustment

N/A

Keyboard Tray Tilt Range

Up 90o and down 45o

Keyboard Horizontal Reach

Up to 28" using the standard tray and two 7" extensions

Track Lengths

Not included

ARTICULATING KEYBOARD MOUNT TILT
SIDE VIEW

Side view line drawing of Articulating Keyboard Wall Mount for EC-TRACK showing the tray on a 7-inch extension in flat and folded up positions.

The keyboard tray is shown in the extended position on a 7 inch extension.  The tray front edge reaches 22.38 inches from the track when in the horizontal position. When folded, the tray sits only 13.75 inches from the track mount.



ARTICULATING KEYBOARD MOUNT
20" TRAY SWIVEL

COMBO1 specification drawing of computer wall mount track system depicting tray swiveling left and right from top view

20 inch wide keyboard tray left and right swivel is limited by the wall to which it is mounted. At the center setting, our basic keyboard with no added extension reaches out a comfortable 13.75 inches from the mounted surface.



ARTICULATING KEYBOARD MOUNT - 20" TRAY SWIVEL WITH EXTENSION ARM

COMBO1 specification drawing of computer wall mount track system depicting tray articulation and swivel on 7 inch extension from top view

In the center position, the 20-inch wide keyboard tray with a 7-inch extension arm extends horizontally about 21 inches from the wall. Note that the extensions are named according to the net amount of length that they add to the mount. Hence the configuration with two 7-inch extensions would extend the edge of the tray to about 28 inches from the wall. In the configuration pictured above, the arm can be retracted to approximately 13.25 inches without folding the tray.



ARTICULATING KEYBOARD MOUNT - WITH ARM EXTENDED AND COLLAPSED

COMBO1 specification drawing of computer wall mount track system depicting tray extended away from mount and collapsed against wall with tray folded up

The keyboard tray with the 7 inch extension is shown folded up and collapsed against the wall. The 26-inch keyboard tray is shown with the black outline and 20-inch tray is shown in gray. When adjusted to its most compact position, the arm with the tray tilted up will extend 5.5 inches from the wall track. In the most extended position the tray reaches out to 21 inches. The 26 inch keyboard tray includes the Mouse Trap on the back of the tray.



KEYBOARD WALL TRACK MOUNT
TOP VIEW

COMBO1 specification drawing of computer wall mount track system depicting monitor tilter VESA bracket clearance from mounting plane

The wall track mount reaches 4.63 inches from the wall. With the tilter head the unit reaches 6.38 inches from the wall.



KEYBOARD WALL TRACK MOUNT
SWIVEL - TOP VIEW

COMBO1 specification drawing of computer wall mount track system depicting monitor tilter left to right swivel capability

The Wall Track Mount is able to pivot/swivel 90 degrees from center. When mounted to a wall, the keyboard tray edge will impede full pivoting. However, if the wall track is mounted to a post or beam that is the same 5 inch width of the track, 180 of swivel is possible.
  • Does the mount slide easily on the track for readjustment?

    The EC-TRACK is designed to have mounts locked into one vertical position during initial installation. To move the mount you will need to remove the payload, use an allen wrench to loosen the set screw, adjust the mount on the track, tighten the set screw with an Allen wrench and put the payload back on the mount. IMPORTANT NOTE: The height adjustable keyboard wall mount for the EC-TRACK delivers instant movement up and down. In most cases the built in range of the arm eliminates any requirement to reposition the mount on the wall track. For instant vertical height adjustment along a track, review our Leverlift family of products.
