SKU

TRS91HD

TRS91HD
Your Customization
TRS91HD heavy-duty monitor and keyboard tray wall-mounted with extension side view
TRS91HD Heavy-Duty Wall Mount Monitor and Keyboard

In stock

From $244.46

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

TRS91HD Heavy-Duty Wall Mount Monitor and Keyboard

USA ASSEMBLED
Please wait while your content is loading.

REQUIRED ITEMS

Heavy-Duty Wall Mount Data Entry Workstation for Computer Keyboard, Mouse and Monitor

  • LCD Monitor Keyboard Combo handles monitors up to 35 pounds
  • Easily and intuitively moved from position to position
  • Choose a 20 or 26 inch tray with or without a palm rest
  • Works great with LCDs, Panel PCs, and Apple iMac
  • Use in office, medical, technical, light industrial settings
  • Choose from Black, Metallic Gray & Matte White
  • Easily adjust the monitor distance above the tray
  • Keyboard is securely affixed to tray with Velcro
  • Standard lead time is 3 to 8 business days

The TRS91HD LCD Monitor Wall Mount with Keyboard Tray Combo provides a heavy-duty wall-mounted solution for busy and limited space workstations. The TRS91HD easily handles flat screens from 15" to 24" and includes either a 20" or 26" wide tray. The tray folds up and out of the way when not in use giving the unit a profile of just over 9" deep. Extensions can add up to an additional 10.5" of horizontal reach while enhancing left and right swivel. The keyboard is secured by Velcro and the longer tray option includes a mouse holder that can be attached in multiple locations. The monitor can be adjusted above the keyboard tray with over 6.25" of vertical travel. Both the monitor and tray can be tilted to most required angles. This LCD keyboard wall-mounted system is produced for long term durability with primarily steel and aluminum components and is a USA Designed and Assembled product. Each component is designed to stand up to years of abuse and intense use. An ideal choice for busy clinics, dental offices, kiosks and cramped work areas. This system is extensively used wherever people need quick access in the standing posture. Truly user friendly adjustability allows a taller user to tilt the entire assembly up and key and moments later a shorter user steps up and tilts the unit downward for effortless and virtually instantaneous use.

Shipping Weight 11 pounds
Shipping Dimensions 26" x 18" x 8"
Warranty 3 year limited

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

Mount Type

Monitor and Keyboard Wall Mount

Number of Monitors

1

Mounting

Wall Mounted

Weight Range

Up to 35 lb for monitor (with 1 lb for keyboard/mouse)

Horizontal Extensions

Light duty 3.5", 7", and 10.5"

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape

Yes

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° based on monitor size/tilt and extension

Monitor Tilt Range

+90° up, -45° down when not limited by wall

Keyboard Trays

20" x 8.5" Tray 26" x 8.5" Tray

Keyboard Tray Tilt Range

+135° up, -80° down

Keyboard Horizontal Reach

Up to 28.4" with optional extensions

Monitor Height Relative to Keyboard

VESA plate 6.7 to 13.4" above keyboard

Perspective View
TRS91HD Wall Mount

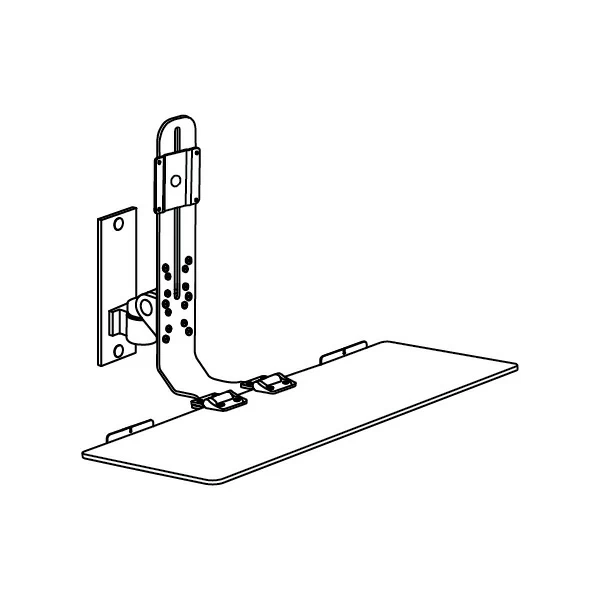

TRS91HD Specification drawing wall mounted monitor keyboard bracket from isometric perspective with 20 inch tray

The TRS91HD LCD wall mount with keyboard tray.  Clearly depicted are alternate hole patterns that the installer may use change the height of the vertical backbar bracket and thus change the geometry between the tray height and the wall mounting point.



Front View
Backbar and Tray
Configuration Options

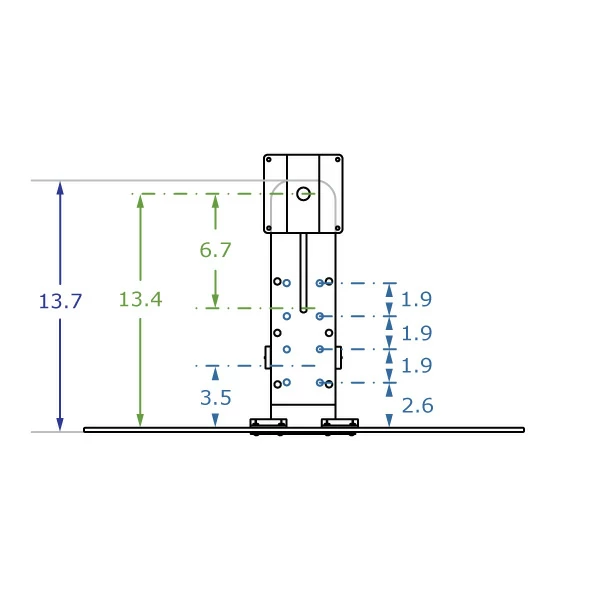

TRS91HD specification drawing showing tilter mounting points and slider range

The backbar assembly features several options for configuring the relative height of the keyboard and monitor. There are three 1.9” square patterns that can be used to mount the backbar in high, medium and low positions on the tilter head. The rotating VESA plate for the monitor can be set at any point along the 6.7” vertical slot and can be positioned as high as 13.4" and as low as 6.7” from the tray.



Front View
Backbar and Tray
Configuration Options

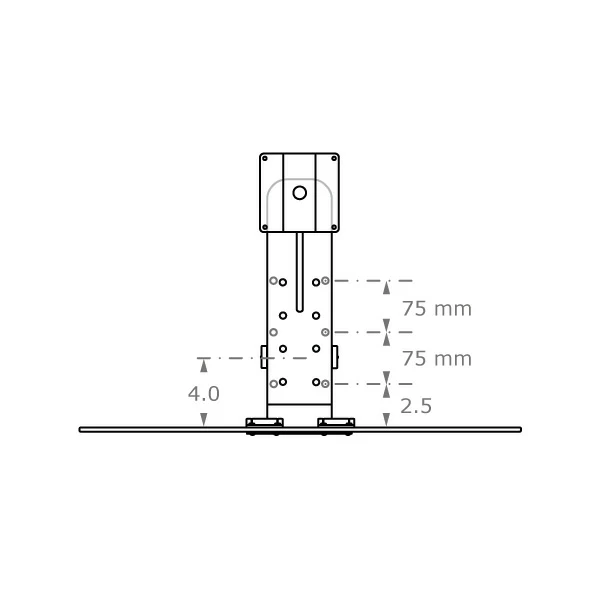

TRS91HD specification drawing showing 75mm attachment mounting positions

There are also two 75 mm hole patterns that can be used to mount the backbar in high or low positions on the tilter head or another 75 mm VESA-compatible device.

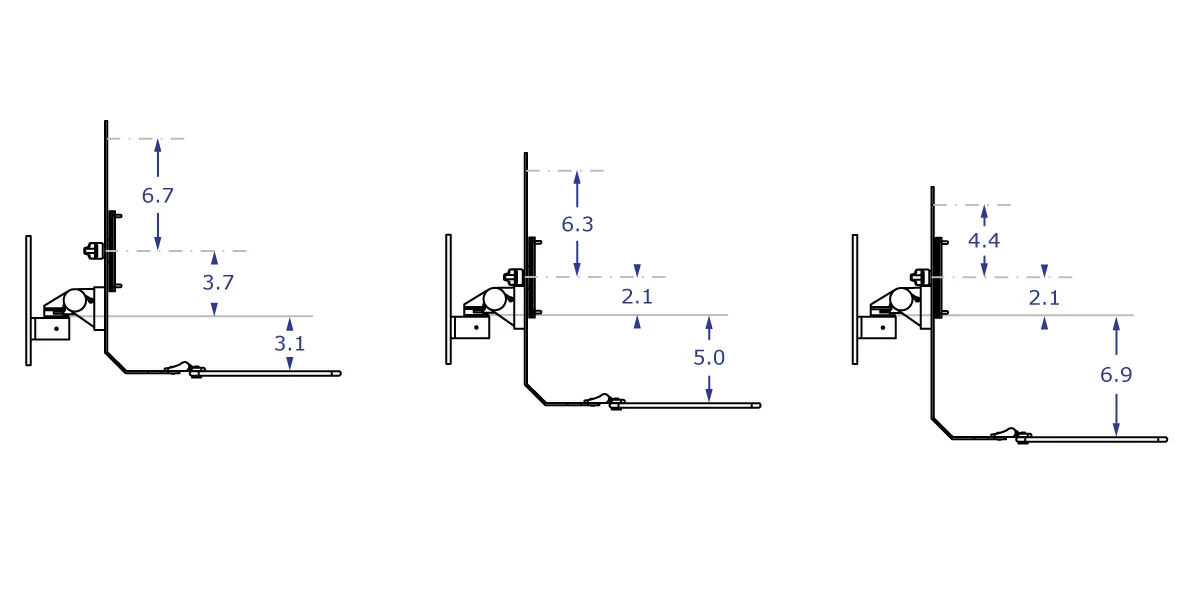

Side View
Monitor Height Relative to Keyboard Tray and Mounting Location

TRS91HD Specification drawing illustrating measurements for different backbar mount locations

This set of drawings illustrates the three positions available on the backbar for mounting it on the tilter head. In all cases, the maximum distance between the center of the monitor’s VESA pattern and the keyboard is 13.4”. The first drawing has the back bar in the high position allowing the monitor VESA plate to be adjusted downward along the entire length of the 6.7” slot. In the other two positions, this range is reduced since part of the slot is blocked due to interference from the tilter head.

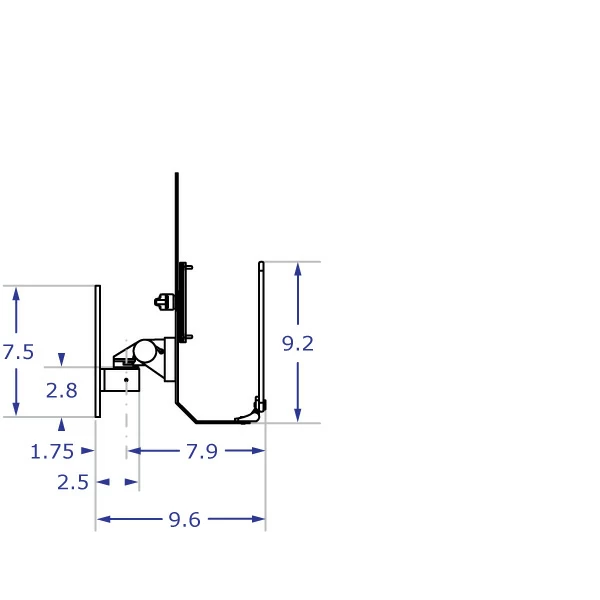

Side View
with Folded Standard Tray

TRS91HD Specification drawing of wall mounted monitor keyboard bracket from side view with tray folded up

When the tray is folded up, the TRS91HD extends only 9.6” from the wall.

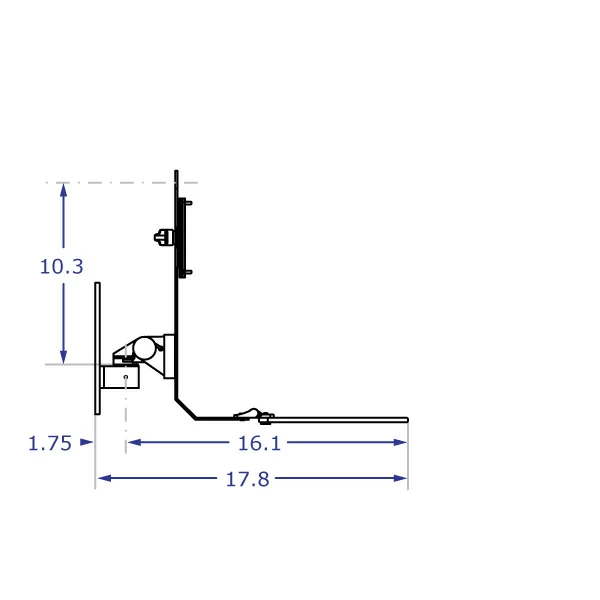

Side View
with Standard Tray

TRS91HD Specification drawing of wall mounted monitor keyboard bracket from side view with tray open

This side view shows the TRS91HD without any optional extensions. The front edge of the standard tray without the palm rest extends 17.8” from the wall. The back bar is mounted on the tilter in the high position. The center of the VESA adaptor at its highest position is 10.3” above the top of the body of the mount receiver. Note that this will be slightly lower when using the standard tilter head.

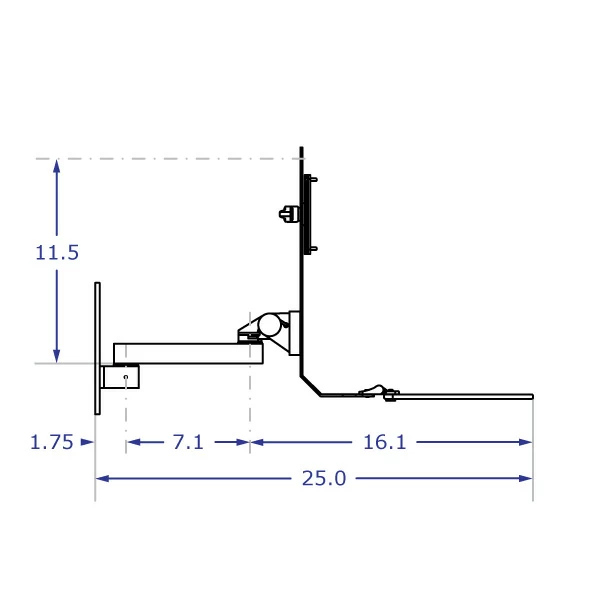

Side View
with 7" Extension

TRS91HD Specification drawing of HD wall mounted monitor keyboard bracket from side view with tray open with a 7 inch extension

This side view shows the TRS91HD with a 7” optional extension. The front edge of the standard tray without the palm rest extends 25” from the wall. The back bar is mounted on the tilter in the high position. The center of the VESA adaptor is 11.5” above the top of the body of the mount receiver in its highest position, due to the additional height of the extension.

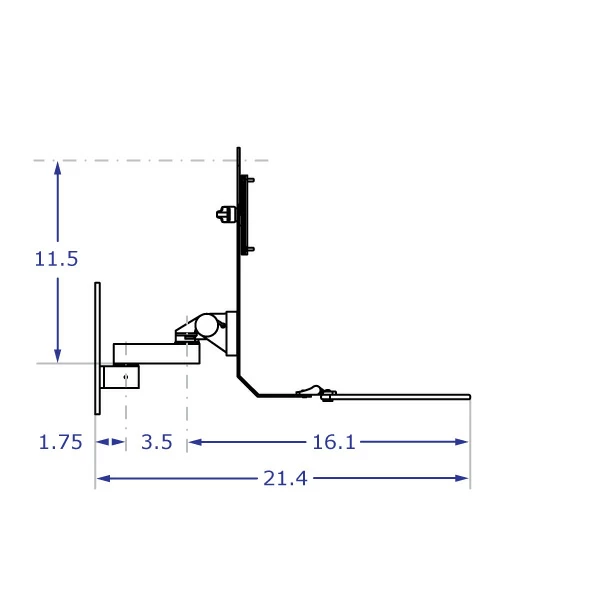

Side View
with 3.5" Extension

TRS91HD Specification drawing of HD wall mounted monitor keyboard bracket from side view with tray open with a 3 inch extension

This side view shows the TRS91HD with a 3.5” extension. The front edge of the standard tray without the palm rest extends 21.4” from the wall. The center of the VESA adaptor at its highest position is 11.5” above the top of the body of the mount receiver, due to the additional height of the extension.

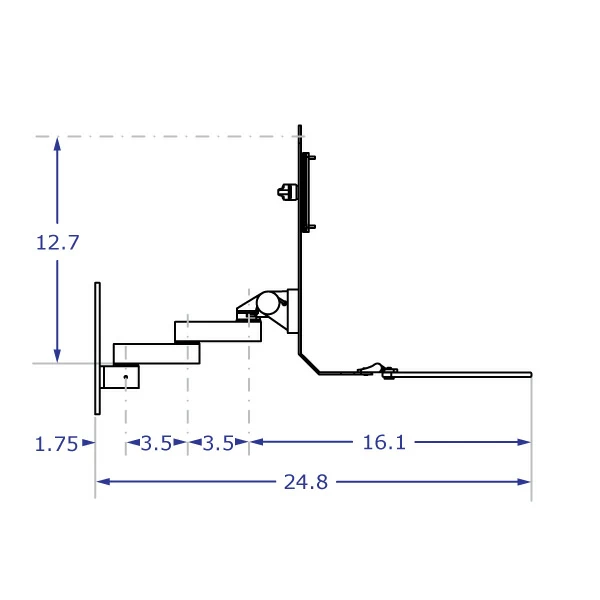

Side View
with Two 3.5" Extensions

TRS91HD Specification drawing HD monitor keyboard bracket from side view with tray open with two 3 inch extensions

This side view shows the TRS91HD with two 3.5” extensions. The front edge of the standard tray without the palm rest extends 24.8” from the wall. The center of the VESA adaptor at its highest position is 12.7” above the top of the body of the mount receiver, due to the additional height of the extensions.



Side View
with 7" and 3.5" Extensions

TRS91HD Specification drawing of HD wall mounted monitor keyboard bracket from side view with tray open with 3 and 7 inch extensions

This side view shows the TRS91HD with a 7” and a 3.5” extension. The front edge of the standard tray without the palm rest extends 28.4” from the wall. The center of the VESA adaptor at its highest position is 12.7” above the top of the body of the mount receiver, due to the additional height of the extensions.



Top View
20" Standard Keyboard Tray

TRS91HD specification drawing of keyboard monitor wall mount top view with 20-inch keyboard tray

This top view of the TRS91HD shows the distance from the wall to the front of the VESA plate is 5.2”. The keyboard tray extends 12.7” from the VESA plate. The 1.6” deep optional palm rest adds 0.7” to the overall depth.



Top View
26" Standard Keyboard Tray

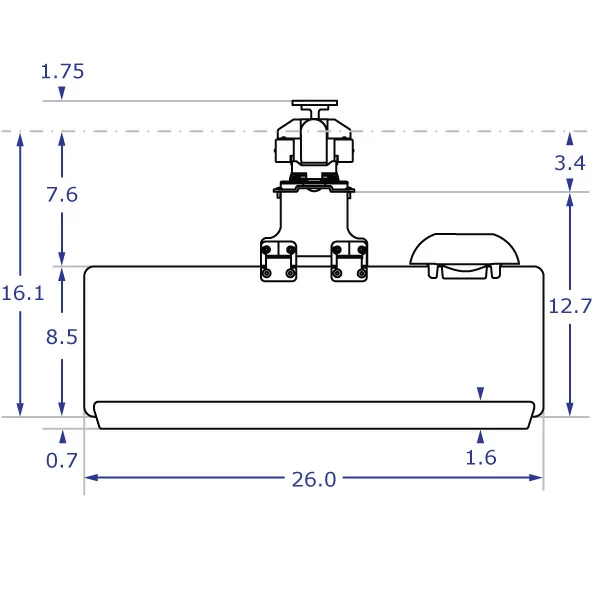

TRS91HD specification drawing of keyboard monitor wall mount top view with 26-inch keyboard tray

This top view includes the 26-inch folding keyboard tray with the “mouse trap” and the optional palm rest. The distance from the wall to the front of the VESA adaptor is 5.2”. The keyboard tray reaches out 12.7” from the VESA plate. The optional palm rest is 1.6” deep and adds 0.7” of depth to the assembly.
