The TRS91 LCD Monitor Wall Mount with Keyboard Tray Combo is ideal for crowded offices and work spaces. This is a sturdy but flexible combo designed for productivity and space efficiency. The TRS91 easily handles flat screens from 15" to 24" and includes a 20" keyboard tray or a 26" tray for a keyboard with mouse applications. When wall mounted the system can be folded to within 9.5" of the wall when not in use. The BB103 back bar has three possible mounting points to change the orientation between the mounting point on the wall and the position of the tray and monitor. This LCD Monitor Wall Mount with keyboard tray system also features a vertical slot that allows for 6.7" of vertical positioning for the monitor. This means the user can bring the monitor very close to the keyboard or further up. Use this same adjustment to place monitors of various sizes in their optimal relationship to the tray. A small footprint and nice range of adjustability make the TRS91 a solid space-saving solution for computer time-clock stations, warehouse areas, packaging, and fulfillment workstations. Use anywhere an LCD and keyboard is needed and space is at a premium. Great for tightly packed computer rooms and server racks areas.
|Shipping Weight||11 pounds|
|Shipping Dimensions||26" x 18" x 8"|
|Warranty||3 year limited|
Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.
The TRS91 LCD Bracket with Keyboard Tray extends 17.25 inches from the wall and comes with either a 20 or 26 inch wide keyboard tray that folds up for easy storage.

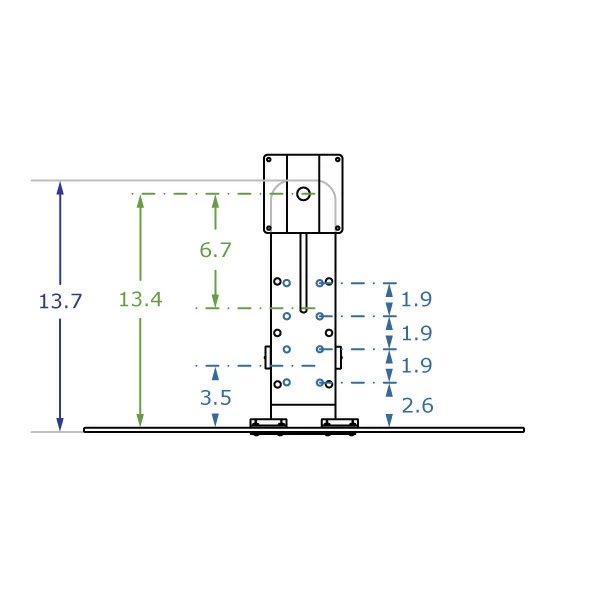

The backbar assembly features several options for configuring the relative height of the keyboard and monitor. There are three 1.9” square patterns that can be used to mount the backbar in high, medium and low positions on the tilter head. The rotating VESA plate for the monitor can be set at any point along the 6.7” vertical slot and can be positioned as high as 13.4" and as low as 6.7” from the tray.
There are also two 75 mm hole patterns that can be used to mount the backbar in high or low positions on the tilter head or another 75 mm VESA-compatible device.

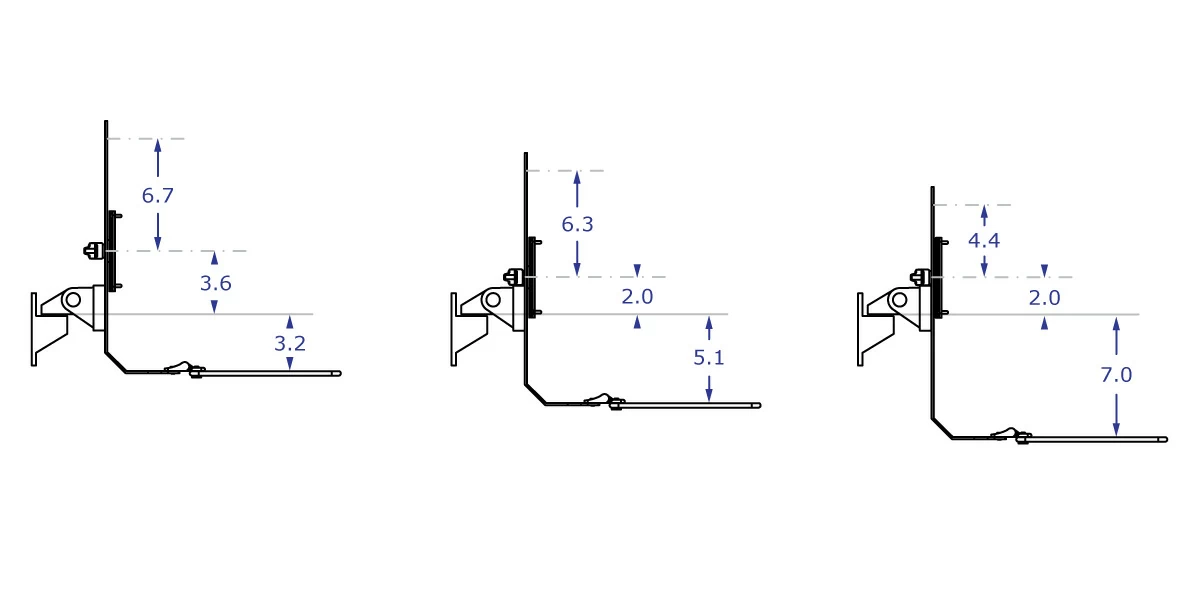

This set of drawings illustrates the three positions available on the backbar for mounting it on the tilter head, shown independently from the rest of the mounting assembly. In all cases, the maximum distance between the center of the monitor’s VESA pattern and the keyboard is 13.4”. The first drawing has the back bar in the high position allowing the monitor VESA plate to be adjusted downward along the entire length of the 6.7” slot. In the other two positions, this range is reduced since part of the slot is blocked due to interference from the tilter head.
When the tray is folded up, the TRS91 extends only 9.2” from the wall.
In this side view of the TRS91, the front edge of the standard tray without the palm rest extends 17.4” from the wall. The back bar is mounted on the tilter in the high position. The center of the VESA adaptor is 10.2” above the top of the body of the mount receiver.
This top view of the TRS91 shows the distance from the wall to the front of the VESA plate is 4.6”. The keyboard tray extends 12.7” from the VESA plate. The 1.6” deep optional palm rest adds 0.7” to the overall depth.

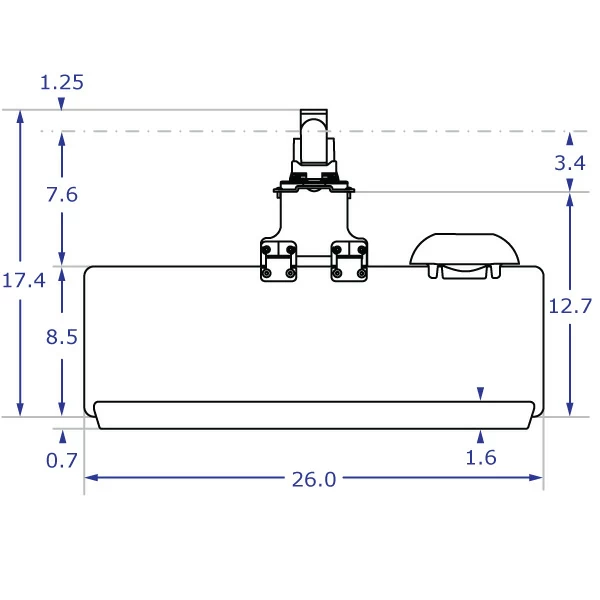

This top view includes the 26-inch folding keyboard tray with the “mouse trap” and the optional palm rest. The distance from the wall to the front of the VESA adaptor is 4.6”. The keyboard tray reaches out 12.7” from the VESA plate. The optional palm rest is 1.6” deep and adds 0.7” of depth to the assembly.
This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.
This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.
