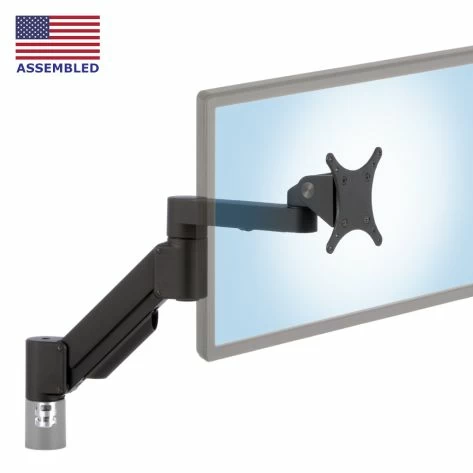

SAA2010 monitor arm desk mounted in high position extended in black - tile MODULAR SERIES-118
SAA2010 Compact Monitor Arm

In stock

From $209.37

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

SAA2010 Compact Monitor Arm

USA ASSEMBLED MODULAR SERIES-118
Please wait while your content is loading.

REQUIRED ITEMS

IDEAL FOR TIGHT SPACES: FREELY FLOAT YOUR MONITOR ABOVE THE DESK

  • Extends out to 18.6" and folds into 3.9"
  • Floats the attached monitor within a 9.6" vertical range
  • Optional 2" and 6" extensions add height
  • Monitor pivots for landscape and portrait viewing
  • The display can tilt anywhere within its 200 degree range
  • Accommodates monitors between 4 to 34 pounds
  • Flex Mount Kit can clamp to a desk, mount to a wall and more
  • VESA 75 x 75mm and 100 x 100mm compliant
  • Cables are concealed within the arm
  • Please watch the YouTube Video for monitor arm installation tips and adjustment instructions

When desk space is at a premium, the SAA2010 allows you to reclaim valuable work surface area while also providing the ability to reposition the monitor for optimal comfort with a simple grasp, move and release. If the desktop does not inhibit movement, the SAA2010 offers 9.6" of vertical and 18.6" horizontal adjustment. When the monitor is not in use, the arm can be folded back into a mere 3.9" in depth to further clear the work environment.

The SAA2010 is extremely flexible and versatile. The arm itself rotates 360 degrees at 3 separate joints. The tilter head allows for 200 degrees of monitor tilt and pivots from landscape to portrait. The available mounts provide a variety of options to best suit your needs - including the Flexible Mount Kit which offers 6 configurations in one mount.

The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components. You may consult the table and the Drawings tab to determine the compatibility of various components.

Shipping Weight 11 pounds
Shipping Dimensions 23" x 14" x 4"
Warranty 5 year limited

INSTALLING AND ADJUSTING YOUR SAA ARM:

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

MORE THAN 20 MOUNT OPTIONS
INTEGRATES WITH FOUR SYSTEMS


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW ALL SIMILAR MOUNTING DEVICES

MOUNT KITS
VIEW COMPATIBLE INSTALLATION OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF



  • SCREEN ROTATION

    Monitor arm shown rotating 360 degrees at the tilterhead from portrait to landscape SAA2010

    The screen can rotate 360° on the tilter head allowing the user to switch from portrait or landscape viewing with ease.

  • TILTERHEAD ROTATION

    LCD arm tilter shown rotating left to right 180 degrees SAA2010

    This top view shows how the direction of the monitor can be changed by rotating the tilter horizontally within its 180° range, allowing two people sitting on opposite sides of a desks to take turns viewing the screen.

  • TILTERHEAD ADJUSTMENT

    Monitor arm adjusted 90 degrees upwards and 45 degrees downwards from horizontal SAA2010

    The monitor can be adjusted 90° upward and 45° downward with respect to the vertical orientation,allowing the user to select to most comfortable viewing angle.

  • ARM EXTENSION

    Monitor arm adjusted from folded to full extension SAA2010

    The arm can be extended up to 19.75" from the mount for up close viewing, or folded to 3.5" to create space as illustrated in this view from the top.

  • ELBOW ROTATION

    Monitor arm shown rotating 360 degrees at the elbow joint SAA2010

    The forearm can also rotate 360° at the elbow joint where it meets the lifting arm.

  • ARM ROTATION

    Monitor arm shown rotating 360 degrees at the base SAA2010

    As seen in this top view, the arm can rotate a full 360° at the base.

  • VERTICAL ARM RANGE

    Monitor arm adjusted from lowest to highest horizontal position SAA2010

    The arm enables a monitor height adjustment range of 9.5" from 4.5" below the horizontal position to 5" above, provided that the arm's vertical motion is not obstructed.

Mount Type

Monitor Arm

Number of Monitors

1 as is
2 with dual bracket

Mounting

  • Flex Kit A
  • Tall Flex C
  • Wall Kit D
  • Heavy-Duty Dual Wall D3
  • Pole Mount E
  • HD Track F
  • Thru Desk G
  • Slatwall H
  • Dual Pole Mount J
  • Column Mount K
  • Multi-Surface Offset K2
  • Dual Desk L
  • Horizontal Track Slider M
  • Horizontal Track Slider M2
  • Wall Mount Roller Trolley N2
  • Economical Flex Kit P
  • Desk Top Roller Trolley Q
  • OEM Mount R
  • Medical Dovetail S
  • Ceiling Roller Trolley U
  • Pole Top Mount Y

Weight Range

4-34 lb

Monitor Horizontal Reach

18.6" from center of mounting pin to front of VESA plate

Vertical Adjustment

9.6" instant adjustment

Horizontal Extensions

4.5", 9.5", 15.5" HD extensions
Weight restrictions may apply

VESA Options

75 x 75
100 x 100
100 x 200
200 x 200

Portrait to Landscape

Yes

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° based on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

The SAA2010 belongs to the SERIES-118 family of products, which offers a great deal of flexibility in configuring your product using a variety of mounting points with optional vertical or horizontal extensions and other accessories. Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components. You may consult the table below to determine the compatibility of various components.


Category Mount Kits Vertical
Extensions
Heavy Duty
Horizontal
Extensions
Category Does product below
fit into product
to the right?
Mount
Kit A
Mount
Kit C
All Other
Mount
Kits
2"
6"
5"
8"
12"
4.5", 9.5"
and 15.5"
Monitor Arm SAA2010 Y Y Y Y Y Y
Vertical
Extensions
2" and 6" Y Y Y Y Y Y
   5", 8", and 12" - Y Y - Y Y
Heavy Duty
Horizontal
Extensions
4.5", 9.5", and 15.5" - Y Y - Y Y



Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

The measurements in these drawings are relative to a generic mounting kit into which the arm is installed: the horizontal measurements are relative to the center of the mounting pin, while the vertical measurements are relative to the top of the mounting kit. As you configure your mounting solution, please refer to the specifications of the individual mounting kits to determine the reach and adjustment range within your workspace.



SAA2010 - VERTICAL REACH

SAA2010KIT compact monitor arm specification drawing demonstrating the arm extended in high, mid and low positions with measurements

Side view of the SAA2010. With no obstructions, the arm offers 9.6" of vertical travel and has a horizontal reach of up to 18.6" from the center of the mounting pin to the front of the VESA plate.



SAA2010 - SIDE VIEW

SAA2010KIT compact monitor arm specification drawing demonstrating the arm folded in high, mid and low positions with measurements

Side view of the SAA2010. In this illustration, the arm is folded so that the monitor is perpendicular to the wall, if wall-mounted. The distance from the center point of the mounting pin to the center of the VESA plate depends on the vertical position of the arm.



SAA2010 - DESK MOUNTED HORIZONTAL REACH

SAA2010KIT compact monitor arm specification drawing top view showing the arm in fully extended and folded positions with measurements

Top view of SAA2010 when desk mounted. When fully extended, the arm reaches out as far as 18.6". When retracted in the horizontal position, the arm can be folded into as little as 3.9".



SAA2010 - DESK MOUNTED MIN HEIGHT

SAA2010KIT compact monitor arm specification drawing with arm desk-mounted shown with and without an extension in lowest position

Side-view of the SAA2010 when desk-mounted. The surface of the desk will inhibit the arm from traveling to its lowest possible position. As a result, the total instant vertical adjustability will be limited to 9" (7.7" with Mount Kit A) compared to 9.6" with the wall mount option. To reclaim the range of motion, optional vertical extensions can be added. Please note, Mount Kit A is not compatible with the 5, 8 and 12 inch extensions.



SAA2010 - DESK MOUNTED MAX HEIGHT

SAA2010KIT compact monitor arm specification drawing with arm desk-mounted shown with and without an extension in highest position

Side-view of the SAA2010 when desk-mounted. The figure shows the impact of adding vertical extensions on the maximum height the arm can reach. The 12" extension (with Mount Kit C) allows the maximum height to reach 26.3".



SAA2010 - VERTICAL EXTENSION TABLE
MOUNT KIT A

Vertical Extension Table for the SAA2010 with Mount Kit A

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit A.



SAA2010 - VERTICAL EXTENSION TABLE
MOUNT KIT C

Vertical Extension Table for the SAA2010 with Mount Kit C

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit C.



Front view of V22 200 x 200 mm VESA adapter plate for large computer monitors and TVs
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$22.05
Front view of V24 200 x 400 mm VESA adapter plate for very large computer monitors and TVs
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$27.56
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.10
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.15
Large Dual Monitor Bracket with 100mm VESA
Large Dual Monitor Bracket with 100mm VESA

ADJ1430-VSL1

Large adjustable dual monitor bracket for two monitors each measuring up to 30 inches in width and with 100x100 mm VESA hole patterns.

QTY:
$71.22
Large Dual Monitor Bracket with 100x200mm VESA
Large Dual Monitor Bracket with 100x200mm VESA

ADJ1430-VSL12

Large adjustable dual monitor bracket for two monitors each measuring up to 30 inches in width and with 100x200 mm VESA hole patterns.

QTY:
$93.71
Large Dual Monitor Bracket with 75mm VESA
Large Dual Monitor Bracket with 75mm VESA

ADJ1430-VSL75

Large adjustable dual monitor bracket for two monitors each measuring up to 30 inches in width and with 75x75mm VESA hole patterns.

QTY:
$68.40
Mid-Size Dual Monitor Bracket with 100mm VESA
Mid-Size Dual Monitor Bracket with 100mm VESA

ADJ1523-VSL1

Mid-size adjustable dual monitor bracket for two monitors each measuring up to 23 inches in width and with 100x100 mm VESA hole patterns.

QTY:
$65.71
Mid-Size Dual Monitor Bracket with 75mm VESA
Mid-Size Dual Monitor Bracket with 75mm VESA

ADJ1523-VSL75

Mid-size adjustable dual monitor bracket for two monitors each measuring up to 23 inches in width and with 75x75 mm VESA hole patterns.

QTY:
