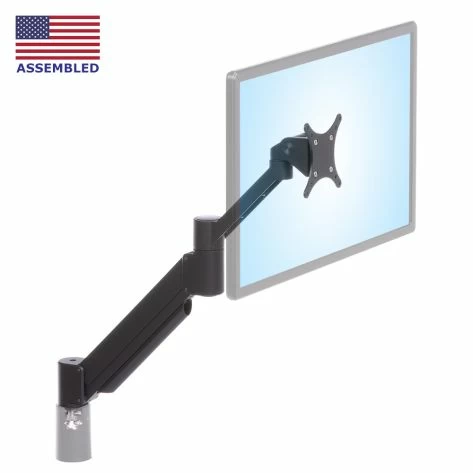

SAA2045KIT Compact monitor arm desk mounted in high position side view in black - tile MODULAR SERIES-118
SAA2045 Adjustable Monitor Arm

In stock

From $245.96

Increase Down Increase Up

Texas Tax-Exempt Customers:

Please select REQUEST QUOTE

madein

SAA2045 Adjustable Monitor Arm

USA ASSEMBLED MODULAR SERIES-118
Please wait while your content is loading.

REQUIRED ITEMS

COMPACT LCD MONITOR ARM FOR BIG VERTICAL REACH IN TIGHT SPACES

  • Enjoy 16 inches of vertical adjustment
  • Uses minimum space: fold to just 3.8 inches in depth
  • Choose 5 to 13, 9 to 21, or 13 to 26 pound capacities
  • Instant monitor rotation from landscape to portrait
  • Over 17 inches of horizontal reach in any vertical position, up to 21.2"
  • Cable management controls cords in lifting arm & forearm
  • When desk mounted, vertical range is over 11 inches
  • Use the 6" vertical extension to increase desk top range
  • Floats your LCD above work surface
  • Select from Flexible Mount Kit, Pole, Wall or Track Mount
  • Choice of 3 VESA sizes from 75 x 75mm to 100 x 200mm
  • Your choice of two colors: Black is our quick ship color
  • Carefully determine your LCD weight before ordering
  • Cable management controls cords in lifting arm & forearm
  • More Questions? Please call us at 888 420 3200
  • Some assembly is required
  • Please watch the YouTube Video for monitor arm installation tips and adjustment instructions

The SAA2045 LCD Monitor Arm provides excellent vertical travel in its most compact position. This articulating arm collapses to a slim 3.8 inches in depth—virtually folding flat against a wall!—yet up to 16 inches of vertical travel is also possible when it is tucked flat against the wall. This LCD monitor arm rotates an amazing 360° at the base, has three movable joints, and allows flat screen monitor tilt to down 45° or up parallel to the ceiling. Float your flat panel monitor above the work surface while enjoying fingertip adjustment of monitor height and position.

Select our Flexible Mount Kit A—which includes the compact wall mount—or from optional mounts to find the best monitor mount for your needs. Regardless of which of the possible mounts you choose, the SAA2045 handles LED and LCD monitors up to 27 inches in size. To determine monitor size, measure your monitor diagonally (a 27 inch monitor is typically 24 inches wide). Note that there are three weight ranges available with this monitor arm. Determine the weight of your monitor without the stand before ordering this product.

The purchasing options on this page provide a great deal of flexibility in configuring your product. Please be aware that Mount Kit A is incompatible with the Heavy-Duty extensions and the 5", 8", and 12" vertical extensions.

Shipping Weight 11 pounds
Shipping Dimensions 23" x 14" x 4"
Warranty 5 year limited

Standard delivery time on the SAA2045 LCD Arm is 3 to 7 business days. Please order before 12 noon CST for next day delivery. Black is a guaranteed Quick Ship color. Quick Ship guaranteed in black with 10 to 21 pounds LCD weight rating.

If your LCD or panel PC weighs more than 20 pounds OR you want more vertical travel or longer reach, check out our Heavy-Duty LCD Arms.

INSTALLING AND ADJUSTING YOUR SAA ARM:

Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.

MORE THAN 20 MOUNT OPTIONS
INTEGRATES WITH FOUR SYSTEMS


COMPLETE MODULARITY BY DESIGN

SERIES-118
VIEW ALL SIMILAR MOUNTING DEVICES

MOUNT KITS
VIEW COMPATIBLE INSTALLATION OPTIONS

EXPLORE
RECENT CUSTOM PROJECTS

LEARN
READ THE SERIES-118 REFERENCE GUIDE

CONSULT
[email protected]   |   888 420 3200

VERSATILE • MODULAR • HEAVY DUTY

ADAPTABLE • FUTURE PROOF




Mount Type

Monitor Arm

Number of Monitors

1 as is
2 with dual bracket

Mounting

  • Flex Kit A
  • Tall Flex C
  • Wall Kit D
  • Dual Wall Kit D3
  • Pole Mount E
  • HD Track F
  • Thru Desk G
  • Slatwall H
  • Dual Pole Mount J
  • Column Mount K
  • Surface Offset K2
  • Dual Desk L
  • Horizontal Track Slider M
  • Horizontal Track Slider M2
  • Wall Mount Roller Trolley N2
  • Economical Flex Kit P
  • Desk Top Roller Trolley Q
  • OEM Mount R
  • Medical Dovetail S
  • Ceiling Roller Trolley U
  • Pole Top Mount Y

Weight Range

5-26 lb

Monitor Horizontal Reach

21.2" from center of mounting pin to front of VESA plate

Vertical Adjustment

16" instant adjustment

Horizontal Extensions

4.5", 9.5", 15.5" HD extensions
Weight restrictions may apply

VESA Options

75 x 75
100 x 100
100 x 200

Portrait to Landscape

Yes

Max Swivel (at Base)

360°

Max Swivel (at Elbow)

360°

Max Swivel (at Monitor)

Up to 360° based on monitor size/tilt

Monitor Tilt Range

+90° up, -45° down

The purchasing options on this page provide a great deal of flexibility in confiuring your product.  Please be aware that Mount Kit A and the 2" and 6" Vertical Extensions are not compatible with all components. You may consult the table below to determine the compatibility of various components.


Category Mount Kits Vertical
Extensions
Heavy Duty
Horizontal
Extensions
Category Does product below
fit into product
to the right?
Mount
Kit A
Mount
Kit C
All Other
Mount
Kits
2"
6"
5"
8"
12"
4.5", 9.5"
and 15.5"
Monitor Arm SAA2045 Y - Y Y - Y
Vertical
Extensions
2" and 6" Y Y Y Y Y Y
   5", 8", and 12" - Y Y - Y Y
Heavy Duty
Horizontal
Extensions
4.5", 9.5", and 15.5" Y Y Y Y Y Y



Professional installation is always recommended for all wall-mounted Ergomart products. Improper installation may result in injury or damage. Consult Ergomart technical support regarding any mounting concerns or questions.



SAA2045 - VERTICAL REACH

SAA2045KIT adjustable monitor arm specification drawing demonstrating the arm extended in high, mid and low positions with measurements

Side view of the SAA2045. With no obstructions, the arm offers 16" of vertical travel and has a horizontal reach of up to 21.2" from the center of the mounting pin to the front of the VESA plate.



SAA2045 - SIDE VIEW

SAA2045KIT adjustable monitor arm specification drawing demonstrating the arm folded in high, mid and low positions with measurements

Side view of the SAA2045. In this illustration, the arm is folded so that the monitor is perpendicular to the wall when wall-mounted. The distance from the center of the mounting pin to the center of the VESA plate depends on the vertical position of the arm.



SAA2045 - DESK MOUNTED HORIZONTAL REACH

SAA2045KIT adjustable monitor arm specification drawing top view showing the arm in fully extended and folded positions with measurements

Top view of SAA2045 when desk mounted. When fully extended, the arm reaches out as far as 21.2". When retracted in the horizontal position, the arm can be folded into as little as 3.8".



SAA2045 - DESK MOUNTED MIN HEIGHT

SAA2045KIT adjustable monitor arm specification drawing with arm desk-mounted shown with and without an extension in lowest position

Side-view of the SAA2045 when desk-mounted. The surface of the desk will inhibit the arm from traveling to its lowest possible position. As a result, the total instant vertical adjustability will be limited to 12.2" (10.9" with Mount Kit A) compared to 16" with the wall mount option. To reclaim the range of motion, optional vertical extensions can be added. Please note, Mount Kit A is not compatible with the 5, 8 and 12 inch extensions.



SAA2045 - DESK MOUNTED MAX HEIGHT

SAA2045KIT adjustable monitor arm specification drawing with arm desk-mounted shown with and without an extension in highest position

Side-view of the SAA2045 when desk-mounted. The figure shows the impact of adding vertical extensions on the maximum height the arm can reach. The 12" extension (with Mount Kit C) allows the maximum height to reach 33.5".



SAA2045 - VERTICAL EXTENSION TABLE
MOUNT KIT C

Vertical Extension Table for the SAA2045 with Mount Kit C

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit C.



SAA2045 - VERTICAL EXTENSION TABLE
MOUNT KIT A

Vertical Extension Table for the SAA2045 with Mount Kit A

Vertical Extensions have an impact on vertical adjustability in a desk mounted set up. Here are the ranges with Mount Kit A.



Front view of V22 200 x 200 mm VESA adapter plate for large computer monitors and TVs
200x200mm Flat VESA Plate with Hardware

This large VESA bracket is intended for mounting a monitor or TV with a 200x200 mm, 100x200 mm, or 120x180 mm hole pattern. The central hole patterns are 50x50 mm, 75x75 mm, and 100x100 mm, enabling this bracket to attach to the mounting location (e.g. an Ergomart Tilter Head) using a VESA 75/100 adaptor.

QTY:
$22.05
Front view of V24 200 x 400 mm VESA adapter plate for very large computer monitors and TVs
200x400mm Flat VESA Plate with Hardware

The large 200x400 mm VESA adaptor plate supports 50 mm, 75 mm, 100 mm and 200 mm square patterns, as well as 100x200 mm, 120x180 mm, 200x300 mm and 200x400 mm rectangular patterns. In some cases an additional 75 or 100 mm VESA adaptor is needed to interface the 200 x 400 mm VESA plate to the mounting location.

QTY:
$27.56
VESA 1/4-inch Spacer Kit
VESA 1/4-inch Spacer Kit

This VESA 1/4-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/4" or less to be attached to an Ergomart VESA plate.

QTY:
$2.10
VESA 1/2-inch Spacer Kit
VESA 1/2-inch Spacer Kit

This VESA 1/2-Inch Spacer Kit allows monitors with VESA hole locations that are recessed by 1/2" or less to be attached to an Ergomart VESA plate.

QTY:
$3.15
  • Can I mount an Apple iMac or Cinema Display on this monitor arm?

    If your Apple has a VESA adapter accessory (available from Apple for about $30), yes! Just choose the correct weight range once you have determined the weight of your Apple device without the stand.

  • Does this arm allow me to rotate from landscape to portrait?

    Absolutely. Once the monitor is installed on the mounted arm, you will be able to grasp the monitor like a steering wheel and turn it. You will NOT be able to rotate the rotation mechanism with your bare hands before you attach the monitor; you must have the leverage that the monitor provides.

  • My desk work surface is 2.5" thick and I want to do the through desk configuration (Ergomart's goes up to 1.75")—what do I do?

    Contact Ergomart by phone (888 420 3200), and we will provide an alternate bolt that will accommodate the thickness of your surface. Make certain you have received a written confirmation with a notation of the change on your sales order.

  • What is meant by "5 year limited" warranty?

    In general terms, this product is covered from the ship date for five years. The gas spring cylinder is warranted to maintain 95% of its stated maximum load for five years, and the overall arm is warranted against defects and premature wear during that period. For 24/7 environments, these are rated at three years. Any SAA2045 sold after Oct. 1, 2010 comes with this stated warranty and is not subject to prorating limitations found in the second and third paragraph the general warranty. The customer pays for shipping back to the factory for factory repair. No product is accepted for repair or replacement without a return authorization provided via email and / or fax from Ergomart.

  • I am confused about the height range capability: in one place you say 15.5 inches and another you say 11 inches—which is it?

    When the arm is attached to a desktop or other horizontal surface, the monitor or LCD arm "elbow joint" stops the vertical travel of the arm. But when the unit is attached to a wall or slatwall (and there is no obstruction), the arm can move up and down as much as it is mechanically capable, which is about 15.5". * Using an optional 6 inch vertical extension usually ensures the full range of travel on a desktop. For further clarification, please speak with a representative at Ergomart (888 420 3200), who will be pleased to assist you.

  • Can I attach the arm to a non vertical or non horizontal surface?

    No, the arm only functions correctly when it is positioned properly.
